Boss

VE5WH

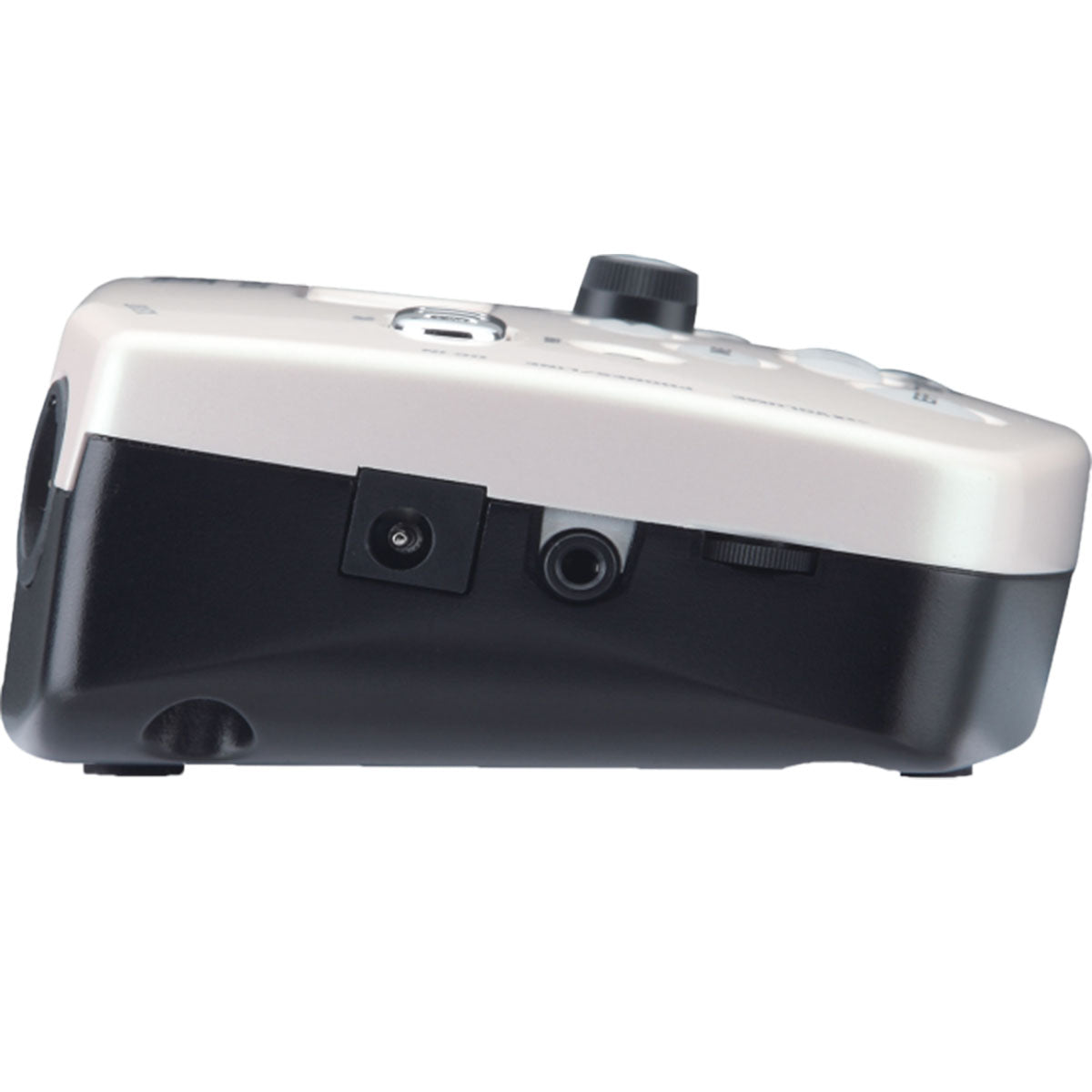

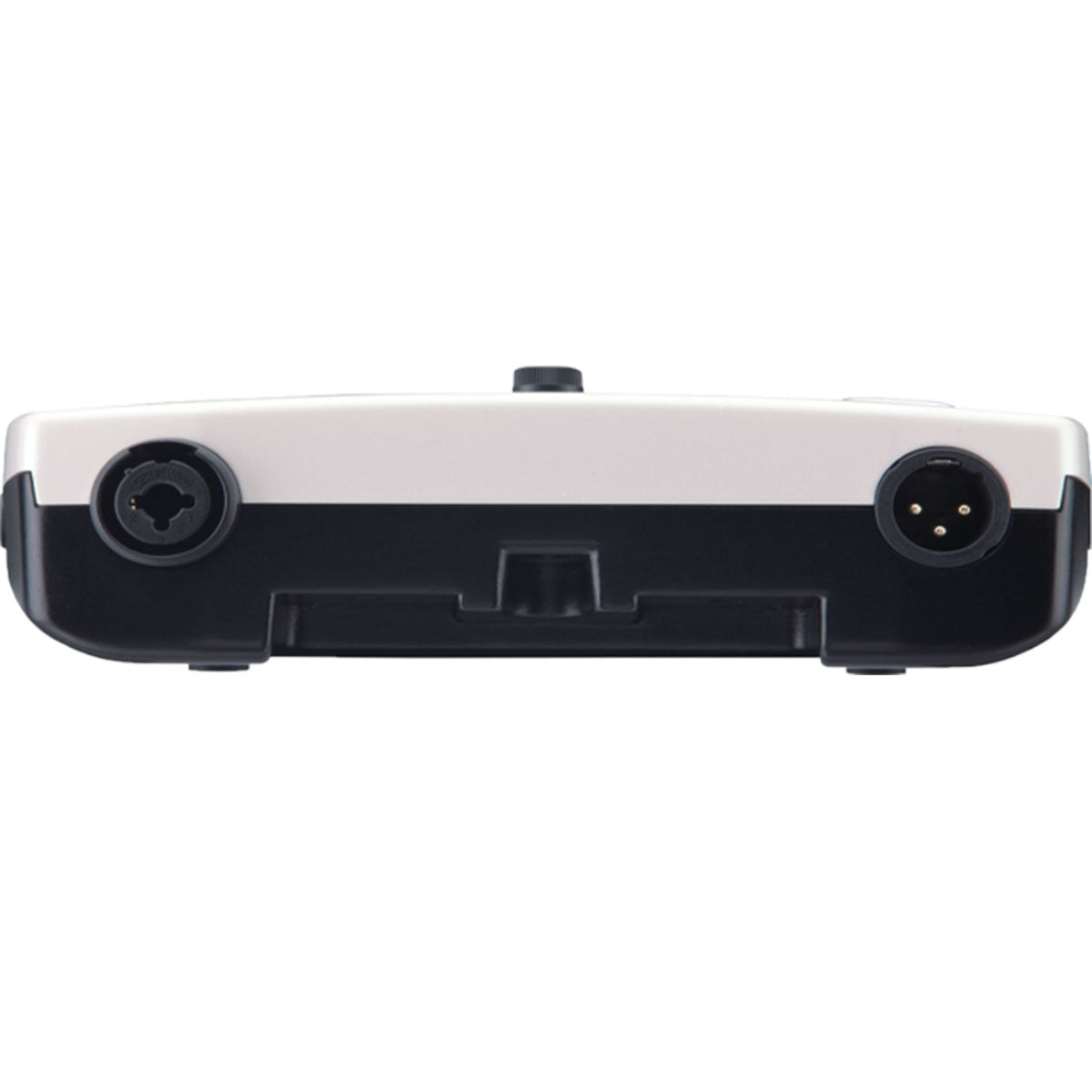

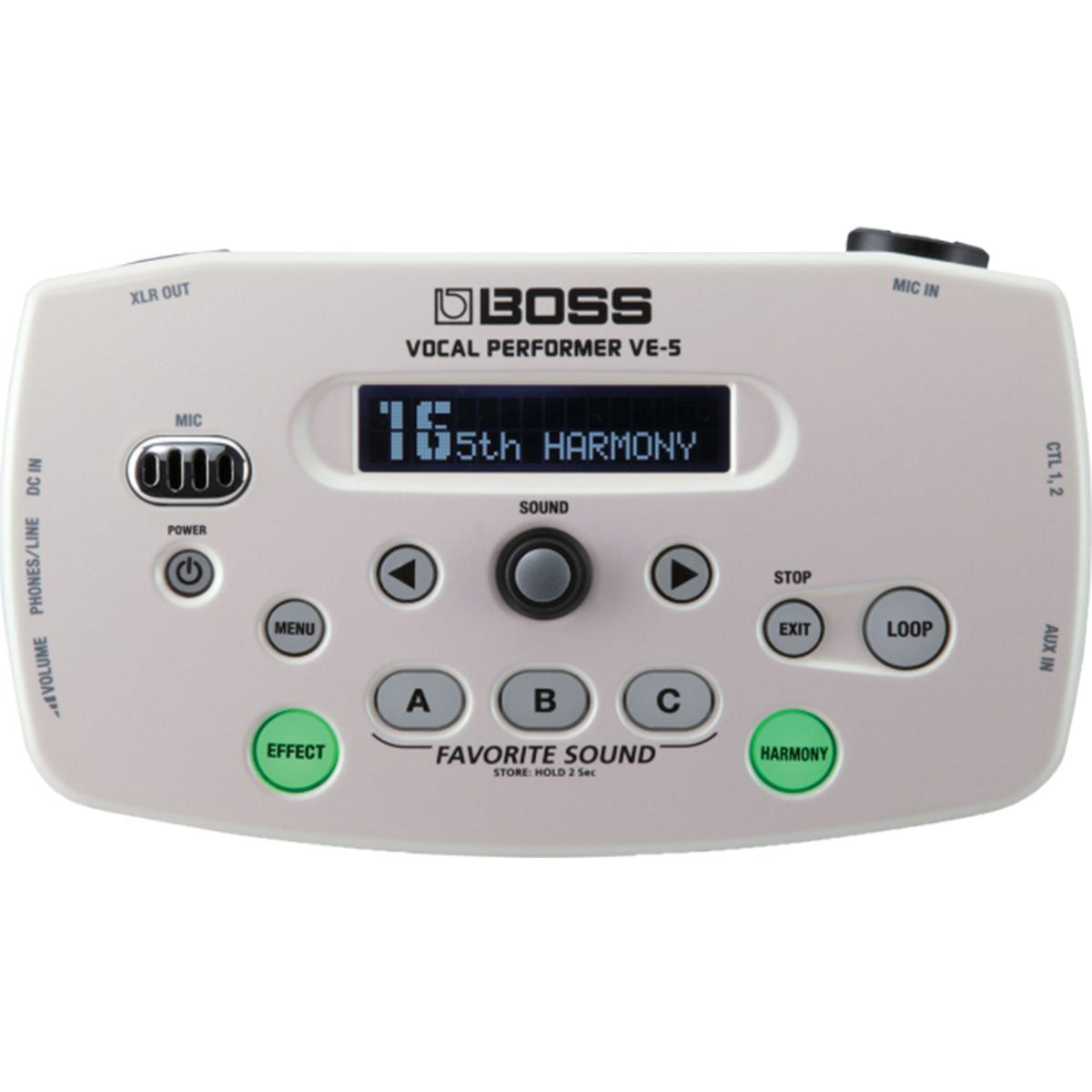

Boss VE-5 Vocal Performer Effects White VE5WH

Product Information:

COMPACT VOCAL PROCESSOR WITH FRIENDLY FEATURES
The VE-5 Vocal Performer is a compact and mobile personal effects processor and looper for vocalists. Featuring a simple-to-use tabletop design that can be easily attached to a mic stand for performing, the VE-5 is perfect for singers, rappers, beatboxers, webcasters, and anyone that wants to have fun with processing vocal sounds. Its physical design is small and light, yet its effects are heavyweight class, derived from the popular VE-20 Vocal Performer. With battery operation and built-in phrase looping, the VE-5 is also an ideal tool for street performers who want to bring a new dimension of creativity to their act.

  • Easy one-touch operation
  • Six types of high-quality vocal effects inherited from the VE-20 – Reverb, Delay, Double/Harmony, Dynamics, Pitch Correct, and Tone/SFX
  • Phrase Looper adds impact to real-time vocal performances, including harmonizing and layered beatboxing
  • Favorite Sound function provides immediate access to preferred sounds

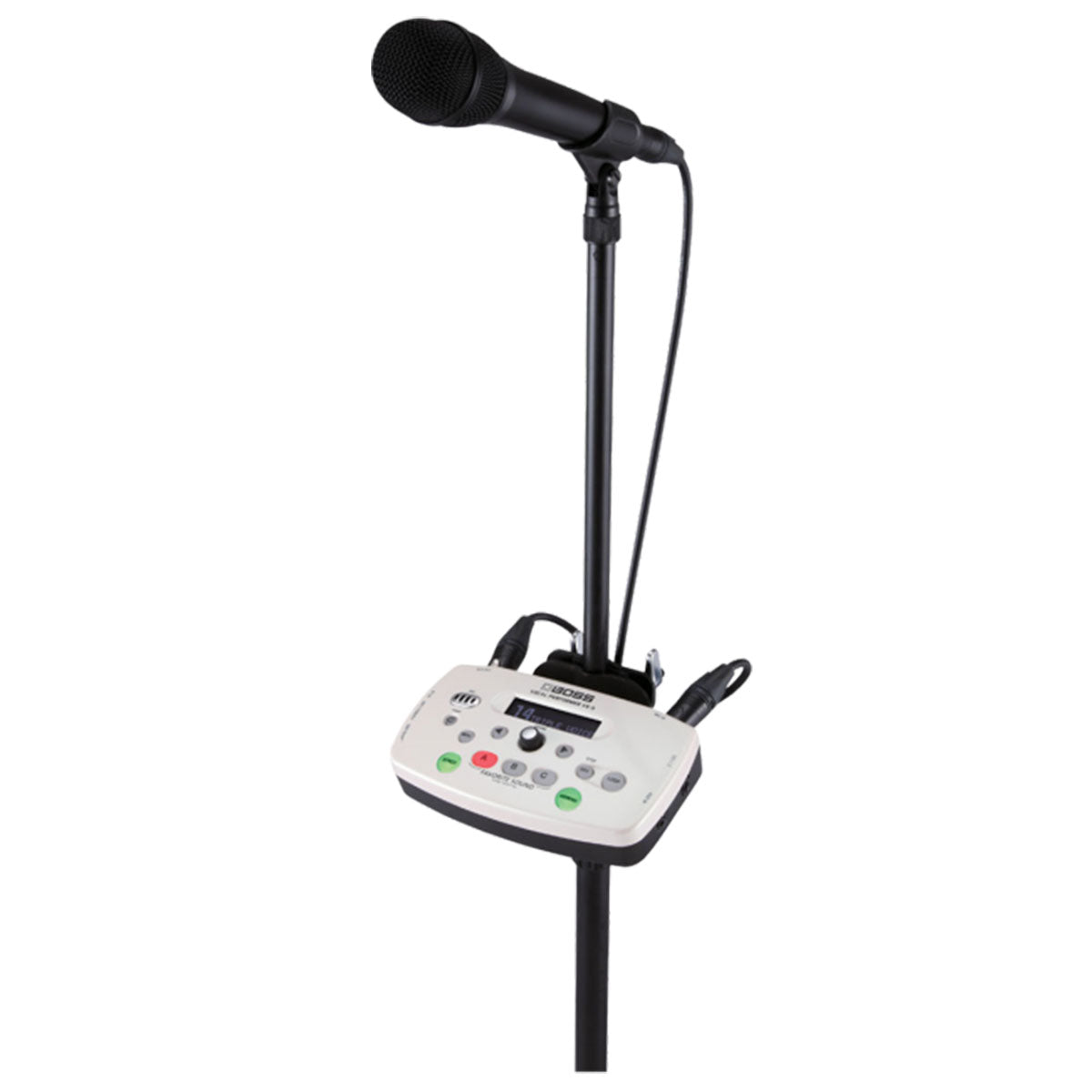

  • Ideal for live performance, as well as tabletop setups; mic-stand mount included
  • Internal microphone for instant gratification
  • Aux input for blending external music
  • Battery operation for street performance (AC adapter sold separately)

Specifications:

Nominal Input Level: MIC IN: -40 dBu (MicSens = 40)
AUX IN: -20 dBu
Input Impedance: MIC IN: 4 k ohms
AUX IN: 22 k ohms
Nominal Output Level: XLR OUT: -40 dBu
PHONES/LINE: TBD
Output Impedance: XLR OUT: 600 ohms
PHONES/LINE: 66 ohms
Memory: Sound: 50
Effect Types: DYNAMICS, PITCH CORRECT, TONE/SFX, DOUBLE/HARMONY, DELAY, REVERB
Phrase Loop: 38 sec. (Mono only)
Display: 16 characters, 2 lines (backlit LCD)
Connectors: MIC IN jack/XLR type (balanced, phantom power: DC 48 V, 10 mA Max), 1/4 inch TRS phone type (balanced)
AUX IN jack (Stereo miniature phone type)
XLR OUT jack (XLR type)
PHONES/LINE jack (Stereo miniature phone type)
CTL 1, 2 Jack (1/4" TRS phone type)
DC IN Jack (DC 9 V)
Power Supply: Rechargeable Ni-MH Battery (AA, HR6) or Alkaline (AA, LR6) x 4, AC Adaptor (PSA series: sold separately)
Current Draw: 190 mA (9 V max.)
Expected battery life under continuous use: Rechargeable Ni-MH Battery (AA, HR6): Approx. 20 hours (phantom power: OFF)/Approx. 9 hours (phantom power: ON)
Alkaline (AA, LR6) : Approx. 13 hours (phantom power: OFF)/Approx. 6 hours (phantom power: ON)
* These figures will vary depending on the specifications of the batteries and the actual conditions of use.

Accessories: Owner’s Manual
Leaflet (USING THE UNIT SAFELY, IMPORTANT NOTES, and Information)
Mic Stand Holder (Screw x 2, Washer x 2, Spring Washer x 2)
Audio Cable (Stereo Miniature Phone Type, Cable Tie Attached)
Alkaline Battery (AA, LR6) x 4
Options (sold separately): AC Adaptor (PSA series)
Footswitch (FS-5U, FS-6, FS-7)

SIZE AND WEIGHT (INCLUDING BATTERIES)
Width: 178 mm
7-1/16 inches
Depth: 108 mm
4-1/4 inches
Height: 55 mm
2-3/16 inches
Weight: 460 g
1 lbs. 1 oz.

SIZE AND WEIGHT (INCLUDING BATTERIES AND MIC STAND HOLDER)
Width: 178 mm
7-1/16 inches
Depth: 159 mm
6-5/16 inches
Height: 55 mm
2-3/16 inches
Weight: 700 g
1 lbs. 9 oz.
