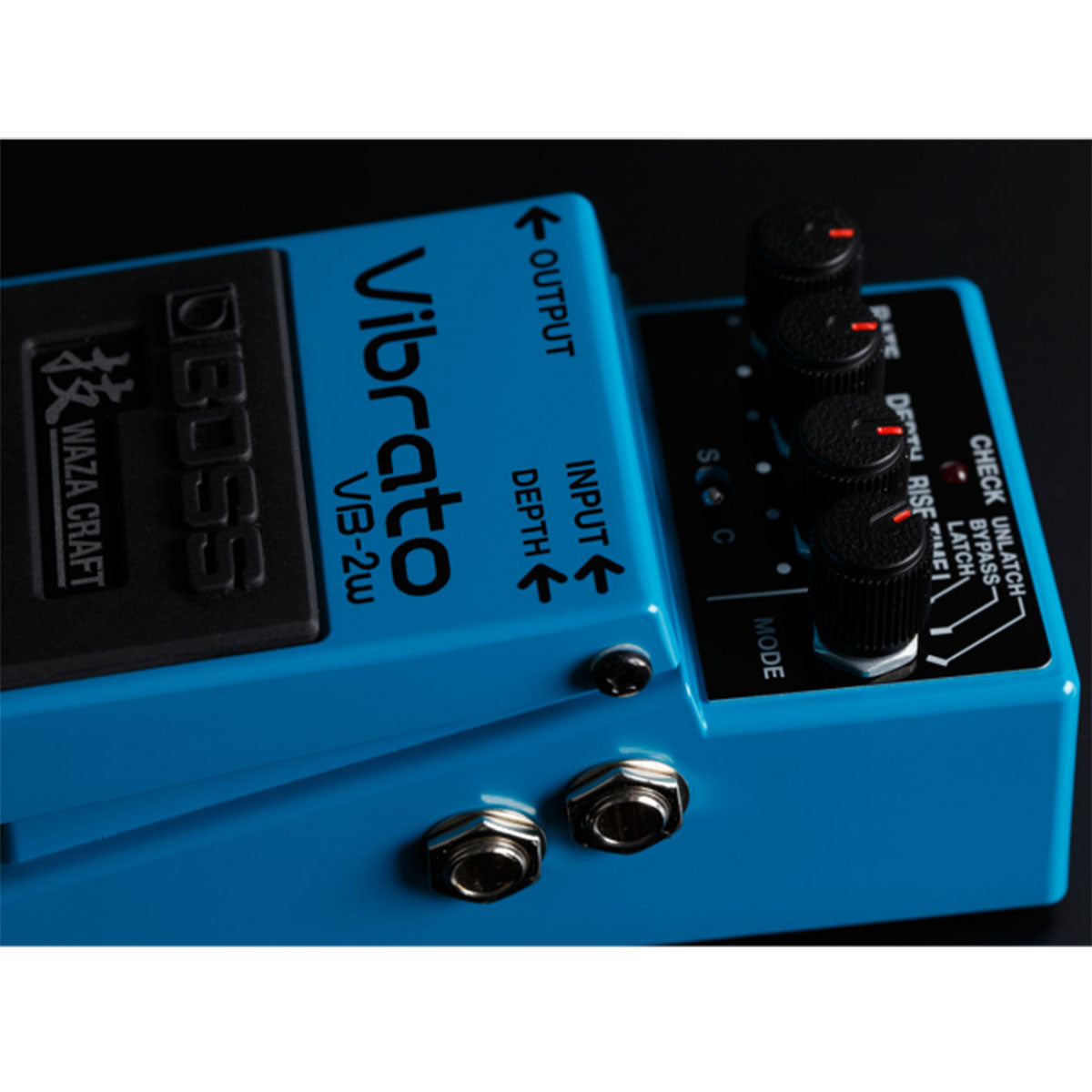

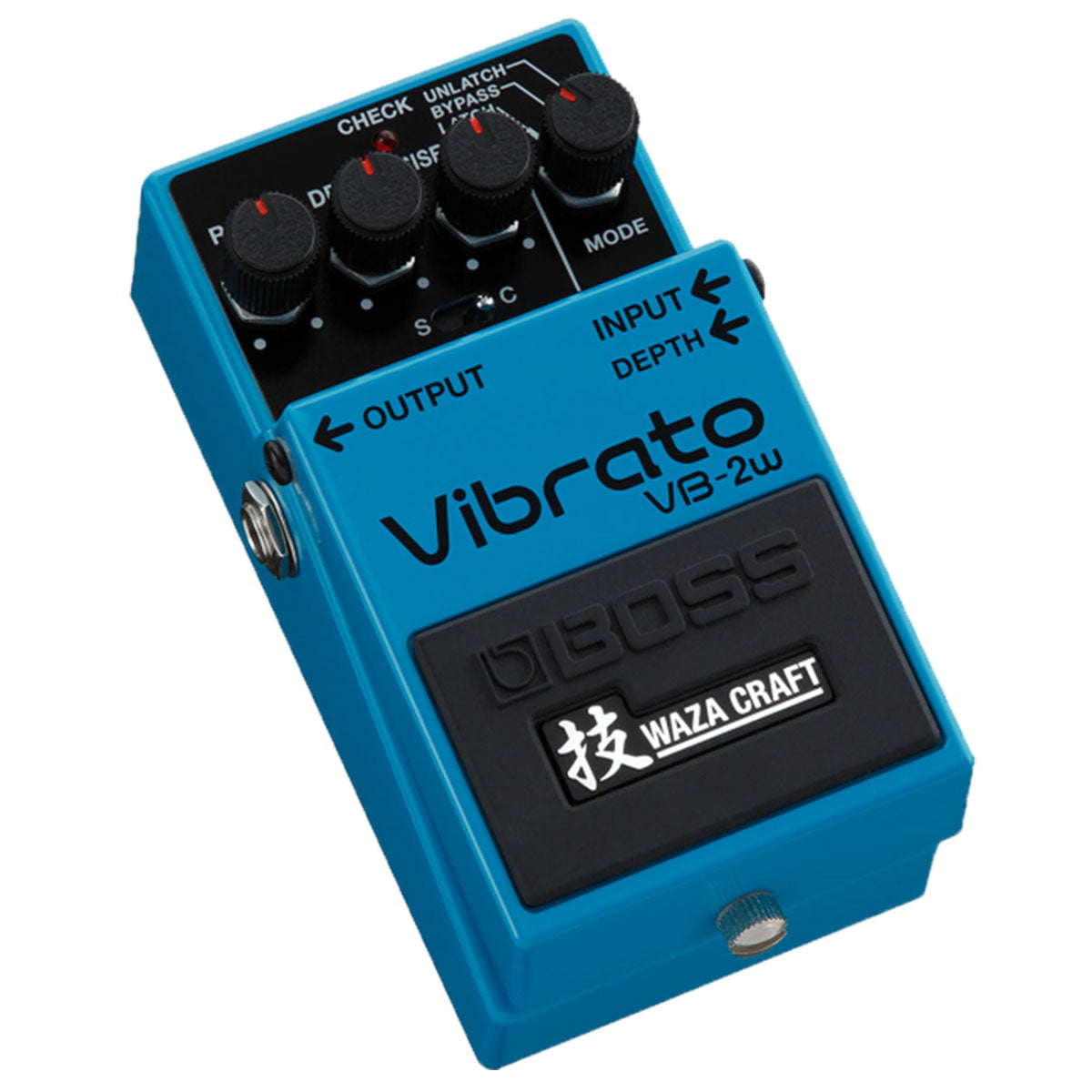

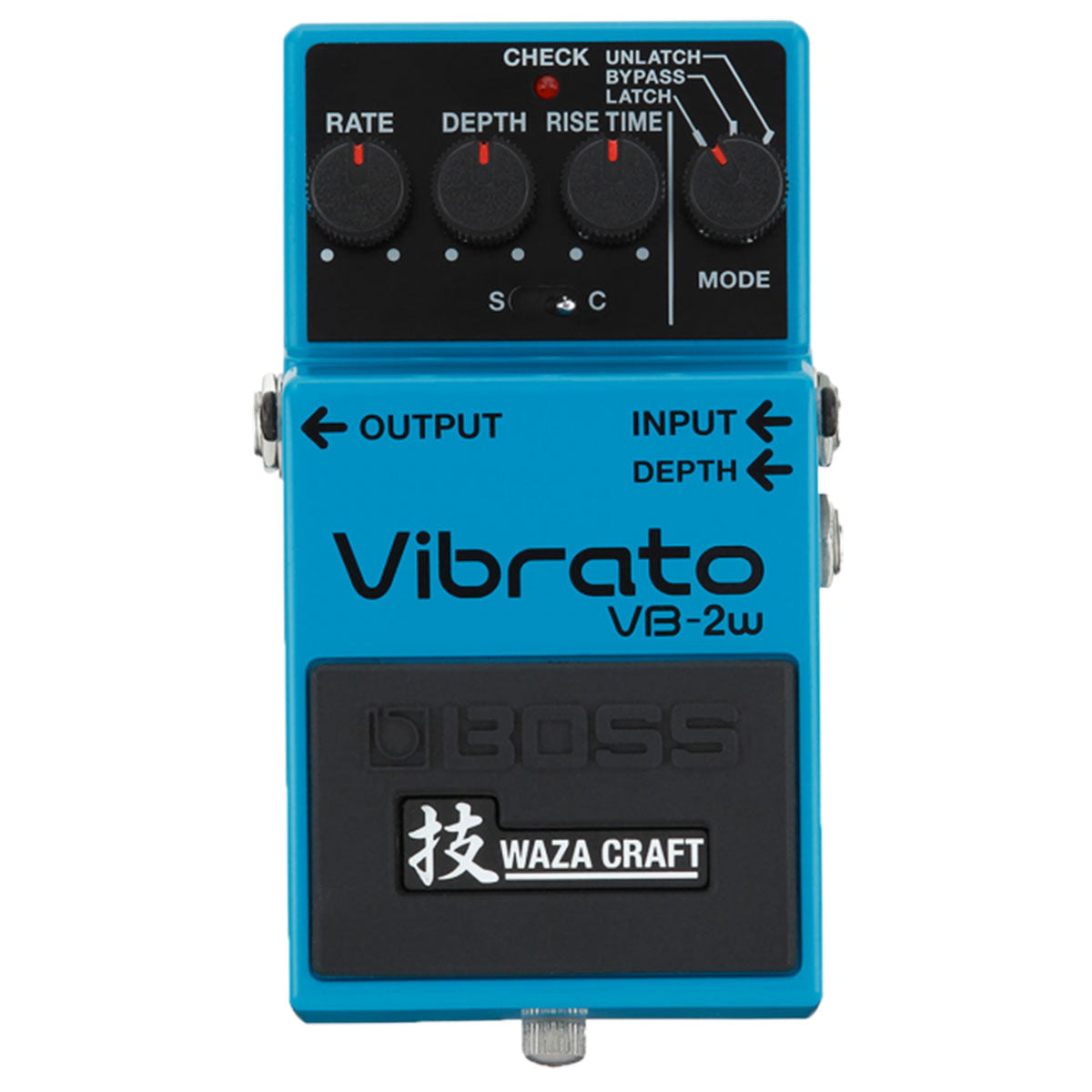

Boss VB-2W WAZA Craft Vibrato Effects Pedal VB2W

Product Information:

TRUE VIBRATO EXPRESSION, REBORN WITH WAZA INNOVATION

Ahead of its time when it debuted in 1982, the VB-2 Vibrato has been rediscovered by modern players looking to create unique guitar textures with stompbox effects. Thanks to its expressive, one-of-a-kind sound, this rare pedal has gone on to become one of the most valuable BOSS effects in the vintage market. Now, the progressive spirit of the VB-2 has been reborn as the Waza Craft VB-2W. Using all-analog circuitry, the VB-2W authentically reproduces the true pitch-shifted vibrato of the original pedal, and also adds an innovative new vibrato mode and real-time control function for enhanced expression.

  • Premium edition Waza Craft pedal delivers the ultimate BOSS tone experience
  • Custom mode features a totally new vibrato sound with unique filter wave
  • Standard mode provides a true reproduction of the vintage VB-2 Vibrato sound
  • All-analog circuit with BBD (bucket brigade) vibrato line
  • Control the effect depth in real time with an optional expression pedal
  • Rise Time knob to control the initial onset of the vibrato effect
  • Unlatch mode activates the effect only while pressing the pedal, ideal for adding vibrato to specific notes and chords
  • Bypass mode takes the BBD out of the signal path to eliminate latency when the effect is off
  • BOSS five-year warranty

Specifications:

Modes: 3 modes
LATCH
UNLATCH
BYPASS
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Controls: Pedal switch
Standard/Custom switch
RATE knob
DEPTH knob
RISE TIME knob
MODE knob
Indicator: CHECK indicator (Serves also as battery check indicator)
Connectors: INPUT jack
OUTPUT jack
DEPTH jack
DC IN jack
Power Supply: Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
AC adaptor (sold separately)
Current Draw: 35 mA
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.): Alkaline: Approx. 22 hours
Carbon: Approx. 4 hours
Accessories: Owner's Manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Alkaline battery (9V, 6LR61)
Options (sold separately): AC adaptor: PSA series
Expression Pedal: FV-500H, FV-500L, Roland EV-5

SIZE AND WEIGHT
Width: 73 mm
2-7/8 inches
Depth: 129 mm
5-1/8 inches
Height: 59 mm
2-3/8 inches
Weight (including battery): 450 g
1 lb
