Boss

PH3

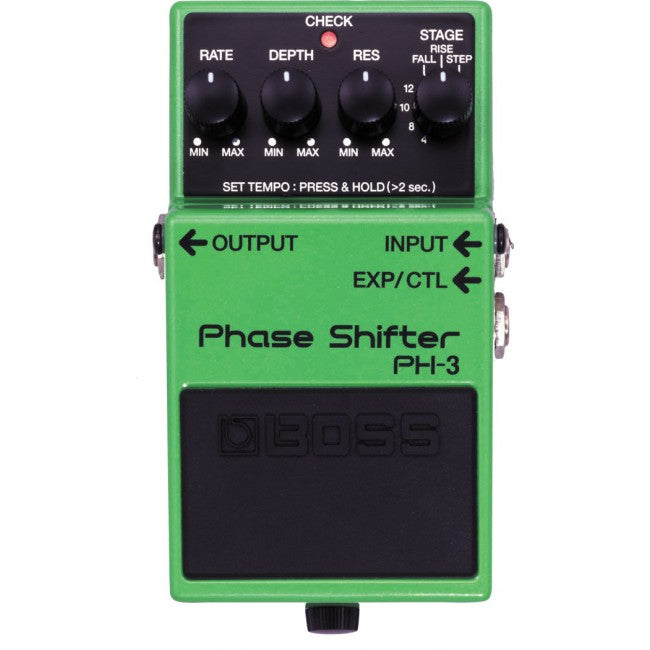

Boss PH-3 Phase Shifter Effects Pedal PH3

Pay With AfterPay Zip

  • Product Information:

    The BOSS PH-3 Phase Shifter pedal provides a wealth of vintage and modern phasing effects, including new "Rise" and "Fall" modes for unique, unidirectional phasing. Syncing these phasing effects is as simple as tapping the pedal to the desired tempo, while an optional expression pedal provides realtime control of the PH-3's Rate, Filter and Tempo.

    Compact pedal with versatile vintage and modern BOSS phasing
    New "Rise" and "Fall" modes create unidirectional phasing
    Includes classic multi-stage phasers with selectable stages
    Realtime control of Rate, Filter, and Tempo via optional expression pedal
    Tap tempo sync of phasing effects
    BOSS 5-year warranty

    Specifications:

    Nominal Input Level
    -20 dBu
    Input Impedance
    1 M ohms
    Nominal Output Level
    -20 dBu
    Output Impedance
    1 k ohms
    Recommended Load Impedance
    10 k ohms or greater
    Residual Noise Level
    -92 dBu (IHF-A, Typ.)
    Connectors
    INPUT Jack, OUTPUT Jack, EXP/CTL Jack, AC Adaptor Jack (DC 9 V)
    Power Supply
    DC 9 V: Dry Battery 9 V type (6F22/9 V), AC Adaptor
    Current Draw
    50 mA (DC 9 V)
    Accessories
    Dry Battery 9 V type (6F22/9 V)
    Options
    AC Adaptor (PSA-Series), Expression Pedal (Roland EV-5), Footswitch (FS-5U)
    Size and Weight ( incl. battery )
    Width
    73 mm
    2-7/8 inches
    Depth
    129 mm
    5-1/8 inches
    Height
    59 mm
    2-3/8 inches
    Weight
    0.4 kg
    0 lbs. 15 oz.
    * 0 dBu = 0.775 Vrms
