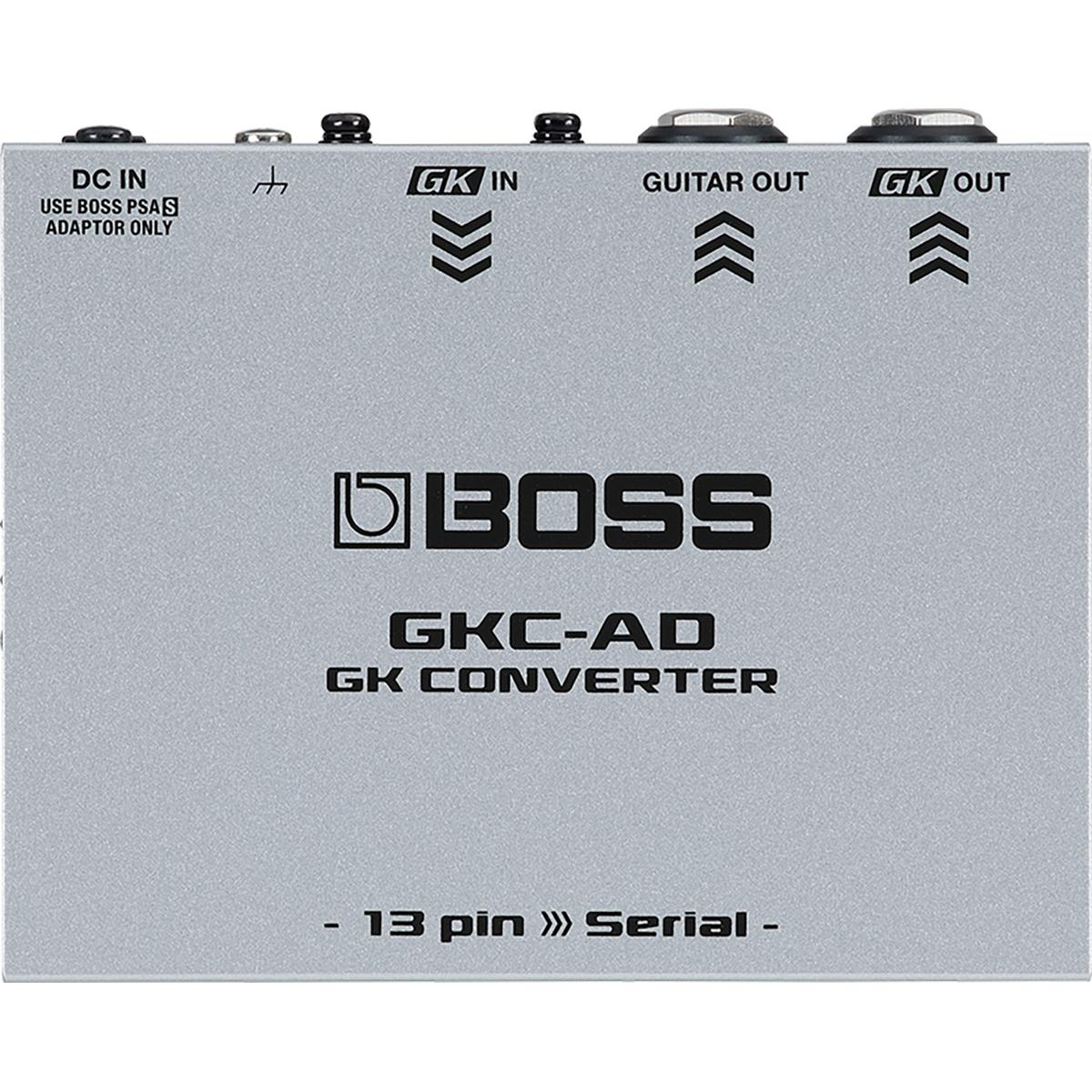

Boss GKCAD 13-Pin Serial GK Interface from GK3 or GK3B Divided Pickup GKC-AD

Specifications

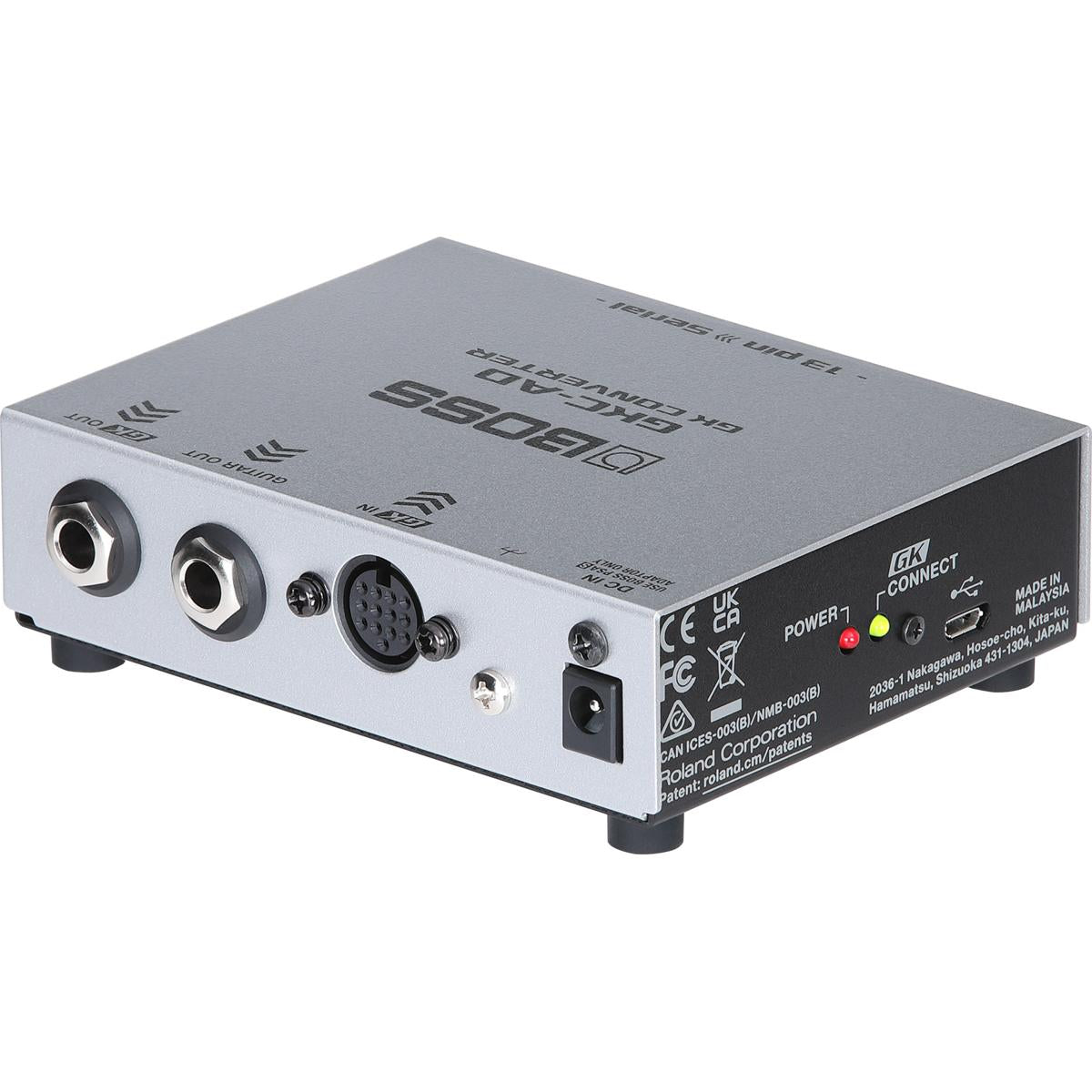

CONNECTORS

• GK IN connector: 13 pins DIN type
• GK OUT jack: 1/4-inch TRS phone type (for BGK cable only)
• GUITAR OUT jack: 1/4-inch phone type
• DC IN jack
• USB port: USB Micro-B (program update only)

NOMINAL OUTPUT LEVEL

• GUITAR OUT: -10 dBu

RECOMMENDED LOAD IMPEDANCE

• GUITAR OUT: 10 k ohms or greater

INDICATORS

• GUITAR IN: 1 M ohm
• POWER indicator
• GK CONNECT indicator

CURRENT DRAW

• 240 mA

POWER SUPPLY

• AC adaptor

ACCESSORIES

• AC adaptor
• Owner’s Manual
• Leaflet “USING THE UNIT SAFELY“

OPTIONS (sold separately)

• Serial GK cable: BGK-15 (15 ft./4.5 m), BGK-30 (30 ft./9 m)

SIZE AND WEIGHT

• Width: 115 mm (4-17/32 inches)
• Depth: 92 mm (3-5/8 inches)
• Height: 36 mm (1-7/16 inches)
• Weight: 340 g (12 oz)
