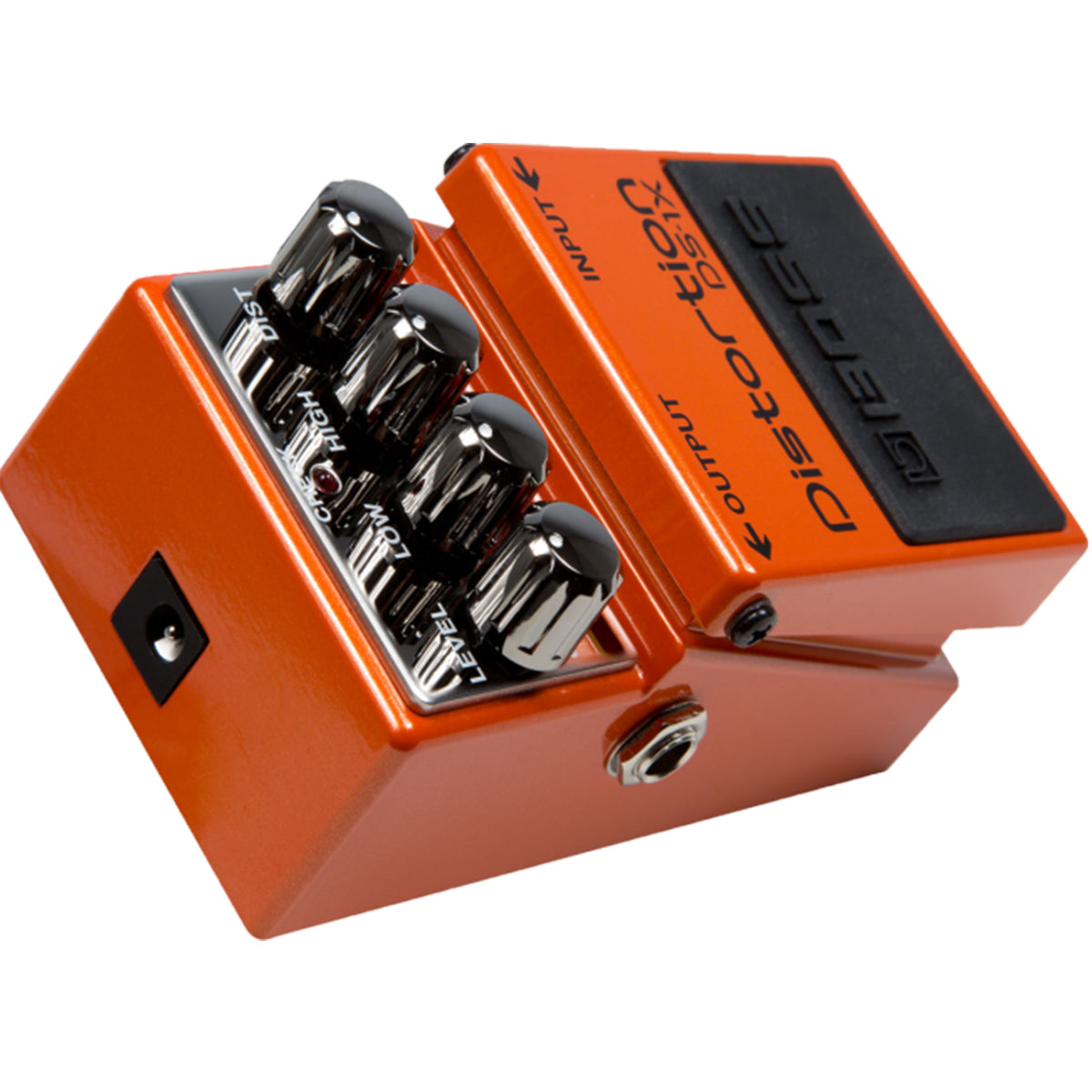

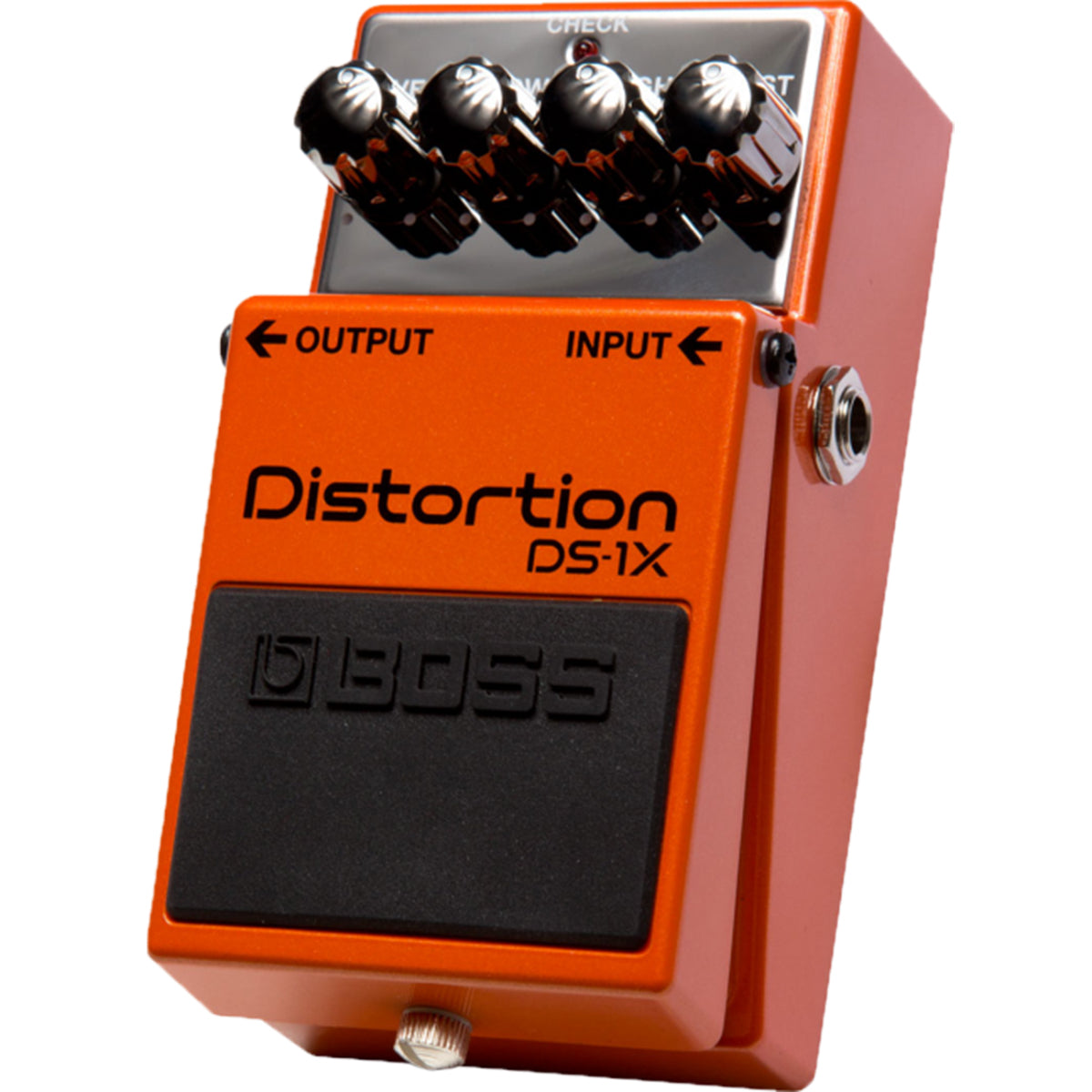

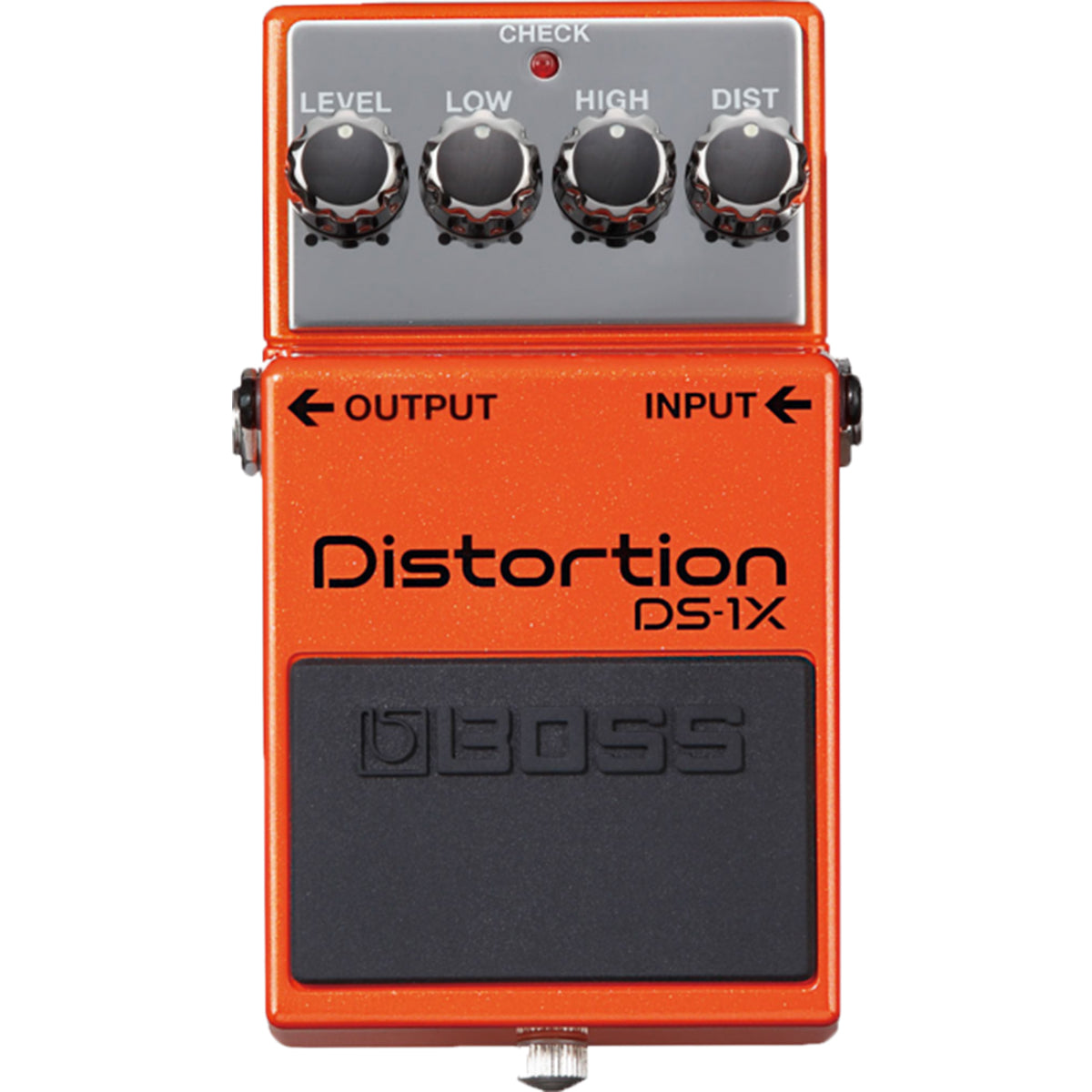

Boss DS-1X Distortion Effects Pedal DS1X

Product Information:

SPECIAL EDITION BOSS PEDAL WITH PREMIUM TONE

The DS-1X launches the famous BOSS distortion into a modern era of expression, delivering an unmatched level of performance for guitarists with an ear for tone. This next-generation stomp combines over 35 years of innovation in pedal design with the most advanced technologies, bringing you a completely new tonal experience that’s only possible with the legendary expertise of BOSS. Prepare to be amazed—the inspiring and ultra-responsive DS-1X will change your thinking about distortion pedals forever.

  • Special edition BOSS distortion pedal with next-generation sound, feel, and tonal response
  • All-new design provides a superior playing experience that’s unattainable with analog distortion pedals
  • Powerful real-time processing adapts to your playing to provide ideal distortion tones in every register
  • Enjoy perfect sounds over the entire fretboard, from tight, crisp tones on the low strings to fat, singing tones on the highest notes
  • High-clarity distortion sound that’s never muddy or boomy, even when playing two or more notes at the same time
  • Ultra-responsive to volume changes and picking dynamics
  • Very low noise, even with high-gain settings
  • Drive, High, and Low knobs offer a wide range of sound shaping not found in typical stompbox pedals
  • Striking appearance with exclusive chrome knobs and control plate, plus vintage silver knob for battery compartment access
  • Features BOSS’ innovative Multi-Dimensional Processing (MDP), realized with proprietary technology and custom DSP
  • BOSS five-year warranty

Specifications:

Nominal Input Level: -20 dBu
Input Impedance: 1 M ohm
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohm
Recommended Load Impedance: 10 k ohms or greater
Controls: Pedal switch
LEVEL knob
LOW knob
HIGH knob
DIST knob
Indicator: CHECK indicator (Serves also as battery check indicator)
Connectors: INPUT jack
OUTPUT jack
AC adaptor jack (DC 9 V)
Power Supply: Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)
AC adaptor (sold separately)
Current Draw: 45 mA
Expected battery life under continuous use
Alkaline: Approx. 9 hours
Carbon: Approx. 2.5 hours

* These figures will vary depending on the actual conditions of use.
Accessories: Owner's Manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")
Alkaline battery (9V, 6LR61)
Option (sold separately): AC adaptor (PSA series)

SIZE AND WEIGHT
Width: 73 mm
2-7/8 inches
Depth: 129 mm
5-1/8 inches
Height: 59 mm
2-3/8 inches
Weight: 450 g
1 lbs.
