Product Information:
DIMENSION SQUARED

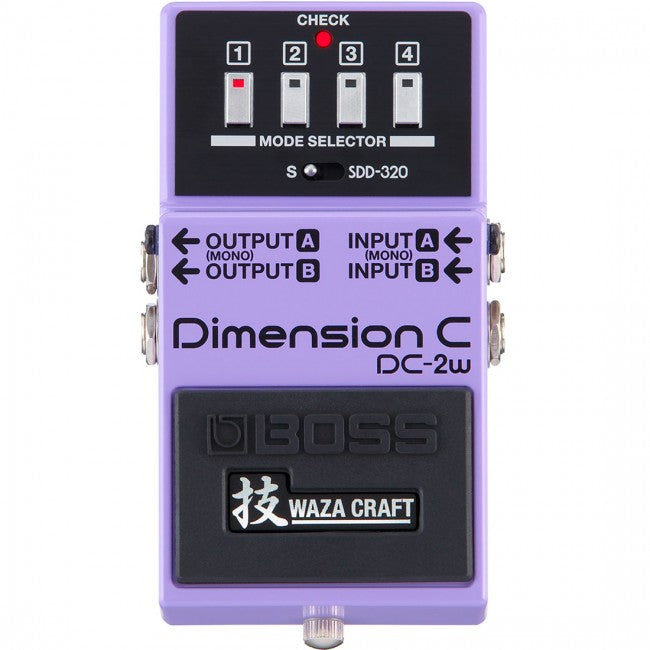

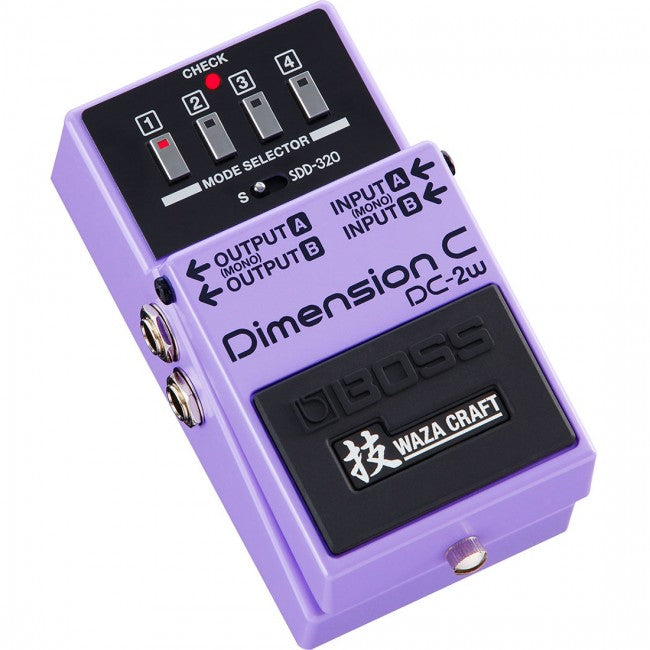

The genuine BOSS and Roland Dimension effect is back, and it’s now more versatile than ever! Designed in the premium Waza Craft analog tradition, the DC-2W offers not just a perfect sonic recreation of the original DC-2 Dimension C pedal, but also the legendary SDD-320 Dimension D studio rack effect it was based on. The DC-2W features the same intuitive four-button preset interface as the original ‘80s-era effects, now evolved with electronic switching that unlocks a multitude of sonic variations not available on the vintage units.
Highly sought-after by musicians and audio engineers, the Dimension’s unique spatial processing magically enhances the width and depth of any sound, from electric and acoustic guitars to keyboards, vocals, and other sources. Built from the original circuit designs and updated with modern refinements, the DC-2W is the only pedal available that delivers the classic Dimension experience with complete sonic authenticity.
Enhance Your Sound with Natural Width and Depth
The vintage Dimension effect is famous for its innovative 3D spatial processing that just makes everything sound a little better. It’s often mistakenly called a chorus effect, but it’s actually not. Though time-based like a chorus, the Dimension’s circuit is quite unique and sophisticated, subtly enhancing the width and depth of the source audio without any prominent modulated movement. The resulting sound is more open and natural, gently enriching any instrument or mix without making it sound overly processed.
Four Switches, Expanded Sonic Possibilities
Just like the original Dimension effects, the DC-2W offers a simple and direct interface with four preset switches that provide sonic variations with increasing width and depth. While the originals had mechanical switches, the DC-2W is equipped with modern electronic switches and status LEDs for more solid performance. The new switches also allow you to press two at once to access a variety of additional sounds. Across the DC-2W’s two effect modes (S and SDD-320), 20 different Dimension variations are possible with just four switches.
Specifications:
Premium Waza Craft pedal with all-analog audio circuitry
Standard mode provides the sound of the original DC-2 Dimension C pedal
SDD-320 mode authentically reproduces the vintage Roland SDD-320 Dimension D, a legendary studio rack effect heard on countless hit records
Iconic four-button preset interface, updated with reliable electronic switches and LED status indicators
Four main sounds in each mode, plus six variations by pressing two switches together (20 total sounds available)
Premium buffer and enhanced bypass circuitry
Versatile I/O for integrating with any mono or stereo application, from guitar and bass pedalboards to keyboards and studio mixing
Made in Japan
BOSS five-year warranty
Modes S (Standard)
SDD-320
Nominal Input Level -20 dBu
Input Impedance 2.2 M ohmsNominal Output Level-20 dBu
Output Impedance 1 k ohm
Recommended Load Impedance 10 k ohms or greater
Bypass Buffered bypass
Controls Pedal switch
S/SDD-320 switch
MODE SELECTOR [1]--[4] buttons
Indicators CHECK indicator (Serves also as battery check indicator)
MODE SELECTOR [1]--[4] indicators
Connectors INPUT A (MONO) jack: 1/4-inch phone type
INPUT B jack: 1/4-inch phone type
OUTPUT A (MONO) jack: 1/4-inch phone type
OUTPUT B jack: 1/4-inch phone type

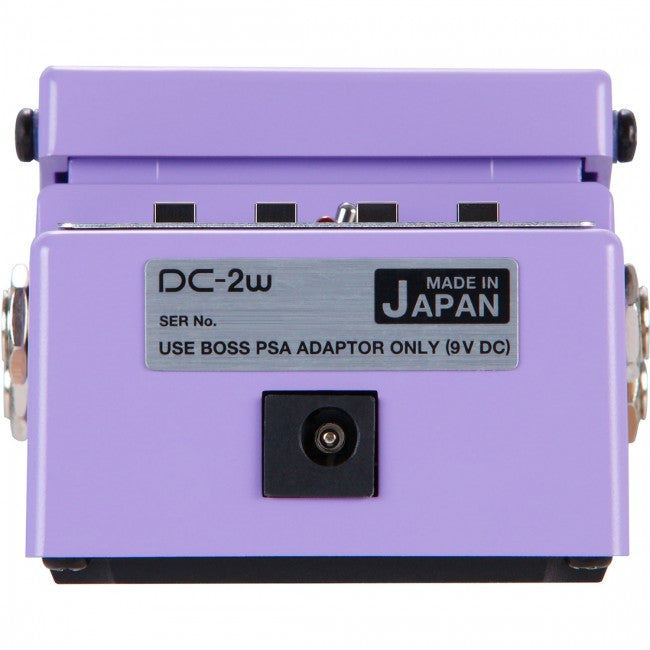

DC IN jack
Power Supply Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw65 mA
Expected battery life under continuous useAlkaline: Approx. 6 hours
*These figures will vary depending on the actual conditions of use.
Accessories Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)
Options (sold separately) AC adaptor: PSA series
SIZE AND WEIGHT
Width73 mm
2-7/8 inchesDepth129 mm
5-1/8 inchesHeight59 mm
2-3/8 inchesWeight (including battery)450 g
1 lb
