Product Information

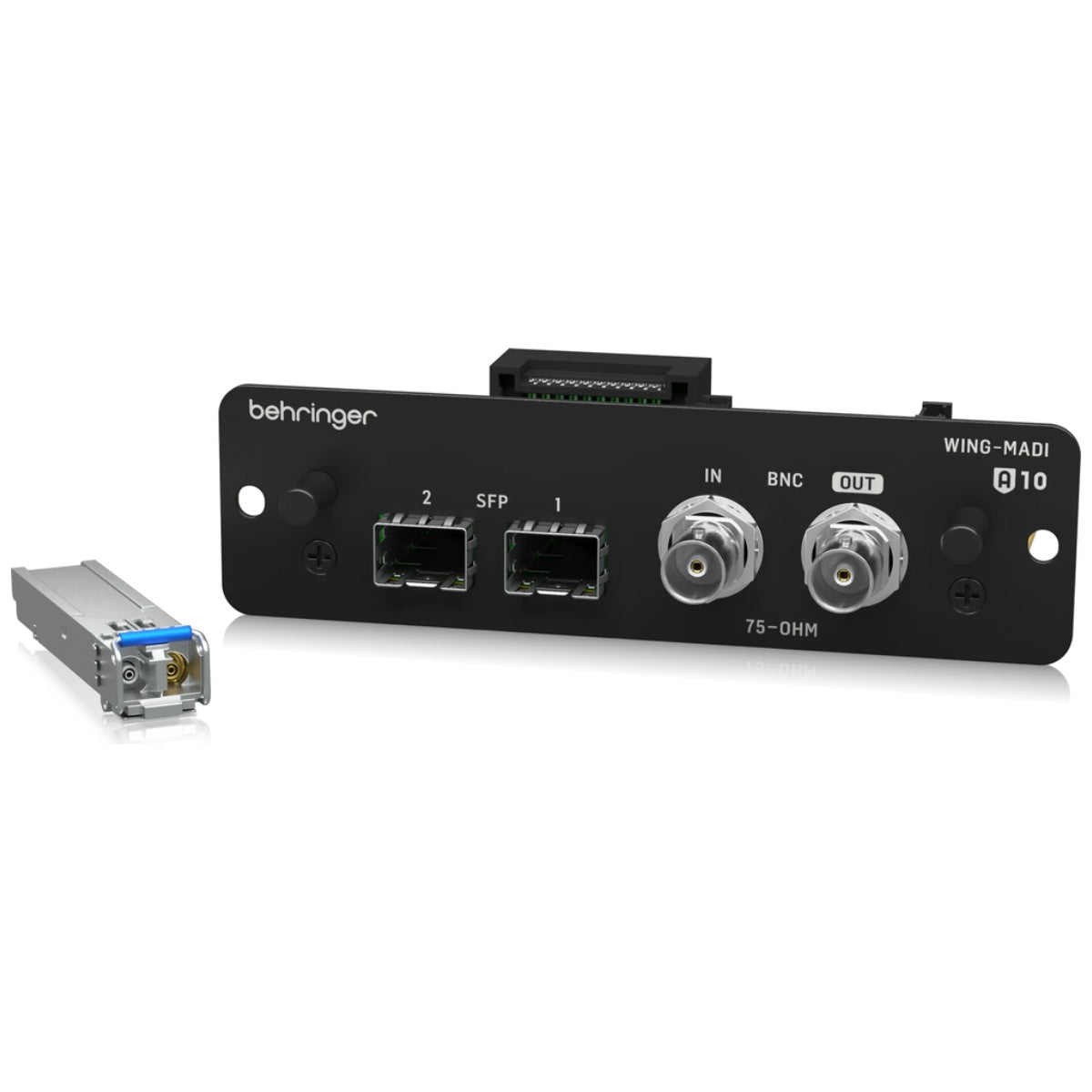

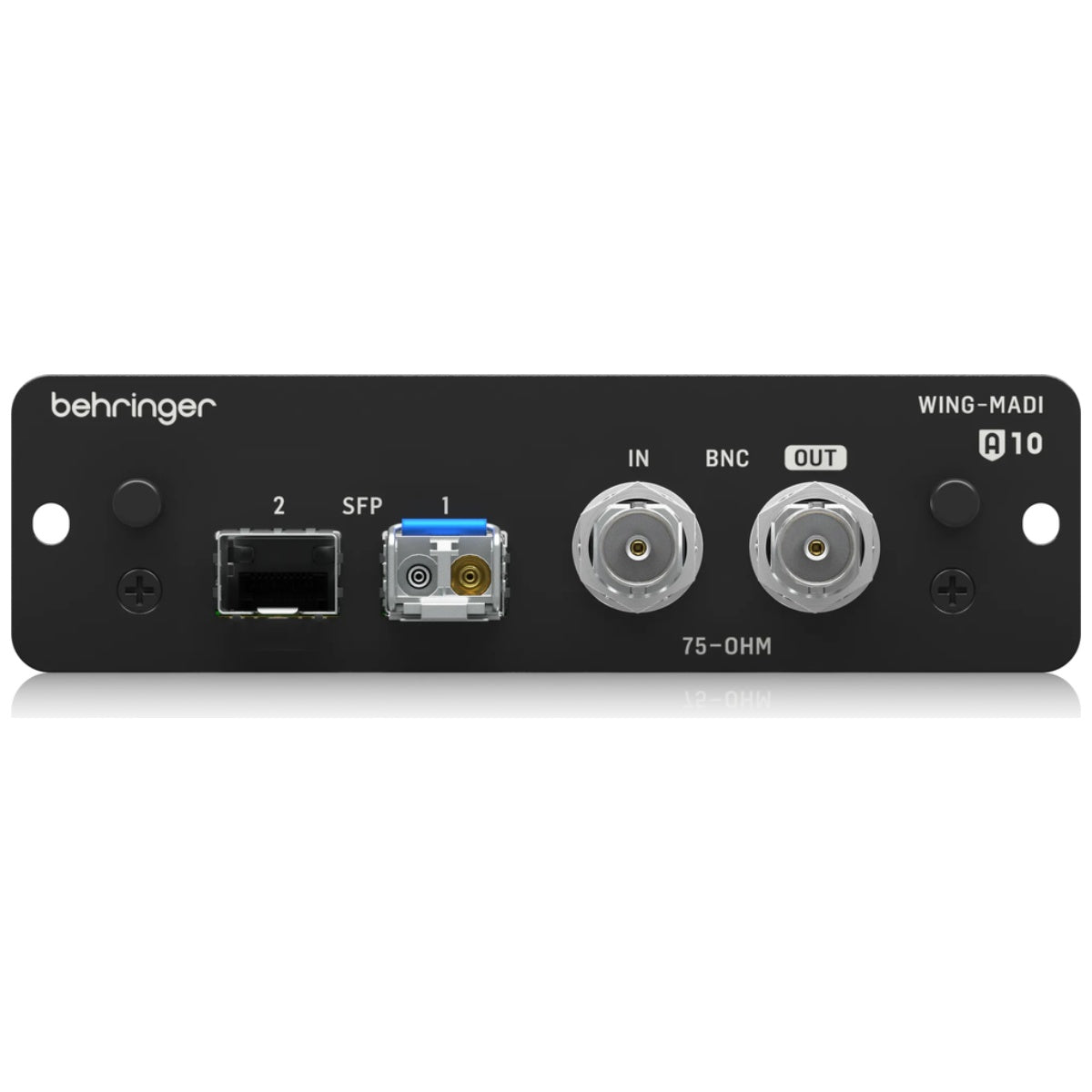

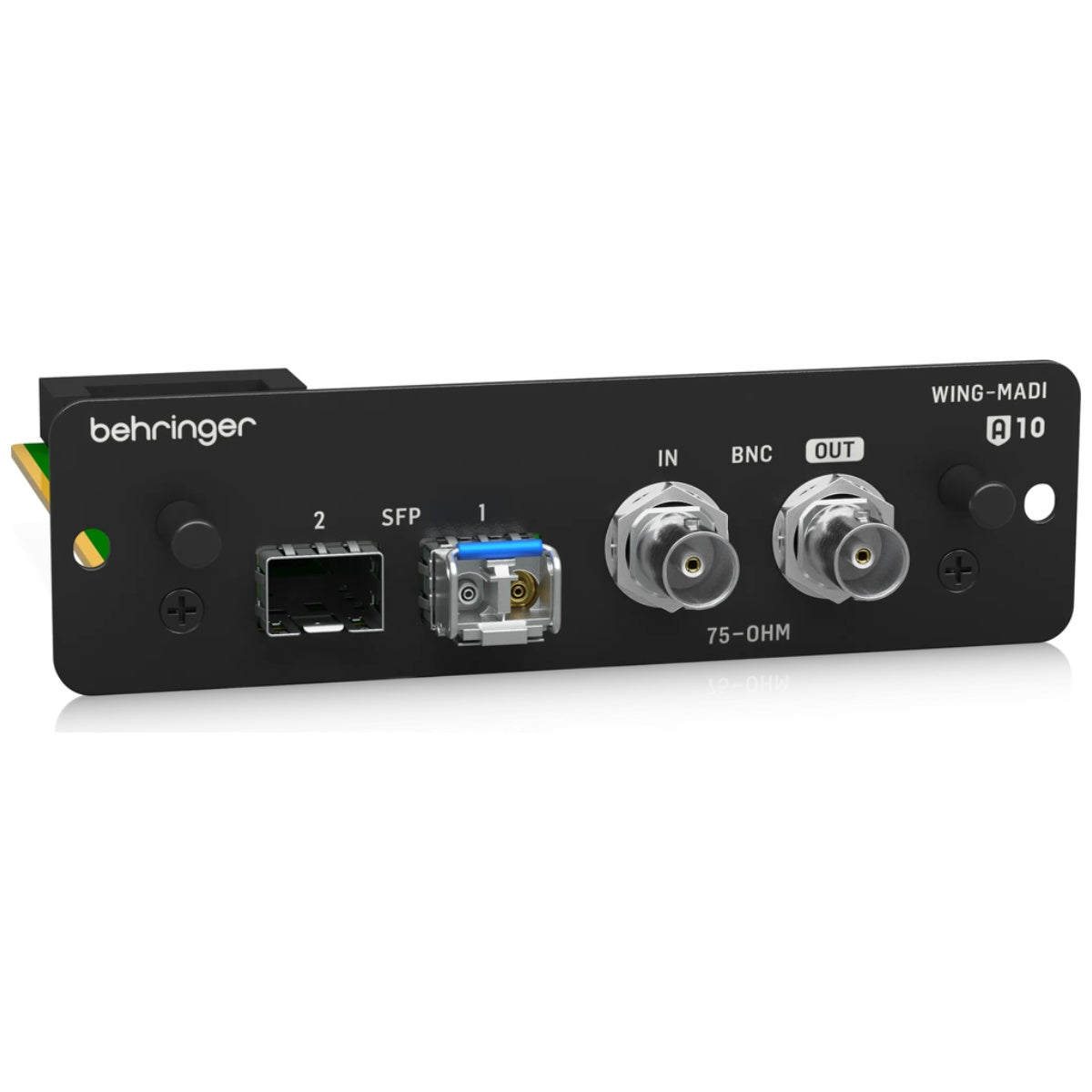

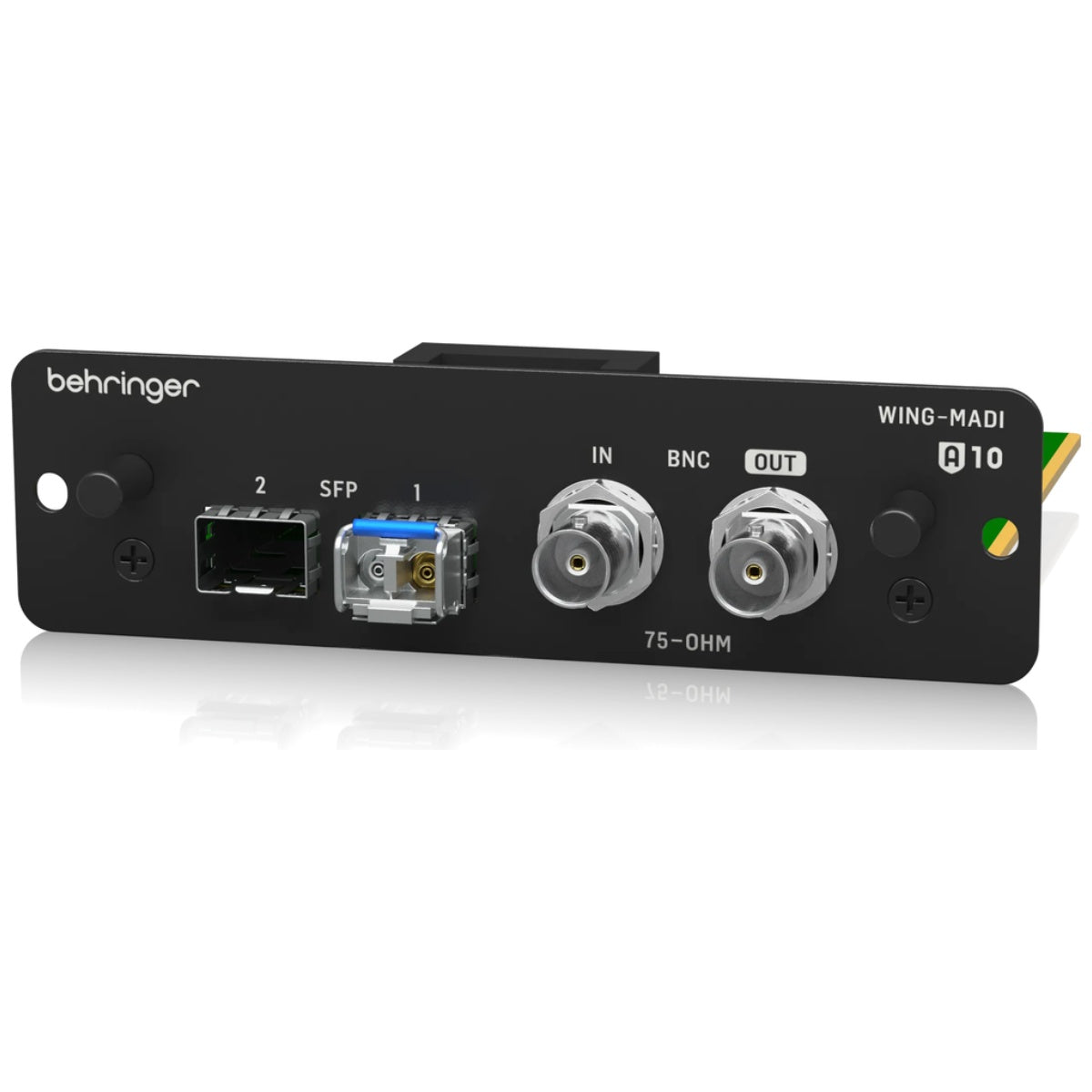

The Behringer WING-MADI Expansion Card brings professional multichannel MADI connectivity to the Behringer WING digital mixing console. Featuring 64 channels of bidirectional 24-bit audio transmission, flexible optical and coaxial connections, and redundant operation, the WING-MADI provides a powerful solution for integrating your console into professional live sound, broadcast, recording, and installed audio systems.
Supporting 64 input and 64 output channels at 48 kHz, the WING-MADI allows seamless integration with compatible MADI stage boxes, multitrack recorders, broadcast equipment, and digital format converters. Its AES10-compatible MADI interface provides a practical way to expand the connectivity of your WING console while maintaining high-quality digital audio transmission.
Two SFP slots provide flexible optical connectivity, allowing users to select suitable transceivers for existing single-mode or multimode fibre installations. Unlike systems with fixed optical connections, the interchangeable SFP design makes it possible to accommodate different fibre configurations and transmission requirements without replacing the expansion card.
An included 1310 nm MADI SFP module with a duplex LC connector supports optical transmission distances of up to 2 km using compatible 62.5/125 µm multimode fibre. Additional BNC connections support 75-ohm coaxial cable runs of up to 100 metres, providing an alternative connection method for professional audio installations.
For applications where reliable signal transmission is essential, the WING-MADI supports redundant connections using either two SFP modules or a combination of SFP and coaxial BNC connectivity. This flexibility makes it particularly suitable for demanding live productions, broadcast facilities, and professional installations where an alternative audio transmission path is required.
Designed to integrate directly with the Behringer WING digital mixing platform, the WING-MADI provides the flexibility needed to connect your console to a wide range of professional MADI equipment, expanding its capabilities for modern digital audio workflows.
Features
- Professional MADI expansion card for Behringer WING digital mixing consoles
- 64 input and 64 output channels of bidirectional digital audio
- High-quality 24-bit audio transmission at 48 kHz
- AES10-compatible MADI interface for professional digital audio integration
- Connect compatible MADI stage boxes, multitrack recorders, broadcast equipment, and digital format converters
- Two SFP slots provide flexible optical connectivity
- Interchangeable SFP modules support suitable single-mode and multimode fibre configurations
- Includes a 1310 nm MADI SFP module with duplex LC connector
- Supports optical transmission distances of up to 2 km using the included SFP module and compatible multimode fibre
- Coaxial BNC input and output provide additional connectivity options
- Supports 75-ohm coaxial cable runs of up to 100 metres
- Redundant operation using two SFP connections or a combination of SFP and BNC
- Flexible integration with existing professional MADI infrastructure
- Suitable for live sound, broadcast, recording, and installed audio applications
Specifications
- Product Type: MADI Expansion Card
- Model: WING-MADI
- Manufacturer Code: 0606-ADO
- Compatibility: Behringer WING Digital Mixing Console
- Audio Interface: MADI (AES10)
- Audio Channels: 64 Input / 64 Output
- Audio Resolution: 24-Bit
- Sample Rate: 48 kHz
- Optical Connections: 2 x SFP Slots
- Coaxial Connections: BNC Input and Output
- Coaxial Impedance: 75 Ohms
- Included Optical Module: 1310 nm MADI SFP
- Included SFP Connector: Duplex LC
- Supported Fibre Configurations: Single-Mode or Multimode with Compatible SFP Modules
- Included SFP Fibre Compatibility: 62.5/125 µm Multimode
- Maximum Optical Transmission Distance: Up to 2 km with Included SFP Module and Compatible Fibre
- Maximum Coaxial Transmission Distance: Up to 100 m
- Redundancy: SFP1 / SFP2 or SFP1 / BNC
- Included Accessories: 1 x 1310 nm MADI SFP Module
