Product Information

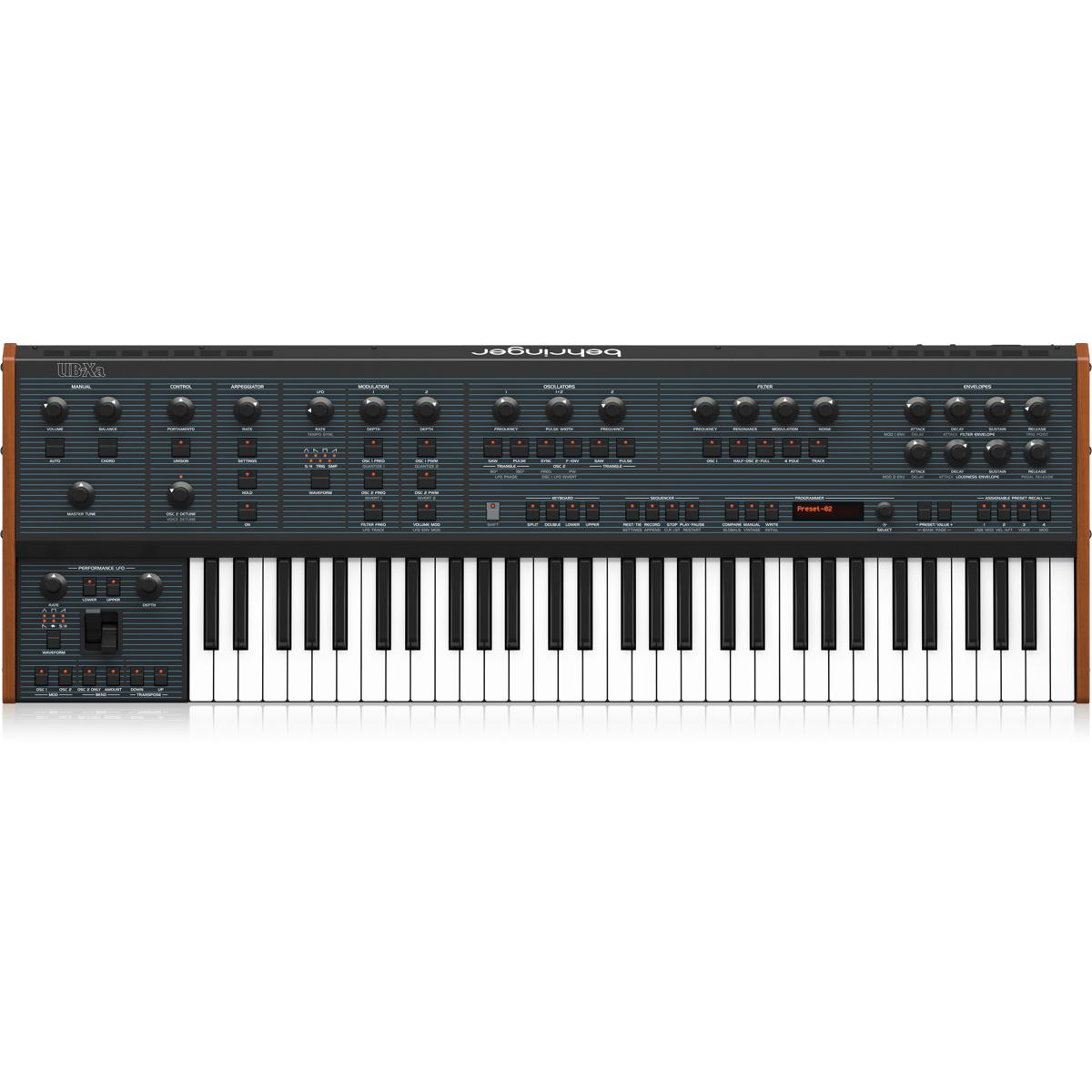

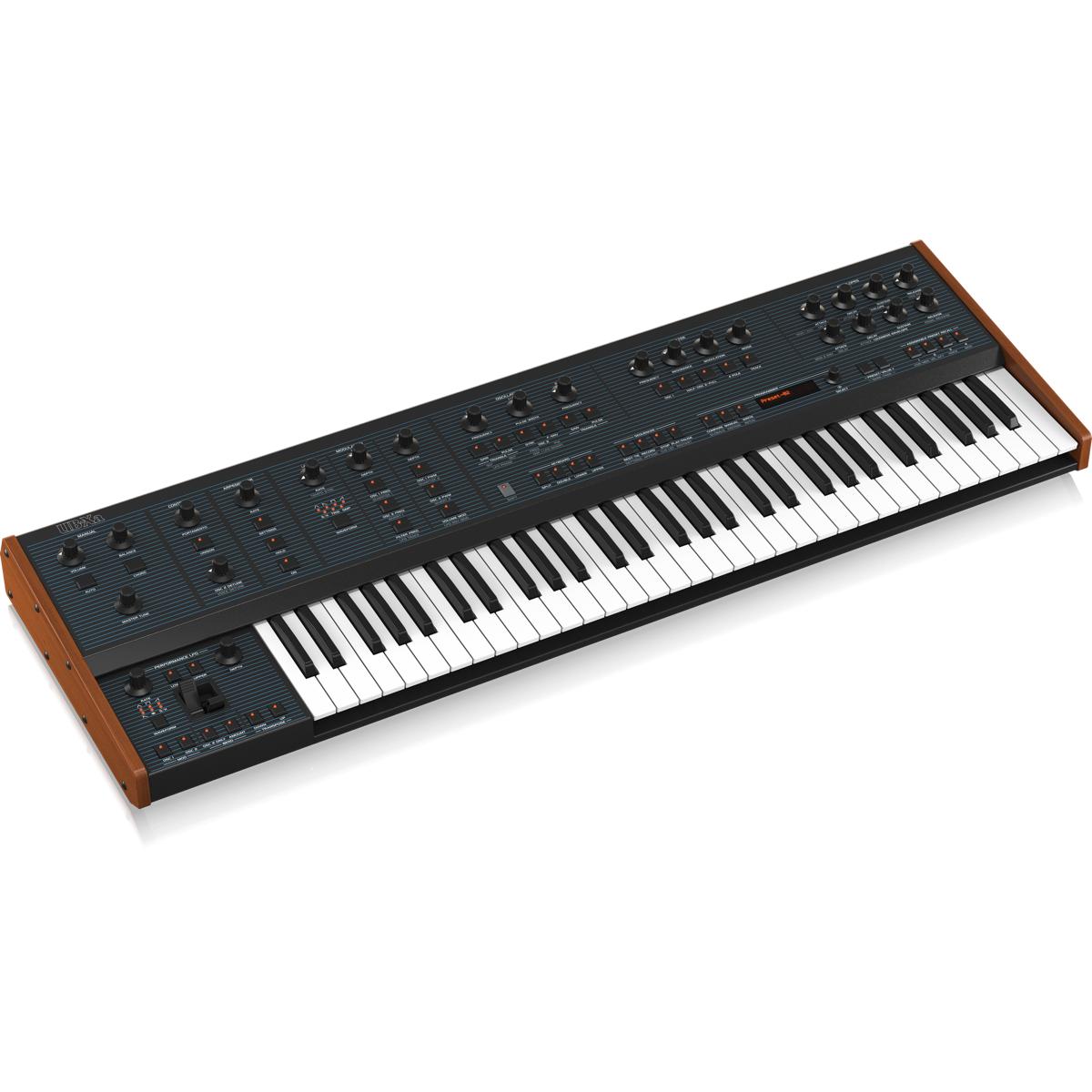

Embrace the legacy and make your mark on history with the UB-Xa from Behringer. More than just a recreation of a classic synthesizer, we’ve made sure that the UB-Xa has all the bells, whistles and characteristics that came with the original, but it’s also filled to the brim with modern features such as velocity and after-touch, 512 user program memories and comprehensive MIDI implementation. This makes for a well-rounded synth that’ll make friends with anything in your setup.
Features
Faithful Recreation and More
To recreate its iconic growl and sizzle, we dove deep into the inner workings of the original OB-Xa and brought them into the 21st century including all its original factory patches that made the 80s roar. Thanks to its VCOs and VCFs heavily based on the original 3340 and 3320 chip designs, 16 voices and the ability to split its keyboard so you can layer 2 different sounds, the UB-Xa is capable of conjuring up massive sounding riffs.
An Icon for the Icons
The UB-Xa is a synth like no other that stands on the shoulders of giants! Its legacy is what gave birth to the 80s most iconic hits from the world’s most famous artists! From Rush’s Geddy Lee, The Police, Prince to Van Halen, and even the iconic Terminator theme composed by Brad Fiedel, the UB-Xa’s lineage is filled only with the greats and now you can make your own mark on history as well.
Play Your Way
The UB-Xa comes with 61 full-sized, semi-weighted keys with polyphonic aftertouch and velocity sensitivity which detect every nuance of your playing from soft, feather-like touches to an intense chordal bombardment. The 8-channel modulation matrix provides you with the extreme flexibility and expands what the UB-Xa can do sonically. The 26 rotary controls plus a myriad of other functions give you direct control over the UB-Xa’s VCOs, LFOs, ADSR generators and VCAs to sculpt your sound in a nigh-on unlimited number of ways.
Specifications
Synthesizer Architecture
- Number of Voices: 16-voice bi-timbral
- Type: Analog
- Oscillators: 32
- LFO: 2
- VCF: 1 low pass, 2-pole or 4-pole, (12dB or 24dB/oct slope), switchable
- Envelopes: VCA, VCF

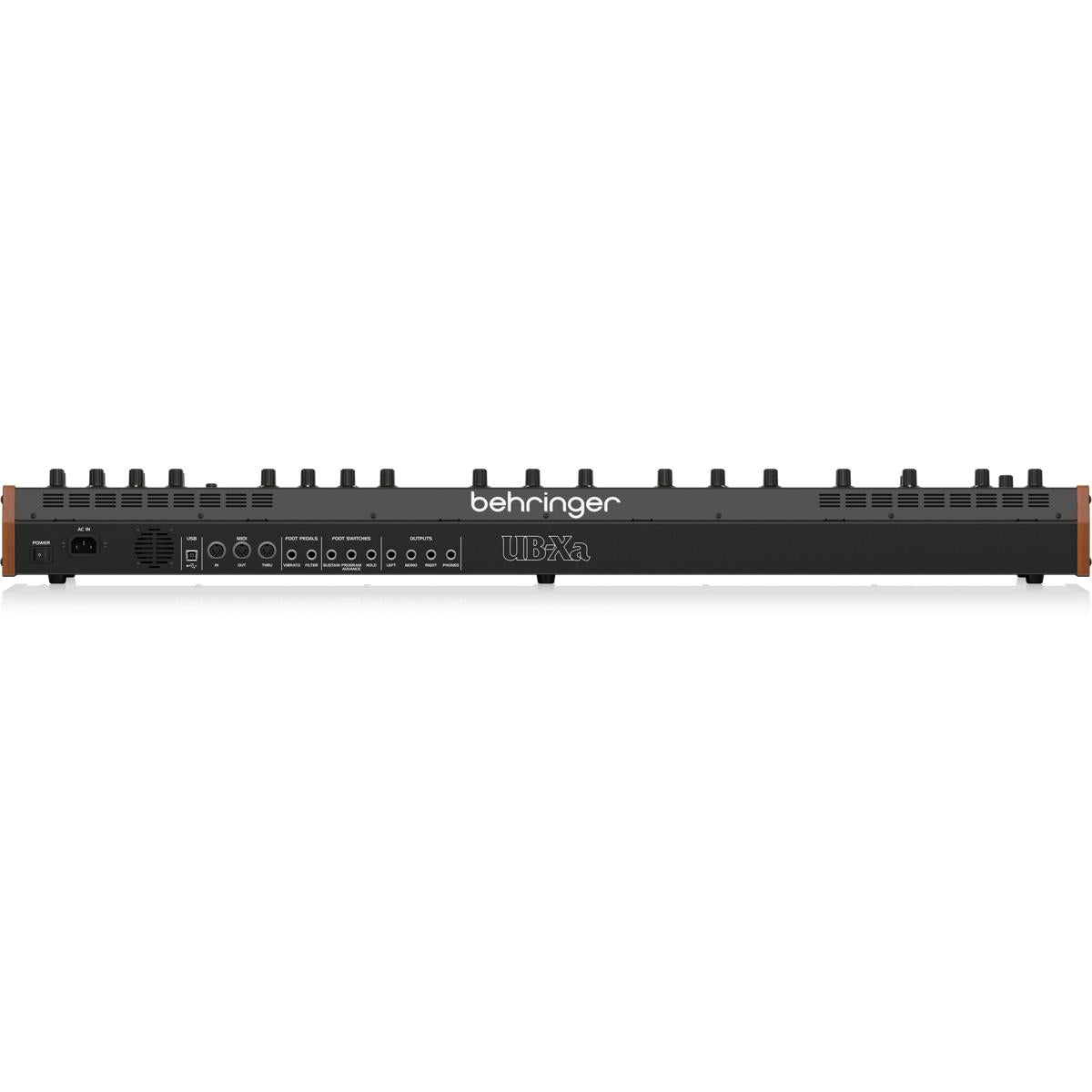

Connectivity
- MIDI In/out/thru: 5-pin DIN / 16 channels
- USB (MIDI): USB 2.0, type B
- Main output: 2 x 1/4" TRS, balanced, max. 22 dBu, Impedance: 50 Ω
- Headphones: 1/4" TRS, stereo, max 25mW dBu, Impedance: 25 Ω
- Foot pedals:
- Vibrato: 1/4" TRS, balanced
- Filter: 1/4" TRS, balanced
- Foot switches:
- Sustain: 1/4" Mono
- Program advance: 1/4" Mono
- Hold: 1/4" Mono
- USB:
- Type: Class-compliant USB 2.0, type B
- Supported operating systems:
- Windows 7 or higher
- Mac OS X 10.10 or higher
Manual Section
- Controls:
- Volume: 0 to 255
- Balance
- Master tune
- Switches:
- Auto
- Chord
Control Section
- Controls:
- Portamento
- OSC 2 Detune
- Switches:
- Unison
Arpeggiator Section
- Controls:
- Rate
- Switches:
- Settings
- Hold
- On
Envelope Section
- Controls:
- Attack (envelope)
- Decay (envelope)
- Sustain (envelope)
- Release (envelope)
- Attack (filter)
- Decay (filter)
- Sustain (filter)
- Release (filter)
Programmer Section
- Controls:
- Select encoder
- Switches:
- Compare
- Manual
- Write
- Preset / value -
- Preset / value +
- Display:
- 2 x line, 16-digit LCD display
Assignable Preset Recall Section
- Switches:
- 1 / USB / MIDI
- 2 / Vel / aft
- 3 / Voice
- 4 / Mod
Keyboard and Controls
- Wheels:
- Pitch
- Modulation
- Controls:
- Rate
- Depth
- Switches:
- Waveform
- OSC 1 mod
- OSC 2 mod
- OSC 2 only (bend)
- Amount (bend)
- Transpose down
- Transpose up
- LED:
- Triangle
- Square
- Sawtooth
- Inverse Sawtooth
- Random
- Sample & hold
- Keyboard:
- 61 full-size keys with velocity and polyphonic aftertouch
