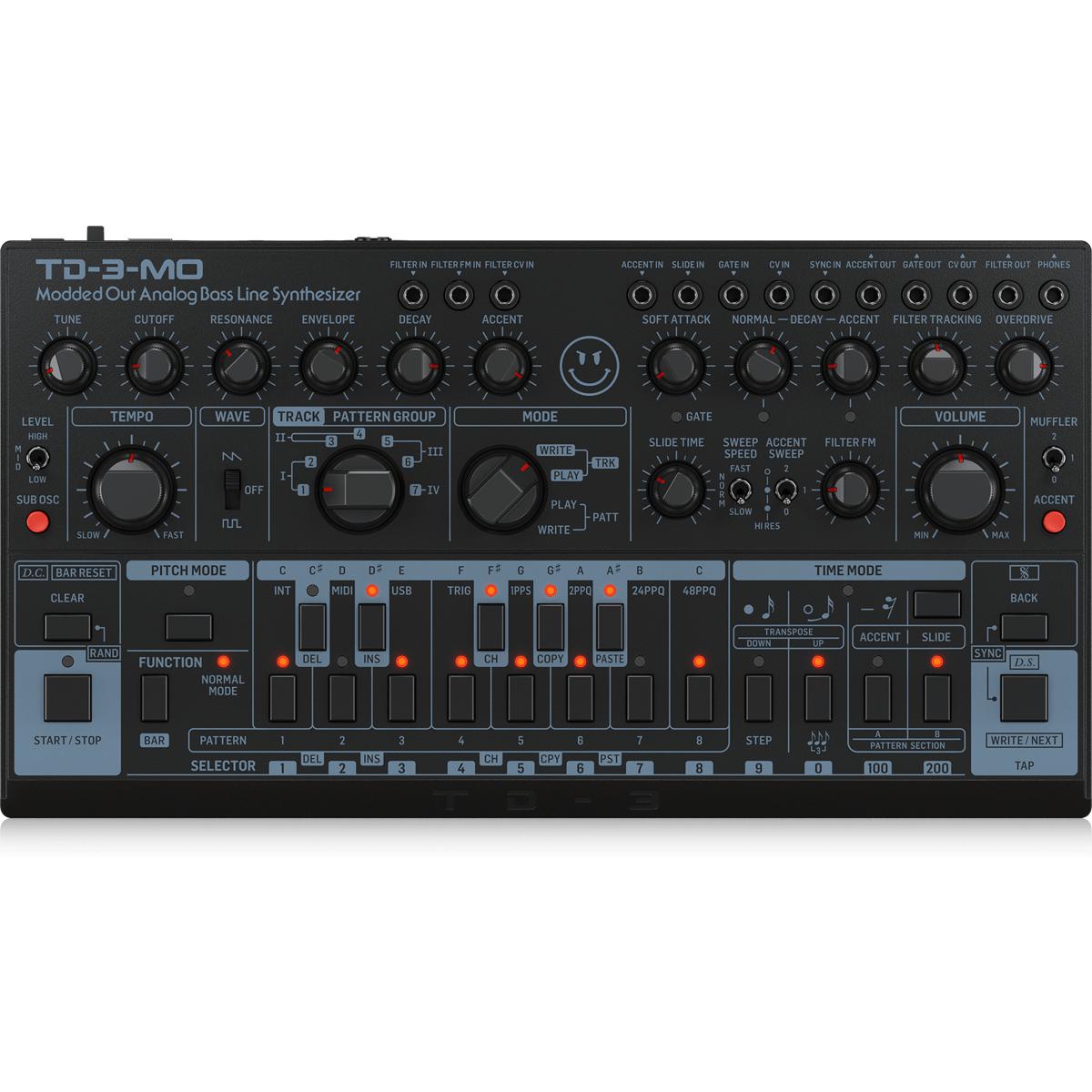

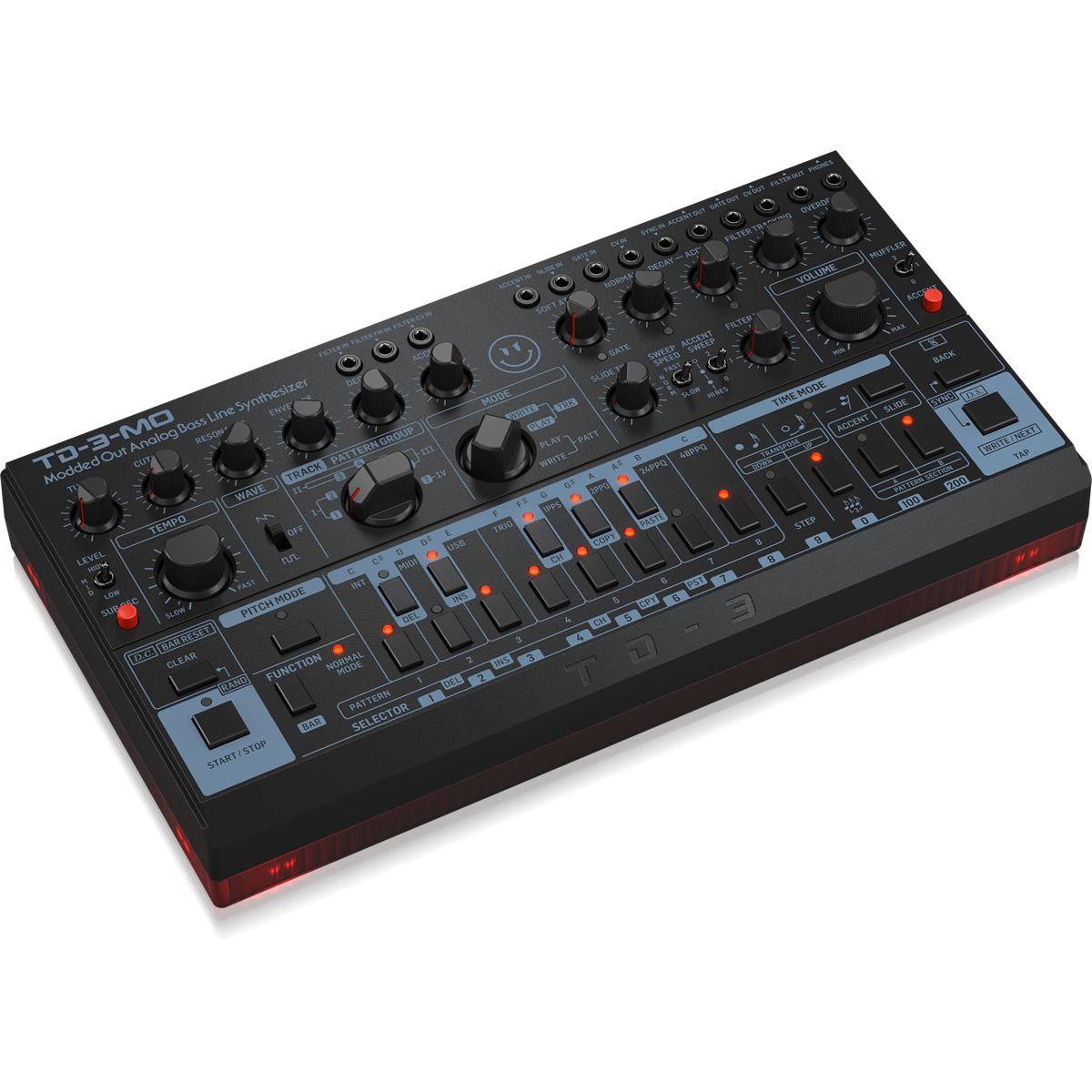

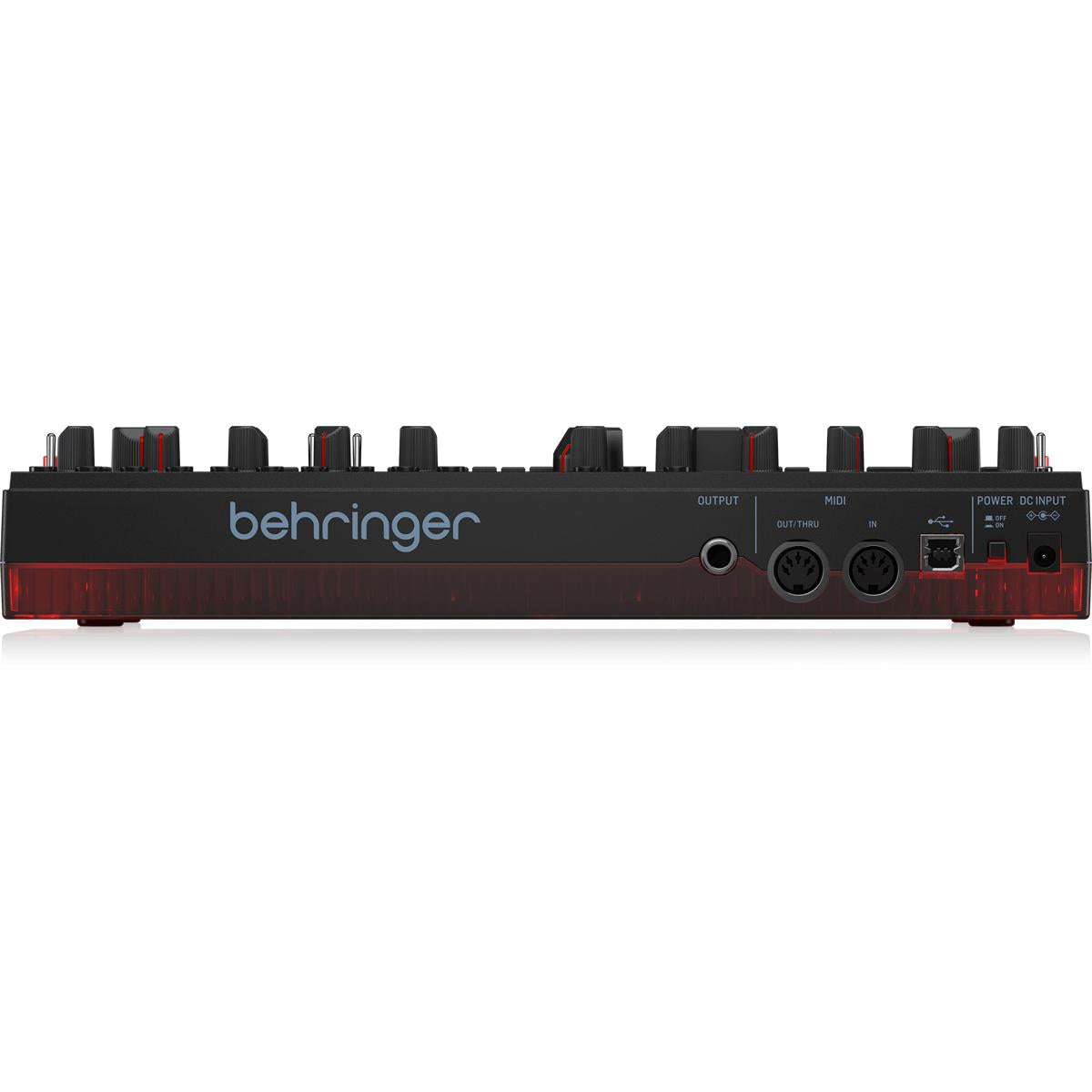

Behringer TD-3-MO-BK Modded Out Analog Bass Synth

Pay With AfterPay Zip

Product Information

Sometime after the release of the original TB-303, creative users realized that there was more to squeeze out of an already amazing bass machine, to produce sounds that were unique to themselves. As word started spreading about third-party mods adding more functions and many more ways to shape sounds, synth-heads around the world wanted to get their hands on a modded TB-303. Now it’s a lot easier to get that awesome “modded-out” sound with the Behringer TD-3-MO-BK, an ultra-affordable and faithful homage to the iconic synthesizer that’s capable of creating some fiery basslines and much more now in a sleek black enclosure.

With its pure analog signal path, 16-step sequencer and authentic VCO, VCF and VCA filters, the TD-3-MO-BK is sure to become one of your favorite synthesizers.


Pure Analog Signal Path

Great care has been taken in engineering the TD-3-MO-BK, including the true to the original VCO, VCF and VCA designs and pure analog circuitry with matched transistors. This highly-focused attention to detail is what gives TD-3-MO-BK its ultra-flexible sound shaping capability, which covers a wide spectrum for you to create some super-funky bass lines and pounding rhythms that can keep you, and the crowd, grooving all night long.

Rock Right Out of the Box!

Your TD-3-MO-BK comes ready to rock, thanks to its default signal routing that doesn’t require lifting a single patch cable to instantly create amazing sounds. The highly-intuitive layout lets you easily tap into the inspired sounds of 1980s and ’90s wave, EDM and synth-pop music tracks that made history – or to design incredibly fat and original sounds that will make you a legend in your own right!


Synthesizer Architecture

Synthesizer Architecture

  • Number of voices: Monophonic
  • Type: Analog
  • Oscillators: 1


  • Power input: DC input connector
  • Power switch: Push button on/off
  • MIDI In/Thru: MIDI In and MIDI Thru, 5-pin DIN
  • USB (MIDI): USB 2.0, type B
  • Outputs:
    • Line output: 1/4" TRS, unbalanced, max. +8 dBu
    • Output impedance: 1.5 kΩ
    • Headphones: 3.5 mm TRS, max. 50 mW/32 Ω (1 KHz, 1% THD)
    • Headphones output impedance: 15 Ω
  • USB Type: Class compliant USB 2.0, type B
  • Supported Operating Systems:
    • Windows 7 or higher
    • Mac OS X 10.6.8 or higher

Inputs and Outputs (TS 3.5 mm)


  • Filter in: -6 V to +6 V
  • Filter FM in: 0 V to +12 V
  • Filter CV in: 0 V to +12 V
  • Accent in: off: 0 V, on: +12 V
  • Slide in: off: 0 V, on: +3.3 V
  • Gate in: off: 0 V, on: +3.3 V
  • CV in: +1 V to +5 V
  • Sync in: more than 2.5 V


  • Accent out: off: 0 V, on: +6 V
  • Gate out: off: 0 V, on: +12 V
  • CV out: +1 V to +5 V (1 volt/oct)
  • Filter out: -400 mV to +400 mV


3 Years Warranty
