Product Information

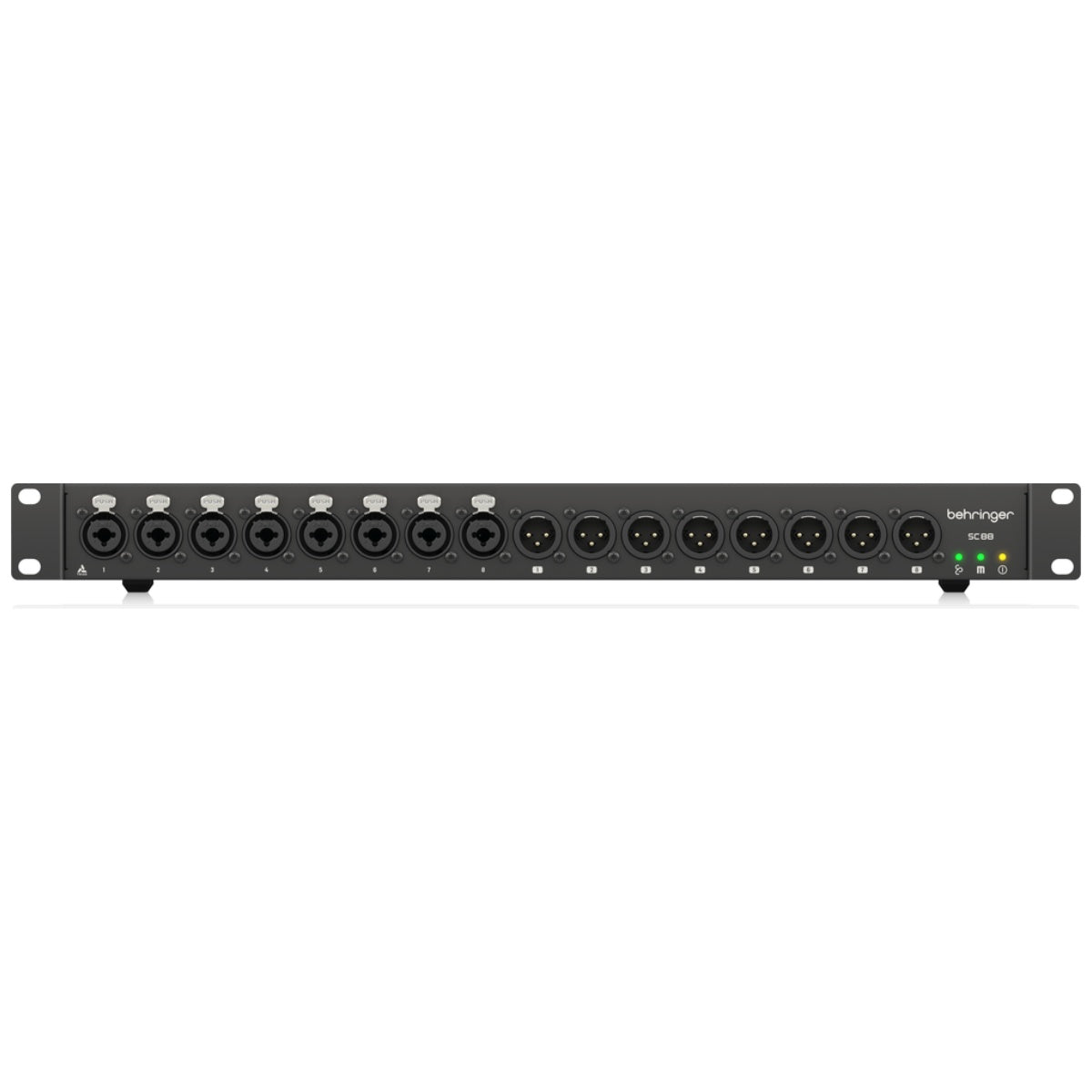

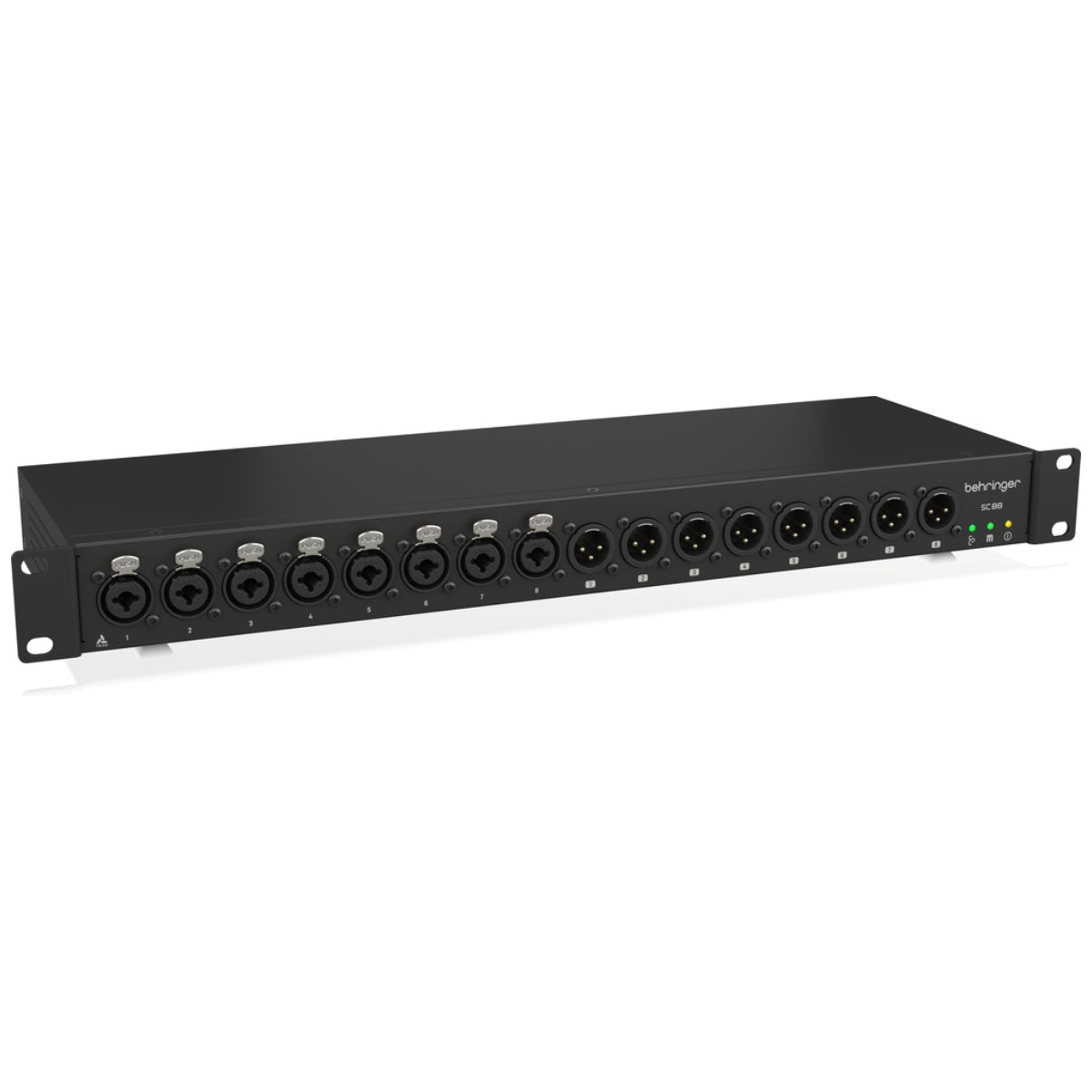

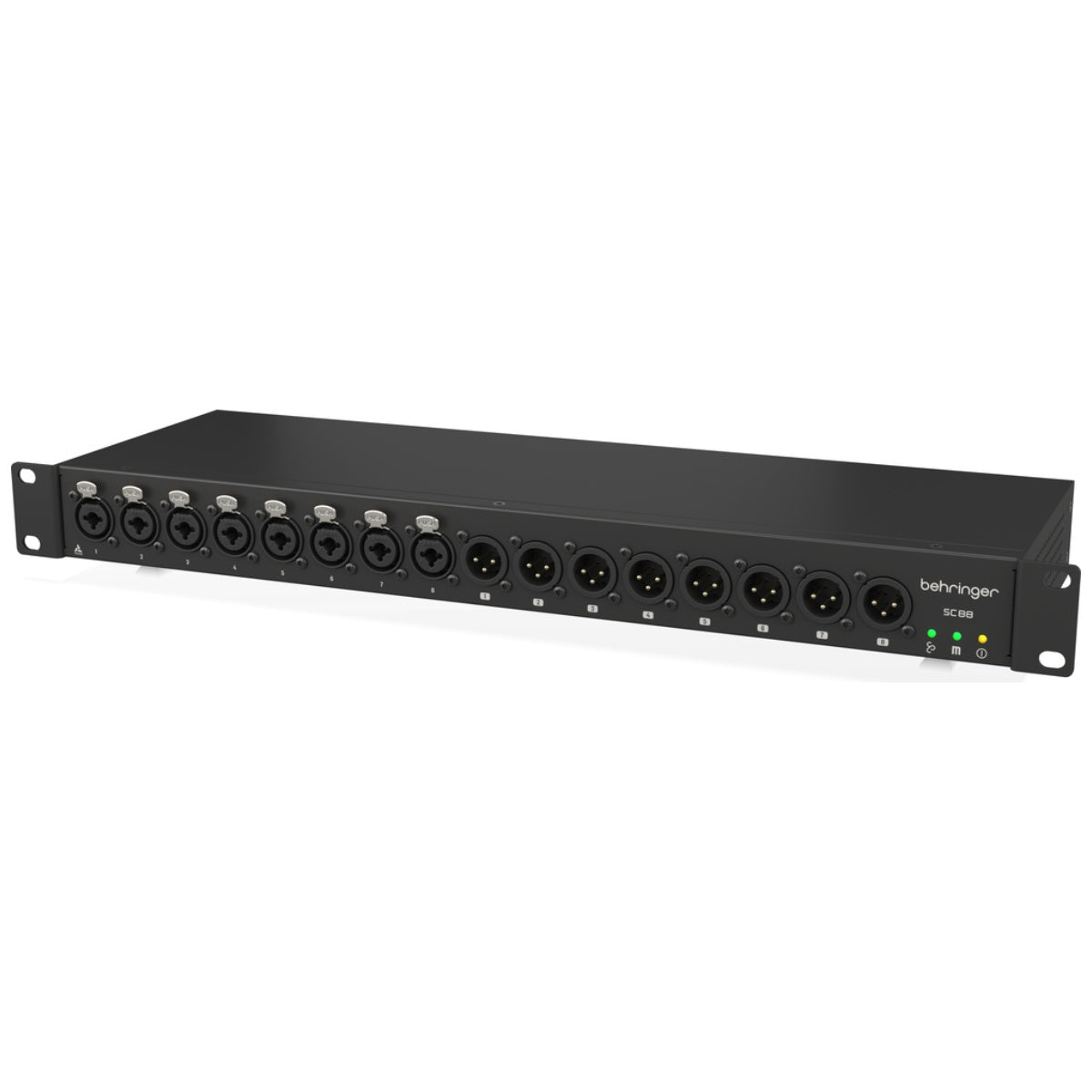

The Behringer SC88 StageConnect Interface is a professional 8-input, 8-output audio interface designed to simplify audio connectivity for live sound, stage installations and professional recording environments. Combining eight high-quality TRIAD microphone preamps, eight balanced XLR line outputs and digital StageConnect connectivity in a compact 1U rackmount design, the SC88 provides a powerful solution for expanding audio systems while reducing complex cabling requirements.
Equipped with eight XLR-combo inputs, the SC88 accommodates microphone and line-level sources, with individually switchable 48V phantom power for compatible condenser microphones. Behringer's TRIAD microphone preamps deliver clean, consistent audio capture with high common-mode rejection, stable performance across a wide range of source impedances and precise 0.5 dB analogue gain adjustments. Eight balanced XLR outputs feature high-performance ESS digital-to-analogue conversion, providing reliable audio distribution to external equipment.
StageConnect technology enables bidirectional audio transmission over a single cable, simplifying connections between compatible devices. The SC88 also features Ultranet input and output connectivity, remote power capability and integrated MIDI communication with compatible Behringer StageConnect equipment. Input gain and preamp settings can be adjusted remotely from a StageConnect-enabled mixing console or through a desktop control panel via USB, making the SC88 an efficient and flexible solution for modern professional audio workflows.
Features
- Professional StageConnect interface with eight analogue inputs and eight analogue outputs
- Compact 1U rackmount design suitable for professional live sound and studio installations
- Eight XLR-combo microphone and line inputs for flexible source connectivity
- Eight integrated Behringer TRIAD microphone preamps for clean, consistent audio capture
- Individually switchable 48V phantom power for compatible condenser microphones
- Precise analogue microphone preamp gain adjustment in 0.5 dB increments
- High common-mode rejection and stable preamp performance across a wide range of source impedances
- Eight balanced XLR line outputs with high-performance ESS digital-to-analogue conversion
- StageConnect technology enables bidirectional audio transmission over a single cable
- Ultranet input and output ports for integration with compatible digital audio equipment
- Remote power capability through StageConnect connectivity
- Remote adjustment of microphone preamp gain and settings from compatible StageConnect-enabled mixing consoles
- USB connectivity enables configuration and control through a desktop control panel
- Supports MIDI transmission and reception between compatible Behringer StageConnect devices
- Allows audio and MIDI data to be transmitted through the same StageConnect infrastructure
- Ideal for stage I/O expansion, live sound reinforcement, digital mixing systems and professional recording applications
Specifications
General
- Brand: Behringer
- Model: SC88
- Product Type: StageConnect Audio Interface
- Interface Configuration: 8 Inputs / 8 Outputs
- Rack Format: 1U
- Audio Connectivity: Analogue and Digital
- Digital Audio System: Behringer StageConnect
Analogue Inputs
- Input Channels: 8
- Input Connectors: 8 x XLR-Combo Jacks
- Supported Input Types: Microphone and Line Level
- Microphone Preamps: 8 x Behringer TRIAD Preamps
- Phantom Power: 48 V, Individually Switchable
- Preamp Gain Adjustment: 0.5 dB Analogue Steps
- Preamp Design: High Common-Mode Rejection and Stable Performance Across a Wide Range of Source Impedances
Analogue Outputs
- Output Channels: 8
- Output Connectors: 8 x Balanced XLR
- Output Signal Type: Balanced Line Level
- Digital-to-Analogue Conversion: High-Performance ESS DAC

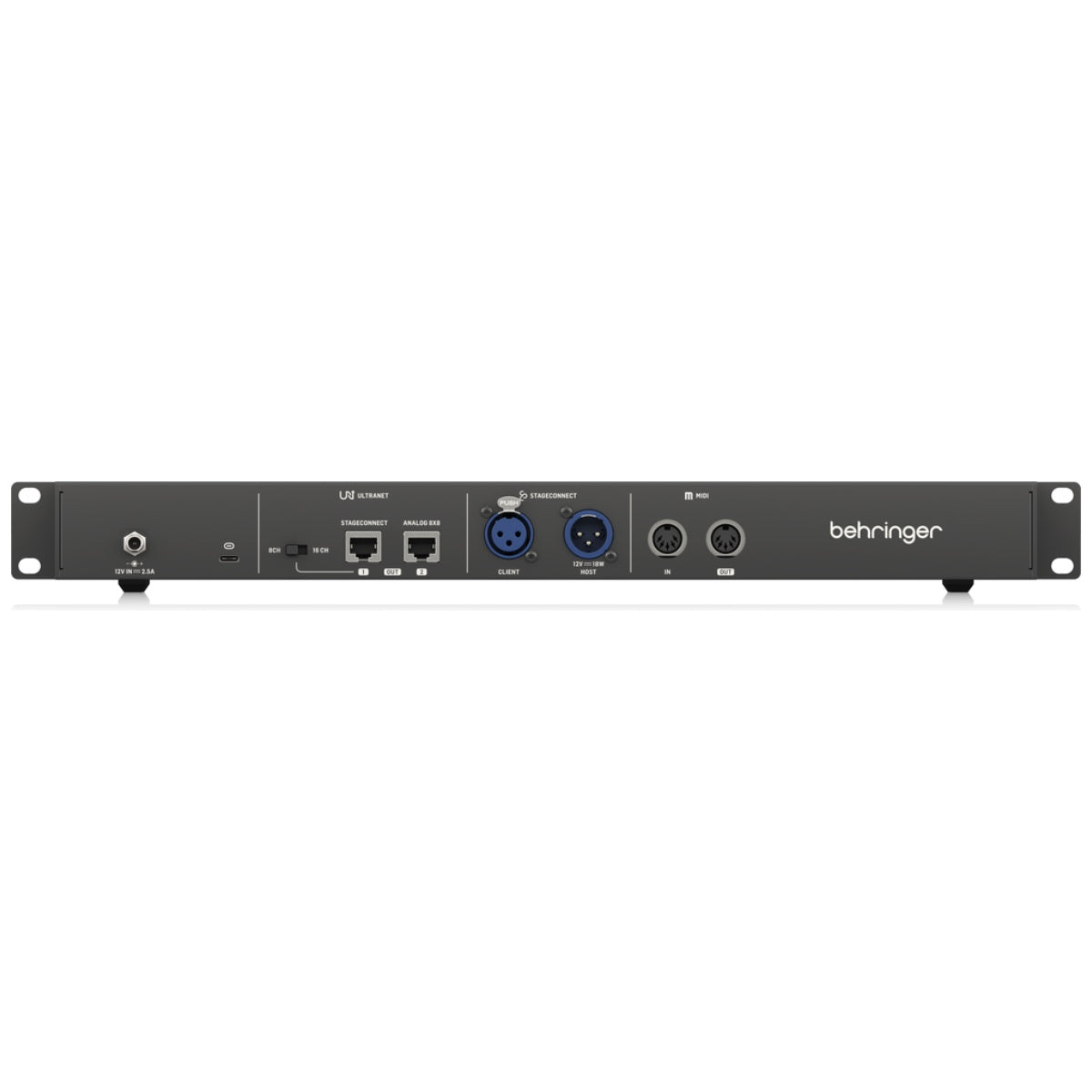

Digital Connectivity
- StageConnect: Bidirectional Digital Audio Connectivity
- StageConnect Audio Transmission: Simultaneous Input and Output Audio Over a Single Cable
- Ultranet Input: Supported
- Ultranet Output: Supported
- Remote Power: Supported via StageConnect
- USB: Remote Configuration and Control Connectivity
MIDI
- MIDI Communication: Transmission and Reception
- MIDI Integration: Compatible Behringer StageConnect Devices
- MIDI Transport: Via StageConnect Infrastructure
- Compatible Device Example: Behringer SC-U USB Interface
Control
- Remote Preamp Control: Supported
- Remote Gain Adjustment: Supported
- StageConnect Console Control: Compatible StageConnect-Enabled Mixing Consoles
- Computer Control: Desktop Control Panel via USB
- Phantom Power Control: Individually Switchable per Input Channel
Physical
- Chassis Format: Rackmount
- Rack Height: 1U
