Product Information

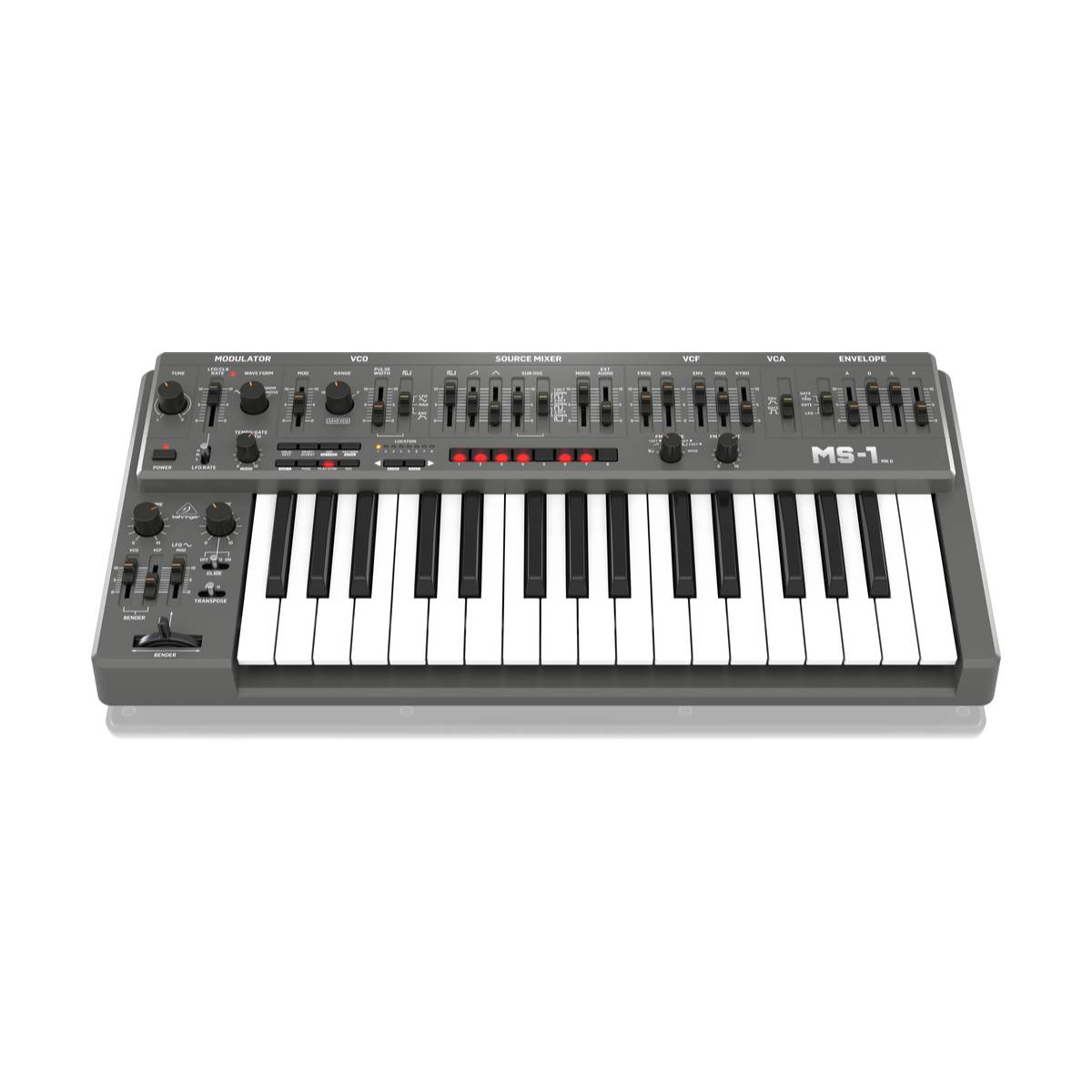

Behringer MS-1 MK II-GY Analog Synthesizer
Analog Synthesizer with 32 Full-Size Keys
The MS-1 MK II-GY is an ultra-affordable homage to iconic 1980s and ’90s analog synthesizers. Featuring a 3340 VCO, pure analog circuitry, sequencer, arpeggiator, and a full live performance kit, it delivers everything from fat basslines to soaring leads with ease. With its classic design and modern improvements, it’s a powerful tool for both studio creation and stage performance.
Product Features
- Monophonic synthesizer with authentic 3340 analog oscillator for fat sound design
- MK II Version with improved VCF/VCA designs, dual-mode portamento & Sync In
- Pure analog signal path with classic VCO, VCF, and VCA designs
- Oscillator with 4 mixable waveforms: saw, triangle, square/PWM, sub-oscillator
- Resonant VCF modulated via ADSR, LFO, keyboard tracking & bender
- 6 NovaMod FM sources for creative modulation and filter effects
- ADSR envelope generator for waveshaping
- 32-step sequencer with 64 pattern memory
- Arpeggiator with multiple patterns
- Attachable handgrip with pitch bend wheel & modulation trigger
- Guitar strap included for live performance
- Noise generator for modulation & distortion-like effects
- Incredible portamento for smooth note transitions
- 57 sliders & switches for real-time parameter control
- External audio input for processing external sources
- Comprehensive USB/MIDI implementation
Faithful to the Original
Engineered with true-to-original analog circuitry, the MS-1 MK II-GY recreates legendary VCO, VCF, and VCA designs. This attention to detail ensures authentic sound shaping—from deep bass to otherworldly effects—while maintaining modern reliability and flexibility.
Versatile Oscillator & VCF
The 3340 VCO provides 4 simultaneous waveforms (saw, triangle, square/PWM, and sub-oscillator), tunable across a wide 4-octave range. Its highly-flexible VCF offers full control with cutoff, resonance, envelope, modulation depth, and FM sources including Pulse, Sawtooth, Sub-Oscillator, and Noise.
Sequencer, Arpeggiator & Live Performance

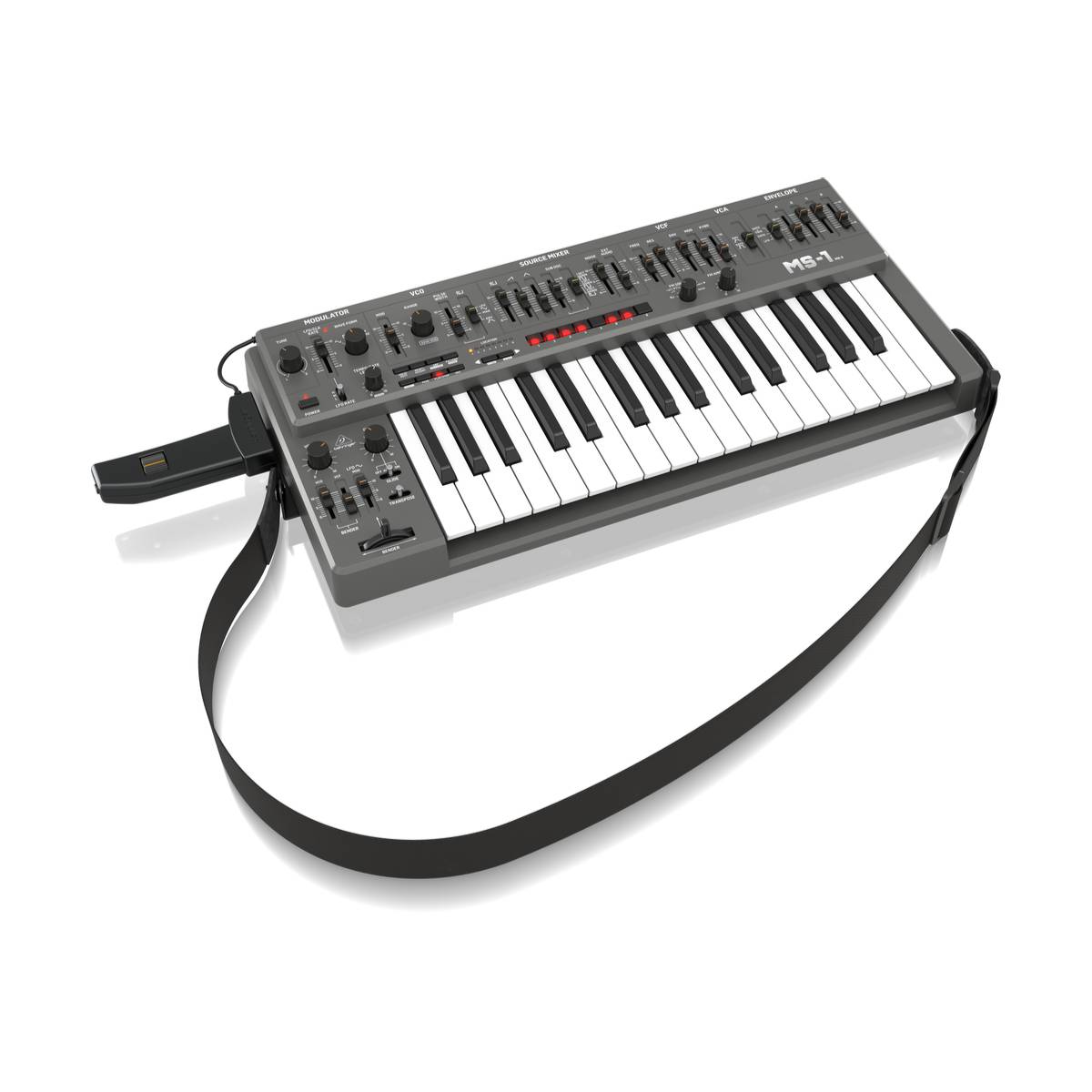

With a 32-step sequencer (64 memory locations) and arpeggiator, you can create complex patterns quickly. Save and recall sequences across 8 banks for instant performance flexibility. Use the included handgrip and strap to play like a keytar on stage, complete with pitch bend and modulation controls.
Connectivity & Control
The MS-1 MK II-GY includes 57 intuitive controls and offers extensive connectivity: MIDI I/O and Thru over USB/DIN, Velocity Out, CV, Gate, External Clock In, VCF CV In, Hold, External Audio Input, Phones, and Main Output. With both vintage analog design and modern integration, it’s built for creative freedom.
Unleash Your Imagination
The MS-1 MK II-GY provides powerful analog tone, real-time controls, and performance-ready features at an affordable price. Whether you’re in the studio or on stage, this synthesizer is designed to keep up with your creativity.
Specifications
Synthesizer Architecture
- Implementation: Analog
Keyboard
- Keys: 32 semi-weighted, full size keys
- Keyboard Sensing: Note on/off, velocity
VCO Section
- Knobs: Tune (±50 cent), Range selector (16', 8', 4', 2')
- Faders: Modulation depth, Pulse width modulation (50% to minimum)
- Switches: PWM mode (LFO, manual, envelope)
Modulator Section
- Knobs: Waveform selector (triangular, square, random, noise)
- Faders: LFO/CLK rate
- Switches: LFO/CLK rate selector – Low (0.1–30 Hz), Medium (0.2–60 Hz), High (0.3–120 Hz)
- LED: Rate indicator
Source Mixer Section
- Faders: Pulse level, Sawtooth level, Triangular level, Sub oscillator level, Noise level, External audio level
- Switches: Sub oscillator waveform selector (1 octave down, 2 octaves down, narrow 2 octaves down)
VCF Section
- Faders: Cutoff frequency (10 Hz – 20 kHz), Resonance (0 to self-oscillation), Envelope depth, Modulation depth, Keyboard follow (0–100%)
- Knobs: FM source selector (pulse, saw, sub osc, noise), FM depth
VCA Section
- Switches: Envelope/gate selector
Envelope Section
- Faders: Attack (2 ms – 4 s), Decay (2 ms – 10 s), Sustain (0–100%), Release (2 ms – 10 s)
- Switches: Gate-trigger selector (gate + trigger, gate, LFO)
Controllers Section
- Knobs: Volume, Glide time (0–5 s)
- Switches: Glide on/off, Transpose (low, medium, high)
- Faders: VCO bender sensitivity, VCF bender sensitivity, LFO modulation
- Wheel/Lever: Bender with LFO MOD switch
- Handle Controls: LFO on/off switch, Bender thumbwheel (pitch increase only)
Sequencer/Arpeggiator Section
- Steps: 32 steps max per pattern
- Patterns: 64 max (8 banks × 8 patterns each)
- Switches: Hold/rest, reset/accent, arp/set end, pattern/bank, shift, page, play/stop, record, keyboard mode, step mode, steps 1–8
- Knob: Tempo/gate length
Connectivity
- DC Input: 9 VDC, 600 mA
- MIDI: In/Out/Thru, 5-pin DIN / 16 channels
- USB (MIDI): USB 2.0, type B
- Outputs: 1/4" TS, max. +10 dBu
- Headphones: 1/4" TRS, max. +2 dBu @32 Ω
- External Audio Input: 1/4" TS, max. +20 dBu
- Footswitch (optional): Sequencer hold (1/4" TS)
- 3.5 mm TS Inputs: VCF CV (0–7 V), External clock (+2.5 V or more), CV (1 V/oct, 0–7 V), Gate (+2.5 V or more)
- 3.5 mm TS Outputs: CV (1 V/oct, 0.417–5 V), Gate (0 V off / 10 V on), Velocity (0–5 V)
- 3.5 mm Handle Connectors: Mod, Grip
USB
- Type: Class compliant USB 2.0, type B
- Supported OS: Windows 7+, Mac OS X 10.6.8+
Power Requirements
- External Adapter: 9 VDC, 1700 mA
- Power Consumption: 5.4 W max
Environmental
- Operating Temperature: 5° C – 45° C (41° F – 113° F)
Physical
- Dimensions (H × W × D): 85 × 569 × 267 mm (3.4 × 22.4 × 10.5")
- Weight: 4.6 kg (10.1 lbs)
- Shipping Weight: 7.1 kg (15.6 lbs)
