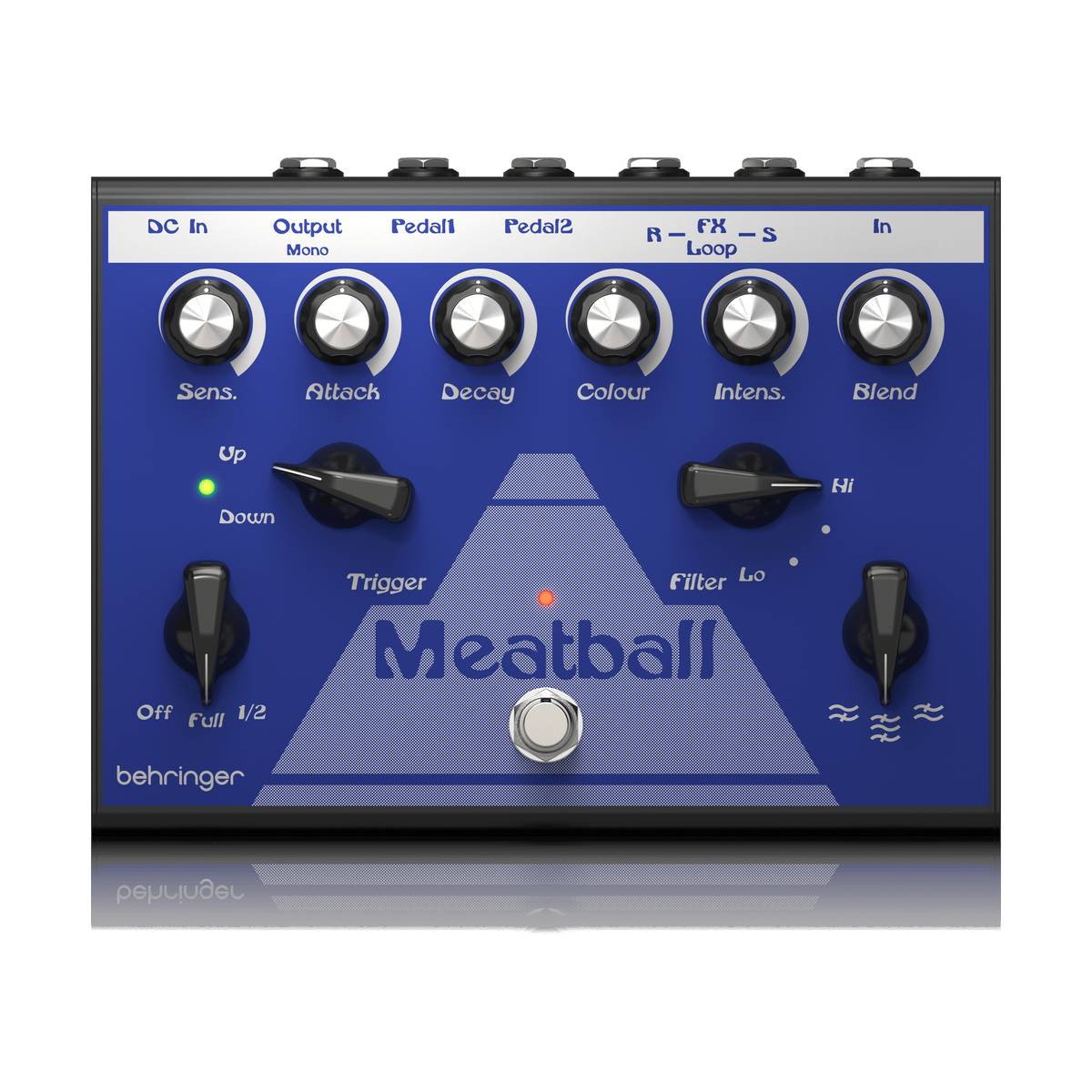

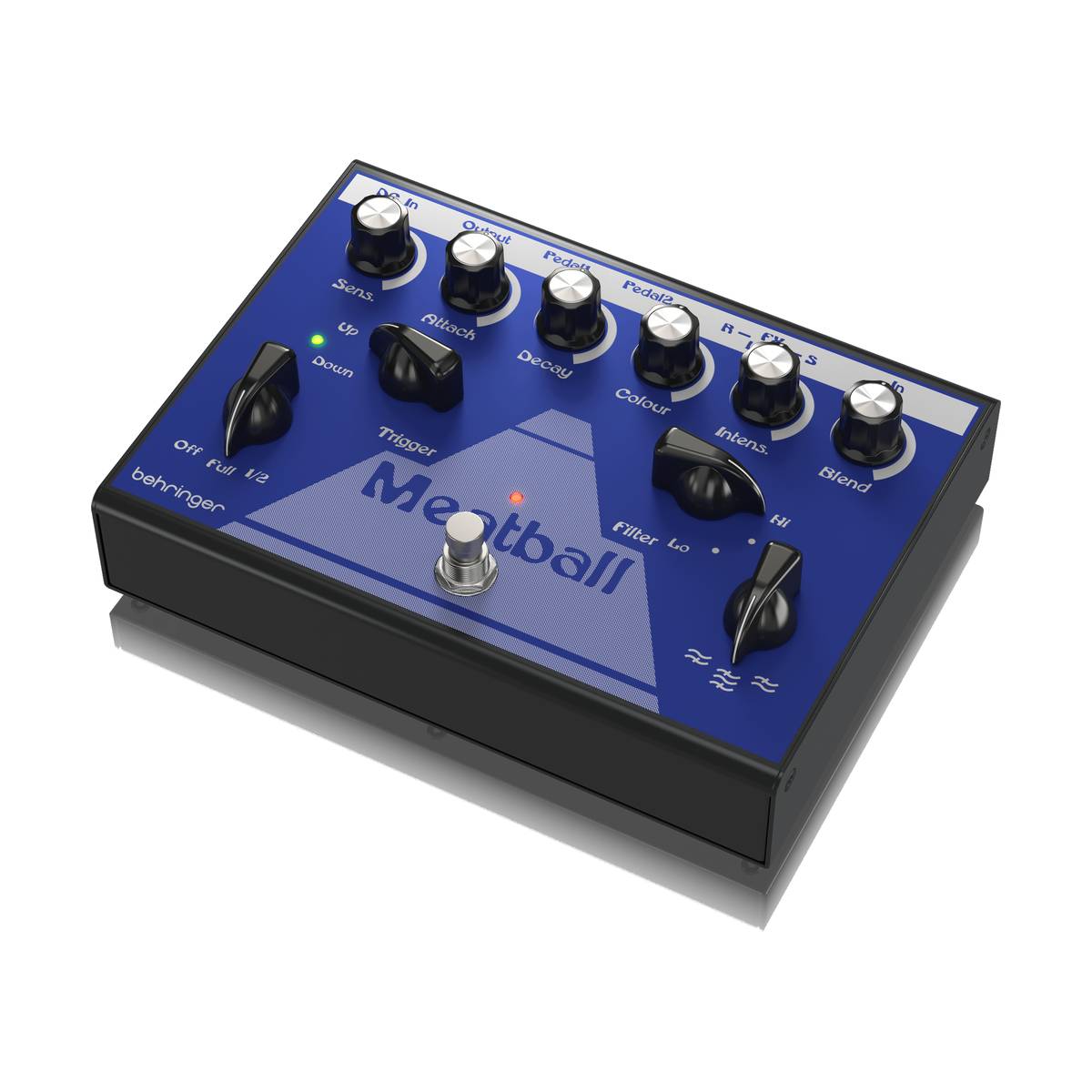

Behringer Meatball 90s Envelope Filter Effects Pedal

Specifications

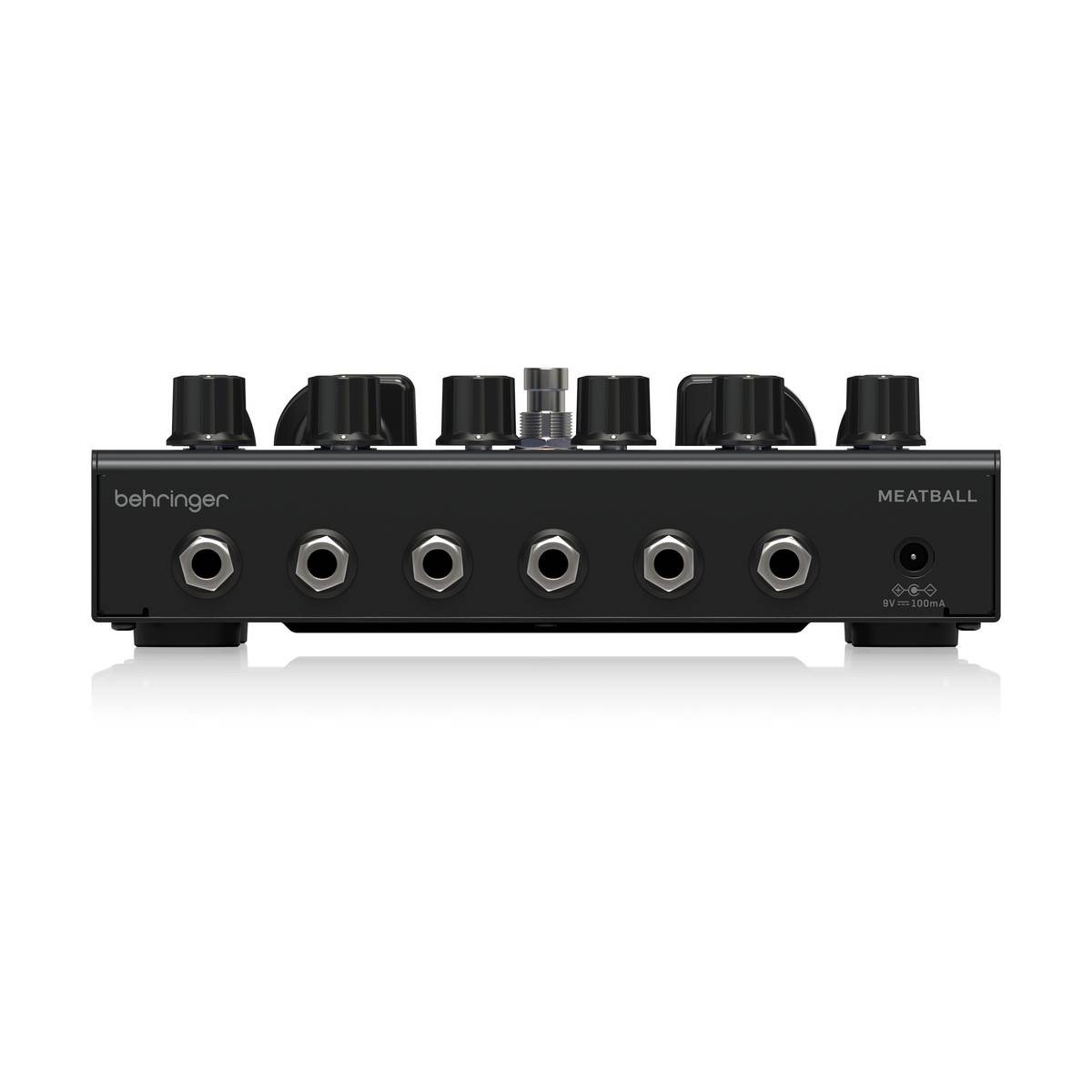

• Audio Input: 1 x 1/4" TS (unbalanced), 1 MΩ
• FX Loop (Send/Return): 1 x 1/4" TRS (unbalanced)
• FX Loop Output Impedance: 440 Ω
• FX Loop Input Impedance: 140 kΩ
• Mono Output: 1 x 1/4" TS (unbalanced), 1.5 kΩ

Control Connections

• Pedal 1: 1 x 1/4" TRS, 180 kΩ (CV range 0–5 V)
• Pedal 2: 1 x 1/4" TRS, 34 kΩ (CV range 0–5 V)

Controls

• Rotary Knobs: Sensitivity, Attack, Decay, Colour, Intensity, Blend
• Rotary Switches: Bandwidth (Off / Full / 1/2), Filter Sweep (Up / Down), Filter Mode (Lo / Hi), Filter Range (HP / BP / LP)
• Bypass: Footswitch

System Performance

• Frequency Response: 20 Hz – 20 kHz (+0 / -2 dB)
• Dynamic Range: > 93 dB
• Signal-to-Noise Ratio: > 99 dB
• Overall Gain: +0 dB

Power

• Power Input: 9 V DC, centre-negative, > 400 mA (power supply included)
• Power Consumption: 0.7 W

Dimensions & Weight

• Dimensions (H x W x D): 62.3 x 200.1 x 148.5 mm (2.45 x 7.90 x 5.85")
• Weight: 1.05 kg (2.32 lbs)
