Behringer

450643

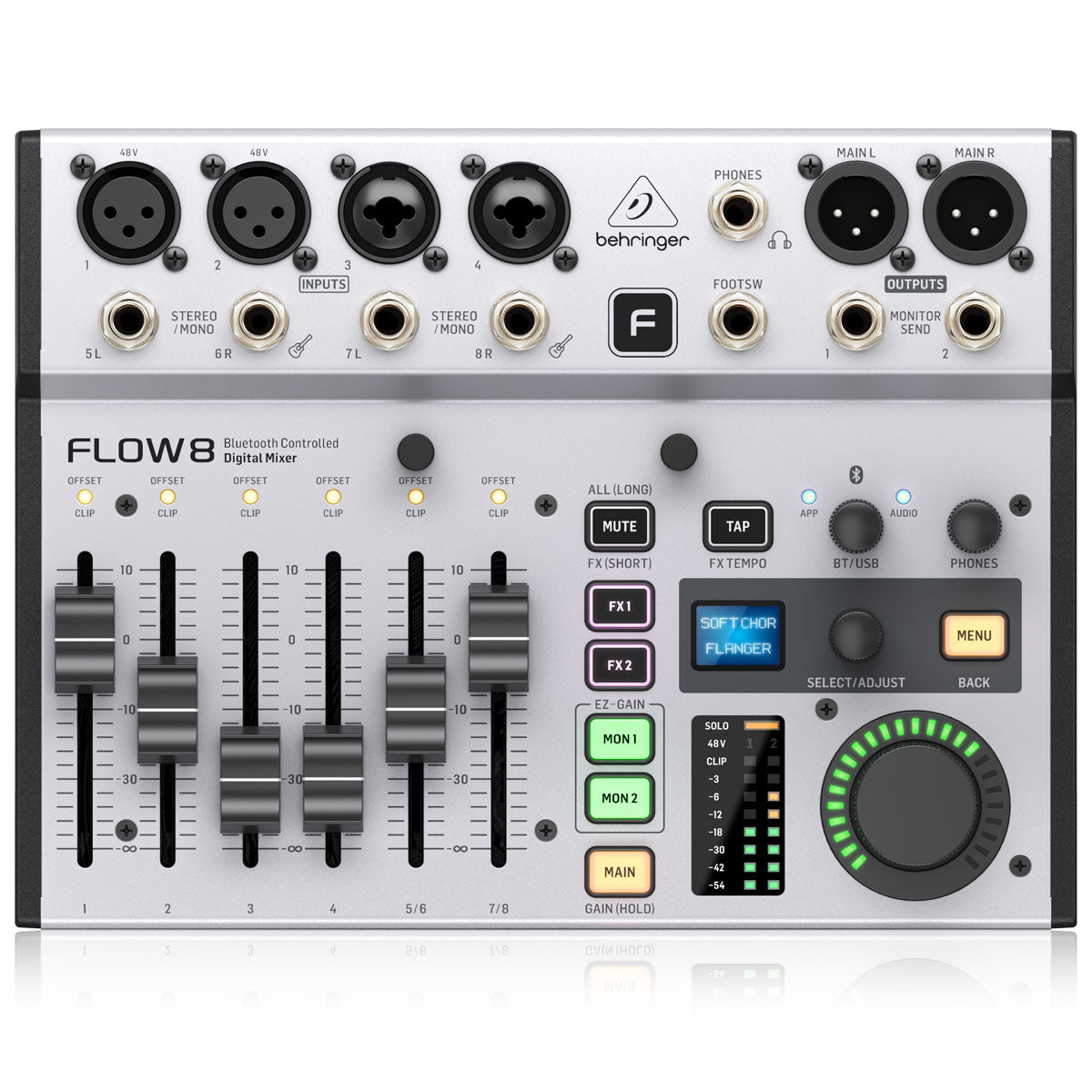

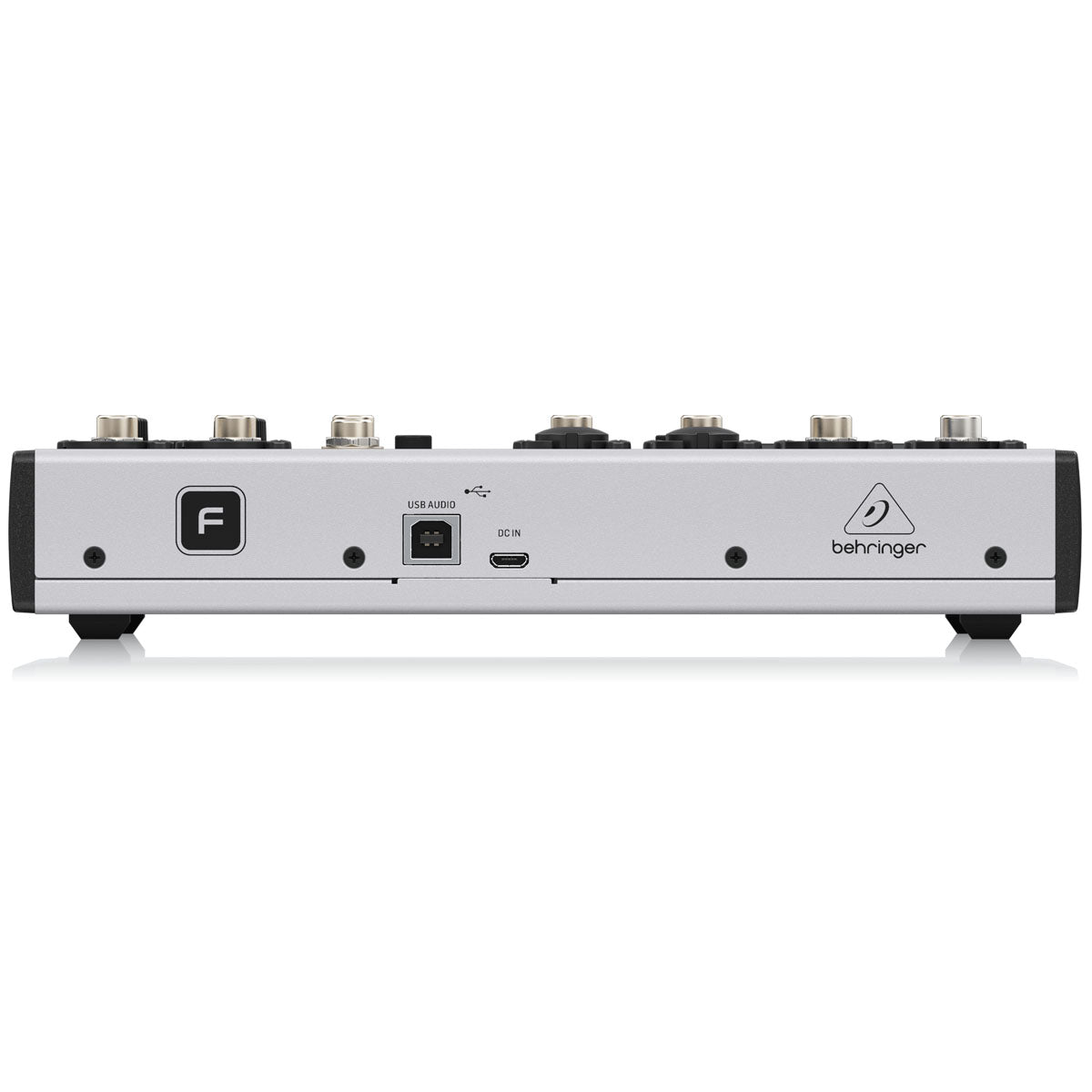

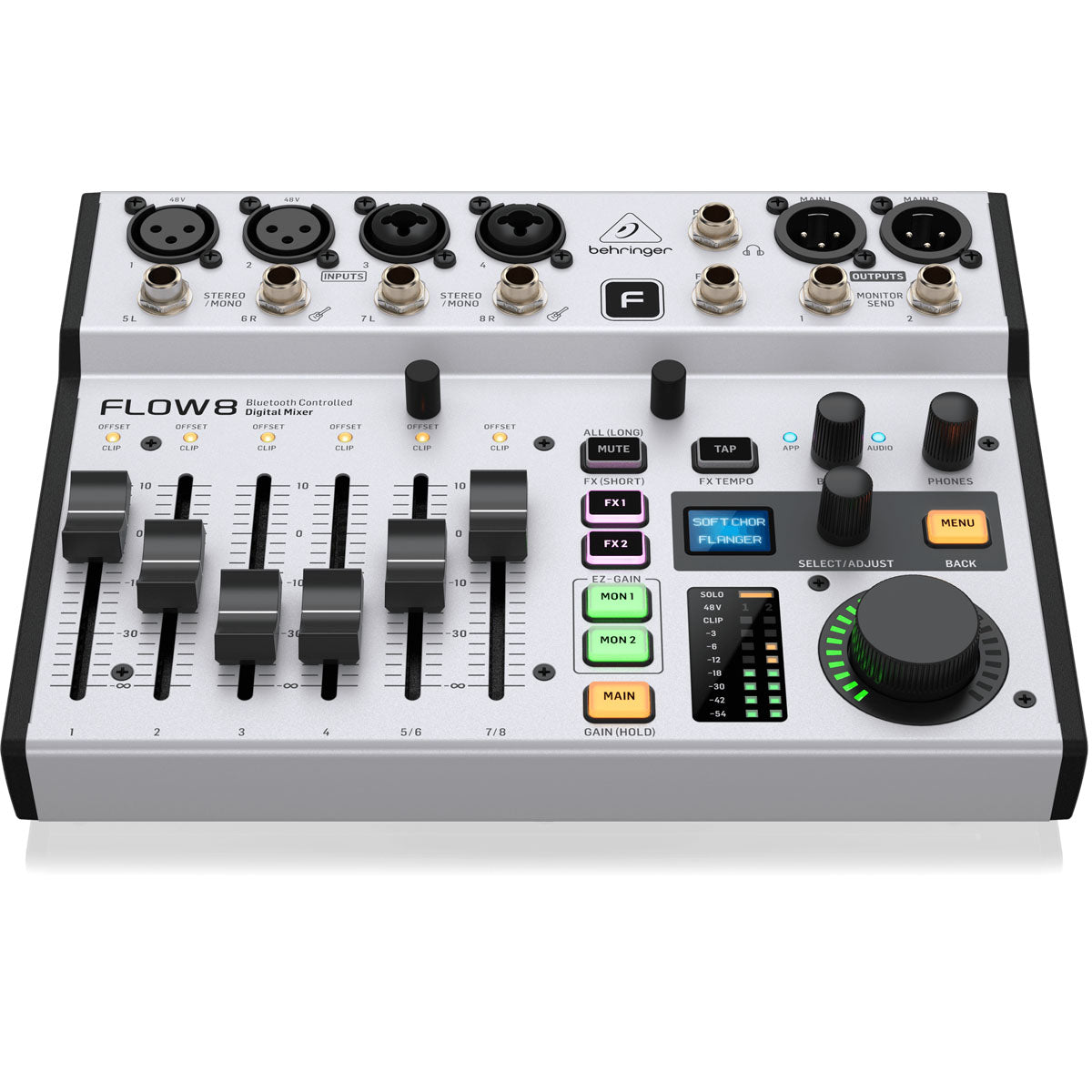

Behringer FLOW 8 Bluetooth Controlled Digital Mixer

Product Information:

Digital Mixing with Ease

Digital mixers offer studio quality processing, highest fidelity, total recall of all settings and even remote operation. Those are hugely attractive features, but they all come at a cost - with bigger physical size, more complex operation requiring at least some degree of audio technical education.
The millions of analog small format mixers that Behringer has built over the years clearly tell us that there are many users who need a mixer that is compact, affordable, dependable and easy to operate.

Typical applications very often just need to balance the level of a handful of sources. So, why making things more complicated than they need to be? It is time for something genuinely new providing modern features and workflows to everyone in a simple and light form – it is time for FLOW 8 digital mixing.

EZ-Gain Assisted Gain Staging

Have you ever heard someone say, “you need to pay attention to your gain staging”? Do you know what the “gain structure” is about? When you are interested in clean and healthy signals, with low noise and low harmonic distortion, then adjusting the right amount of preamp gain is paramount. It is defining the amount of amplification a signal gets when entering the mixer. Since source signals can be anything from a strong hit on the snare drum, to the subtle hum of bees, there is not one gain fitting all possible purposes.

Gain staging is always a compromise and finding the right one requires either experience and technical knowledge, or the new FLOW 8 EZ-GAIN feature. The function can monitor signals on one or all channels at the same time, until you think the loudest sounds have been put to it. EZ GAIN will then automatically adjust the channel gain to the optimum headroom.

Oh, by the way, EZ GAIN will automatically engage the 48 V phantom power on mic inputs 1/2 when no signal is coming in, just in case you forgot to do that. It will switch it off again if no signal is coming in still.

Specifications

Mic Inputs
Mic inputs 1 / 2
Type

2 x XLR jacks, balanced

Mic E.I.N. (20 Hz to 20 kHz)

-129 dBu, A-weighted

Distortion (THD+N)

< 0.004%, A-weighted

Max. input level

+20 dBu

Impedance

10 kΩ balanced, 5 kΩ unbalanced

Mic inputs 3 / 4
Type

2 x XLR / 1/4" TRS combo jacks, balanced

Mic E.I.N. (20 Hz to 20 kHz)

-117 dBu, A-weighted

Distortion (THD+N)

< 0.01%, A-weighted

Max. input level

XLR: +6 dBu

TRS: +26 dBu

Impedance

XLR: 2 kΩ balanced, 1 kΩ unbalanced

TRS: 20 kΩ balanced, 10 kΩ unbalanced

Gain range

-20 dB to +60 dB

Phantom power

+48 V, switchable (inputs 1 / 2 only)

Line Inputs
Type

2 x 1/4" TRS jacks, balanced (channels 5L / 7L)

Impedance

20 kΩ balanced, 10 kΩ unbalanced

Gain range

-20 dB to +60 dB

Distortion (THD+N)

0.005%, A-weighted, 0 dB gain, 0 dBu out

Max. input level

+22 dBu

Guitar (Hi-Z) Inputs
Type

2 x 1/4" TRS jacks, balanced (channels 6R / 8R)

Impedance

2 MΩ balanced, 1 MΩ unbalanced

Distortion (THD+N)

0.005%, A-weighted, 0 dB gain, 0 dBu out

Max. input level

+19 dBu

Channel EQ
Low

±15 dB @ 20 Hz, shelving

Low mid

±15 dB @ 300 Hz

High mid

±15 dB @ 1.5 kHz

High

±15 dB @ 20 kHz, shelving

Monitor Outputs
Type

2 x 1/4" TRS jacks, balanced

Impedance

75 Ω, balanced

Max. output level

+14 dBu

Main Outputs
Type

2 x XLR jacks, balanced

Impedance

150 Ω, balanced

Max. output level

+14 dBu

Phones Output
Type

1 x 1/4" TRS jack, stereo

Max. output level

+18 dBm / 40 Ω

Footswitch Input
Type

1 x 1/4" TRS jack (tip / ring normally open)

Function configurable

FX mute / Tap tempo or Snapshot load next / previous

Input / Output and Processing
Frequency range

10 Hz to 22 kHz (+0/-1 dB)

Dynamic range, analog in to analog out

Typ. 108 dB

I/O latency

0.6 ms

Signal processing

32-bit VFP (Vector Floating Point)

A/D - D/A conversion

24-bit / 48 kHz

Dynamic range

114 dB

Number of input processing channels

10 input channels, 4 fx return channels

USB Audio Interface
Interface type

USB 2.0

Connector

Type B

Bit depth

24-bit / 48 kHz

Channels

10 out / 2 in

Bluetooth
Frequency range

2402 MHz ~ 2480 MHz

Channel number

79

Version

Bluetooth spec 4.0 compliant

Compatibility

Supports A2DP 1.2 profile

Max. communication range

12 m (without interference)

Max. output power

8 dBm

Power Supply / Voltage
Connector

Micro-USB

Power supply

5 VDC 2A

Power consumption

Max. 10 W (typ. 5 W)

Dimensions / Weight
Dimensions (H x W x D)

48 x 229 x 172 mm (1.9 x 9.0 x 6.8")

Weight

1.4 kg (3.1 lbs)
