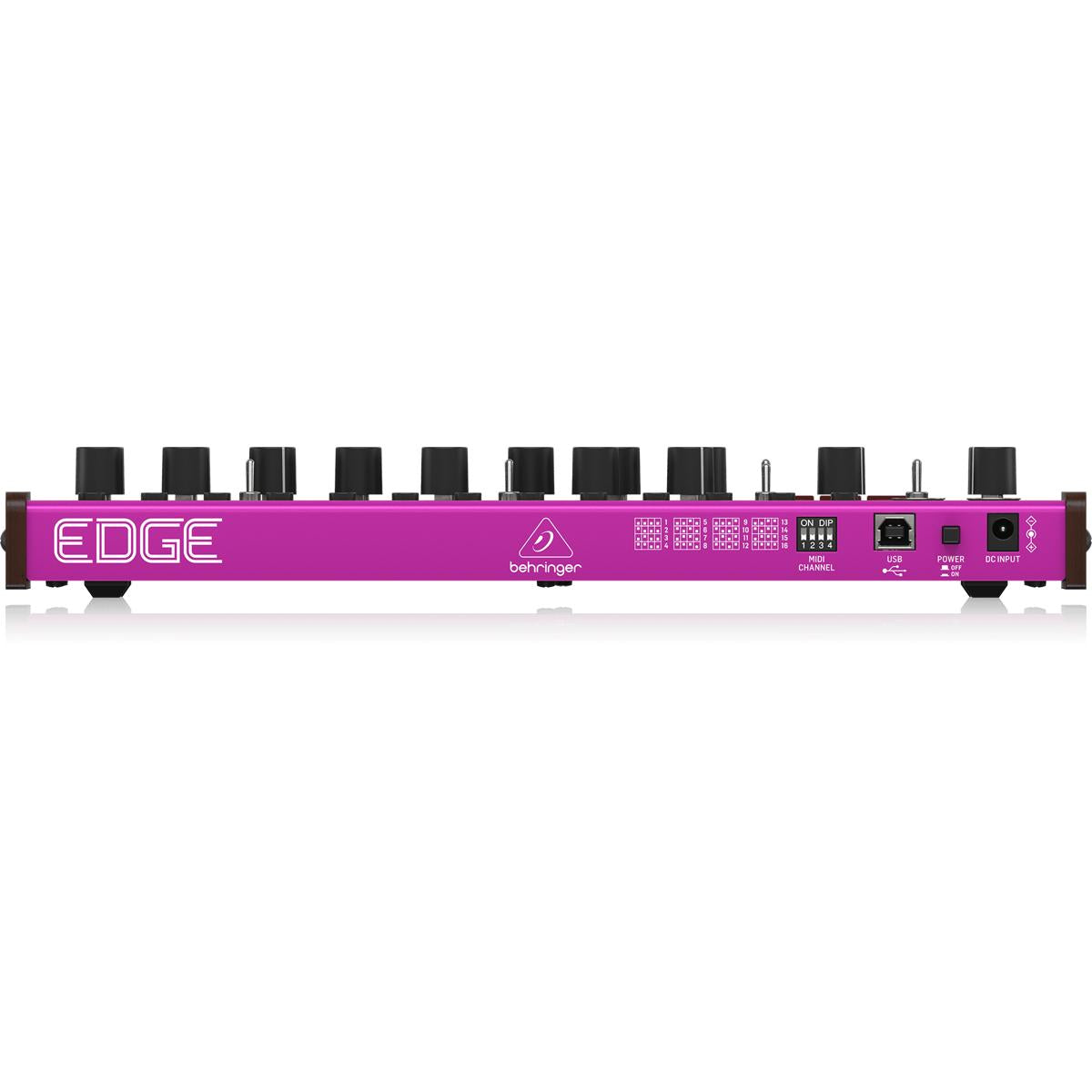

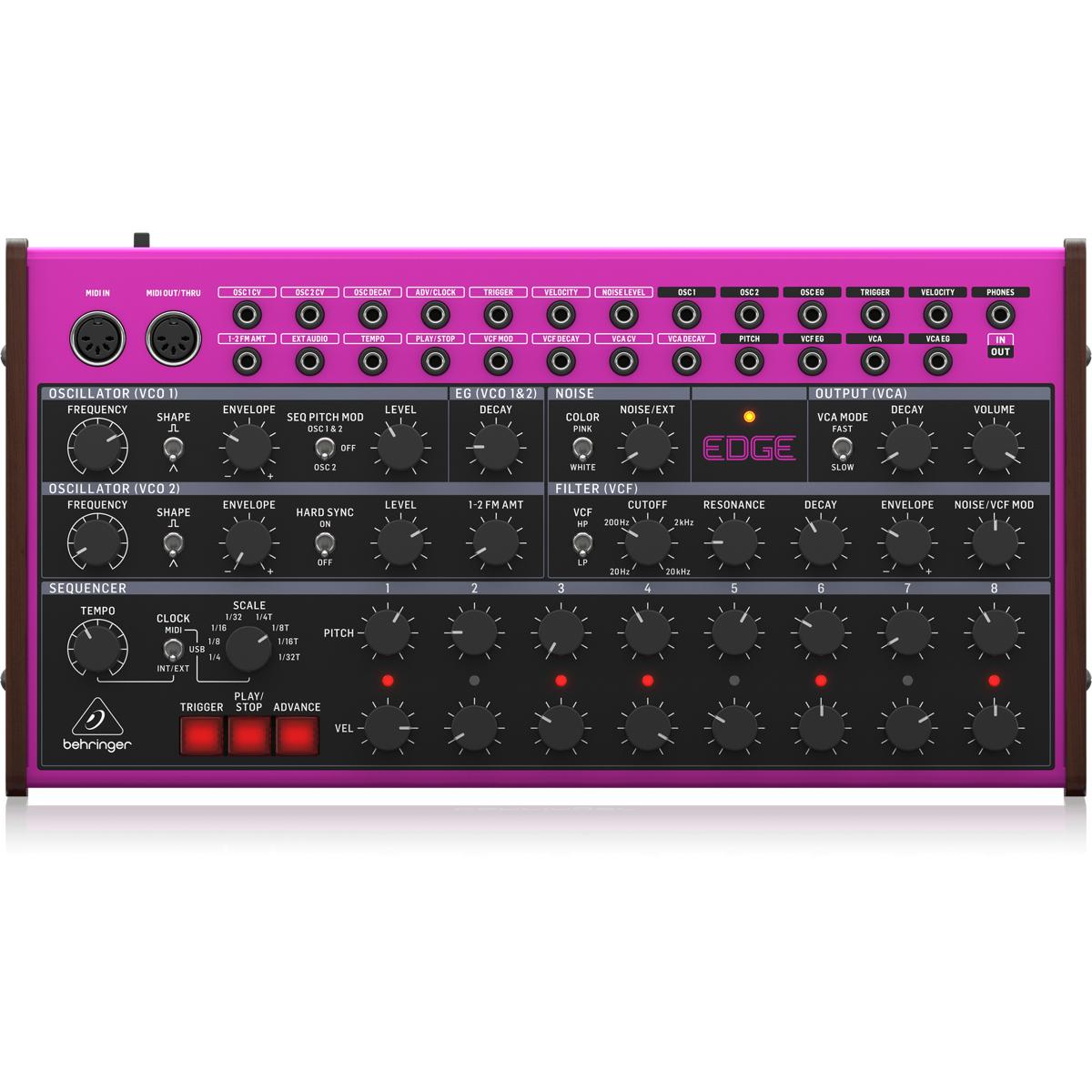

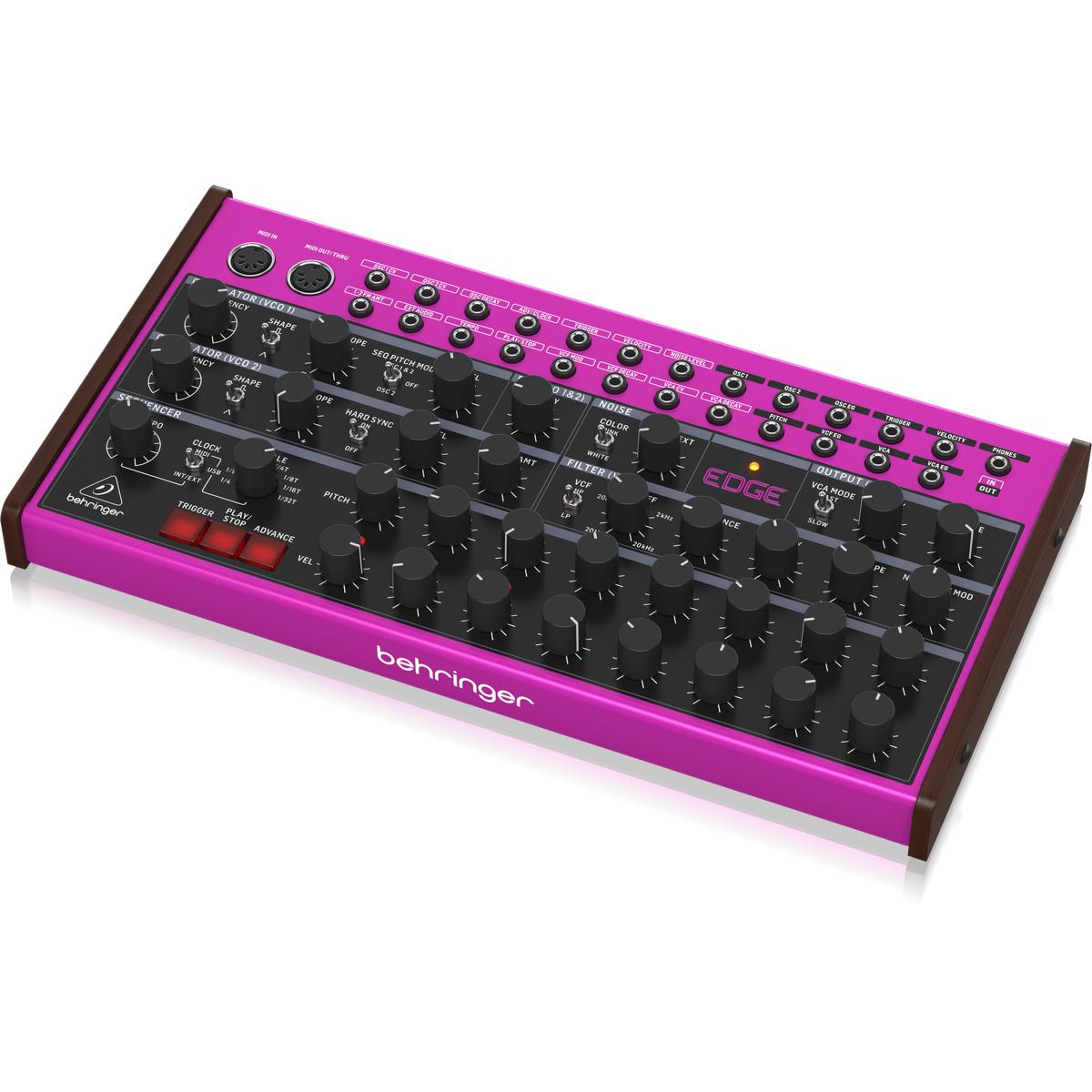

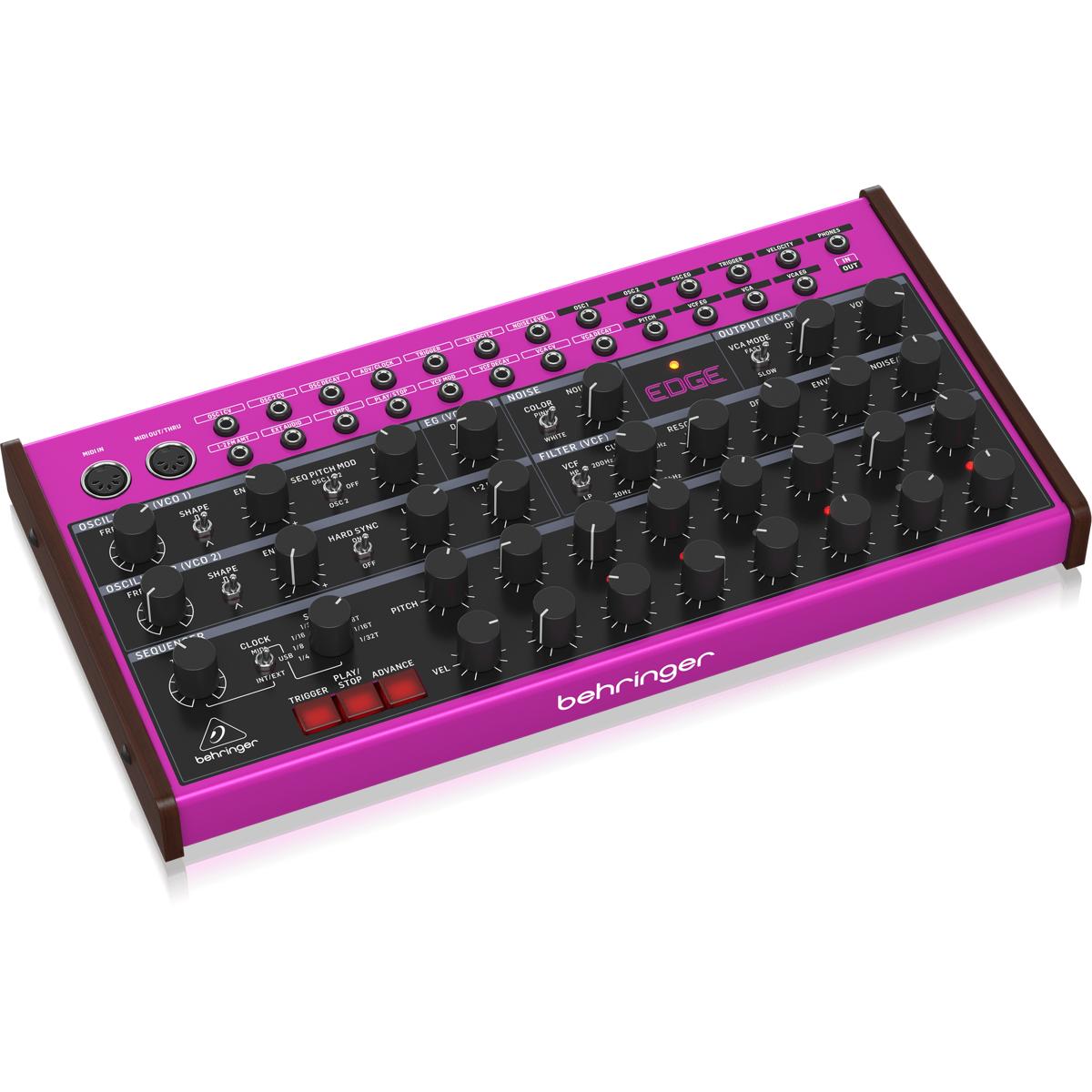

Behringer Edge Analog Percussion Synth

IN STOCK - Ships today if ordered before 1pm AEST

Pay With AfterPay Zip

Product Information


If you’ve been searching for the perfect companion to your Behringer CRAVE then the brand new EDGE provides all the tools you need to complete your synth setup and become a master beat-maker, including: Dual VCOs with a huge range of sounds, a dual 8-step sequencer with pitch and velocity controls and so many more features for a powerful and flexible drum & bass machine that’ll shake the house and get everyone moving to the beat!

Analog Goodness

Great care has been taken in designing the EDGE to achieve new possibilities in sound creation by reviving timeless analog designs and technologies. By taking a fresh and modern approach on classic circuits, the EDGE gives you the power to create super-tight percussive sounds to dark and moody bass lines.

Live Performance Beat Maker

Built to enhance the way you perform, the EDGE boasts a pure analog signal path, Dual VCOs with pulse and triangle waves, oscillator sync and FM plus a white/pink noise source for a huge range of sounds and timbres. Its dual 8-step sequencer with pitch and velocity controls can also provide you with a degree of control that will let you create any groove and rhythm you can imagine. If that wasn’t enough, the EDGE’s sequencer can go up to an astounding 10,000 BPM so you can turn your beats into mind-blowing waveforms that’ll surprise even the most hardcore synth wave fan out there.


Synthesizer Architecture

  • Number of voices: Monophonic
  • Type: Analog
  • Oscillators: 2
  • VCF: 1 HP/LP 4-pole (-24dB/Oct) ladder filter
  • Envelope: 1 per VCO, 1 VCA decay, 1 VCF
  • Noise: White, pink


  • Power input: DC input connector
  • Power switch: Push button on / off
  • USB (MIDI): USB 2.0, type B
  • MIDI In / Out / Thru: 2 x 5-pin DIN / 16 channels
  • Output: VCA output - 3.5 mm TS, unbalanced, max +14.5 dBu
  • Headphones: 3.5 mm TRS, max. 450uW @ 64 Ω
  • Headphones output impedance: 470 Ω


  • Type: 3.5 mm TS
  • OSC 1 CV: -5 V to +5 V
  • OSC 2 CV: -5 V to +5 V
  • OSC decay: -5 V to +5 V
  • ADV/clock: more than 3.2 V (10 V max)
  • Trigger: 0 to +5 V Pulse or Gate signal (+10 V max)
  • Velocity: 0 V to 5 V
  • Noise level: 0 V to 8 V
  • 1-2FM AMT: 0 V to 8 V
  • Ext audio: 10 V max
  • Tempo: -5 V to +5 V
  • Play/stop: more than 3.2 V (10 V max)
  • VCF mod: -5 V to +5 V
  • VCF decay: -5 V to +5 V
  • VCA CV: 0 V to 8 V
  • VCA decay: -5 V to +5 V


  • Type: 3.5 mm TS
  • OSC 1: ± 5 V
  • OSC 2: ± 5 V
  • OSC EG: 0 V to 8 V
  • Trigger: 0 to +5 V Pulse
  • Velocity: 0 to +5 V
  • Pitch: ± 5 V
  • VCF EG: 0 V to 8 V
  • VCA EG: 0 V to 8 V


  • Type: Class compliant USB 2.0, type B
  • Supported operating systems: Windows 10 or higher / Mac OS X 10.14 or higher

Oscillator (VCO) 1 Section

  • Controls:
  • Frequency ± 5 octave (10 octave range)
  • Envelope: -5 to +5
  • Level: 0 to 10
  • EG (VCO 1&2) decay: 0 to 10
  • Switches:
  • Shape: pulse, triangle
  • Seq pitch mod: osc 1&2, off, osc 2

Oscillator (VCO) 2 Section

  • Controls:
  • Frequency ± 5 octave (10 octave range)
  • Envelope: -5 to +5
  • Level: 0 to 10
  • 1-2 FM amt: 0-100%
  • Switches:
  • Shape: pulse, triangle
  • Hard sync on/off

Noise Section

  • Controls:
    • Noise/ext: 0-100%
  • Switch:
    • Color: pink/white

Output (VCA) Section

  • Controls:
    • Decay: 0 to 10
    • Volume: 0 to 10
  • Switch:
    • VCA mode: fast/slow

Filter (VCF) Section

  • Controls:
    • Cutoff frequency: 0 to 10 (20 Hz - 20 kHz)
    • Resonance: 0 to 10
    • Decay: 0 to 10
    • Envelope: -5 to +5
    • Noise/VCF MOD: 0 to 10
  • Switch:
    • VCF: HP/LP


  • Controls:
    • Tempo: 0% - 100%
    • Scale: 1/4, 1/8, 1/16, 1/32, 1/4T, 1/8T, 1
