Professional 7-Channel DJ Mixer with
infinium “Contact-Free” VCA Crossfader and USB/Audio Interface
PRO MIXER DX2000USB
These days, a DJ commands a whole lot more than just a mic and a
couple of turntables! On any given gig you may be required to
accommodate a multimedia presentation, variety of audio platforms
(vinyl, CDs, mp3) and multiple mics. That’s why we proudly present
the 7-channel PRO MIXER DX2000USB with its fully-adjustable infinium
“Contact-Free” Crossfader and built-in USB/audio interface. Now the
DJ who wears many hats – is always ready for anything!
Contact-Free Infinium Crossfader
The DX2000USB features our super-smooth channel faders and the
infinium “Contact-Free” VCA-controlled optical crossfader for the
ultimate in reliability and state-of-the-art audio performance. A
dedicated CF Curve control allows you to custom-tailor the
crossfader’s control characteristic, and you can even set the
crossfader tension just the way you like it.
Live Large with More Mediums!
If it can be clicked, spun or spoken, the DX2000USB can mix it! You
get 5 dual-stereo Inputs plus 2 mono Mic/Line channels with our
Ultra Low-Noise (ULN) Mic Preamps, Phantom Power, Gain control and
Clip LED. The DX2000USB also has enough built-in phono preamps to
handle up to 3 turntables. Finally, the built-in USB/audio interface
gives you the power to add your computer’s digital music library to
2000USB comes armed with a 3-band kill EQ and Gain control per
channel. Mono channels feature an additional Low Cut switch and an
FX switch that routes the channel to the FX Send and Return loop, so
you can add a touch of outboard effects. These channels, which
accept microphones and ¼" line sources, also feature a Talkover
button, a Channel On button and PFL switch for headphone monitoring.
Stereo channels have an EQ on/off switch, as well as a Crossfader
button that sends the channel to the main stereo mix or the
crossfader. An Assign button selects whether the channel appears on
the X or Y side of the Crossfader.

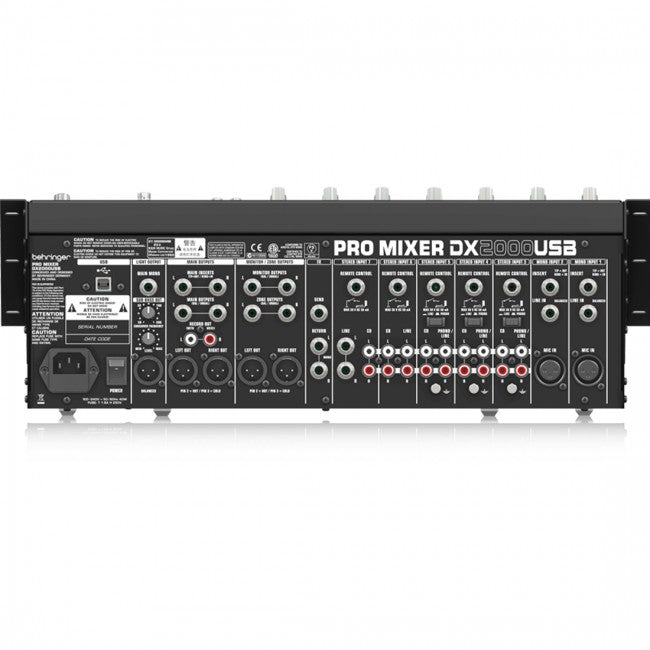

For the DJ in need of mammoth bass, the DX2000USB features an XLR
Sub Bass Out (perfect for connecting to an active subwoofer) with an
adjustable Crossover Frequency (30 - 200 Hz) and dedicated Level
control. Directly above, the DX2000USB provides a ¼" Main Mono ouput
for synching your music’s strongest pulses with a lighting system.
The Main Output section offers ¼" and XLR stereo outputs, as well as
¼" inputs for connection to outboard EQ units. This section also
features RCA outputs for recording your set. The Monitor/Zone Output
section gives you stereo ¼" and XLR Monitor Outputs, as well as ¼"
stereo Zone Outputs.
Compose. Record. Mix. Share.
Tracktion is one of the world’s fastest and easiest Digital Audio
Workstations (DAW) for composing, recording, editing, mixing and
sharing your music with the world. Featuring a single-screen
interface, and pushing the envelope in design elegance, Tracktion
brings together outstanding Pro DAW features, such as dynamic
automation, unlimited track count, MIDI recording and support for
VST and AU plug-ins. This powerful music production software gives
you all the tools of an entire professional-grade recording studio.
Learning a DAW has never been easier, thanks to their vast and
readily available library of resources.
Professional, 7-channel, ultra-low noise DJ
mixer with state-of-the-art phono preamps
45-mm infinium “contact-free” optical crossfader with adjustable friction for
years of use
5 dual stereo inputs plus 2 mono mic/line channels with ULN mic preamps, Phantom
Power, Gain control and Clip LED
Built-in USB interface for recording and playback of any digital music file.
Works with your PC or Mac* computer—no setup or drivers required
Massive software bundle including Audacity* vinyl restoration and recording,
Podifier* and Golden Ear* podcasting software downloadable at www.behringer.com
Ultra-musical 3-band kill EQ (-32 dB) with EQ on/off switch on all stereo
Long-wearing 100-mm faders and sealed rotary controls on all input channels
Headphone output with Level and Balance (PFL/Main) controls, switchable split
mode and level display
Auto-talkover function with separate Sensitivity, Time and Damping controls
Main Dim, main Boost, Punch and Cut functions for awesome mix options
Subbass Out for separate subwoofer, additional Zone output for second room/area
"Planet Earth" switching power supply for maximum flexibility (100
- 240 V~), noise-free audio, superior transient response plus low power
consumption for energy saving
Rack mount brackets included for ultimate flexibility
3-Year Warranty Program*
Designed and engineered in Germany
