Behringer Deepmind 6X True Analogue 6-Voice Polyphonic Synth
Pay With
Product Information

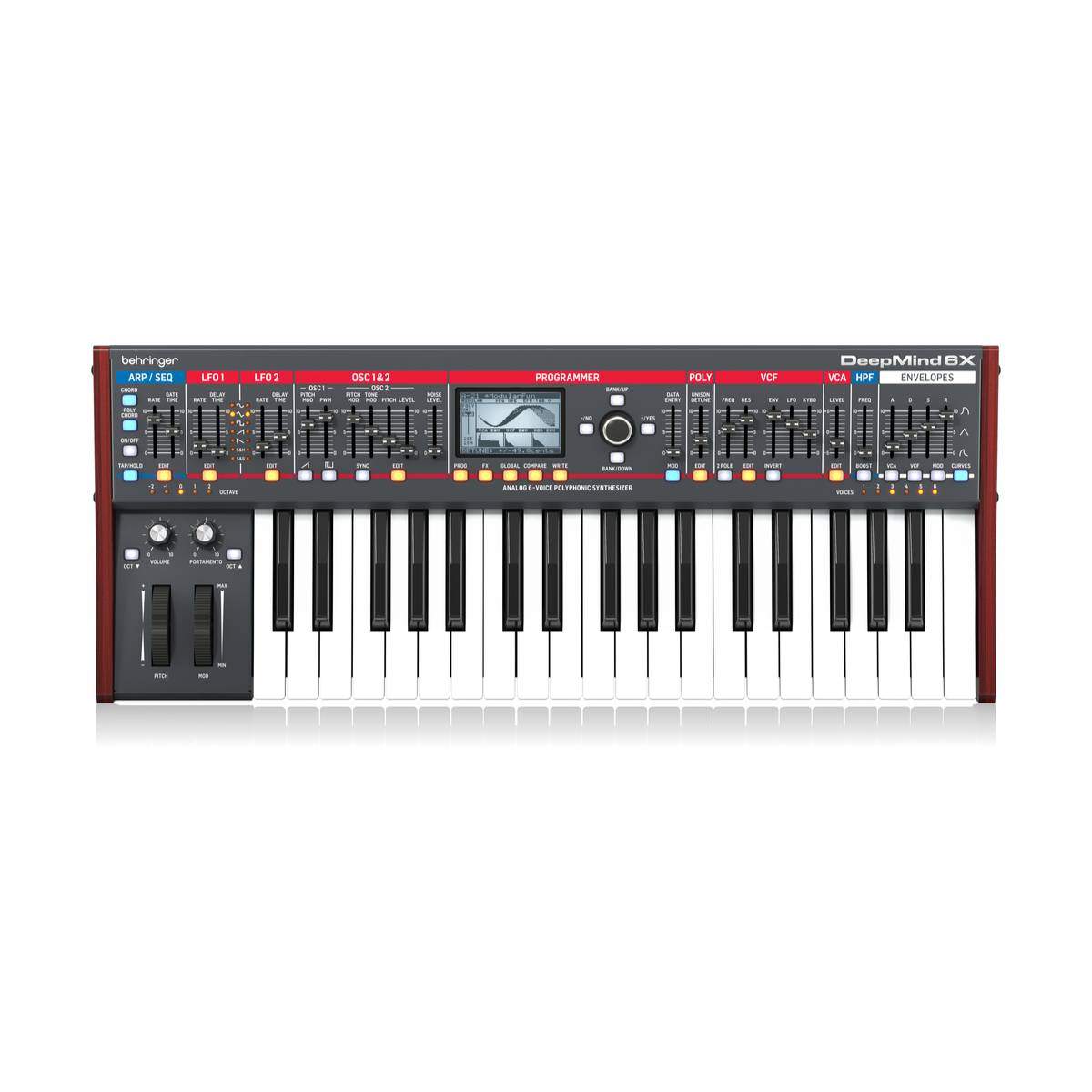

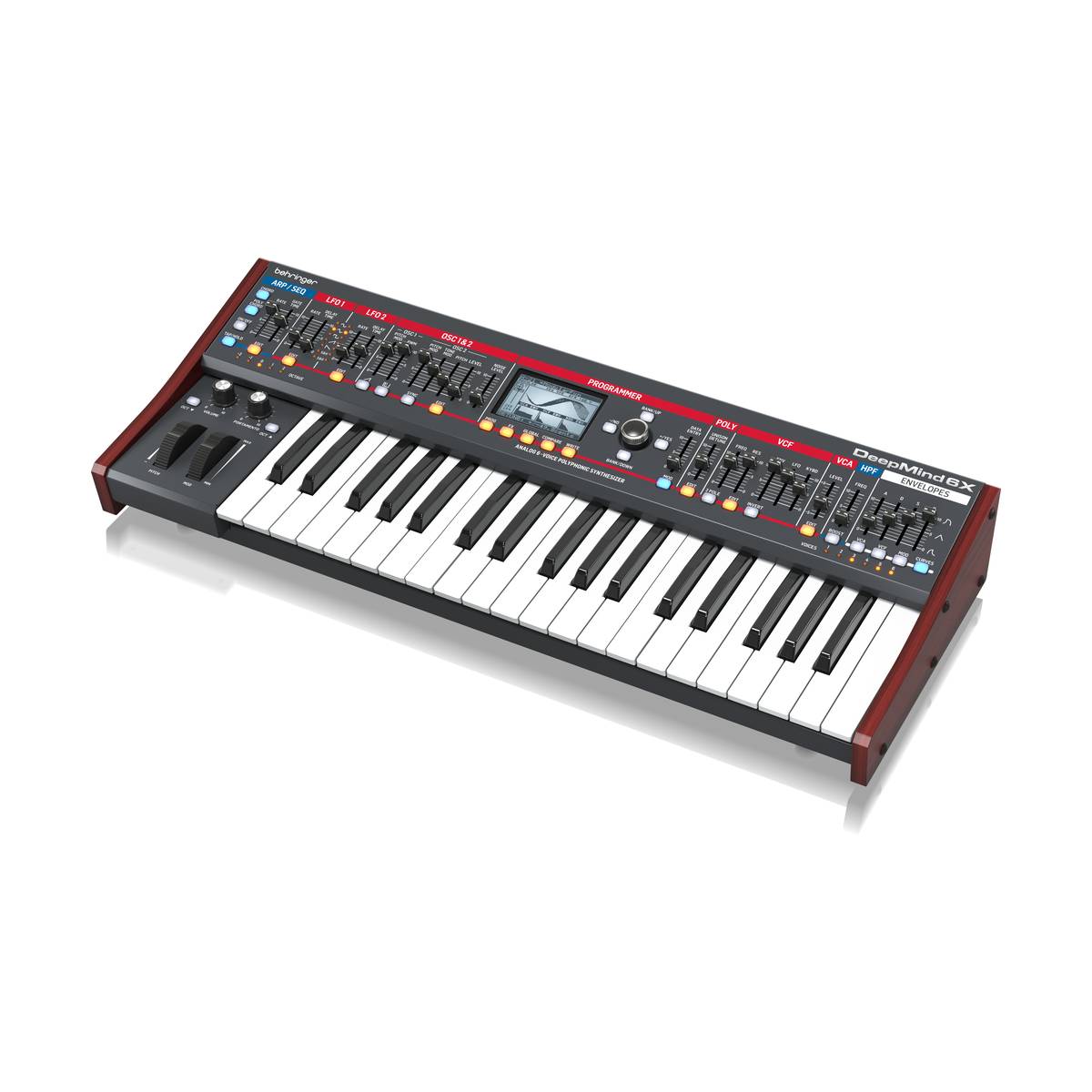

Behringer DEEPMIND 6X Polyphonic Synthesizer
True Analog 6-Voice Polyphonic Synthesizer
The DEEPMIND 6X offers classic analog tone with modern digital enhancements. Featuring 6 true analog voices, dual OSCs and LFOs per voice, 3 ADSR generators, 4 FX engines, an 8-channel modulation matrix, and a 32-step sequencer, it’s a versatile powerhouse for both studio and stage. With tablet and computer remote control, you’ll have unprecedented flexibility to craft your sound.
Product Features
- 6 analog voices with 2 oscillators per voice (saw, square/pulse, sub, tone modulation)
- 4 simultaneous FX engines (TC Electronic, Klark Teknik, Midas) with 30+ algorithms
- 2 LFOs per voice with 7 waveform shapes, sync, and auto-triggering
- 3 ADSR generators per voice for VCF, VCA, and modulation envelopes
- 8-channel modulation matrix with 19 sources & 130+ destinations
- 32-step control sequencer with adjustable slew rate & MIDI sync
- 37 semi-weighted full-size keys with velocity and aftertouch
- Selectable 12/24 dB low pass filter per voice with resonance
- Polyphonic portamento with multiple glide modes
- Arpeggiator with configurable patterns and tap tempo
- Chord & PolyChord memory functions
- Global noise generator & 6 dB high pass filter with bass boost
- 1024 user program memories with compare & match feature
- Comprehensive USB/MIDI implementation & CV/pedal input
Classic Polyphonic Synthesizer
DEEPMIND 6X’s analog path uses legendary IR3109-style VCFs, stereo VCAs, and 6-voice polyphony for authentic 70s and 80s-inspired sounds. Its oscillator drift and parameter drift recreate vintage warmth while delivering reliable stability for modern performance.
Powerful FX Engines
With 4 simultaneous FX racks and over 33 high-end algorithms (Reverb, Delay, Chorus, Multiband Distortion, and more), the DEEPMIND 6X integrates studio-quality processing right into the synth. All FX run in a low-latency environment for flawless performance and flexible routing.
Expressive Playability
The 37 semi-weighted keys respond to velocity and aftertouch for expressive control. Pitch and modulation wheels, 26 sliders, and 30+ switches give hands-on access to every parameter. The LCD screen provides real-time editing and navigation with an intuitive interface.
Remote Control & Connectivity

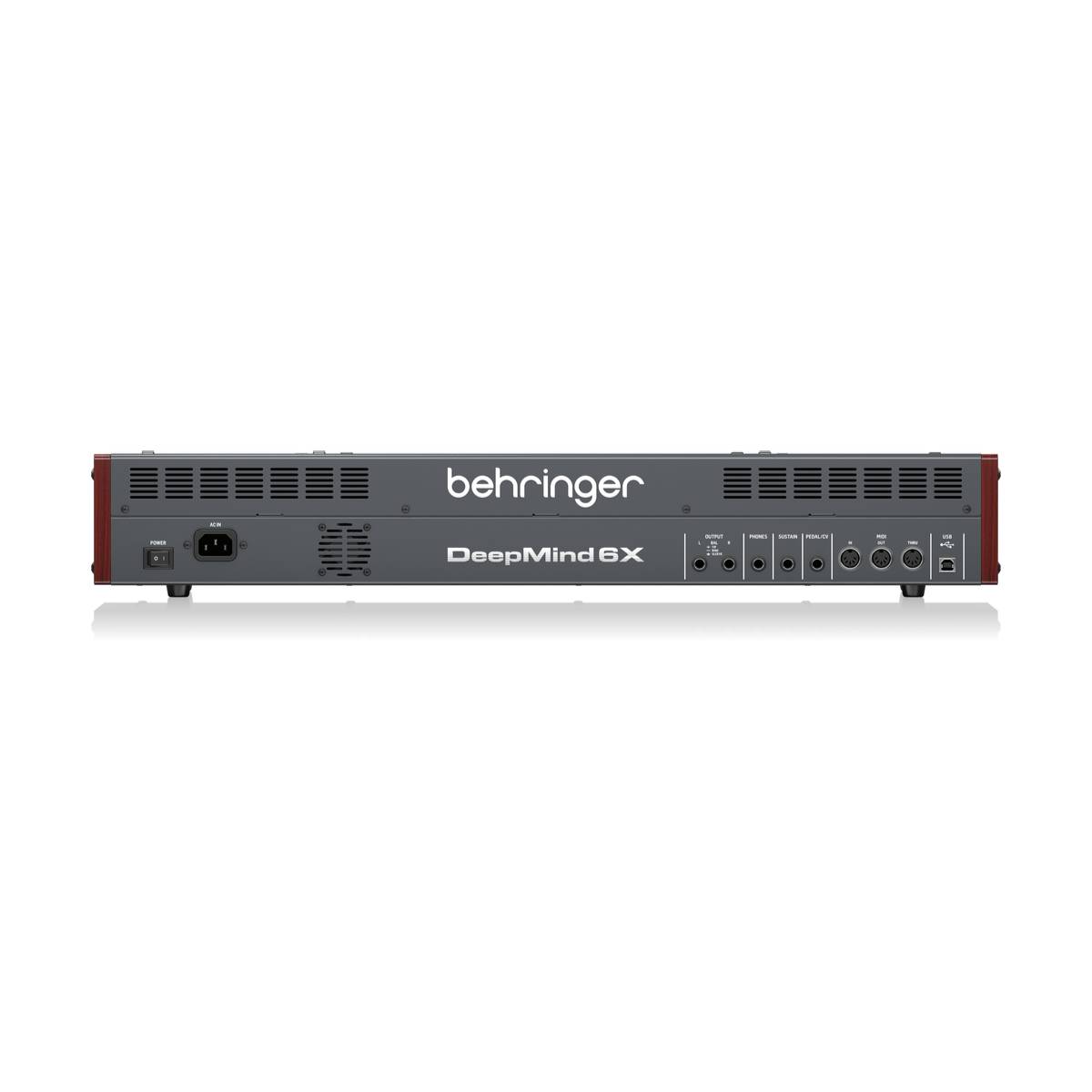

DEEPMIND 6X offers remote control via iPad, PC, or Mac over USB, MIDI, or WiFi, enabling extended parameter editing and patch management. Connectivity includes balanced stereo outputs, MIDI In/Out/Thru, CV/pedal input, sustain, USB MIDI, and headphones.
Unleash Your Imagination
Whether you’re chasing vintage warmth, complex evolving textures, or cutting-edge sound design, the DEEPMIND 6X provides everything you need. Affordable, powerful, and deeply flexible, it’s designed to give your creativity a true analog voice with digital convenience.
Specifications
Global
- Display: Backlit LCD
- Main Menus: PROG, FX, GLOBAL, COMPARE, WRITE
- Edit Menus: ARP/SEQ, LFOs, OSCs, POLY, VCF, VCA, VCA ENV, VCF ENV, MOD ENV, MOD MATRIX
- Presets: 8 banks × 128 programs
- Fader Modes: MIDI CC, NRPN, OFF
Controls
- Keyboard: 37 semi-weighted, full-size keys
- Keyboard Sensing: Aftertouch, note on/off velocity
- Encoders: 1 rotary knob
- Faders: 26 slide faders (35 mm)
- Switches: 33 backlit switches
- Modulation: Free-moving wheel
- Pitch Bend: Spring-loaded wheel
Connectivity
- MIDI In/Out/Thru: 5-pin DIN, 16 channels
- Pedal/CV: 1/4" TRS
- Sustain: 1/4" TS
- USB: USB 2.0, type B
- Output L/R: 1/4" TRS, balanced, max. +18 dBu
- Headphones: 1/4" TRS, unbalanced, max. +21 dBu
Synthesizer Architecture
- Voices: 6 analog
- OSC: 2 per voice
- LFO: 2 per voice
- VCF: 2-pole / 4-pole
- HPF: 6 dB/oct (common to all voices)
- Envelopes: VCA, VCF, MOD
- Mod Matrix: 25 sources / 133 destinations
Digital Effects
- FX Slots: 4 per program
- FX Types: 35 algorithms
- Internal Engine: 1 true stereo SHARC DSP
- Processing: 32/40-bit floating point @ 48 kHz
- A/D-D/A: 24-bit 48 kHz, 114 dB dynamic range
- Bypass: True hard bypass
USB
- Type: Class compliant USB 2.0, type B
- Supported OS: Windows 7+, Mac OS X 10.6.8+, iOS 8+, Android 6.0+
Power Requirements
- Mains Connector: Standard IEC receptacle
- Consumption: 55 W max.
- Internal PSU: Switch-mode, autorange 100–240 V (50/60 Hz)
Environmental
- Operating Temperature: 5°C – 45°C (41°F – 113°F)
Physical (Packaged)
- Dimensions (H × W × D): 103 × 649 × 257 mm
- Weight: 6.9 kg
- Shipping Weight: 9.0 kg
