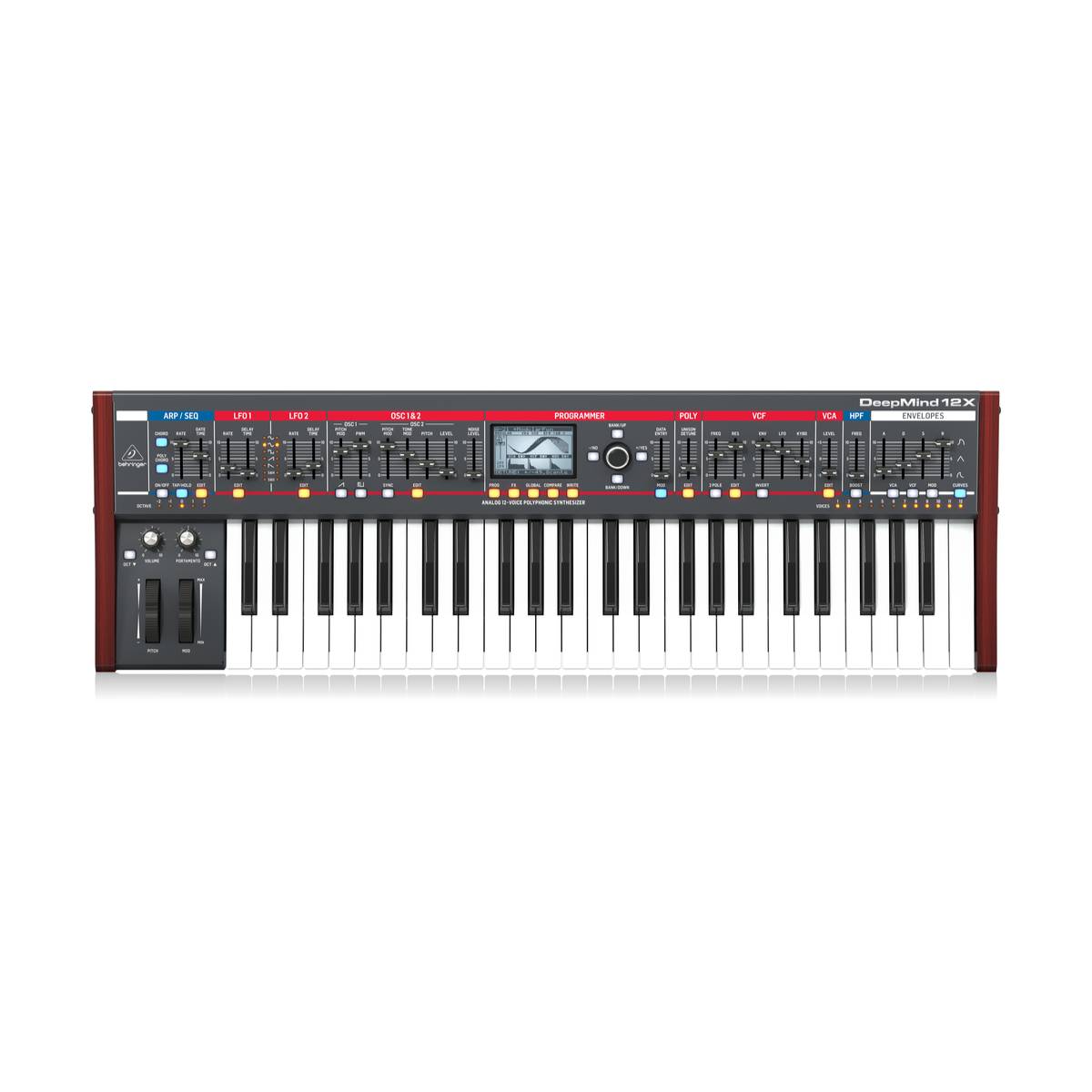

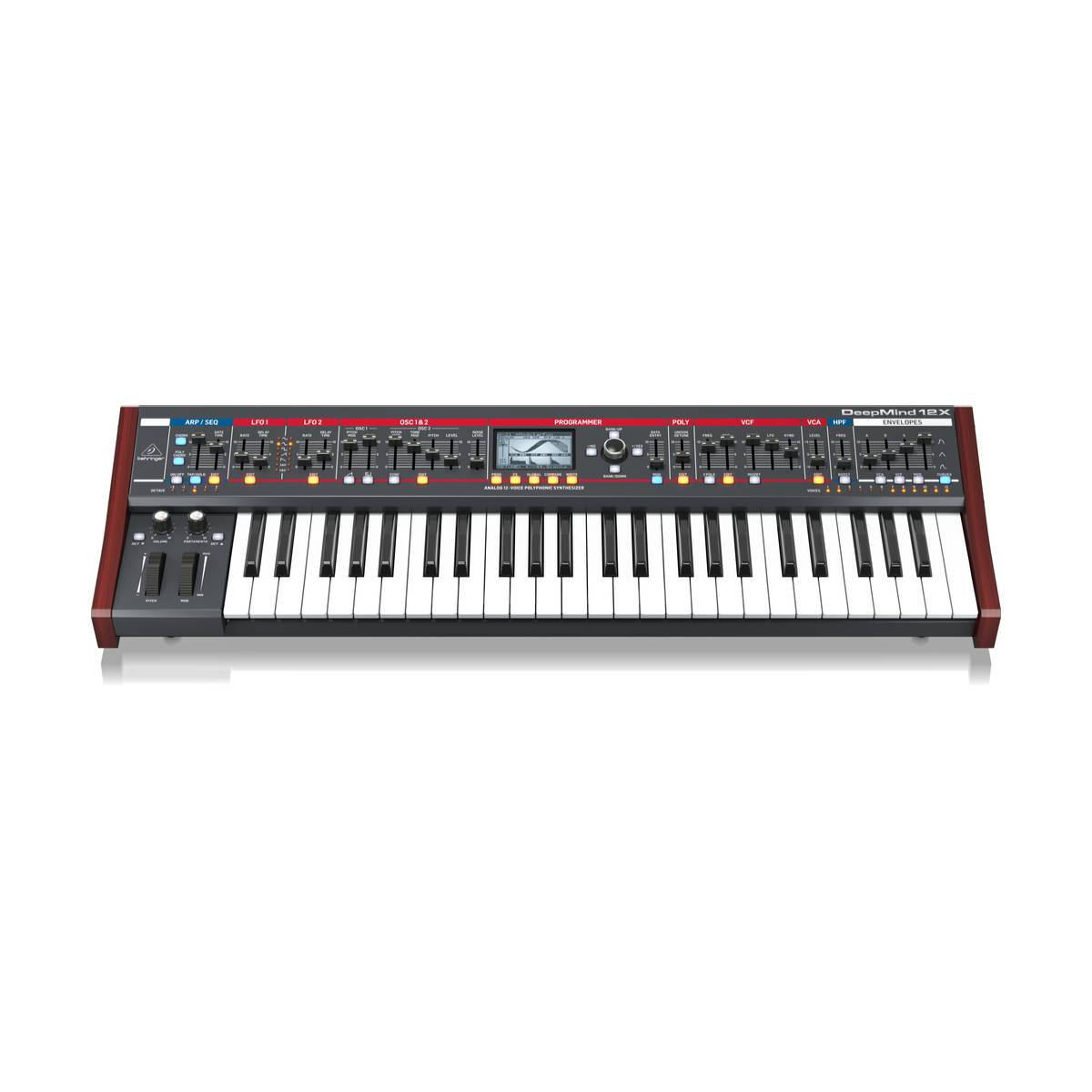

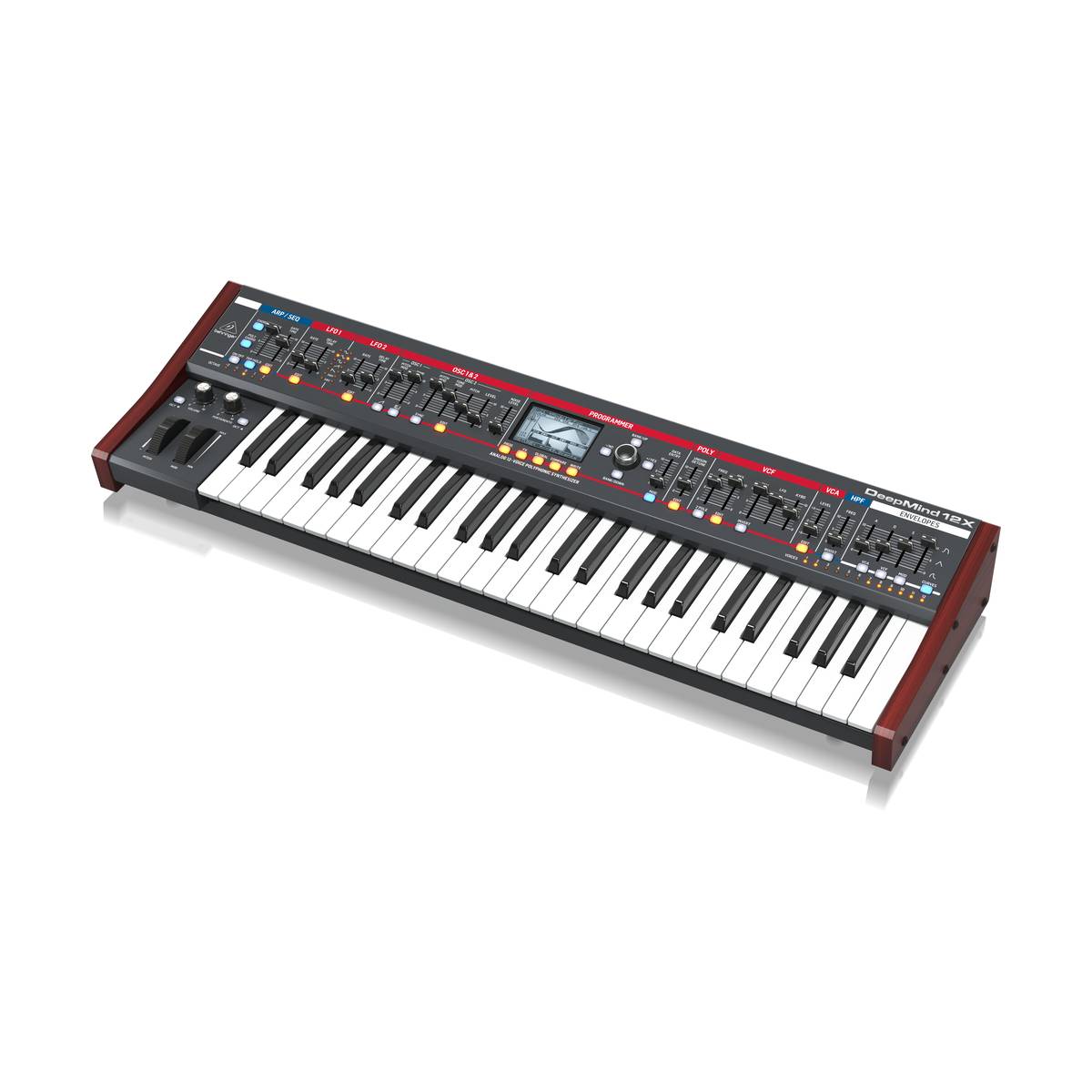

Behringer Deepmind 12X True Analogue 12-Voice Polyphonic Synth

Product Information

DEEPMIND 12X

True Analog 12-Voice Polyphonic Synthesizer with 4 FX Engines, 2 OSCs and LFOs per Voice, 3 ADSR Generators, 8-Channel Modulation Matrix, 32-Step Control Sequencer, Tablet Remote Control and Built-In Wifi

Product Features

• Classic polyphonic synthesizer with 12 true analog voices for insanely fat and authentic sounds
• 4 simultaneous world-class TC Electronic and Klark Teknik FX with over 30 algorithms including Reverb, Chorus, Flanger, Phaser, Delay and Multi-Band Distortion
• 12 voices with 2 OSCs per voice with oscillator sync mode
• 2 LFOs per voice with 7 waveform shapes, key sync, MIDI sync and envelope auto-triggering
• 3 ADSR generators per voice for control of VCF, VCA and MOD envelopes
• Flexible 8-channel modulation matrix with 19 sources and over 130 destinations including effects parameters
• 32-step control sequencer with adjustable slew rate and MIDI sync
• Full remote control via iPad /PC/Mac and selected Android App over USB, MIDI or built-in WiFi for extended parameter control
• 49 semi-weighted full-size keys featuring velocity sensitivity and after-touch
• Pure analog signal path based on legendary VCF and VCA designs
• OSC 1 generates sawtooth and square/pulse waveforms with pulse width modulation
• OSC 2 generates square/pulse waveforms with tone modulation
• Selectable dual slope 12/24 dB analog low pass filter per voice with adjustable resonance
• Envelope faders seamlessly transform individual envelope segments between linear, exponential and reverse exponential curves
• Powerful unison and poly modes with detune, pan spread and drift parameters featuring up to 12 voices per note
• Global noise generator dramatically expands waveform generation
• Incredible polyphonic portamento with flexible fixed rate, fixed time and exponential pitch glide modes
• Sophisticated arpeggiator with tap tempo button and user configurable pattern modes
• Chord and PolyChord memories enable polyphonic performances from monophonic playing styles
• True bypass mode for pure and high-integrity analog tone
• Global variable 6 dB high pass filter with powerful bass boost switch
• 26 sliders and one switch per function give direct and real-time access to all important parameters
• Spring-loaded pitch and assignable modulation wheels provide total hands-on performance
• LCD Display with encoder, navigation switches and data value slider for rapid menu parameter editing and program selection
• 1024 user program memories with “compare and match” feature to quickly match all analog controls to values stored in program
• Fully servo-balanced stereo outputs for highest signal integrity
• CV/pedal input for connection to modular systems
• Comprehensive MIDI implementation (including NRPN/CC control of all parameters and bulk load/save)
• Integrated and configurable WiFi client / Access point allows easy and secure connection to home network

DEEPMIND 12X
DEEPMIND 12X allows you to conjure up virtually any sound you can imagine with unparalleled finesse and ease. Thanks to its 4 FX engines, dual analog OSCs and LFOs per voice, 3 ADSR Generators, 8-Channel Modulation Matrix and onboard 32-Step Control Sequencer, the DEEPMIND 12X gives you complete control over your soundscape. Plus, DEEPMIND 12X features comprehensive remote control via iPad/PC/Mac and selected Android Apps over USB, MIDI or built-in WiFi – for a custom-tailored workflow that lets your creative spirit soar to new heights.

Classic Polyphonic Synthesizer

The inspired synthesizer tracks laid down in the 1970s and '80s are etched in the annals of progressive rock and pop music forever, making them truly classic in every sense of the word. DEEPMIND 12X’s pure analog signal path with legendary IR3109-style VCFs, stereo VCAs, and 12-voice polyphony lets you recreate all that magic or design the powerful, original sounds that just might make you a legend in your own right. And now with its updated look, you’ll have a striking piece of gear in your setup as well.

The FX Racks

We also included 4 simultaneous FX engines with over 33 world-class TC Electronic, Midas and Klark Teknik algorithms – including Reverb, Chorus, Flanger, Phaser, Delay, Multiband Distortion, and many more. Custom-designed and physically modeled after some of the most iconic and sought-after processors, DEEPMIND 12X’s FX were essentially “rebuilt” in the digital domain – and put right at your fingertips. All effects run inside the low-latency environment of the DEEPMIND 12X, ensuring flawless performance and flexible routing.

Glorious 12-Note Polyphony

Playing chords and building textural soundscapes requires the ability to generate multiple notes or sounds simultaneously. While early analog synthesizers were either monophonic (only 1 note at a time), or somewhat limited in the number of sounds they could produce at the same time, the DEEPMIND 12X boosts your creativity with 12-note polyphony. Each voice has 2 oscillators, with OSC 1 generating sawtooth and square/pulse waveforms with pulse width modulation, and OSC 2 generates square/pulse waveforms with a unique tone modulation. With 24 oscillators at your disposal, a tremendous range of options becomes available including the following oscillator modes: Unison 12, 6, 4, 3, 2 Mono; Mono -2; Mono 4; Mono 6; Poly; Poly 6, and Poly 8. The addition of oscillator sync, oscillator drift and parameter drift allow the recreation of the much sought after warmth and movement found in vintage analog synthesizers, with greatly improved reliability and stability.

Making Waves

Individual voices also have 2 LFOs (Low-Frequency Oscillators) with a range that extends into the audio rate. Each LFO features adjustable slew-rate, modulation delay, key sync, assignable clock sync (internal or external MIDI), envelope auto-triggering, as well as Delay and Fade in. The 7 available waveform shapes are; Sine; Triangle; Square; Ramp Up; Ramp Down; Sample and Hold, and Sample and Glide for an amazing array of tonal options. The DEEPMIND 12X also offers a highly unusual Phase Link option for the polyphonic LFOs, allowing them to operate in Unison (Mono), or link with an adjustable phase shift between voices. Additionally, the LFOs can track key pitch via the modulation matrix, enabling cross mod type effects.

3 Envelope Generators

When it comes to envelope generation, DEEPMIND 12X has all bases covered, thanks to 3 four-stage ADSR (Attack, Decay, Sustain, Release) envelope generators per voice, each equipped with continuously-variable curves for truly unique flexibility. Envelope Trigger Modes include: Legato, Mono, and Retrigger. The envelopes can be triggered by key, individual LFOs, or the control sequencer and looped well into the audio rate. DEEPMIND 12X serves up all the versatility and tone-sculpting options a professional musician could ask for.

8-Channel Modulation Matrix

Want to modulate the reverb tail or compressor with the mod wheel? How about driving the Midas multi-band distortion effect with an LFO or aftertouch? With 19 modulation sources and more than 130 destinations, DEEPMIND 12X provides a multitude of modulation options. And the "press & hold" shortcuts make selection of those sources and destinations quick and easy.

32-Step Control Sequencer

The control sequencer features an adjustable slew rate, MIDI sync, and allows a 32-step pattern of values, which can vary from -127 to 127. Other parameters that can be controlled include: note value; tie and length; slew; and swing. These can all be mapped as modulation sources to any of the available destinations.

Remote Control

Comprehensive remote control is available for DEEPMIND 12X via iPad/PC/Mac App over USB, MIDI or built-in WiFi for extended parameter control. The iPad App also features a robust preset manager, gig list full editor and integral Patch Morpher.

Ultra-Expressive Keyboard

The keyboard features 49 full-sized, velocity-sensitive keys with aftertouch that deliver an expressive and superior playing experience. You’ll love the feel and playability of DEEPMIND 12X’s semi-weighted keys as they respond to even the slightest nuance of your playing. Aftertouch allows you to imbue your sound with variations of pitch, volume, modulation or color – whatever parameters you choose. Whether you have a heavy or soft playing style, DEEPMIND 12X always responds to your touch with 3 different selectable velocity and aftertouch curves.

Pure Analog Signal Path

A modern reincarnation of a beloved analog classic (with true bypass studio-grade FX), all of DEEPMIND 12X's sounds are purely analog – all the way from OSC 1, which generates sawtooth and square/pulse waveforms with user-definable pulse width modulation (PWM), and OSC 2, which generates square/pulse waveforms with tone modulation. The combination of square/pulse waves on OSC 1 and tone modulation on OSC 2 gives the DEEPMIND 12X a boldly unique and fresh character not found in competing products.

Low Pass Filter and Envelope Faders

Everything about the DEEPMIND 12X has been designed to give you total control over the creative process. That goes for the selectable, dual slope 12/24 dB analog low pass filter with adjustable resonance and tracking (per voice), and the 4 Envelope faders that smoothly transform individual segments of the envelope between linear, exponential and reverse exponential curves.

Big, Fat Tones

DEEPMIND 12X provides your choice of powerful unison or poly modes, with detune, pan spread and drift parameters, that can handle up to 12 voices per note for incredibly fat tones. And if you want even more, just engage the global noise generator to expand the waveform options. DEEPMIND 12X's extreme versatility empowers you to be your creative best.

Polyphonic Portamento

While most synthesizers only allow simple mono portamento glides, the DEEPMIND 12X lets you create stunningly smooth mono and polyphonic chord glissandos that will really get your juices flowing. Options include flexible fixed rate, fixed time and exponential pitch glide modes of operation.

Arpeggiator

A very sophisticated Arpeggiator is also provided, complete with a tap tempo button and user-configurable pattern modes that exhibit a level of refinement previously only available from a sequencer. DEEPMIND 12X's arpeggiator can operate across up to 6 octaves, and you can choose from 32 preset rhythmic patterns with up to 32 steps and rests – or create and save your own. Modes of operation include: UP; DOWN, UP-DOWN, UP-INV, DOWN-INV, UP-DN-INV, UP-ALT, DOWN-ALT, RAND, AS-PLAYED, and CHORD. A wide range of clock options are also available, as well as hold switch latching.

Chord Memory

Want to build impossibly-huge chords that can be played with a single finger. DEEPMIND 12X allows you to write extremely complex chords and polychords (up to 12 notes each), save them into memory locations – and perform them with the press of a single key. There is enough storage space onboard for 36 six-note chords, all of which can be mapped to specific trigger keys.

True Bypass Mode

The FX menu of the DEEPMIND 12X is accessed by pressing the FX button, which in turn brings up the FX page on the LCD display. This is where you assign, route and adjust all FX parameters, including Mode, Mix and Level. You can select the Bypass Mode to completely remove the digital FX from the signal path for a pure, high-integrity analog tone.

High Pass Filter

The 6 dB High Pass Filter (HPF) in the DEEPMIND 12X lets you set the lower cutoff frequency of the output signal. The accompanying Boost switch applies a +12 dB bass boost to the signal path to fatten up the bottom end.

You Are Always in Control

We can't help ourselves – like you, we're gear-heads, too. For those who want the numbers, DEEPMIND 12X has: 26 sliders, 33 switches, 1 rotary encoder, 2 knobs, 1 spring-loaded pitch wheel and 1 assignable, spring-loaded modulation wheel. All are laid out in a highly-intuitive format designed to put the joy back into your music creation.

Pitch and Mod Wheels

Spring-loaded pitch and assignable modulation wheels are conveniently placed for easy left-hand access, making the DEEPMIND 12X the ultimate live performance and studio-ready synthesizer.

Large LCD Screen

The large and easy-to-read LCD screen provides rapid parameter editing and program selection on-the-fly, for a total hands-on performance with real-time access to all important parameters. The screen shows the synthesizer status, parameters, and the five main menu pages: Connectivity, Keyboard, Pedal, Fader and System. The contrast and brightness levels are adjustable on the System settings page of the GLOBAL menu.

Something to Remember

The patches loaded into DEEPMIND 12X's memory were designed by some of the world's finest sound designers, and all of them are available for your modification. Your parameter settings can be stored in one of 1024 available user memory slots, which feature a convenient “compare and match” function that helps you match all analog controls to the values stored in the program. DEEPMIND 12X provides more than enough memory to store several soundtracks – and even entire shows.

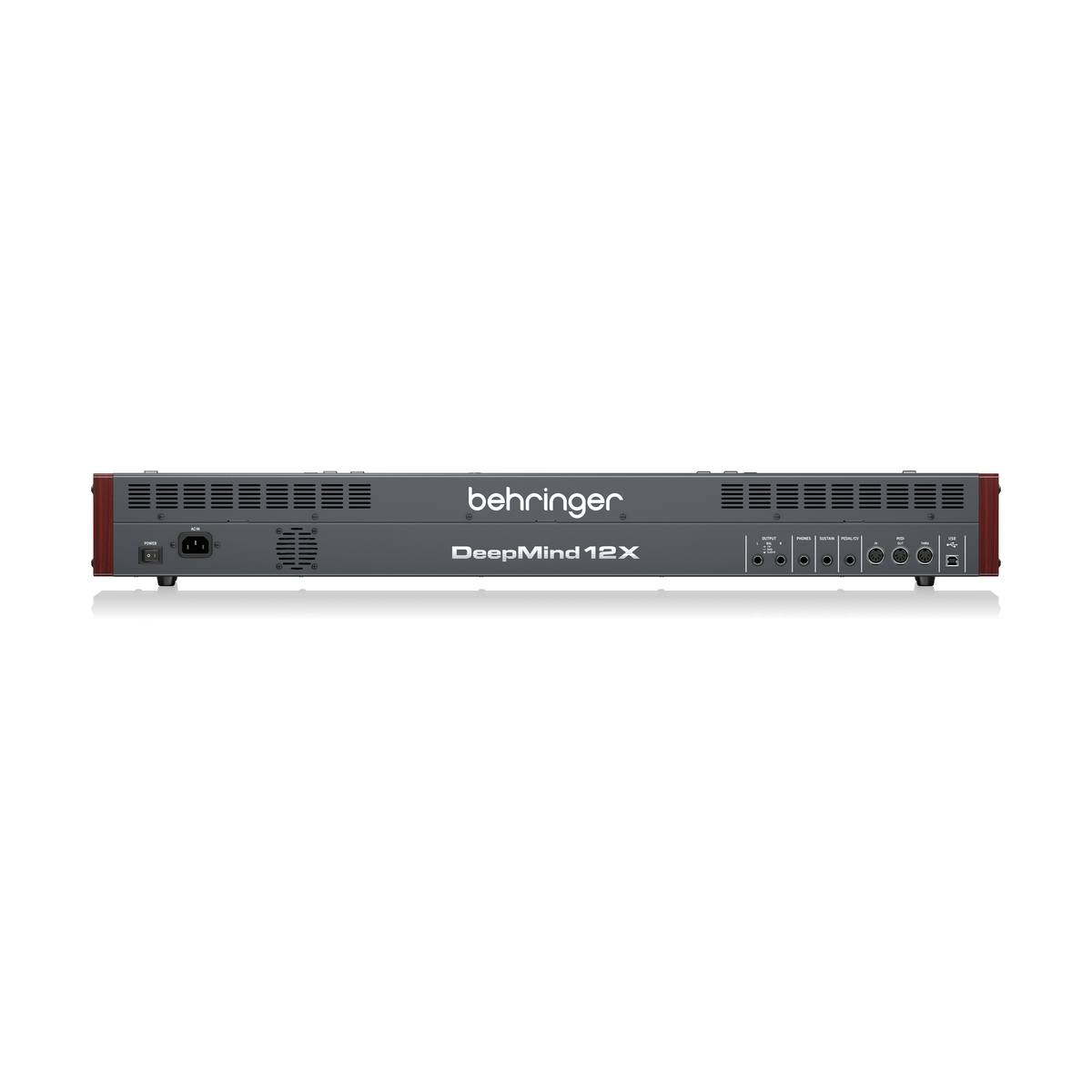

You've Got Connections

DEEPMIND 12X's connectivity is extensive with: fully servo-balanced stereo TRS outputs, for audio feeds to mixing consoles/amplifiers; Phones, Sustain, Pedal/CV, MIDI (In, Out, Thru), for external devices and your DAW, and MIDI USB for your computer and firmware updates. The comprehensive MIDI implementation includes NRPN/CC control of virtually all parameters and bulk load/save.

WiFi Router Not Required

You can easily tap into your home network via DEEPMIND 12X's integrated and configurable WiFi client/Access point, without any additional hardware.

Unleash Your Imagination

When it comes to not just pushing the envelopes but creating them, DEEPMIND 12X gives your imagination its polyphonic voice – and it’s so very affordable. Modern performance calls for the classic analog sound with all the digital advantages – it calls for the Behringer DEEPMIND 12X! Visit your Behringer dealer to experience the stunning DEEPMIND 12X or get yours online today.
