Behringer BQ-10 Analog Sequencer for Eurorack

450866

Behringer

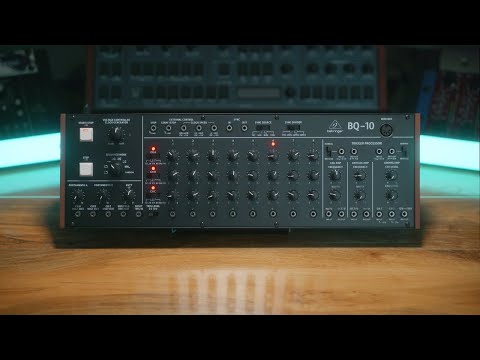

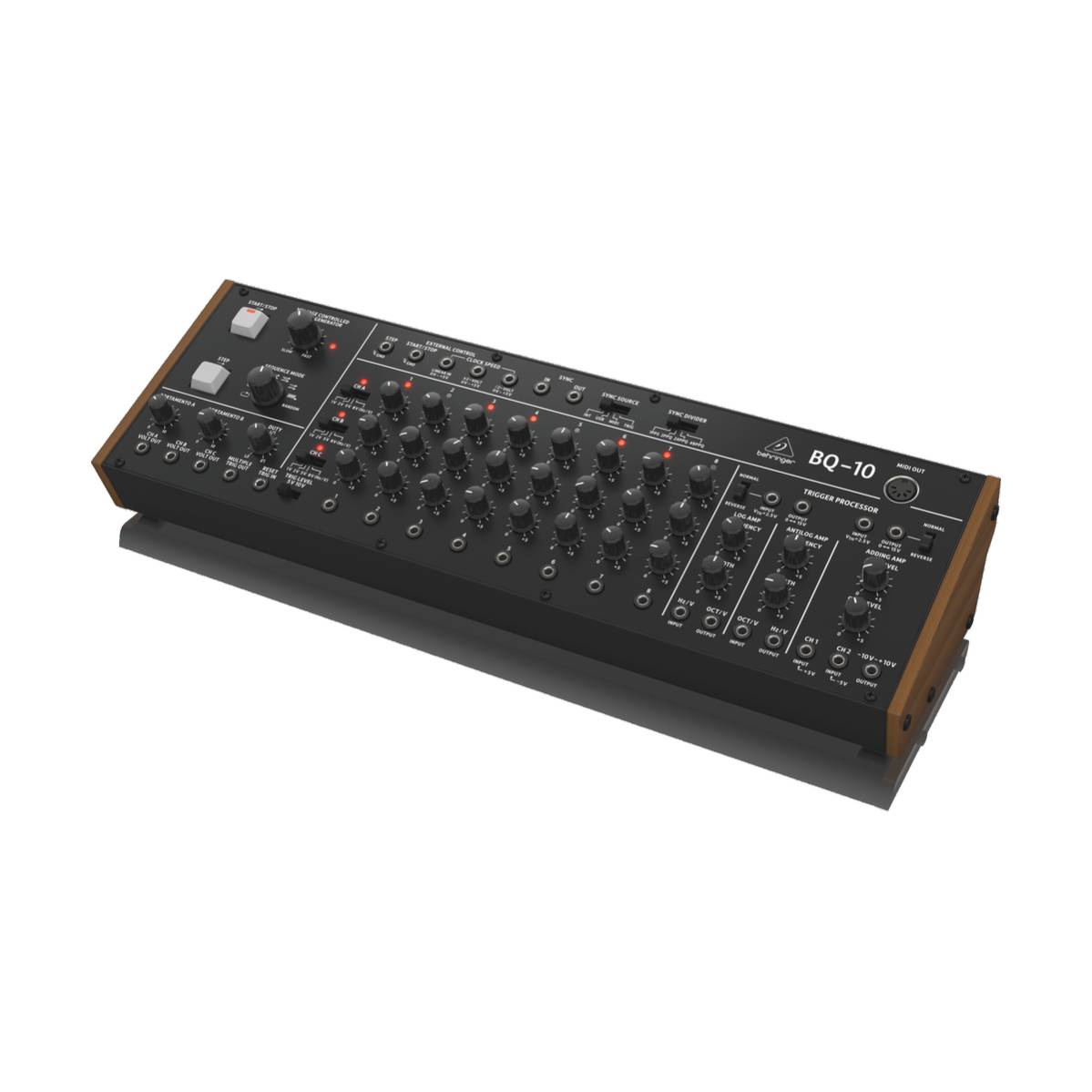

Behringer BQ-10 Analog Sequencer for Eurorack

Name: Behringer BQ-10 Analog Sequencer for Eurorack
Brand: Behringer
SKU: 450866
Price: 329.0 AUD
Availability: OutOfStock

.price-ui--loading { display: block !important; opacity: 1 !important; }

$329.00

Pay With

Description

Product Information

In the world of analog synthesis, few pieces of gear evoke as much nostalgia and creativity as the SQ-10. With its powerful 12-step sequencer, it quickly became a staple for electronic musicians, but like a lot of synths at that time, it was big and bulky. Our goal has always been to make gear, even rare ones, more accessible, which is why we’re introducing the Behringer BQ-10, a fresh take on a vintage design that pays tribute to a classic and introduces new updated features.

The BQ-10 is packed with features that make it both versatile and powerful. It can function as a single 16-step sequencer or split into dual 8-step sequences (Channels A and B) for added flexibility. Channel C is a separate 8-step channel where you can connect an external synth like the Behringer K-2 MKII via CV for controlling filter or amplitude. Each step features a voltage output knob as well as a dedicated trigger output allowing you to shorten sequences by connecting specific steps to the Reset input.

The rotary Sequence Mode knob lets you select between 8 play modes for channels A and B while channel C can run continuously depending on the mode. By default, a sequence runs on the internal clock of the BQ-10 which can be adjusted with the Clock Generator knob that can go from 20 bpm to 500 bpm. CV inputs are also available for plugging in external voltage sources to override the internal clock. Each channel features its own portamento control for when you want each step to glide into one another or have a more staccato feel.

Designed to handle the rigors of life on the road or in the studio, BQ-10 can easily be transferred to any standard Eurorack case for the perfect integration into your setup.

Features

Flexible analog sequencer based on SQ-10 sequencer from the ’70s
Single 16-step or double 8-step sequences
Separate 8-step channel for controlling filter or amplitude on a connected synthesizer via CV
Dedicated trigger outputs per step for shortening the sequences by connecting a step to the Reset input
8 separate play modes for channel A and B, including Alternating, Parallel, Series, Random and more

Specifications

Connectivity

Power Switch: Push button on/off (rear panel)
MIDI In/Out/Thru: 3 x 5-pin DIN, 16 channels
USB MIDI: USB 2.0 Type B
USB Type: Class compliant USB 2.0 Type B
Supported Operating Systems: Windows 7 or higher; macOS 10.10 or higher

Clock Section

Buttons: Start/Stop, Step
Controls: Clock Generator
Switches: Sequence Mode, Sync Source, Sync Divider
Inputs (3.5 mm TS): Step, Start/Stop, Clock Speed (linear, x2, /2)
Inputs (3.5 mm TRS): Sync In, Sync Out

Voltage Section

Controls: Portamento A, Portamento B, Duty
Outputs (3.5 mm TS): Voltage Out (CH A, B, C), Multiple Trigger Out, Reset Trigger In

Sequencer Section

Controls: CH A/B/C step voltage x 8 each
Switches: Voltage Range x 3, Trigger Level
Outputs (3.5 mm TS): Step Trigger Out

Trigger Processor

Switches: Normal/Reverse x 2
Inputs (3.5 mm TS): 2.5 V In
Outputs (3.5 mm TS): 15 V Out

Log Amp

Controls: Frequency, Width
Input (3.5 mm TS): Hz/Volt
Output (3.5 mm TS): Oct/Volt

Antilog Amp

Controls: Frequency, Width
Input (3.5 mm TS): Oct/Volt
Output (3.5 mm TS): Hz/Volt

Adding Amp

Controls: Level x 2
Inputs (3.5 mm TS): CH 1, CH 2 voltage (-5 V to +5 V)
Output (3.5 mm TS): Combined voltage (-10 V to +10 V)

Power Requirements

Supplied PSU: 12 V DC 1000 mA
Current Draw: 350 mA (+12 V Eurorack)

Physical

Operating Temperature: 5°C – 45°C (41°F – 113°F)
Dimensions (H × W × D): 78 × 422 × 134 mm (3.07 × 16.61 × 5.28")
Eurorack Width: 80 hp
Weight: 1.68 kg (3.70 lb)

Warranty

3 Years Warranty
