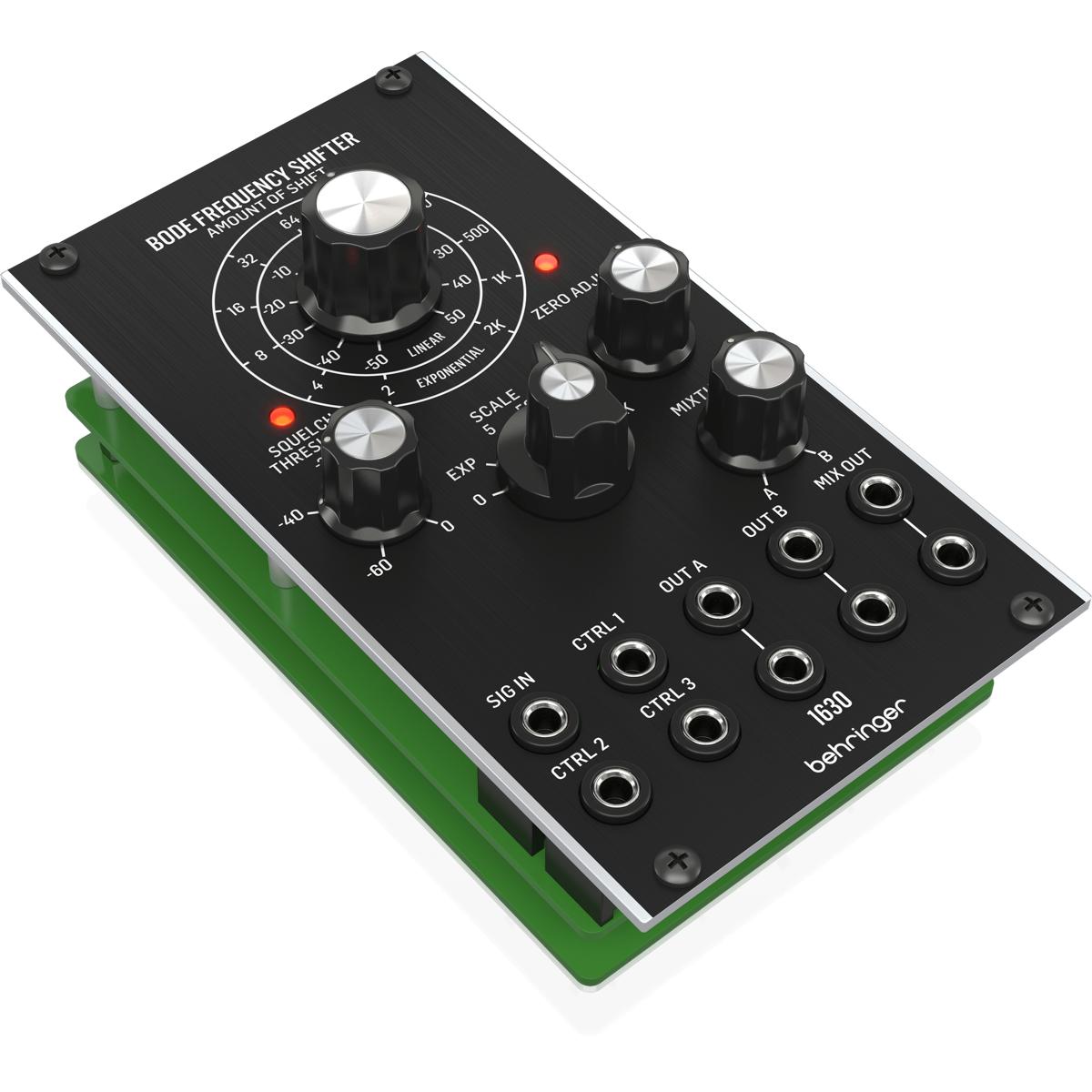

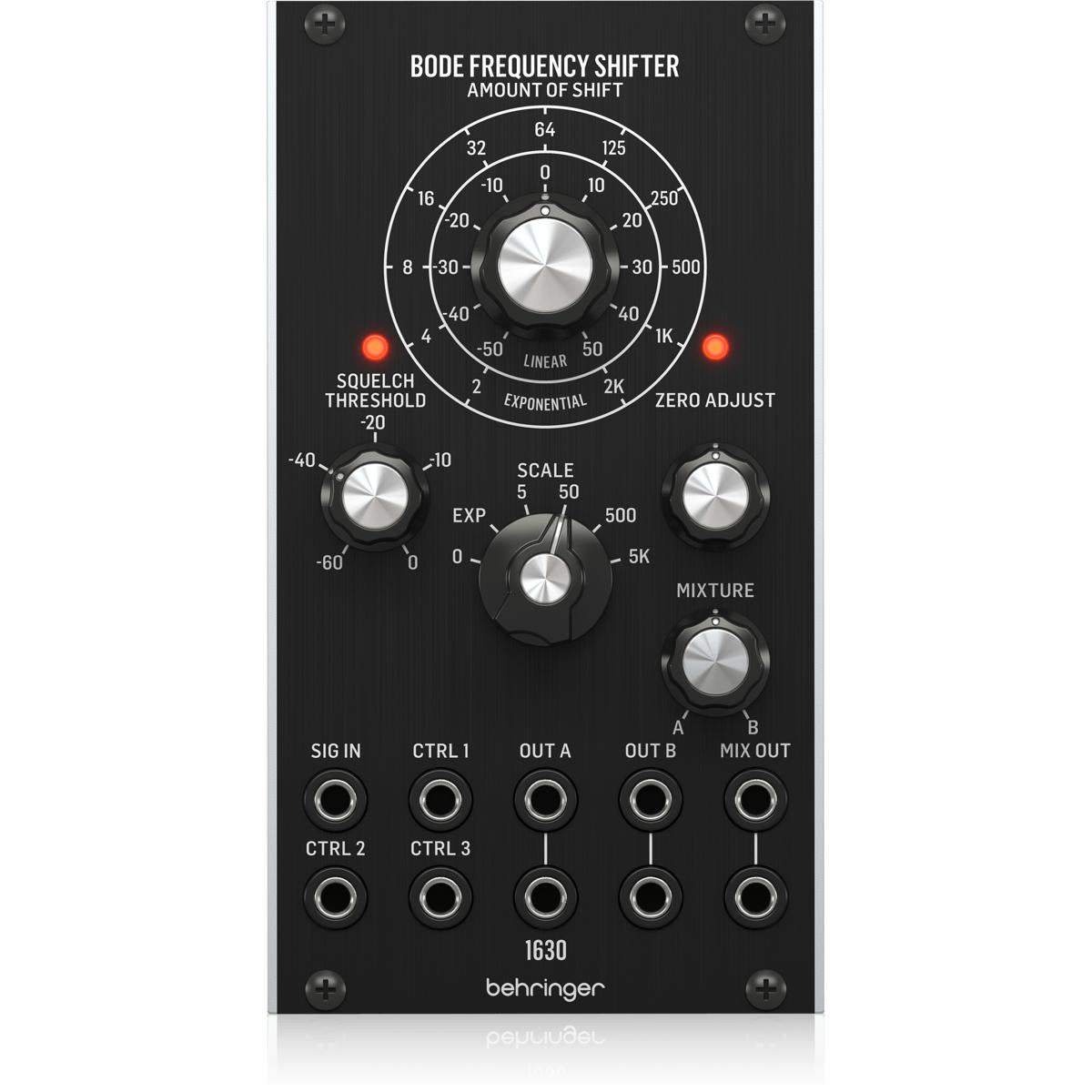

Behringer Bode Frequency Shifter 1630 Eurorack Module

IN STOCK - Ships today if ordered before 1pm AEST

Pay With AfterPay Zip

Product Information


Shift into high gear and get ready for that drop because the BODE FREQUENCY SHIFTER 1630 from Behringer is here! Expand your setup with an authentic recreation of the famous module from the ‘70s made with state-of-the-art circuitry including a voltage-controlled beat frequency quadrature oscillator. The BODE FREQUENCY SHIFTER just might be the piece you need to fill out that empty slot in your setup.


Ready for Any Signal

The BODE FREQUENCY SHIFTER accurately shifts the entire frequency spectrum of any input signal from -5 to +5 kHz. Simply plug in any audio source and start turning the giant knob to lower or raise the frequency. The amount of shift can also be varied with the Scale knob which lets you switch between linear or exponential control.


Additional controls on the BODE FREQUENCY SHIFTER include a variable threshold squelch which minimizes carrier bleed-through and can be used to creatively alter the input signal’s characteristics. Up to three control voltages can also plugged in, as well as up to four output signals.



  • Signal Input
    • Type: 1 x 3.5 mm TS jack, AC coupled
    • Impedance: 50 kΩ, unbalanced
    • Maximum input level: +12 dBu
  • Control Inputs
    • Type: 3 x 3.5 mm TS jack, DC coupled
    • Impedance: 100 kΩ, unbalanced
    • CV range: 10 V


  • Outputs A
    • Type: 2 x 3.5 mm TS jack, DC coupled
    • Impedance: 1 kΩ, unbalanced
    • Maximum output level: +12 dBu
    • Output signal: None inverted frequency shift
  • Outputs B
    • Type: 2 x 3.5 mm TS jack, DC coupled
    • Impedance: 1 kΩ, unbalanced
    • Maximum output level: +12 dBu
    • Output signal: Inverted frequency shift
  • Mix outputs
    • Type: 2 x 3.5 mm TS jack, DC coupled
    • Impedance: 1 kΩ, unbalanced
    • Maximum output level: +12 dBu
    • Output signal: Output A or B or a mixture of both
  • Test connector
    • Type: 1 x 12 pin 0.1” male header
    • Impedance: 1 kΩ, unbalanced
    • Available signals: Var Osc, Fixed Osc 1&2, BFO filters 1&2, Dome filters 1&2, Out 1&2, Squelch enable link, GND

Controls & Indicators

  • Amount of shift: Frequency shift to a maximum of ±5 kHz
  • Zero adjust: Fine frequency shift ±220 Hz
  • Zero adjust LED: Flashes once per carrier cycle
  • Scale rotary switch: 0 (off), Exponential +2 Hz to +2 kHz, 1 V/Octave Linear ±5 Hz, ±50 Hz, ±500 Hz, ±5 kHz
  • Squelch threshold: -60 dBu to 0 dBu
  • Squelch threshold LED: Lights for input signals above threshold level
  • Mixture: Pans between the A and B outputs


  • Frequency range: <30 Hz to >16 kHz
  • Input to output gain: Unity gain
  • Control input matching: Better than 0.1%

Power Requirements

  • Power supply: Eurorack
  • Current draw: 110 mA (+12 V), 110 mA (-12 V)
