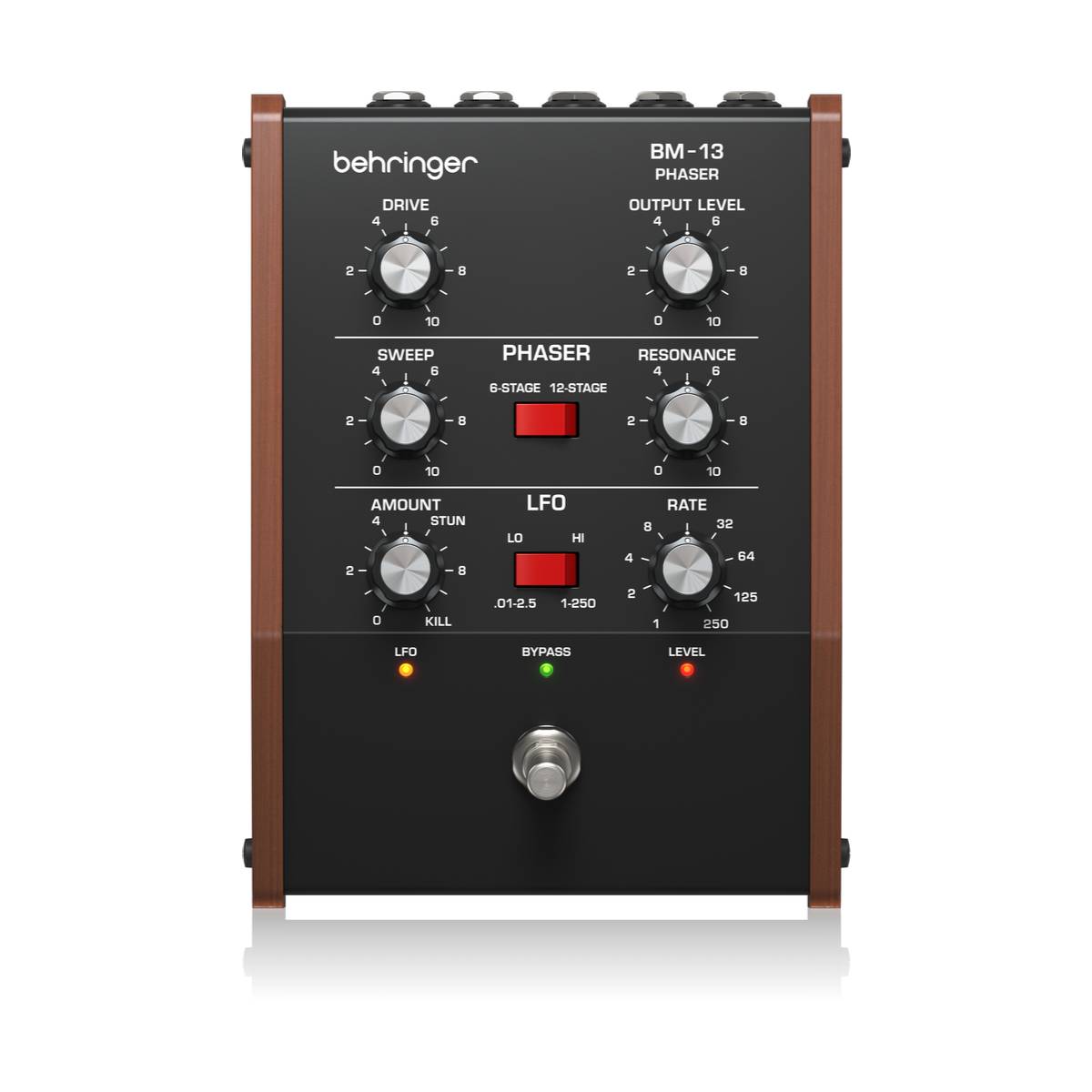

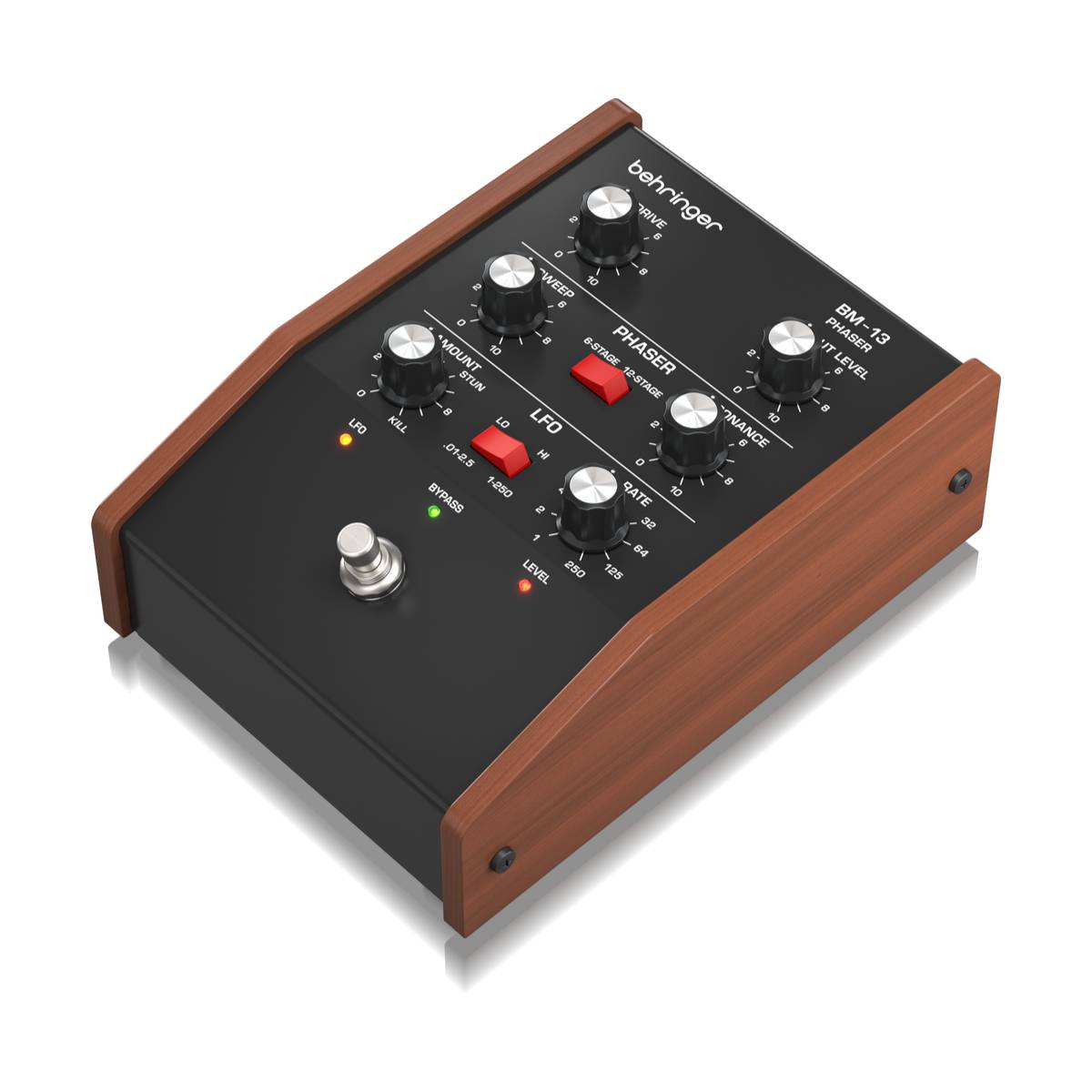

Behringer BM-13 Phaser Guitar & Synth Effects Pedal

Specifications

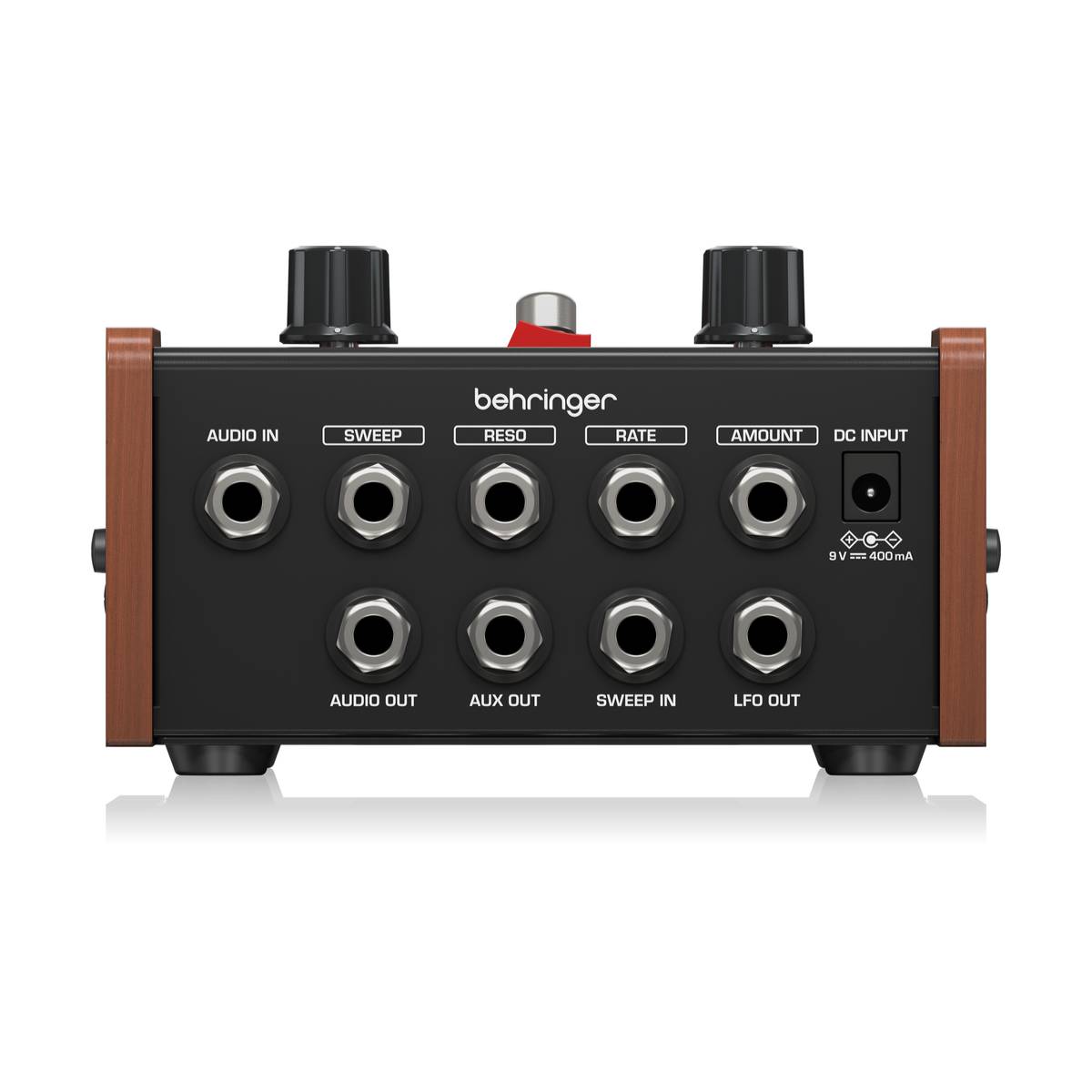

Audio Connections

• Audio in
  • Connector: 1 x 1/4" TS, unbalanced
  • Impedance: 1 MΩ
• Audio out
  • Connector: 1 x 1/4" TS, unbalanced
  • Output impedance: 6.8 kΩ
• Aux out
  • Connector: 1 x 1/4" TS, unbalanced
  • Output impedance: 6.8 kΩ

Control Connections

• Sweep
  • Connector: 1 x 1/4" TRS
  • Impedance: 40 kΩ, unbalanced
  • CV input range: 0 V to +10 V
• Reso
  • Connector: 1 x 1/4" TRS
  • Impedance: 50 kΩ, unbalanced
  • CV input range: 0 V to +5 V
• Rate
  • Connector: 1 x 1/4" TRS
  • Impedance: 34 kΩ, unbalanced
  • CV input range: 0 V to +5 V
• Amount
  • Connector: 1 x 1/4" TRS
  • Impedance: 40 kΩ, unbalanced
  • CV input range: 0 V to +5 V
• Sweep in
  • Connector: 1 x 1/4" TRS
  • Impedance: 47 kΩ, unbalanced
  • CV input range: ±2.5 V
• FLO out
  • Connector: 1 x 1/4" TRS
  • Output impedance: 2.2 kΩ, unbalanced
  • CV input range: ±2.8 V

Controls

• Drive: 1 x rotary knob
• Output level: 1 x rotary knob
• Sweep: 1 x rotary knob
• 6-stage / 12-stage: 1 x rocker switch
• Resonance: 1 x rotary knob
• Amount: 1 x rotary knob
• Hi / lo: 1 x rocker switch
• Rate: 1 x rotary knob
• Bypass: 1 x footswitch

System

• Frequency response: 20 Hz to 20 kHz (+0 / -0.3 dB)
• Dynamic range: > 73 dB, 20 Hz to 20 kHz
• Signal-to-noise ratio: > 63 dB
• Overall gain: 22 dBu

Power Supply / Voltage

• Power input: Standard 9 V DC, centre negative, > 400 mA (power supply not included)
• Power consumption: 0.75 W

Dimensions / Weight

• Dimensions (H x W x D): 85.9 x 147.6 x 196.9 mm (3.38 x 5.81 x 7.75")
• Weight: 1,047 g (36.9 oz)
