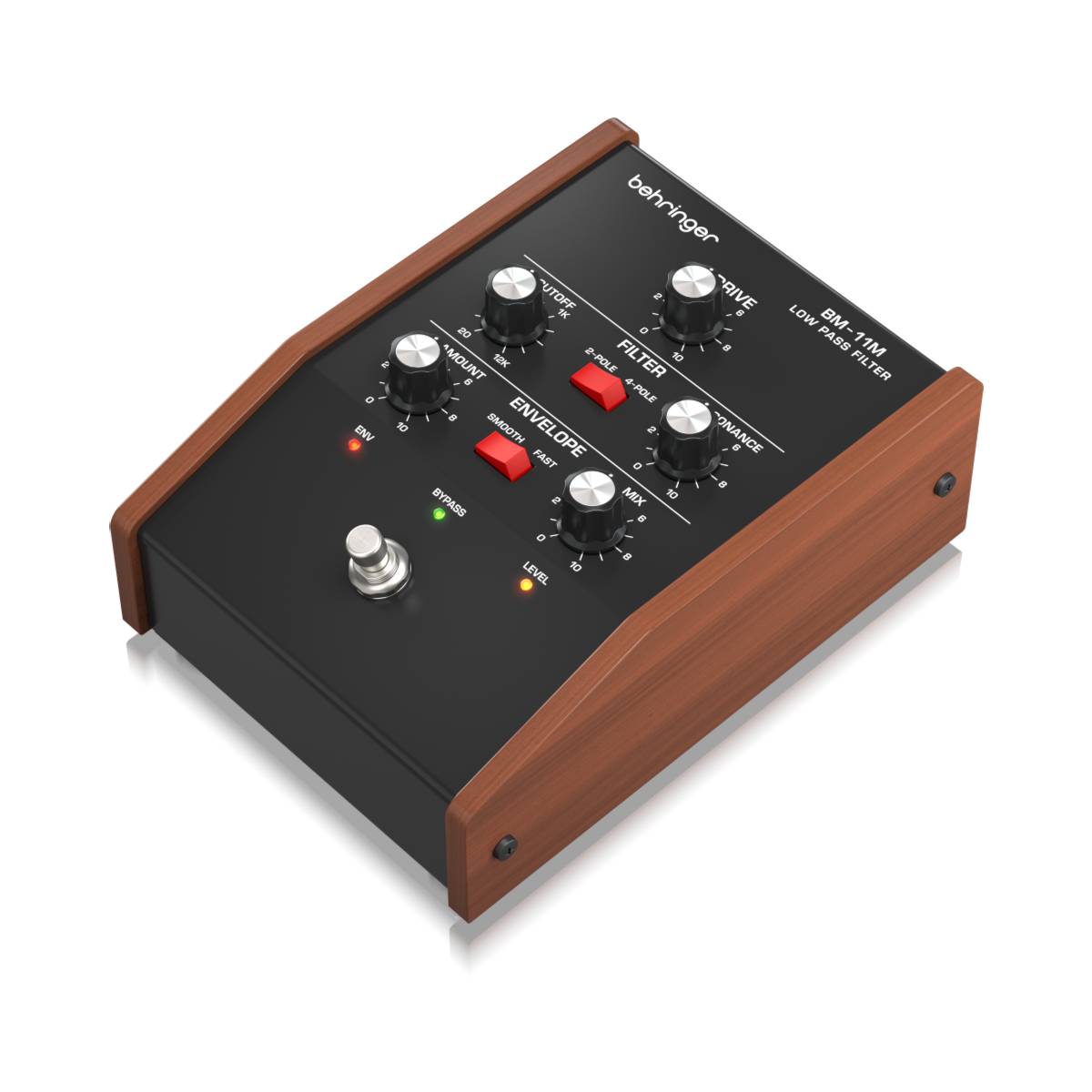

Behringer BM-11B Low Pass FiIter Guitar & Synth Effects Pedal

Specifications

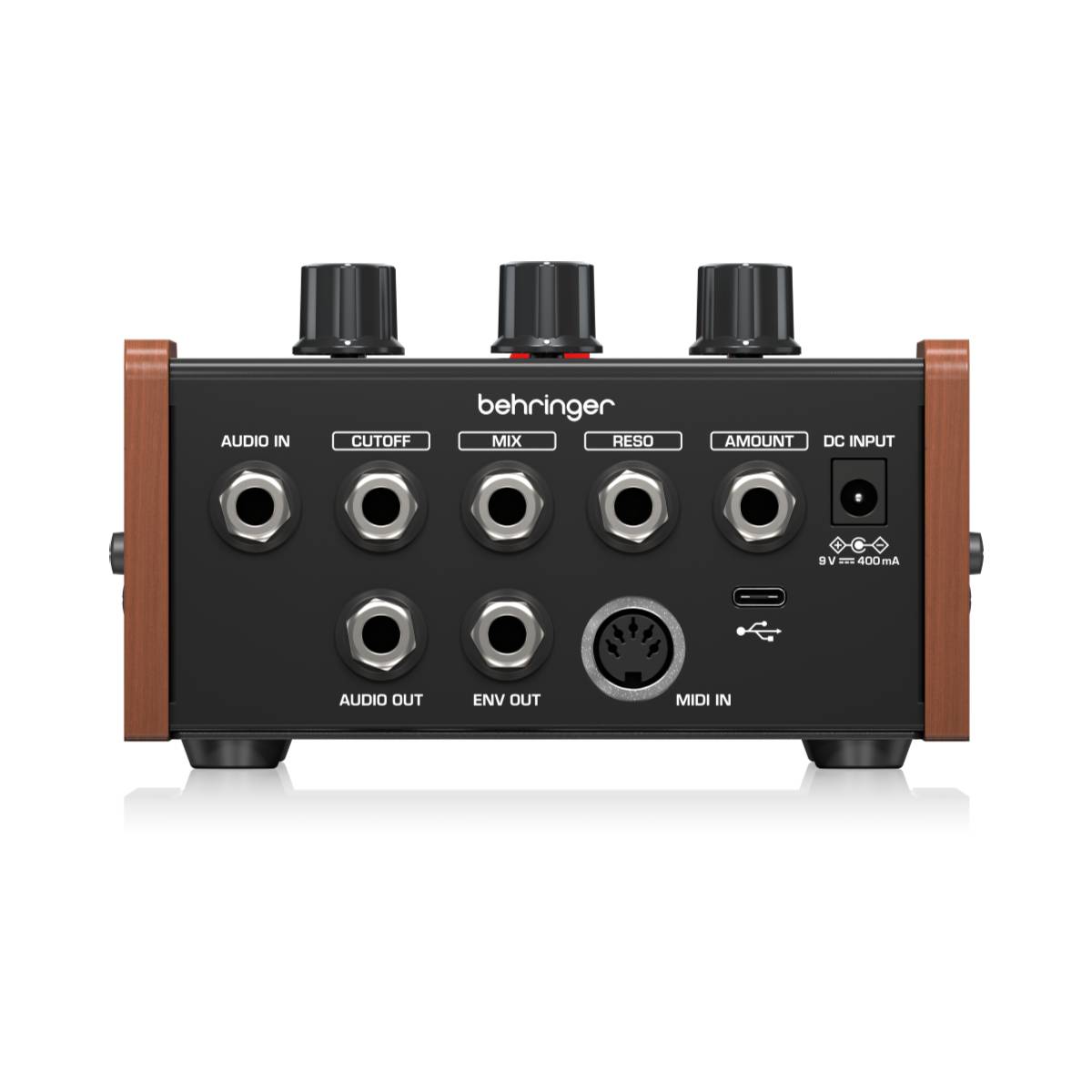

Signal Connections

• Audio In
  • Connector: 1 x 1/4" TS, unbalanced
  • Impedance: 1 MΩ
• Audio Out
  • Connector: 1 x 1/4" TS, unbalanced
  • Output impedance: 680 Ω

Control Connections

• Cutoff
  • Connector: 1 x 1/4" TRS
  • Impedance: 100 kΩ, unbalanced
  • CV input range: 0 V to +10 V
• Mix
  • Connector: 1 x 1/4" TRS
  • Impedance: 33 kΩ, unbalanced
  • CV input range: 0 V to +5 V
• Reso
  • Connector: 1 x 1/4" TRS
  • Impedance: 100 kΩ, unbalanced
  • CV input range: 0 V to +5 V
• Amount
  • Connector: 1 x 1/4" TRS
  • Impedance: 30 kΩ, unbalanced
  • CV input range: 0 V to +5 V
• Env Out
  • Connector: 1 x 1/4" TRS
  • Output impedance: 680 Ω, unbalanced
  • CV output range: ±2.8 V
• MIDI In: 1 x 5-pin DIN, 16 channels

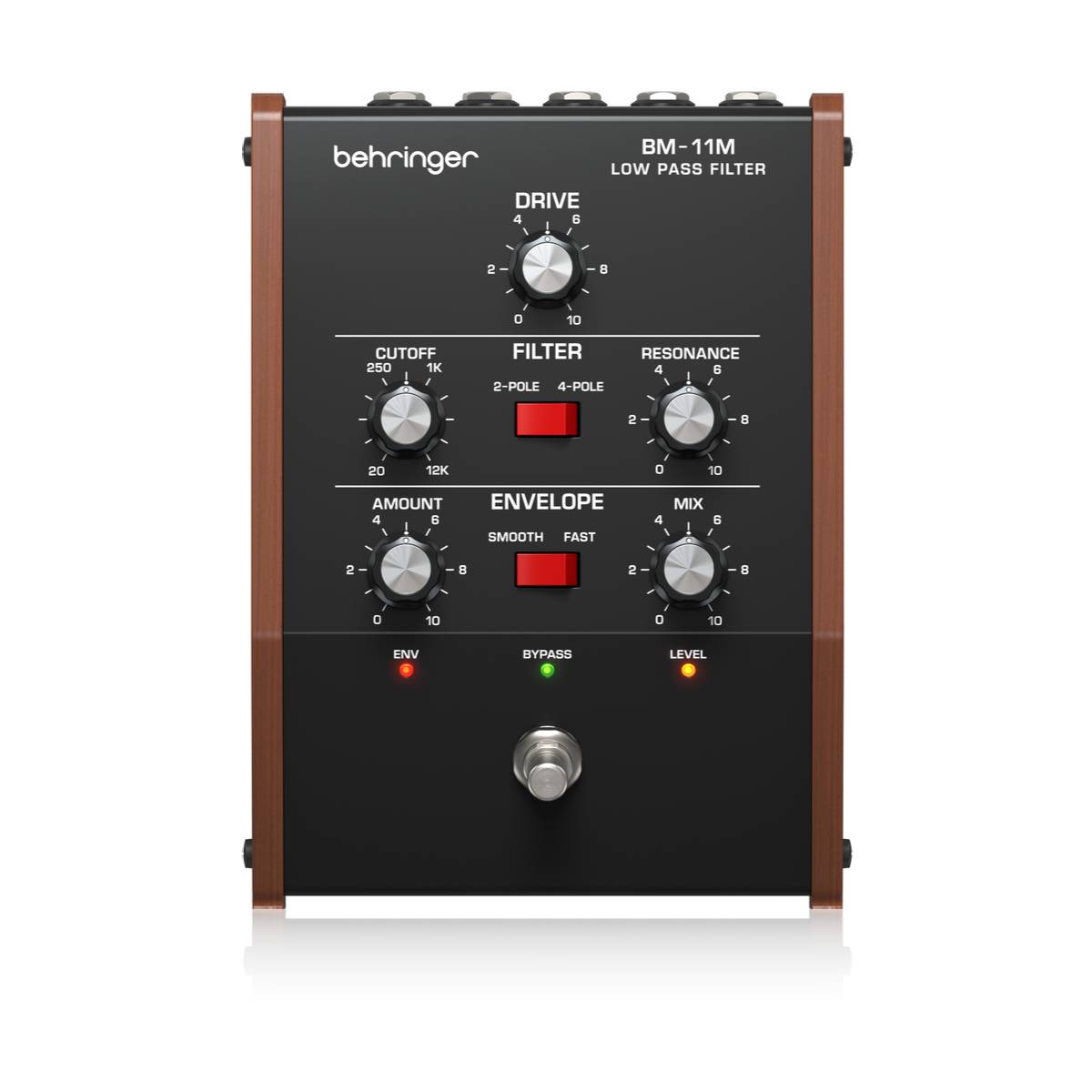

Controls

• Drive: 1 x rotary knob
• Cutoff: 1 x rotary knob, 20 Hz – 12 kHz, adjustable
• 2-pole / 4-pole: 1 x rocker switch
• Resonance: 1 x rotary knob
• Amount: 1 x rotary knob
• Smooth / Fast: 1 x rocker switch
• Mix: 1 x rotary knob
• Bypass: 1 x footswitch

System

• Frequency response: 20 Hz to 20 kHz (-4 / -2.8 dB)
• Dynamic range: >73 dB (20 Hz to 20 kHz)
• Signal-to-noise ratio: >67 dB
• Overall gain: +25 dBu

Power Supply / Voltage

• Power input: Standard 9 V DC, centre negative, > 400 mA (power supply not included)
• Power consumption: 3.6 W

Dimensions / Weight

• Dimensions (H x W x D): 85.9 x 147.6 x 196.9 mm (3.38 x 5.81 x 7.75")
• Weight: 1.02 kg (2.24 lbs)
