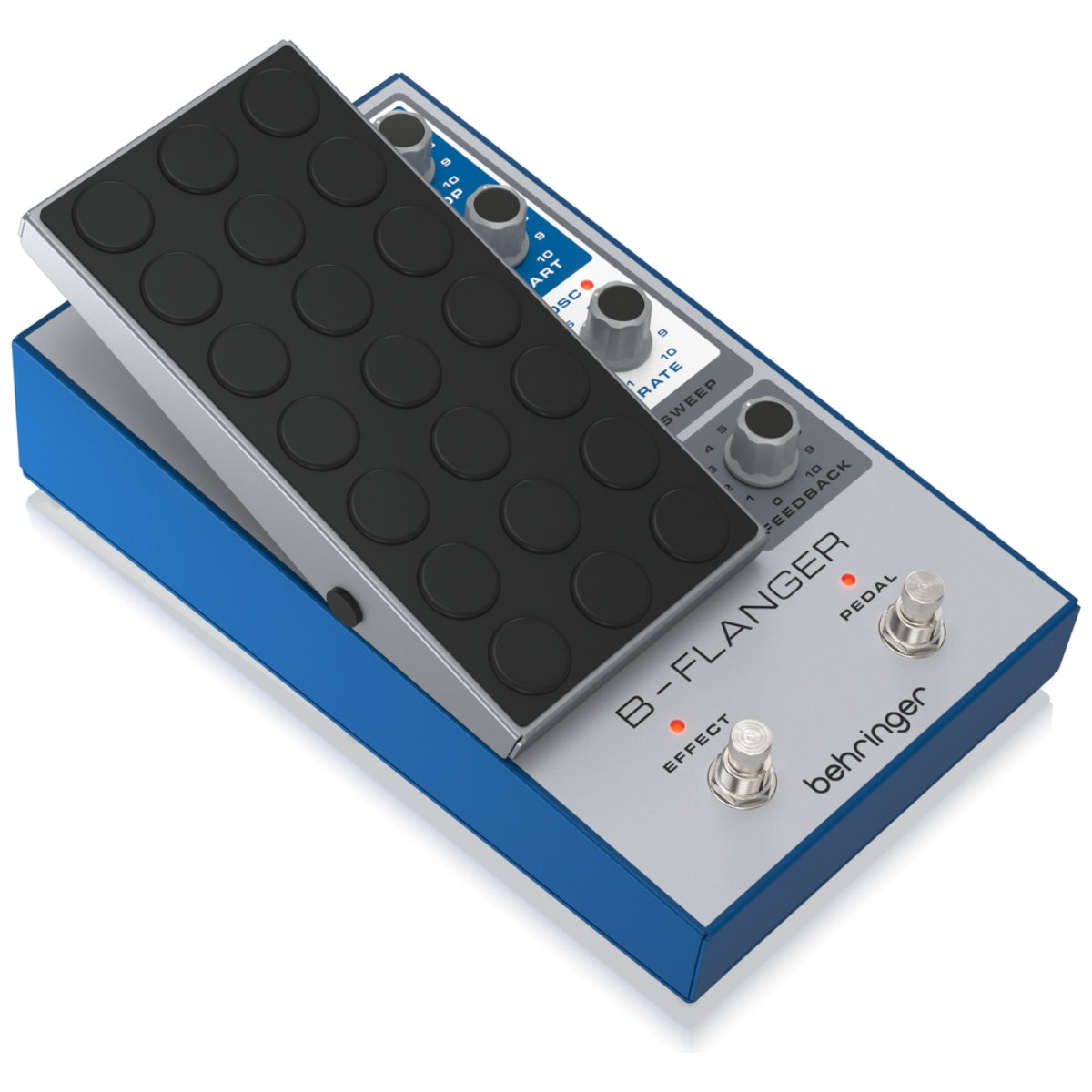

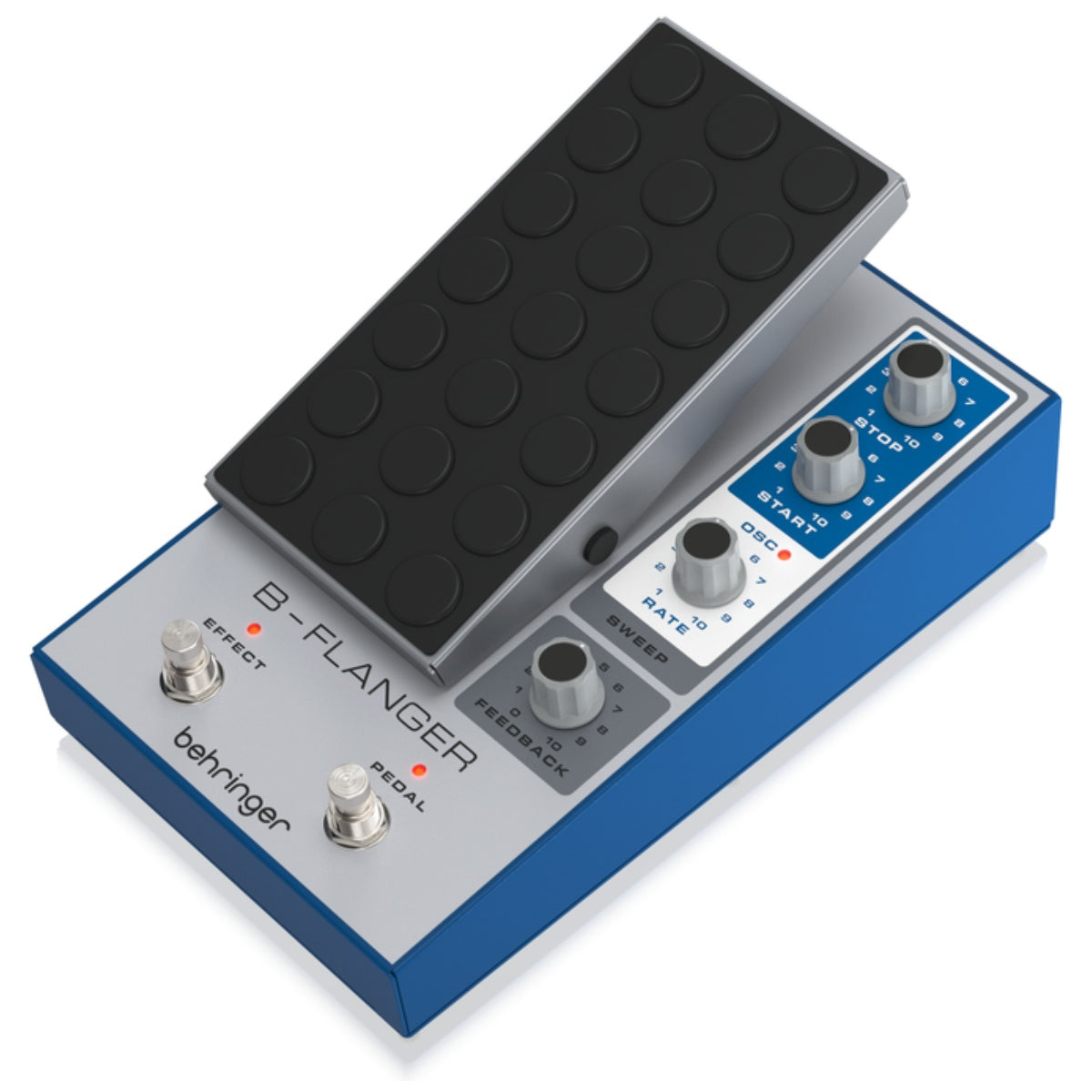

Behringer B-Flanger Vintage Analog BBD Flanger Guitar Effects Pedal
Pay With
Product Information
The Behringer B-FLANGER Vintage Analog BBD Flanger Pedal delivers the unmistakable swirling modulation and rich tonal character of classic 1970s flanger effects. Featuring a fully analogue bucket-brigade device (BBD) circuit, this vintage-inspired pedal produces everything from subtle chorus-like textures and metallic shimmer to dramatic jet-engine sweeps and resonant modulation. With its integrated optical foot pedal, versatile controls and true bypass switching, the B-FLANGER combines authentic vintage sound with expressive modern performance capabilities.
Designed for hands-on tonal exploration, the B-FLANGER features dedicated Start, Stop, Rate and Feedback controls that allow precise adjustment of the modulation sweep and resonance. The Start and Stop controls define the oscillator's sweep range, while the Rate control adjusts modulation speed from slow, evolving movement to fast, vibrato-like effects. The Feedback control adds depth and intensity, creating everything from gentle movement to pronounced, singing resonances.
One of the B-FLANGER's standout features is its integrated optical foot pedal, which provides direct control over the flanger sweep during live performance. A dedicated Pedal footswitch allows players to switch between automatic oscillator-driven modulation and expressive manual foot control. True bypass switching preserves the original instrument signal when the effect is disengaged, while the robust, vintage-styled enclosure is built for regular use on stage or in the studio. Powered by an optional Behringer PSU-SB 9 V DC power supply, the B-FLANGER is an excellent choice for guitarists seeking authentic analogue modulation with exceptional creative flexibility.
Features
- Vintage analogue BBD flanger pedal inspired by classic 1970s modulation effects
- Fully analogue bucket-brigade device (BBD) circuitry delivers rich, organic flanging and modulation
- Integrated optical foot pedal provides expressive real-time control over the flanger sweep
- Two operating modes allow automatic oscillator-driven modulation or manual foot pedal control
- Dedicated Start and Stop controls define the lower and upper limits of the oscillator sweep
- Rate control adjusts modulation speed from slow, sweeping movement to fast vibrato-style effects
- Feedback control adjusts resonance and intensity for subtle textures or dramatic metallic sweeps
- Wide 0.05 Hz to 20 Hz sweep rate range for versatile modulation effects
- Analogue delay time range of 0.6 ms to 24 ms
- Dedicated Pedal footswitch switches between oscillator and optical foot pedal control
- Dedicated Effect footswitch engages or bypasses the flanger
- True bypass switching preserves signal integrity when the effect is disengaged
- LED indicators provide visual feedback for operating modes and modulation rate
- Standard 6.35 mm (1/4") instrument input and amplifier output connections
- Robust enclosure with authentic vintage styling
- Operates using an optional Behringer PSU-SB 9 V DC power supply
- Ideal for classic rock, funk, psychedelic music and experimental guitar effects
Specifications
General
- Brand: Behringer
- Model: B-FLANGER
- Product Type: Vintage Analog BBD Flanger Pedal
- Effect Type: Flanger
- Circuit Type: Fully Analogue Bucket-Brigade Device (BBD)
- Bypass Type: True Bypass
- Operating Modes: Internal Oscillator and Optical Foot Pedal
- Colour: Blue
- Manufacturer Product Code: 0709-ALA86-001
Effects & Performance
- Modulation Type: Analogue Flanging
- Sweep Rate: 0.05 Hz to 20 Hz
- Delay Time: 0.6 ms to 24 ms
- Signal-to-Noise Ratio (Heel Down): 70 dB
- Signal-to-Noise Ratio (Toe Down): 70 dB
- Sweep Control: Internal Oscillator or Integrated Optical Foot Pedal
- Feedback: Adjustable Resonance and Modulation Intensity

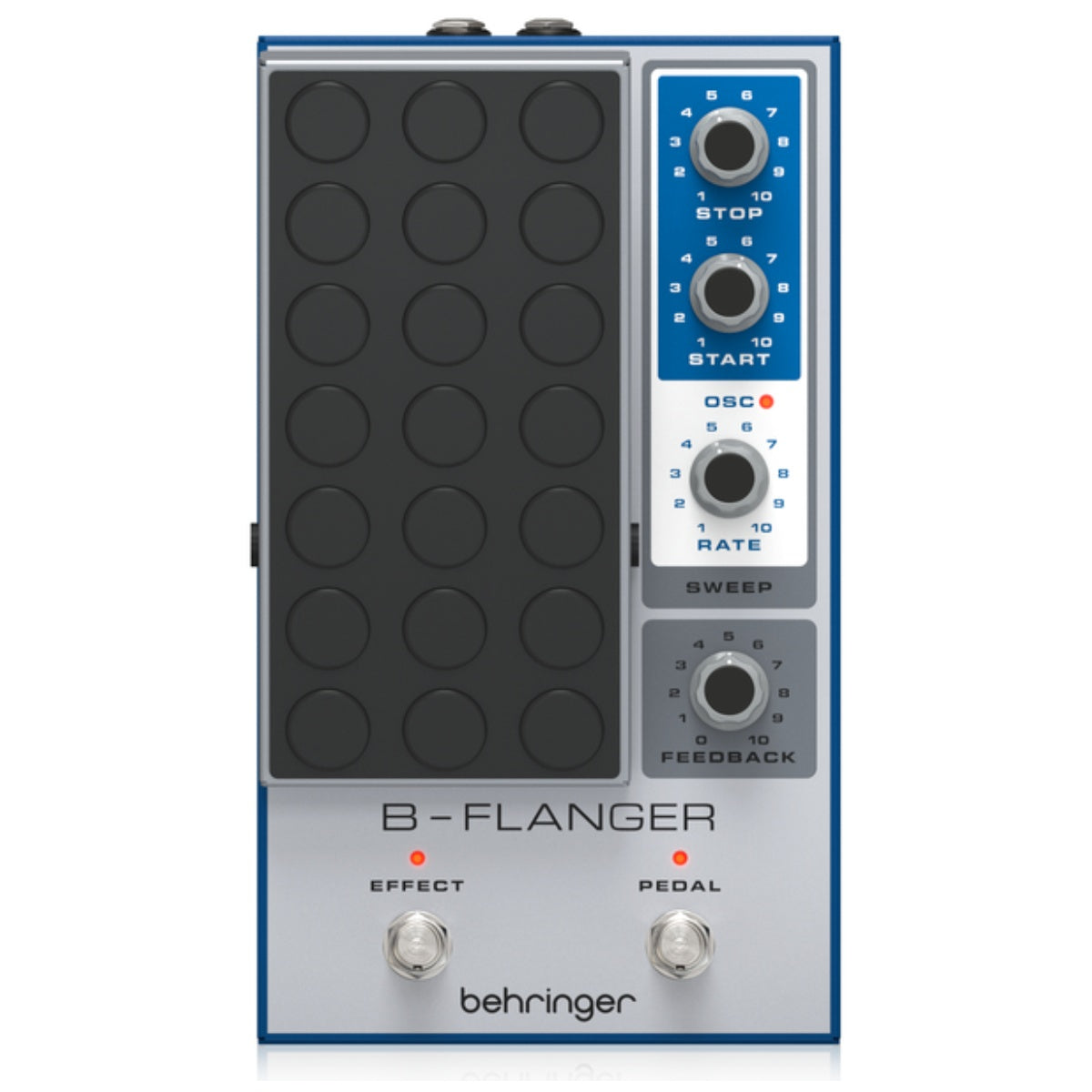

Controls
- Stop: 1 x Rotary Knob – Adjusts the Upper Limit of the Oscillator Sweep
- Start: 1 x Rotary Knob – Adjusts the Lower Limit of the Oscillator Sweep
- Rate: 1 x Rotary Knob – Adjusts the Oscillator Sweep Speed
- Feedback: 1 x Rotary Knob – Adjusts Feedback and Resonance Intensity
- Pedal: 1 x Footswitch – Selects Oscillator or Optical Foot Pedal Control
- Effect: 1 x Footswitch – Engages or Bypasses the Effect
- Foot Pedal: 1 x Integrated Optical Foot Pedal – Provides Manual Flanger Sweep Control
- Indicators: LED Indicators for Effect Status, Pedal Mode and Oscillator Rate

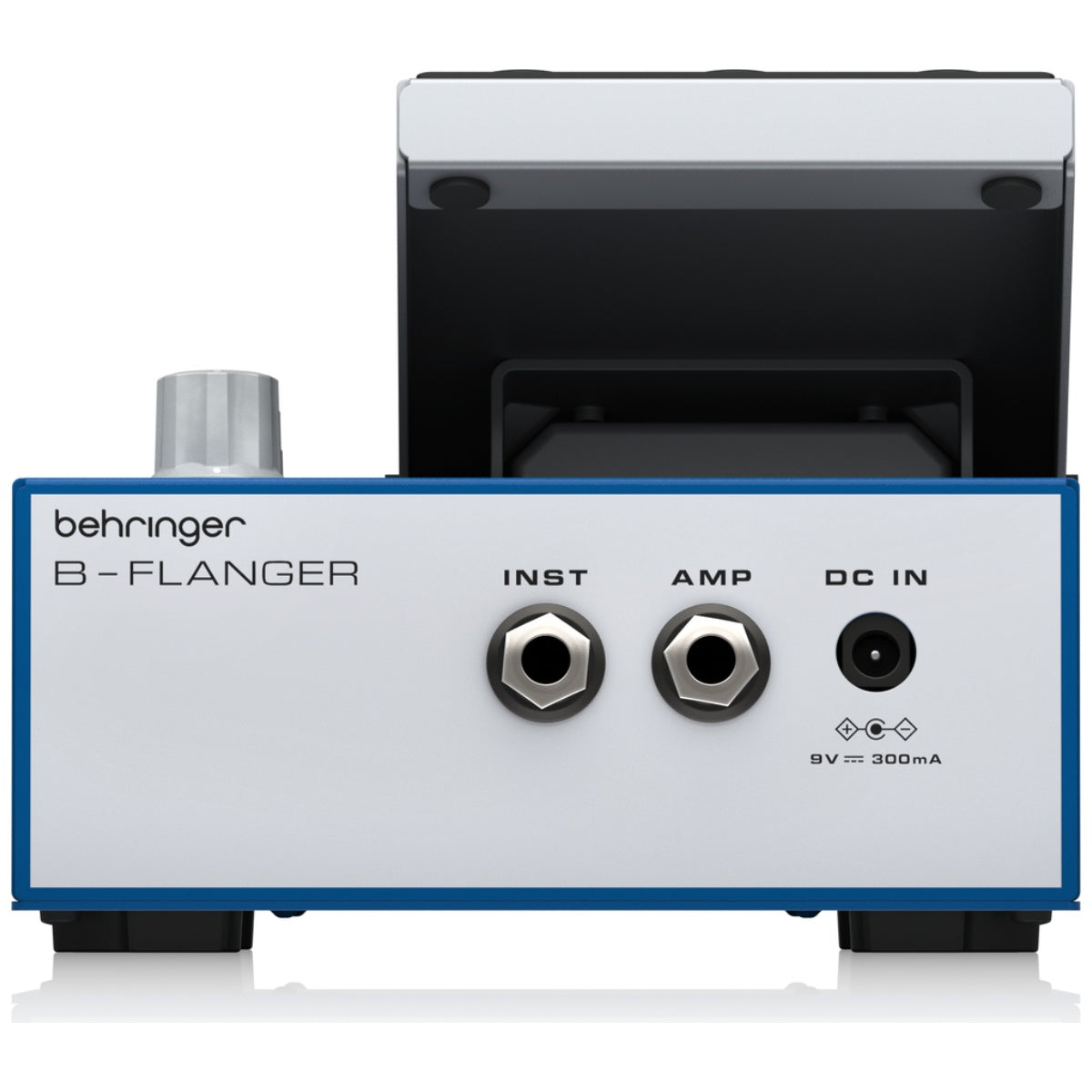

Connections
- Instrument Input: 1 x 6.35 mm (1/4") TS Jack, Unbalanced
- Input Impedance: 390 kOhm
- Amplifier Output: 1 x 6.35 mm (1/4") TS Jack, Unbalanced
- Output Impedance: 600 Ohm
Power
- Power Input: Standard 9 V DC, Centre Negative
- Power Supply Current Rating: Greater Than 300 mA
- Power Consumption: 3 W
- Compatible Power Adapter: Behringer PSU-SB
- Power Adapter Included: No, Sold Separately
Measurements
- Height: 110.6 mm (4.4")
- Width: 136.7 mm (5.4")
- Depth: 239.8 mm (9.4")
- Dimensions (H x W x D): 110.6 x 136.7 x 239.8 mm
- Weight: 1.62 kg (3.57 lbs)
Warranty
