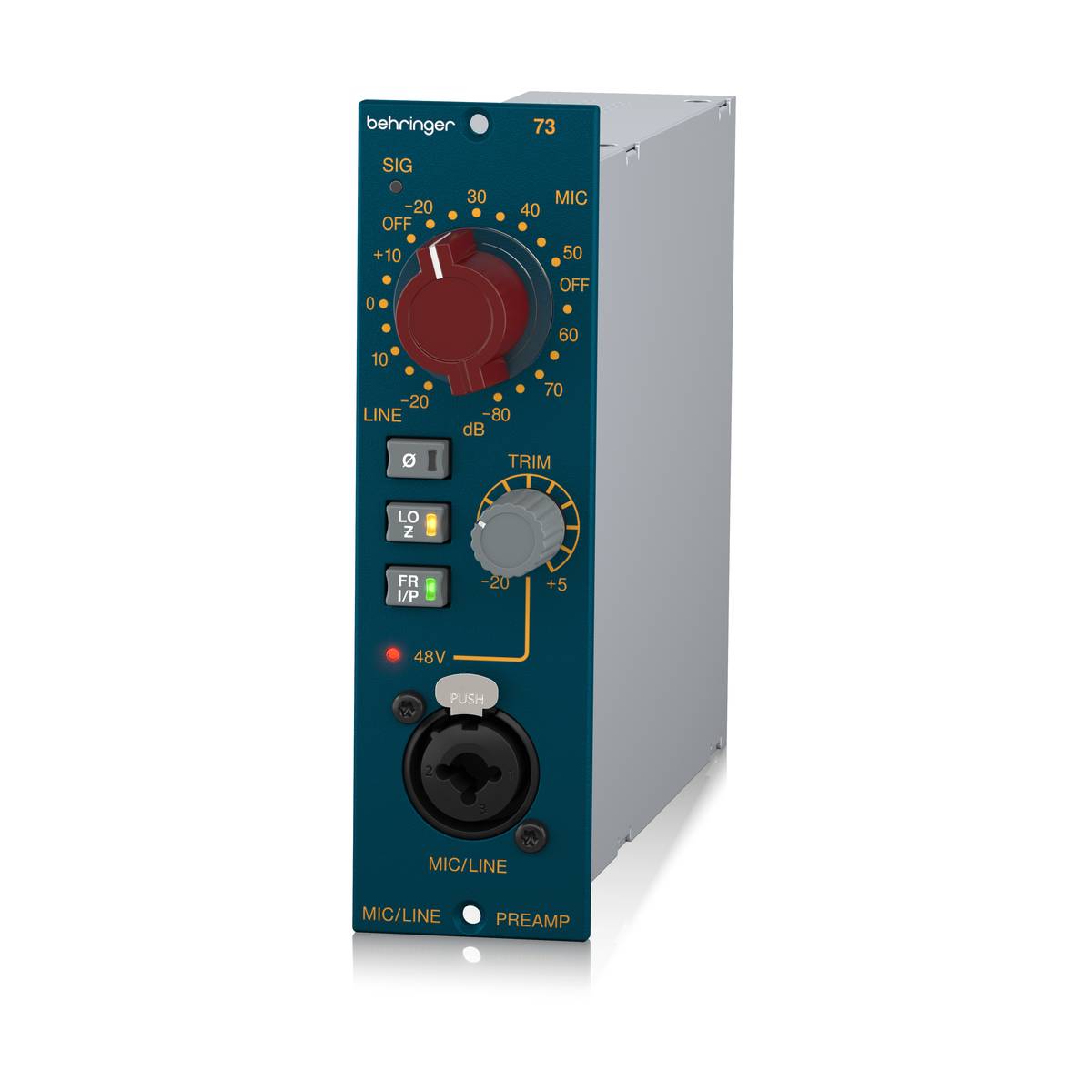

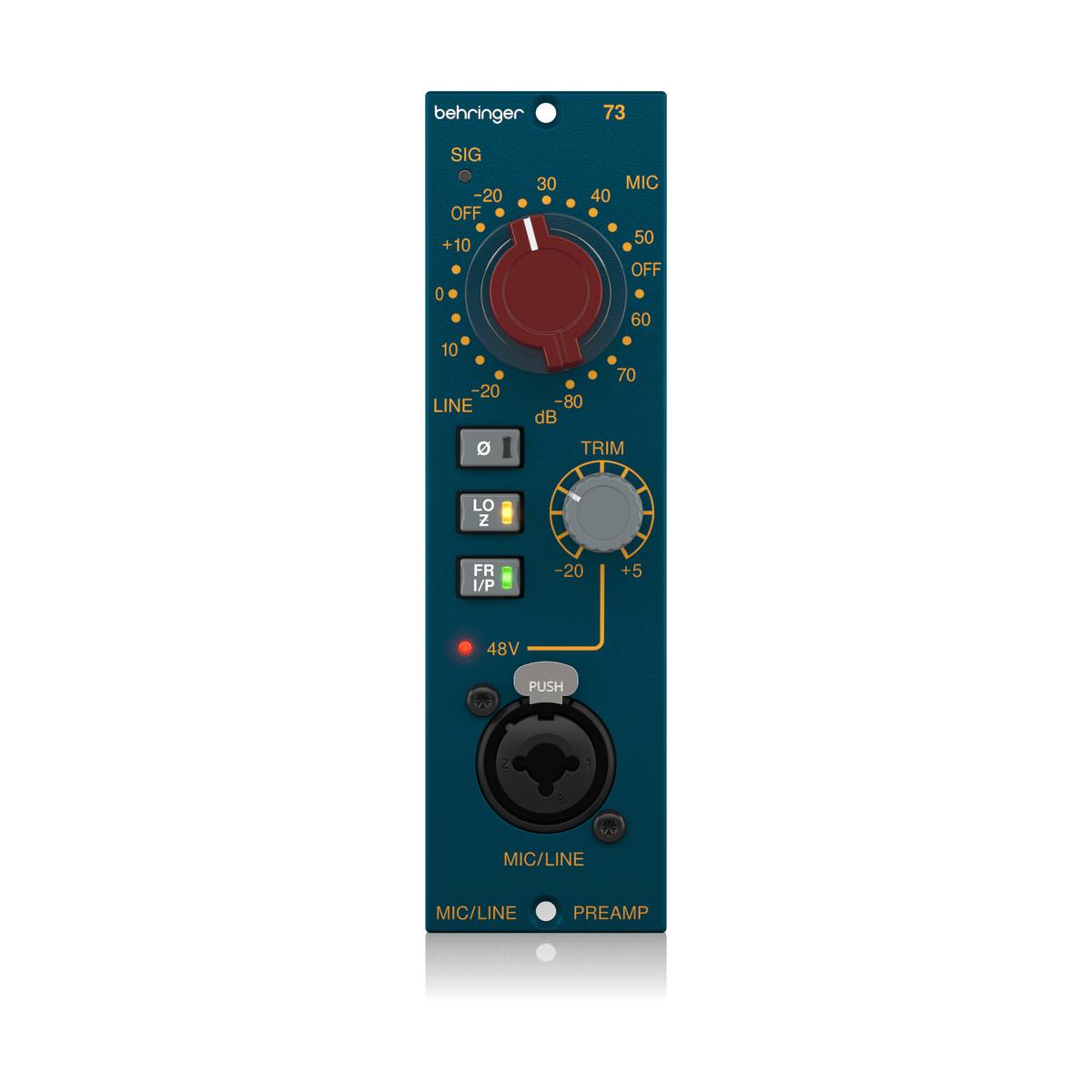

Behringer 73 Legendary Mic Preamp 500 Series

Specifications

Audio Inputs

• Microphone
  • Type: XLR and 1/4" TRS combi socket, transformer balanced (front)
  • Connection: 500 series rack input connector, transformer balanced (rear)
  • Impedance: 1200 Ω / 300 Ω, balanced
  • Max. Input Level: +10 dBu
  • Sensitivity: -20 dB to -80 dB in 5 dB steps
  • Mic EIN @ 80 dB gain, 22 Hz–22 kHz: -125 dBu (Unweighted)
• Line
  • Type: XLR and 1/4" TRS combi socket, transformer balanced (front)
  • Connection: 500 series rack input connector, transformer balanced (rear)
  • Impedance: > 4 kΩ, balanced
  • Max. Input Level: +28 dBu
  • Sensitivity: -20 dB to +10 dB in 5 dB steps
  • Noise at unity gain, 22 Hz–22 kHz: -83 dBu (Unweighted)

Audio Outputs

• Type: Connection to 500 series rack output connector, transformer balanced (rear)
• Impedance: < 100 Ω balanced
• Max. Output Level: +28 dBu with 100 kΩ load, +26 dBu with 600 Ω load

System Specifications

• Frequency Response: 20 Hz–20 kHz, ±0.5 dB
• Distortion (THD+N): <0.07%, 50 Hz–20 kHz, +4 dBu
• Noise: -83 dB, 22 Hz–22 kHz (Unweighted)
• Circuit: Discrete Class-A amplifiers

Controls

• Buttons:
  • Phase/Polarity Reverse
  • LO Z (1200 Ω/300 Ω, mic input only)
  • FR I/P (switch between 500 series rack input & front combi connectors)
• Rotary Controls:
  • Sensitivity switch: +10 to -80 dB in 5 dB steps
  • Trim control: -20 dB to +5 dB (unity gain at center detent)
  • +48 V Phantom power (enabled/disabled by pressing trim knob)
• Indicators:
  • Off = < -25 dBu
  • Green = > -25 dBu
  • Red = > +26 dBu

Power Requirements

• Voltage: +16 V, -16 V, and +48 V
• Power Consumption: +16 V ≤ 200 mA, -16 V ≤ 15 mA

Physical

• Operating Temperature Range: 5° C – 45° C (41° F – 113° F)
• Dimensions (H x W x D): 132.1 x 37.9 x 176.4 mm (5.2 x 1.5 x 6.9")
• Weight: 1.1 kg (2.4 lbs)
