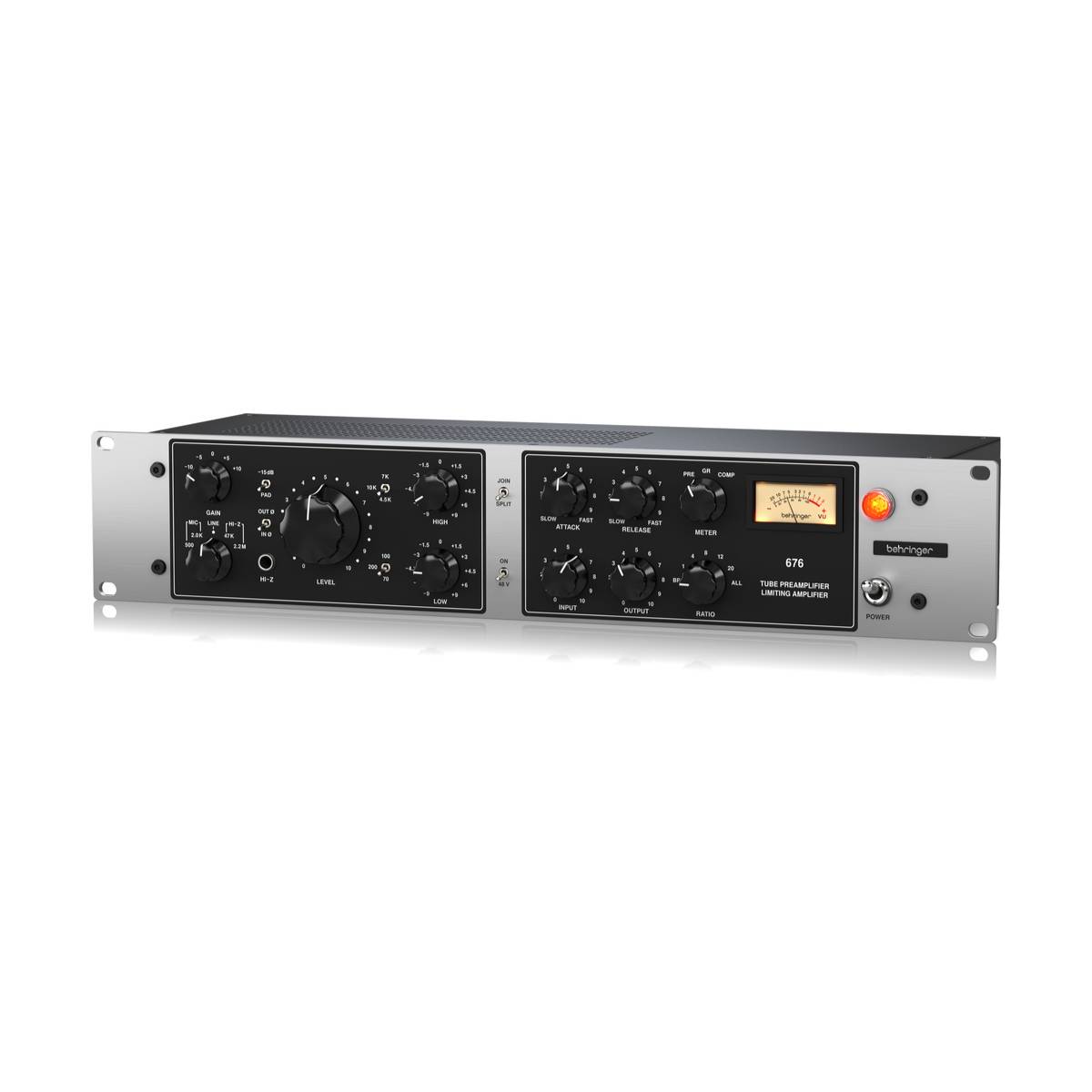

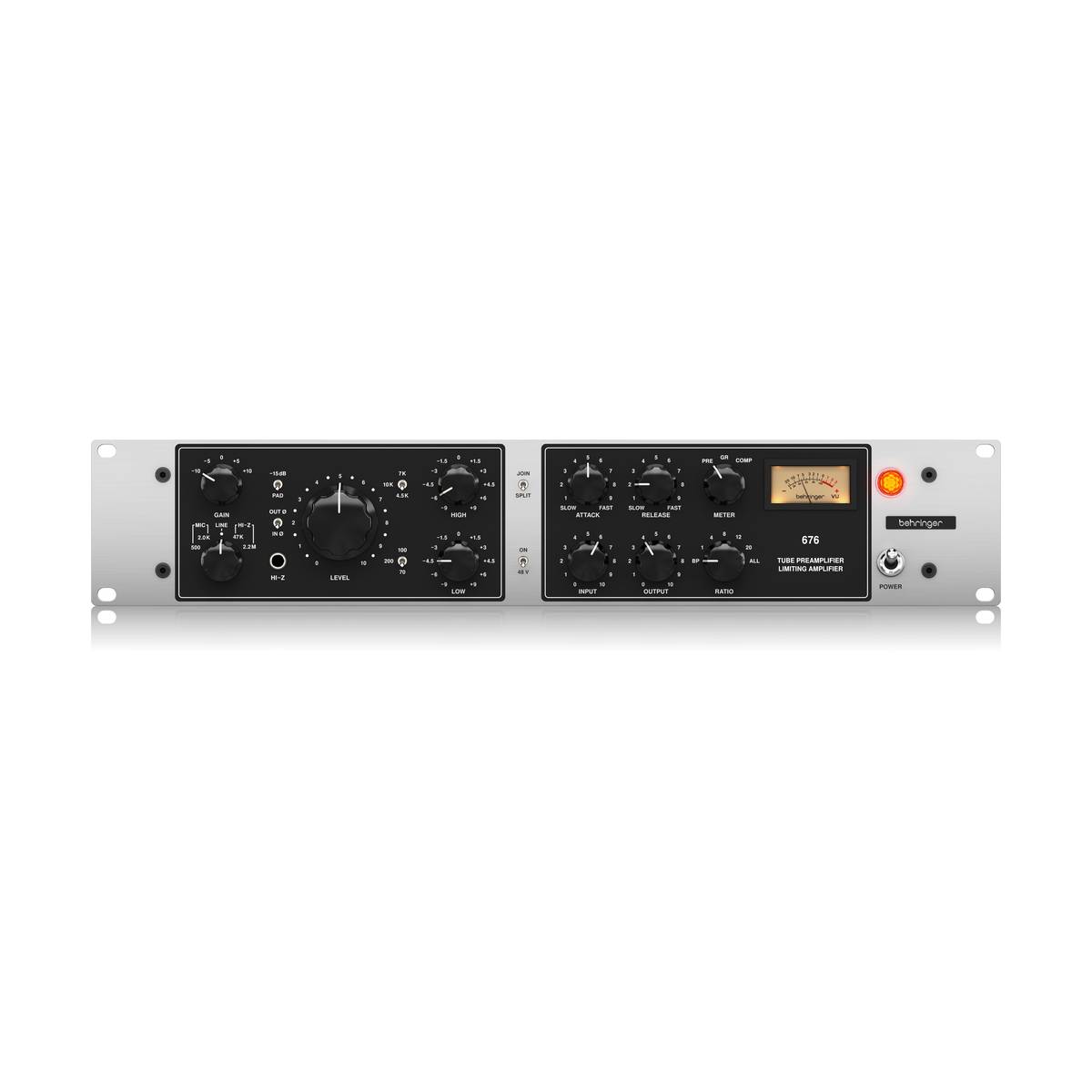

Behringer 676 Classic Vacuum Tube Preamplifier & FET-Style Compressor

Specifications

Audio Inputs

• Mic
  • Type: XLR, transformer balanced
  • Impedance: 500 Ω / 2 kΩ
  • Max. Input Level: +14 dBu (pad in), -1 dB (pad out)
  • CMRR: Typically -90 dBu @ 1 kHz, maximum gain
  • Frequency Response: 20 Hz – 20 kHz ±1 dB
  • EIN Noise @ Max Gain: -122 dBu, 22 Hz – 22 kHz unweighted
  • Distortion (THD+N): <0.25% (50 Hz – 20 kHz, +4 dBu output)
  • Maximum Gain: +64 dB
  • Pad: Toggle switch, 0 dB / -15 dB
  • +48 V: Toggle switch for phantom power to mic input XLR
• Line
  • Type: XLR, transformer balanced
  • Impedance: 15 kΩ
  • Max. Input Level: +30 dBu
  • CMRR: Typically -80 dBu @ 1 kHz, unity gain
  • Frequency Response: 20 Hz – 20 kHz ±1 dB
  • Noise @ Unity Gain: -79 dBu, 22 Hz – 22 kHz unweighted
  • Distortion (THD+N): <0.25% (50 Hz – 20 kHz, +4 dBu output)
  • Maximum Gain: +20 dB
• HI-Z
  • Type: 6.35 mm (1/4") TRS jack, unbalanced
  • Impedance: 47 kΩ / 2.2 MΩ
  • Max. Input Level: +12 dBu
  • Frequency Response: 20 Hz – 20 kHz ±1 dB
  • EIN Noise @ Max Gain: -105 dBu, 22 Hz – 22 kHz unweighted
  • Distortion (THD+N): <0.25% (50 Hz – 20 kHz, +4 dBu output)
  • Maximum Gain: +44 dB
• Compressor
  • Type: XLR, transformer balanced
  • Impedance: 15 kΩ / 600 Ω
  • Max. Input Level: +30 dBu
  • CMRR: Typically -80 dBu @ 1 kHz, unity gain
  • Frequency Response: 20 Hz – 20 kHz ±1 dB
  • Noise @ Unity Gain: -85 dBu, 22 Hz – 22 kHz unweighted
  • Distortion (THD+N): <0.25% (50 Hz – 20 kHz, +4 dBu output)
  • Maximum Gain: +40 dB

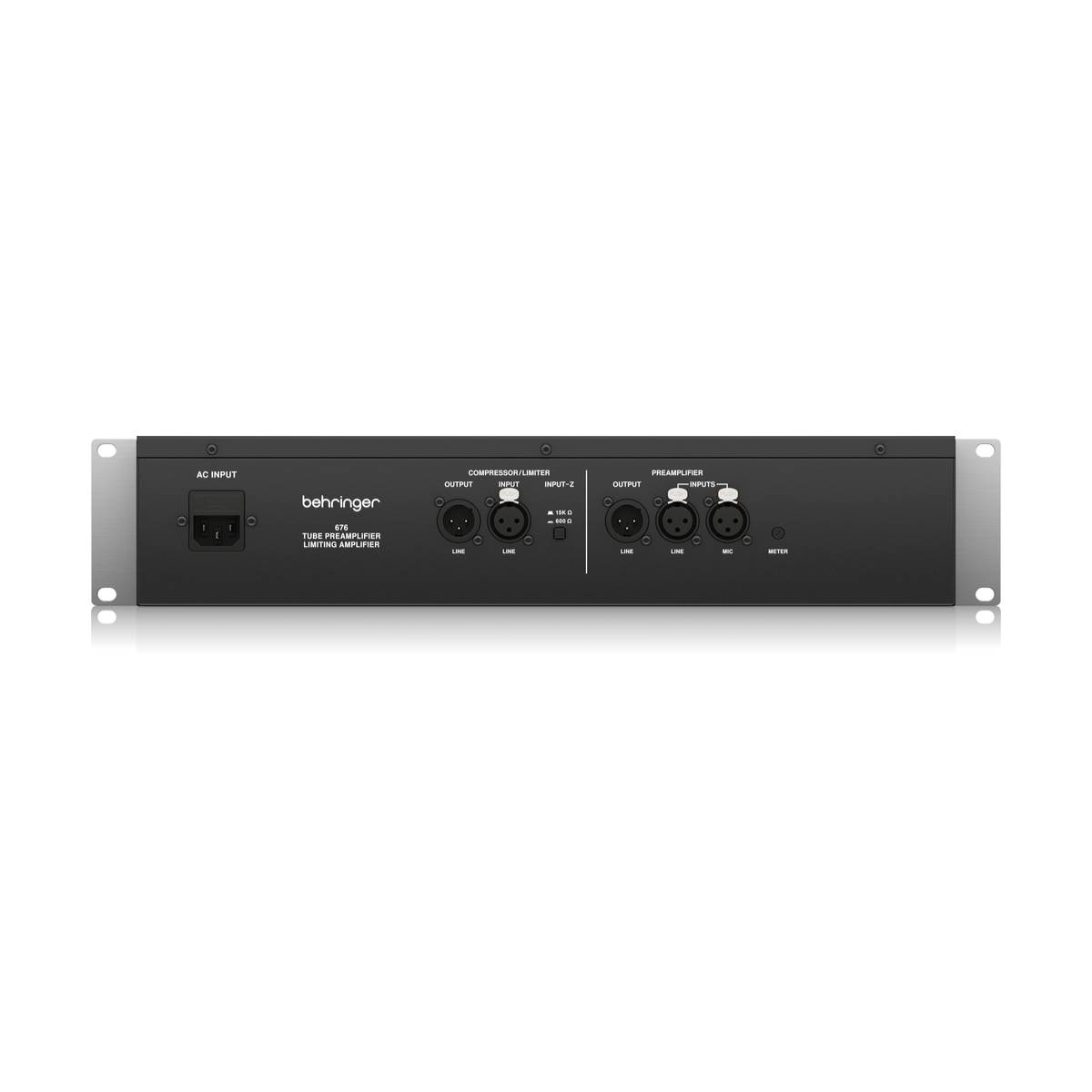

Audio Outputs

• Preamplifier
  • Type: XLR, transformer balanced
  • Impedance: 90 Ω balanced
  • Max. Output Level: +21 dBu
  • Phase Reverse: Toggle switch
  • Split/Join: Toggle switch (direct connection preamp → compressor)
• Compressor
  • Type: XLR, transformer balanced
  • Impedance: 110 Ω balanced
  • Max. Output Level: +26 dBu

Equaliser

• Low Frequency Select: Toggle switch (70 Hz / 100 Hz / 200 Hz, shelving)
• Low Frequency Cut/Boost: Rotary switch (-9 dB to +9 dB)
• High Frequency Select: Toggle switch (4.5 kHz / 7 kHz / 10 kHz, shelving)
• High Frequency Cut/Boost: Rotary switch (-9 dB to +9 dB)

Limiting Amplifier (Compressor)

• Attack Control: 800 μs to 20 μs (slow–fast)
• Release Control: 1.1 s to 50 ms (slow–fast)
• Input Level: Off to unity gain
• Output Level: Off to +40 dB gain
• Ratio: Rotary switch (BP = true bypass, 1:1, 4:1, 8:1, 12:1, 20:1, All >100:1)
• Meter Source Select: Rotary (preamp output/gain reduction/compressor output)
• VU Meter: -20 dB to +3 dB (0 VU = +4 dBu)
• Meter Calibration Trimmer: Set zero on VU meter when in GR mode

Power Requirements

• Mains Voltage: 100–240 V~, 50/60 Hz
• Power Consumption: 28 W max
• Mains Connector: Standard IEC receptacle
• Fuse: T 1.6 A H 250 V
• Power Switch: Toggle switch, with LED indicator

Physical

• Operating Temperature Range: 5° C – 45° C (41° F – 113° F)
• Dimensions (H x W x D): 88 x 160 x 483 mm (3.47 x 19 x 6.30")
• Weight: 3.50 kg (7.71 lbs)
