Behringer 182 Sequencer Eurorack Module

IN STOCK - Ships today if ordered before 1pm AEST

Pay With AfterPay Zip

Product Information

Modular Synthesis

The 80s was the golden age of electronic music. Synthesizers were at their prime and almost every hit song and movie soundtrack at that time had a synth in one form or another. Modular synths have become more and more popular with professionals and enthusiasts over the years and they’re about to get even better.

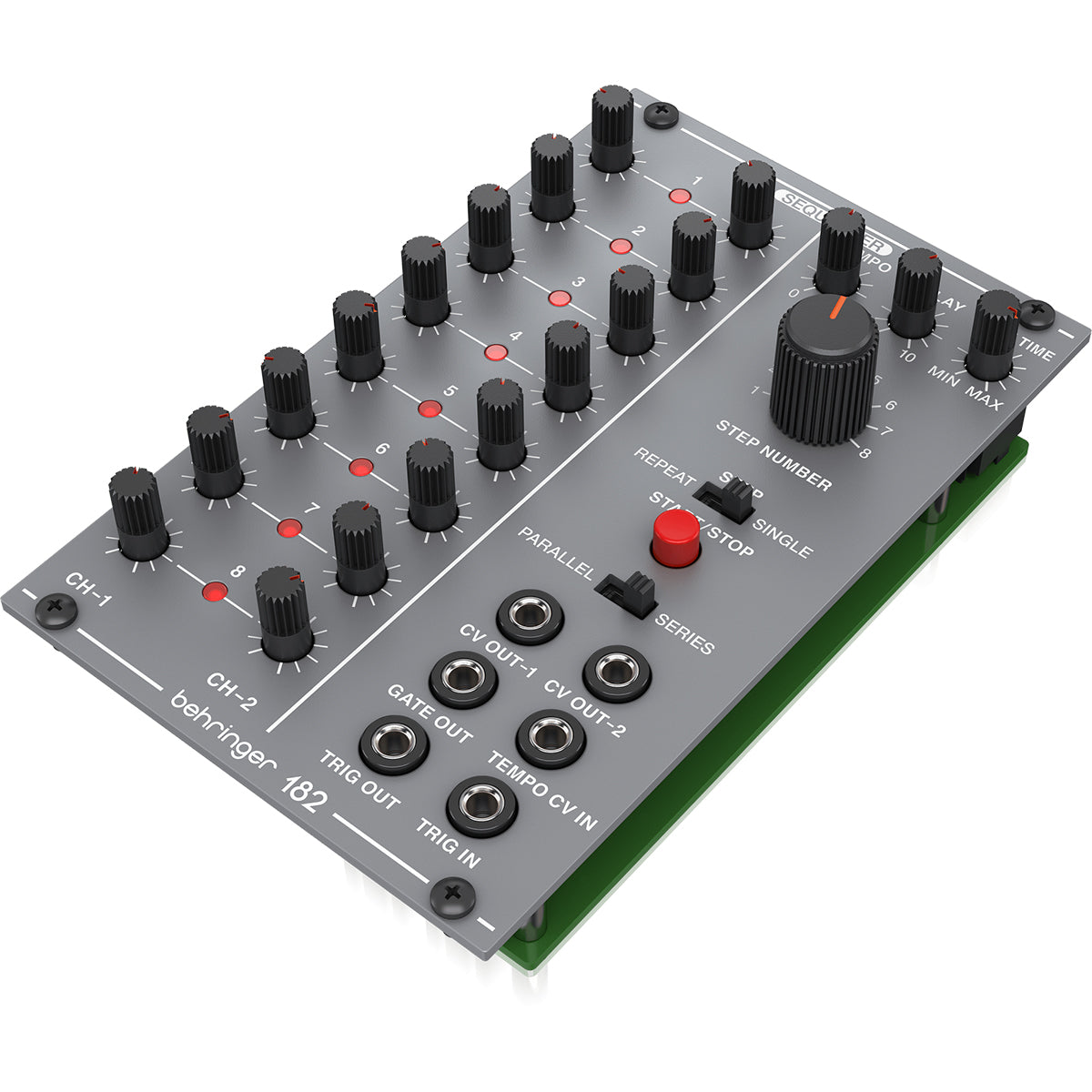

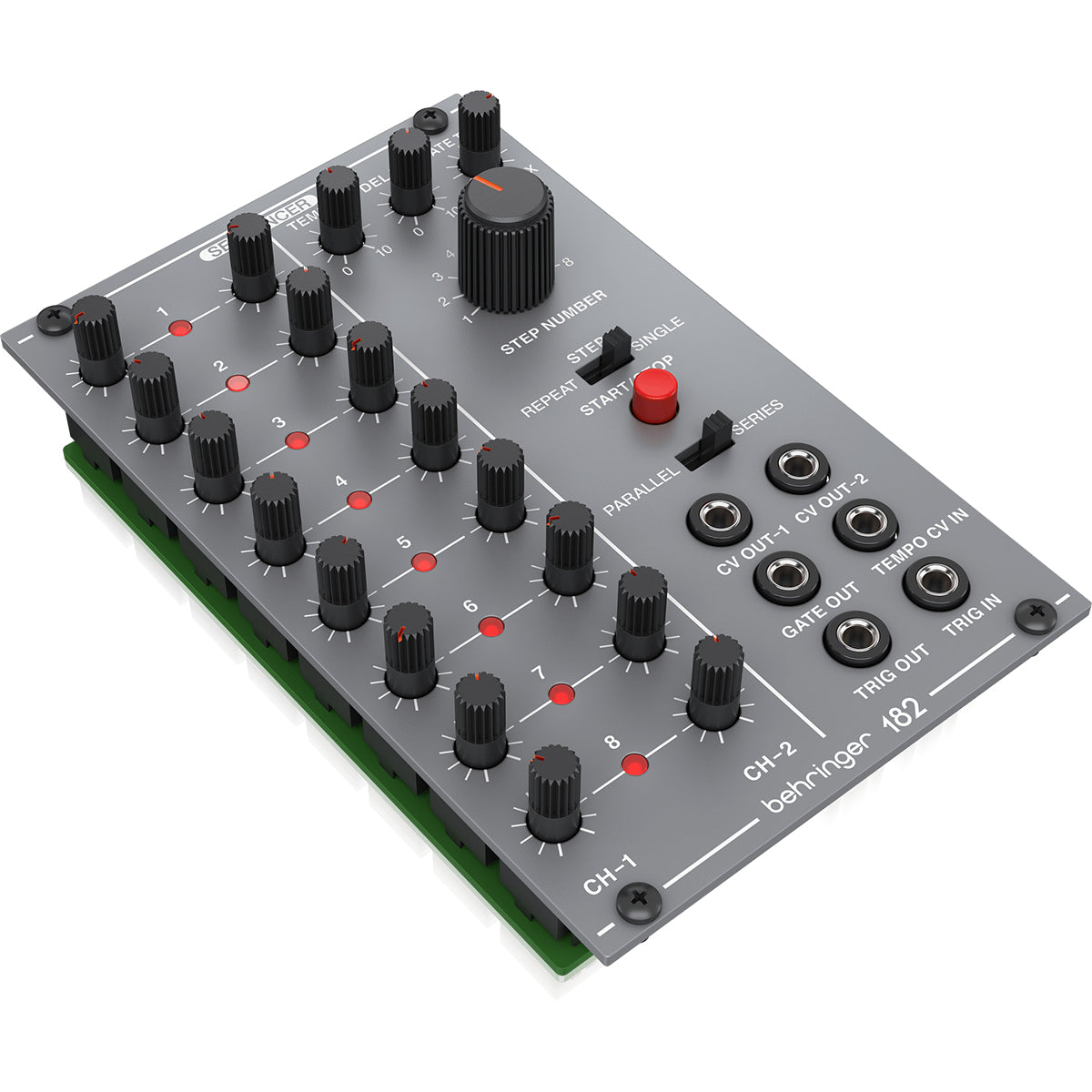

This is the Behringer System 100 182 SEQUENCER Module. A 2-channel 8-step analog sequencer with each with its own control voltage knob and global Tempo, Delay and Gate time Adjustments. This is an authentic reproduction of the original “System 100M” circuitry from the 80s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the 182 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun!

A Sequence of Amazing Events

Each step in the 182 SEQUENCER’s two channels comes with its own control voltage knob to alter VCO pitch for example. The Tempo, Delay and Gate Time knobs control how fast the sequencer cycles; how fast the notes rise and fall; the pulse width of the Gate output. Each channel CV output can control other modules for a lot of really amazing tone shaping possibilities. You can take channel 1 and plug it into your favorite VCO and VCF chain while channel 2 can sequence other modules like a VCA fed from a noise generator which can add a great percussive sound to a sequence.

From 8 to 16

The 182 can do more than just 8-steps. Switching to series mode transforms the 182 into a 16-step sequencer; going through all 8-steps of each channel sequentially so you can create longer and more intricate arpeggios and create really fantastic music. Adding to the 182’s flexibility, the Step switch allows for repeating sequences or one single cycle of the sequence. The Step number knob can be used to determine the length of a sequence between 1 and 16 steps.

Eurorack Ready

Installing the 182 SEQUENCER is simple as it was designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows for the
182 SEQUENCER to be mixed with other synth modules for a truly unique set up.

Complete Your Collection

Whether you’re just getting into modular synths or looking to complete your collection, the 182 SEQUENCER module from Behringer is a great tool to have when creating amazing music.

Get the 182 SEQUENCER from your local Behringer dealer today!

  • Amazing 2-channel 8-step analog sequencer module from the '80s

  • Authentic reproduction of original "System 100M*" circuitry

  • Control voltages can be manually set for each step

  • Tempo, delay and gate time controls for great flexibility

  • Step number selector and series switch allows sequence length between 1 and 16 steps

  • Step switch allows for single play or repeating sequences

  • Sequencer can be clocked externally via CV and triggered via start/stop button

  • 23 controls and switches give you real-time access to all important parameters

  • Eurorack specs: 16 HP, 35 mA +12 V, 35 mA -12 V



Tempo CV input

3.5 mm TS jack, DC coupled


100 kΩ, unbalanced

Max input level

+10 V

CV scaling

1 V/oct

Trigger input

3.5 mm TS jack, DC coupled


30 kΩ, unbalanced

Max input level

+10 V


CV output

2 x 3.5 mm TS jacks, DC coupled


600 Ω, unbalanced

Max output level

+5 V

Gate output

3.5 mm TS jack, DC coupled


600 Ω, unbalanced

Max output level

+5 V

Trigger output

3.5 mm TS jack, DC coupled


3 kΩ, unbalanced

Max output level

+5 V

Step CV level

0 V to +5 V


0.14 Hz to 33 Hz


0 to 10 s

Gate time

10 % to 90 % duty cycle

10 % to 90 % duty cycle

1 to 8 steps

Step switch

Repeat / manual / single

Start/stop switch


Parallel/series switch

8 step / 16 step

Power supply


Current draw

30 mA (+12 V), 30 mA (-12 V)


43 x 81 x 129 mm (1.7 x 3.2 x 5.1")

Rack units

16 HP


0.17 kg (0.37 lbs)


3 Years Warranty
