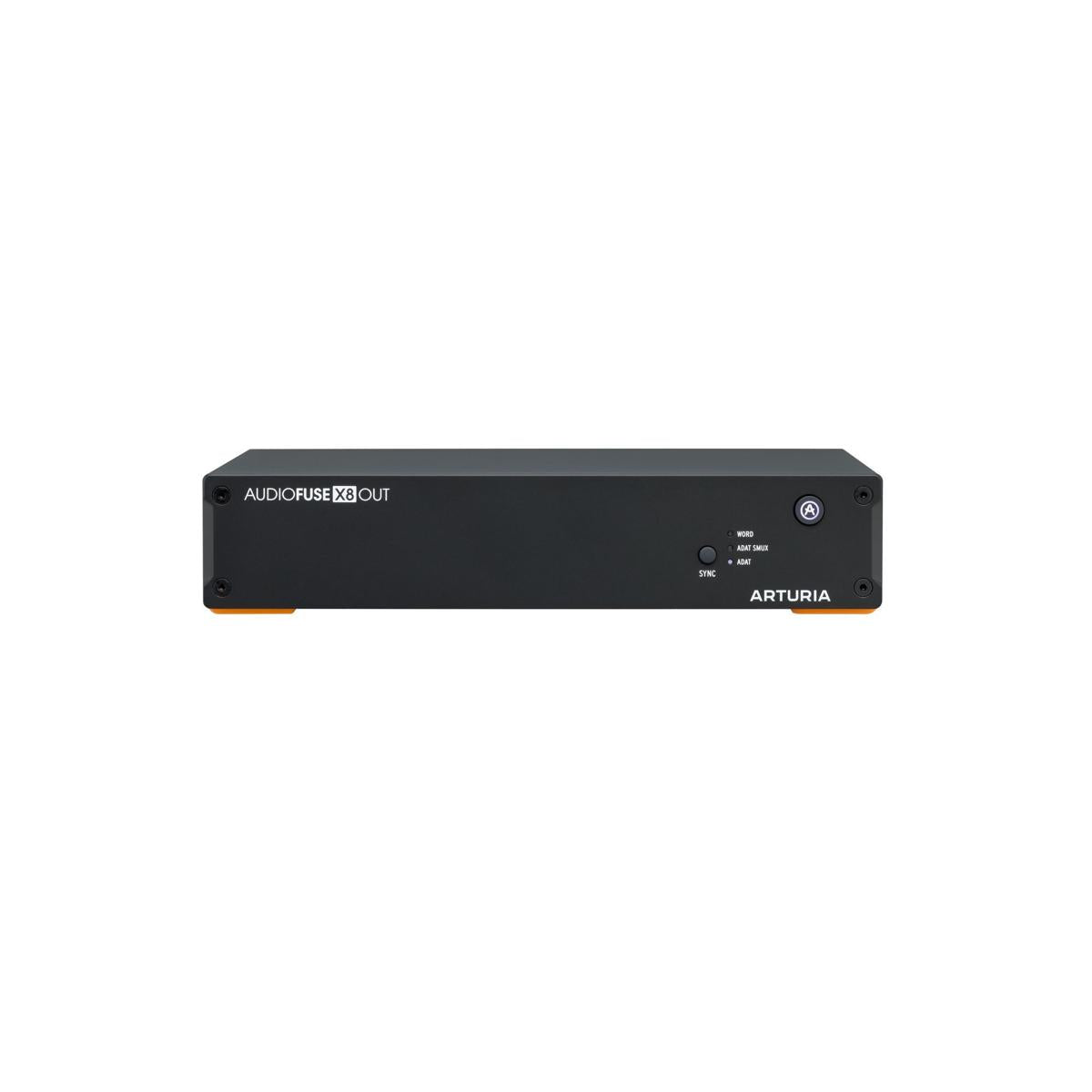

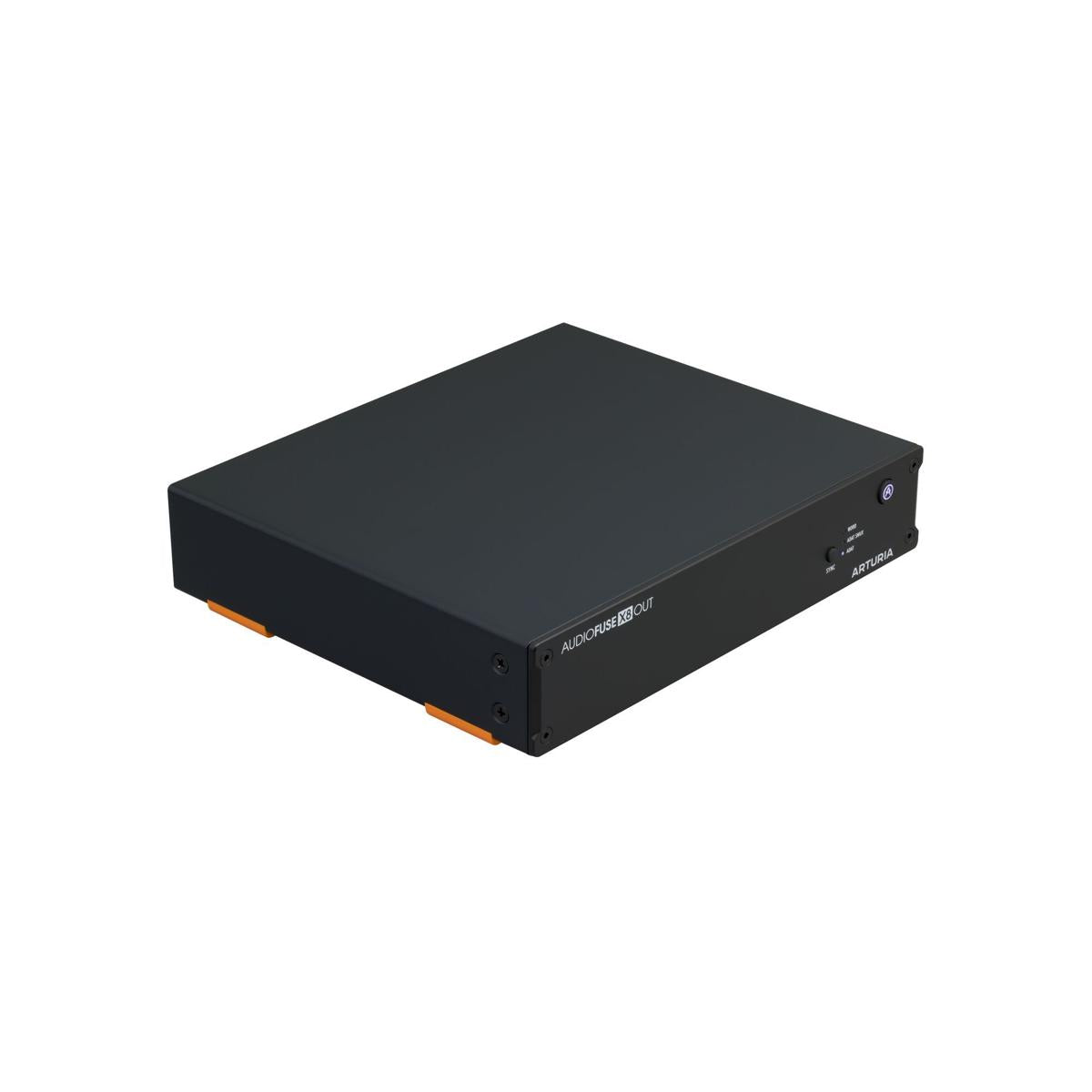

Arturia AUDIOFUSE X8 OUT ADAT Expander

Pay With AfterPay Zip

Product Information

AudioFuse X8 OUT enhances the flexibility of your studio with 8 premium line-level outputs. Link to any ADAT-compatible audio interface and scale up monitoring, FX routing and synth control.

With the latest generation DA converters up to 96 kHz sampling rate, enhance your studio flexibility and send audio to outboard gear, monitor speakers and control an array of synths via DC-coupled output.

Scale up monitoring

Connect additional speakers for multi-point monitoring or surround sound speaker arrays for immersive audio projects, film and TV.

Synth control

Send CV signals to your synths via DC-coupled outputs. This enables precise automation of parameters such as pitch, filter cutoff, and modulation directly from your DAW.

Outboard FX routing

Easily route audio from your DAW to outboard processors, such as compressors, equalizers, or reverb units, and back into your DAW to leverage both digital and analog processing.

Broadcast and streaming

Send separate audio mixes to different broadcast or streaming devices, enabling versatile routing for live streaming, internet radio, or video productions.


  • 8x DC coupled outputs
  • Word clock input on BNC
  • 24-bit latest generation DA converters up to 96 kHz sampling rate
  • Robust half 1-U rack chassis
  • Assembly kit included to rack two AudioFuse X8 units


Audio Interface Expander

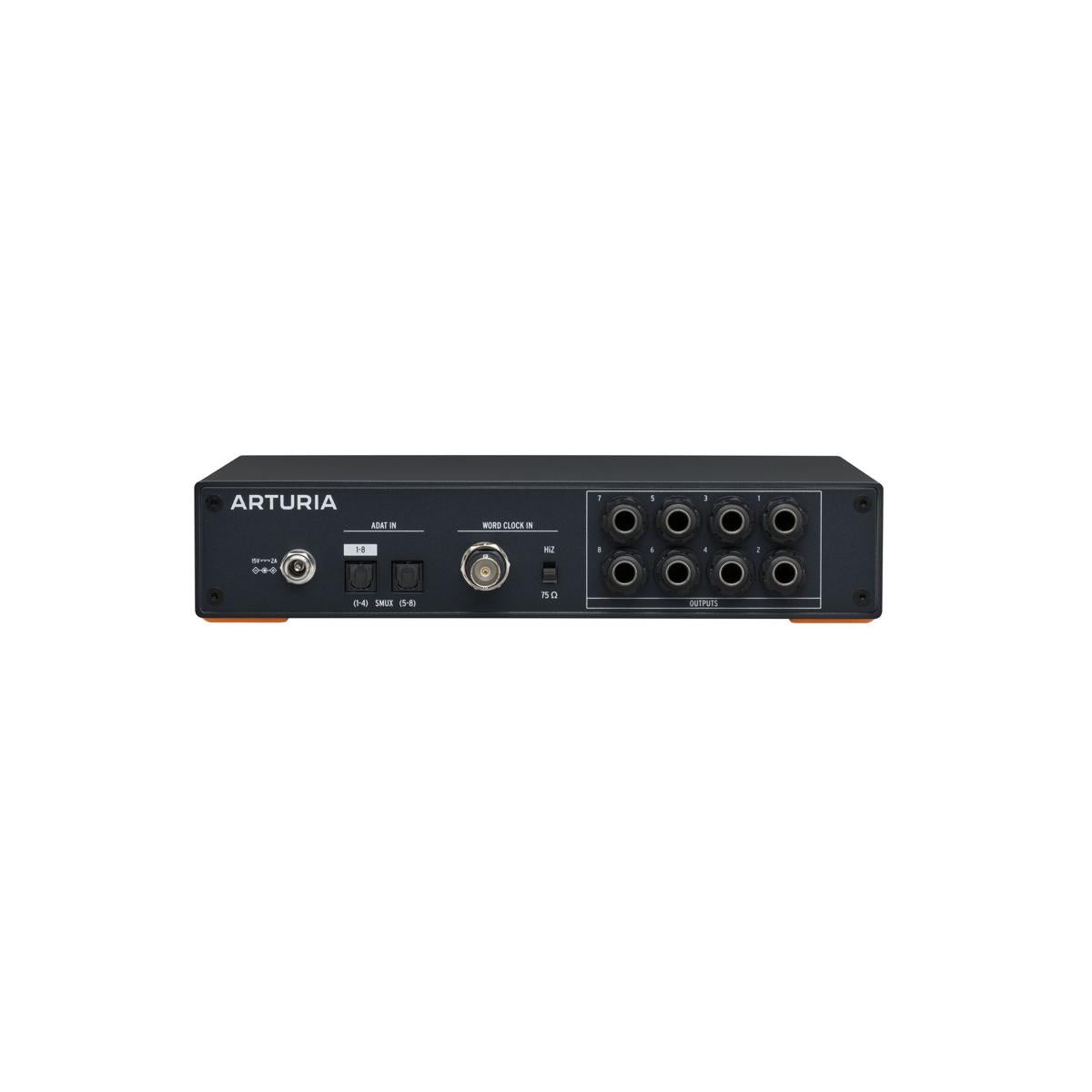

  • 8 High Quality Analog Outputs [1/4" TRS]
  • Output Impedance: 240Ω
  • Maximum Input Level: +24dBu
  • Frequency Response 20Hz to 20kHz: +/-0.04dB (min gain)
  • Dynamic Range: 120.5dB typical (A-weighted)
  • THD+N @ 1kHz: -106dB typical (un-weighted)
  • Latest Generation DA Converters up to 96 kHz:
    • 44.1 kHz
    • 48 kHz
    • 88.2 kHz
    • 96 kHz


1 Year Warranty
