Akai Professional MPC Live III 3 Retro - Music Production Centre

Specifications

Digital Audio System

• ADCs: 24-bit @ 44.1, 48, or 96 kHz
• DACs: 24-bit @ 44.1, 48, or 96 kHz
• Digital Signal Processing: 32-bit floating point

Mic Inputs 1–2

• Inputs: (2) balanced XLR+1/4” (6.35 mm) TRS
• Frequency Response: 20 Hz – 20 kHz (+0.2 / -1.2 dB)
• Dynamic Range: 110.0 dB (A-weighted)
• SNR: 101.8 dB (1 kHz, +4 dBu, A-weighted)
• THD+N: 0.002% (1 kHz, +4 dBu, -1 dBFS)
• Preamp EIN: -131 dBu (max gain, 40 Ω source, A-weighted)
• Preamp EIN: -127 dBu (max gain, 150 Ω source, unweighted)
• Maximum Input Level: +13 dBu (XLR-Pad ON), -1 dBu (XLR-Pad OFF)
• Sensitivity: -46 dBu (XLR-Pad ON), -60 dBu (XLR-Pad OFF)
• Gain Range: 59 dB

Line Inputs 1–2

• Inputs: (2) balanced XLR+1/4” (6.35 mm) TRS
• Frequency Response: 20 Hz – 20 kHz (+0.2 / -1.1 dB)
• Dynamic Range: 110.6 dB (A-weighted)
• SNR: 98.6 dB (1 kHz, +4 dBu, A-weighted)
• THD+N: 0.002% (1 kHz, +3 dBu, -1 dBFS)
• Maximum Input Level: +16 dBu
• Sensitivity: -20 dBu
• Gain Range: 36 dB

Phono Inputs

• Inputs: (2) unbalanced RCA
• Dynamic Range: 92 dB (A-weighted, 135 mVrms @ 1 kHz, -1 dBFS, 20 Ω source)
• SNR: 79 dB (A-weighted, 4 mVrms @ 1 kHz, 20 Ω source)
• THD+N: 0.1% (1 kHz, -46 dBu, -1 dBFS)
• Maximum Input Level: 135 mVrms (1kHz)
• Sensitivity: 2.1 mVrms (1 kHz)

Line Outputs 1–6

• Outputs: (6) impedance-balanced 1/4” (6.35 mm) TRS
• Frequency Response: 20 Hz – 20 kHz (+0.03 / -0.18 dB)
• Dynamic Range: 113.8 dB (A-weighted)
• THD+N: 0.003% (1 kHz, -1 dBFS)
• Maximum Output Level: +12 dBu
• Output Impedance: 100 Ω

Headphone Output

• Output: (1) 1/4” (6.35 mm) stereo headphone
• Dynamic Range: 111.2 dB (A-weighted)
• THD+N: 0.006% (1 kHz, -1 dBFS, 10 mW/channel into 32 Ω headphones)
• Frequency Response: 20 Hz – 20 kHz (+0.03 / -0.19 dB)
• Maximum Power Delivered: +50 mW (<1% THD, 32 Ω headphones)
• Maximum Output Level: +11 dBu
• Output Impedance: 32 Ω

Pads

• Pads: (16) velocity- and pressure-sensitive pads with 3D-sensing technology
• Banks: (8) banks accessible via Pad Bank buttons

Knobs

• Q-Link Knobs: (4) 360° touch-sensitive Q-Link Knobs
• Q-Link Columns: (4) accessible via Q-Link button
• Encoder: (1) 360° encoder for display navigation and selection via push
• Volume Control: (1) 270° volume control

Buttons

• Buttons: (60) dedicated function buttons; red-, amber-, or green-backlit

Display

• Size (Diagonal): 6.9” / 176 mm
• Display Area: 5.9” x 3.7” / 150 x 93 mm (width x height)
• Type: Full-color LED-backlit display with touch interface

CPU

• Processor: Quad-core ARM® processor
• RAM: 8 GB
• Storage: 128 GB, expandable via SATA connections

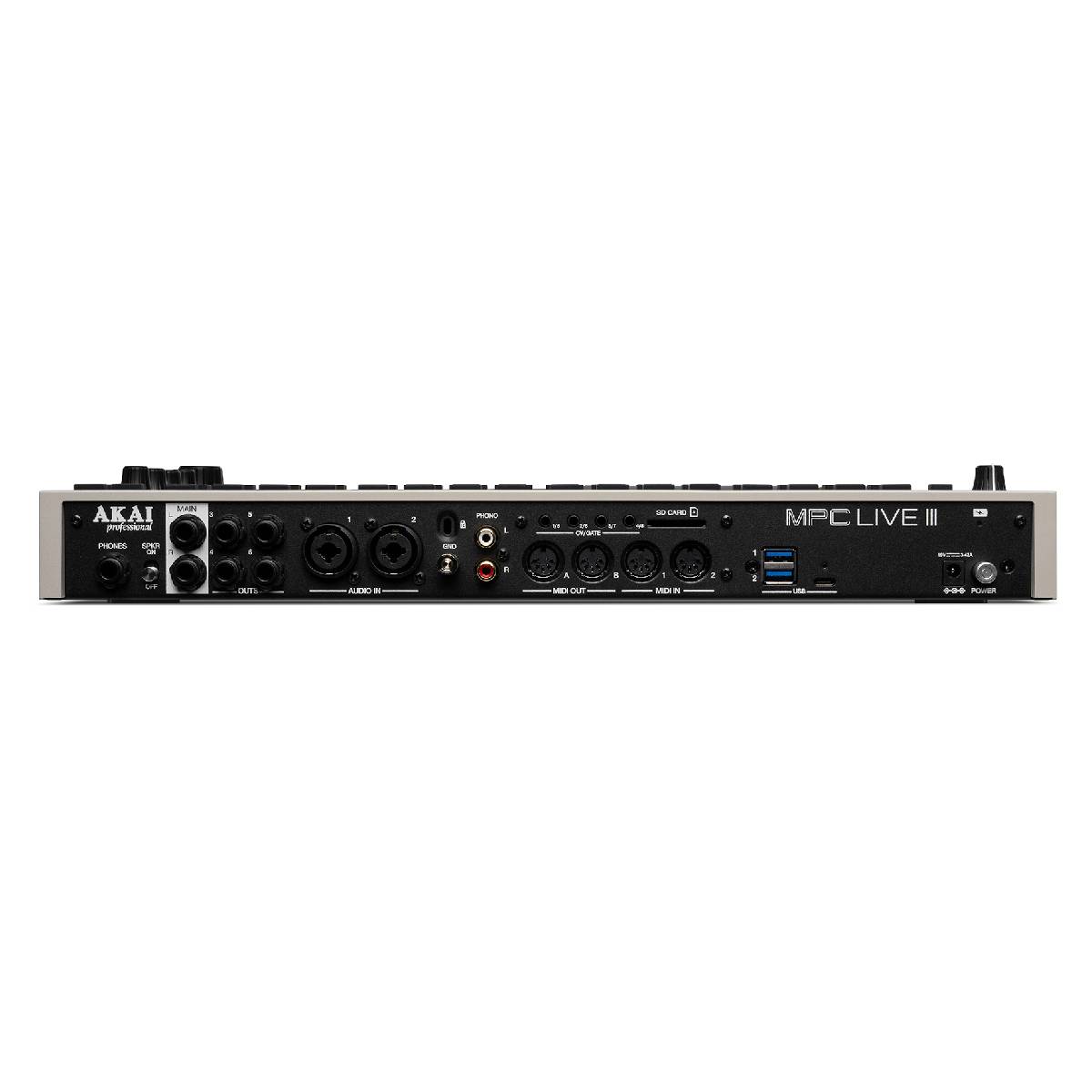

Connections

• Inputs: (2) 1/4” (6.35 mm) Combo XLR/TRS inputs (1 stereo pair)
• Outputs: (6) 1/4” (6.35 mm) TRS outputs (3 stereo pairs)
• Headphone: (1) 1/4” (6.35 mm) stereo headphone output
• RCA Inputs: (2) RCA inputs (1 stereo pair)
• MIDI: (2) 5-pin MIDI inputs
• MIDI: (2) 5-pin MIDI outputs
• CV/Gate: (4) Stereo 1/8” (3.5 mm) CV/Gate outputs
• USB: (2) USB Type-A ports
• USB: (1) USB Type-C® port
• Storage: (1) SD card slot
• Power: (1) power adapter input
• Drive Bay: (1) drive bay for 2.5” (635 mm) SATA drive

Power

• Power Adapter: 19 V, 3.42 A, center-positive, included
• Battery: Lithium-ion, rechargeable, up to 3 hours of battery life with typical use

Dimensions

• Dimensions (Inches): 17.2” x 10.1” x 2.6”
• Dimensions (mm): 435.9 x 256.0 x 67.1 mm

Weight

• Weight: 8.6 lbs.
• Weight: 3.9 kg
