Product Information
Made for performance video creators and music artists, GO:MIXER STUDIO infuses our portable mixer/interface platform with new power, flexibility, and range. Enhanced sound quality, expanded I/O, and onboard effects unlock more creative possibilities, supported by an intuitive interface with hands-on knobs and a color display. Powerful companion apps make your workflow even smoother, allowing you to capture videos with multitrack audio and control deep mixing functions on the spot.
Whether creating videos with your iPhone/iPad or producing songs with music software, GO:MIXER STUDIO makes it easy to capture multiple audio sources with studio-grade sound wherever inspiration strikes.
- Portable mixer and audio interface for performance video creators and music artists
- Capture high-quality audio anywhere with an iPhone/iPad or a macOS/Windows computer
- Studio-grade sound quality with support for recording rates up to 24-bit/192 kHz

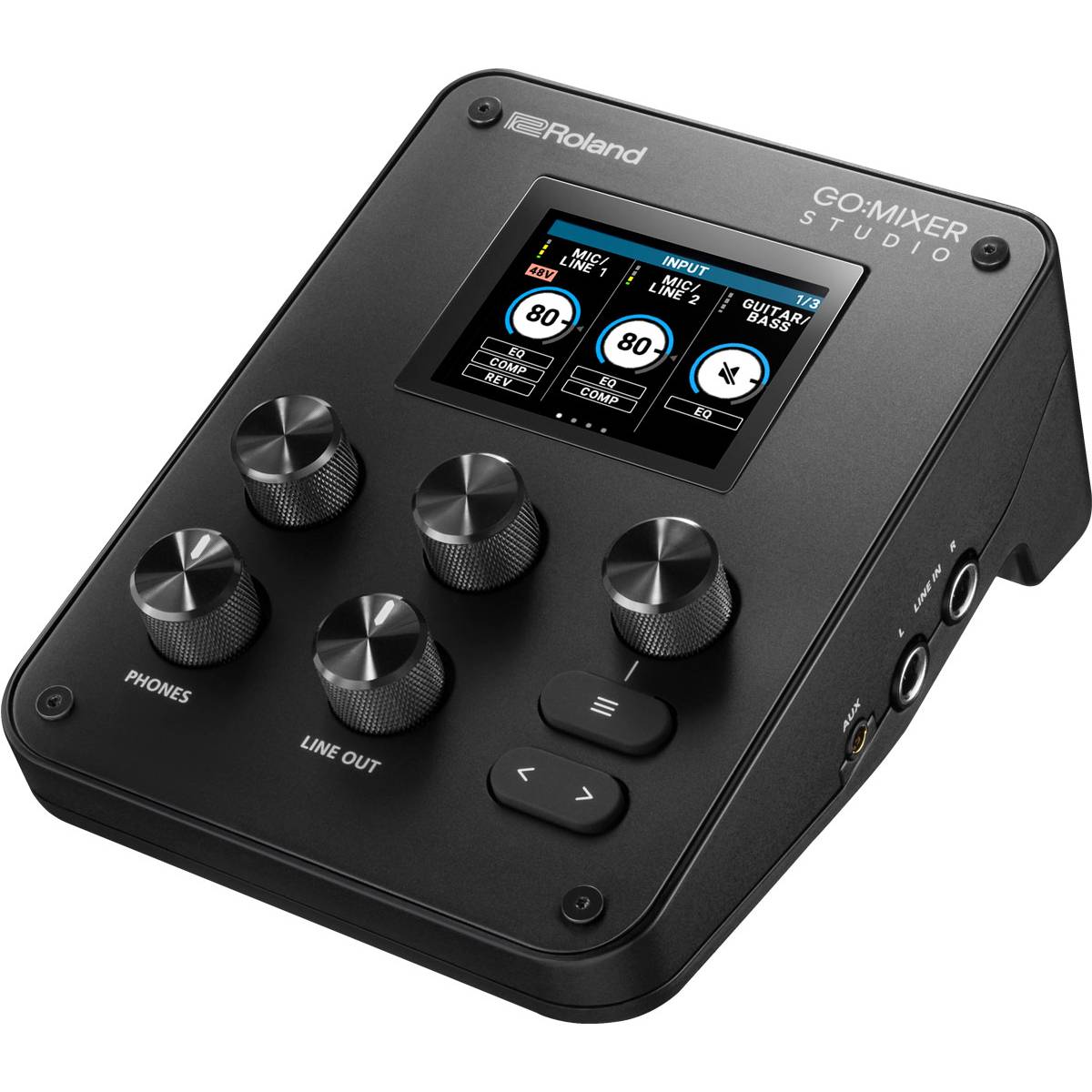

- Intuitive panel knobs and color display for easy operation
- Onboard EQ plus compressor and reverb modeled after popular studio processors
- Up to 12 total input channels and six outputs (three stereo pairs)
- Two XLR inputs for mics or line-level devices
- High-gain mic preamps and support for 48 V phantom power (requires 15 W power from a mobile device, computer, or USB adaptor/battery)
- Stereo line-level input, high-impedance guitar/bass input, and aux input with TRRS (bi-directional) capability
- Versatile audio outputs include 1/4-inch stereo output jacks, a 1/4-inch stereo headphones jack, and a mini headphones jack with headset mic support
- Save complete mixer setups in 16 scene memories for fast recall
- Loop Back function for playing along with backing tracks from your mobile device via USB-C
- TRS MIDI I/O with MIDI Thru functionality
- USB-C ports for device connection and independent power
- Versatile power options: bus power, external adaptor, or USB mobile battery

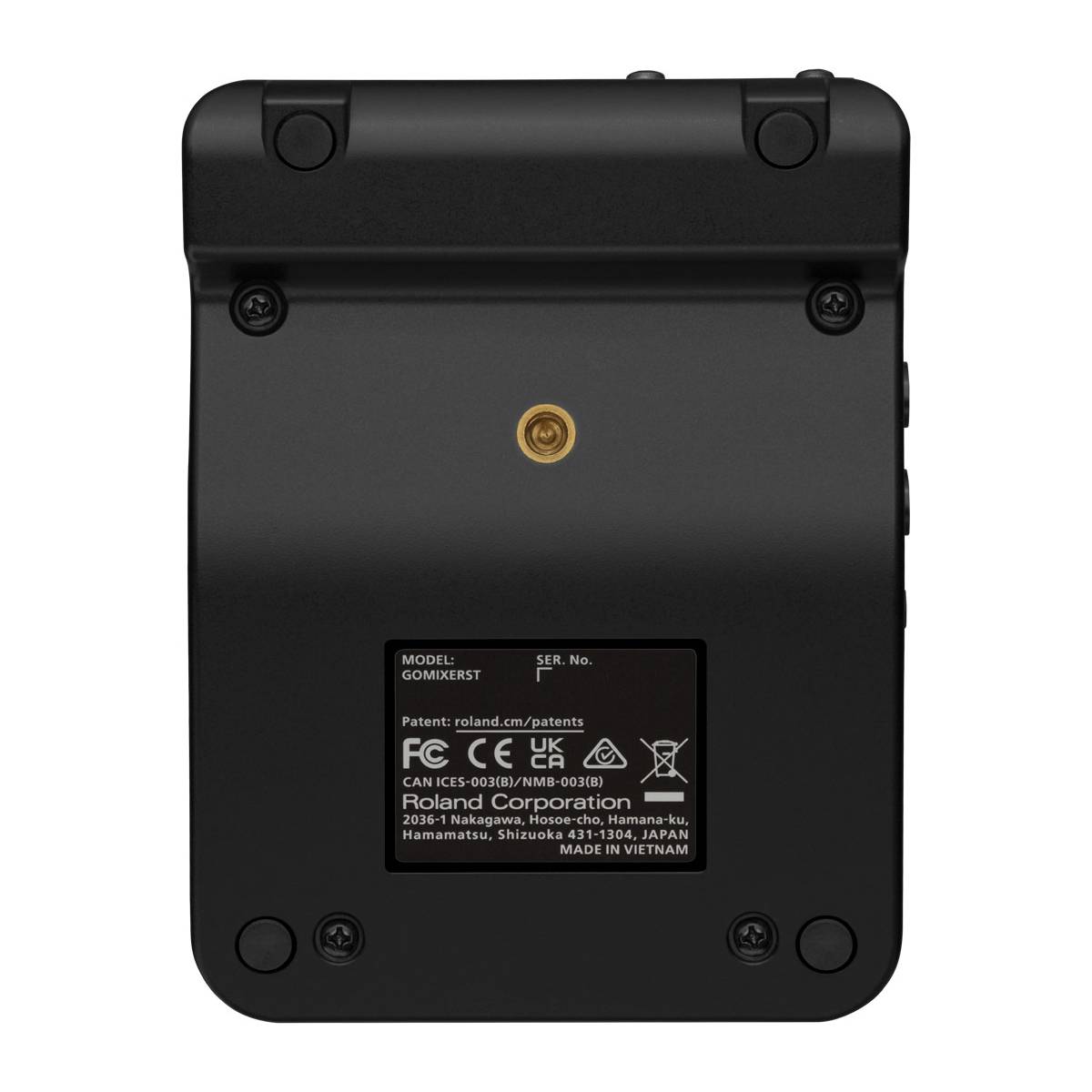

- Integrated mount for a tripod
- GO:MIXER Cam app for iOS enables you to record and mix multitrack audio alongside video
- GO:MIXER Editor for macOS and Windows provides real-time access to GO:MIXER STUDIO functions on the computer’s display
An essential creative partner.
Today’s smartphones and tablets enable you to capture stunning video everywhere you travel. GO:MIXER STUDIO is the ultimate accessory for serious creators who use iOS devices, providing a convenient way to record multi-channel sound with the quality to match the video. Its portable design is always ready for action, from outdoor locations to studio environments. This versatile device also works for DAW music production, or as a standalone mixer for live performances, podcasts, and more.
Premium audio quality.
GO:MIXER STUDIO delivers exceptional sound in an amazingly compact size. Support for rates up to 24-bit/192 kHz allows you to record multi-channel sources with audio quality that rivals top studios. Complete mixer setups can be stored in 16 scene memories, so you can start working with the touch of a button.
All the inputs you need.
With a generous selection of inputs, GO:MIXER STUDIO lets you tackle any creative scenario. Two XLR mic/line inputs feature high-quality mic preamps with a wide gain range, allowing for the capture of vocals, acoustic instruments, and other sources in any environment. There’s also a dedicated guitar/bass input, plus 1/4-inch inputs for a stereo instrument like a keyboard, V-Drums kit, or Aerophone. Use the aux input for additional stereo sources, complete with TRRS support for bidirectional audio with mobile devices.
Output versatility.
GO:MIXER STUDIO provides multiple ways to monitor sound on the go. There’s a 1/4-inch jack for standard studio headphones, along with a mini jack for wired ear buds. The mini jack also supports a headset or an inline microphone, providing an additional recording source. Two 1/4-inch line outputs are available to connect to a speaker system in a studio or an indoor shooting location, and sound control is simple with dedicated knobs on the panel.
Onboard effects.
With a suite of effects at your fingertips, you can polish sounds without the need for external gear. You get a three-band EQ, plus a compressor and reverb modeled after high-end studio processors. Apply processing while recording to capture a finished sound. Or use it for monitoring only and add your own processing later in your favorite DAW.
Record and mix multitrack audio with the GO:MIXER Cam app.
The GO:MIXER Cam app for iOS surpasses the capabilities of standard camera apps, letting you capture multitrack audio alongside your videos. Record independent audio for every GO:MIXER STUDIO input, then mix it after the video recording to create the perfect balance. It’s also possible to export your multitrack files for mixing in a DAW or computer video editor.
Control your sessions with the GO:MIXER Editor.

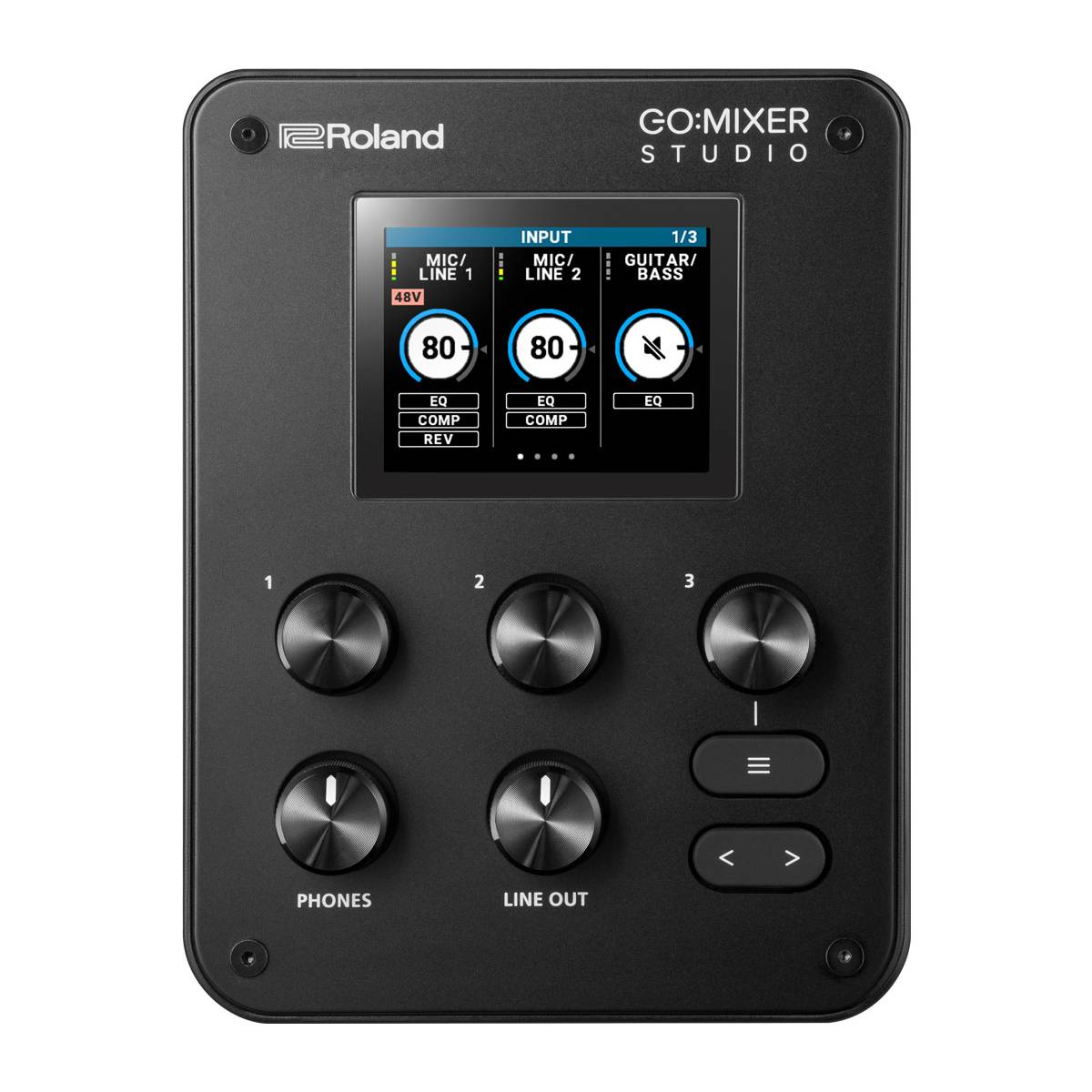

With the panel controls and color display, you can efficiently control sessions directly on GO:MIXER STUDIO. To streamline your workflow even further, check out the GO:MIXER Editor for macOS and Windows. This powerful app provides access to all GO:MIXER STUDIO parameters on your computer’s large display, making it perfect for managing large sessions both in and out of the studio.
Specifications
USB Audio
- USB Audio Channels: 12 inputs / 6 outputs
- 192 kHz Mode: 8 inputs / 4 outputs
- Sample Rates: 44.1, 48, 96, 192 kHz
- AD/DA Conversion: 24-bit
- Internal Processing: 32-bit floating point

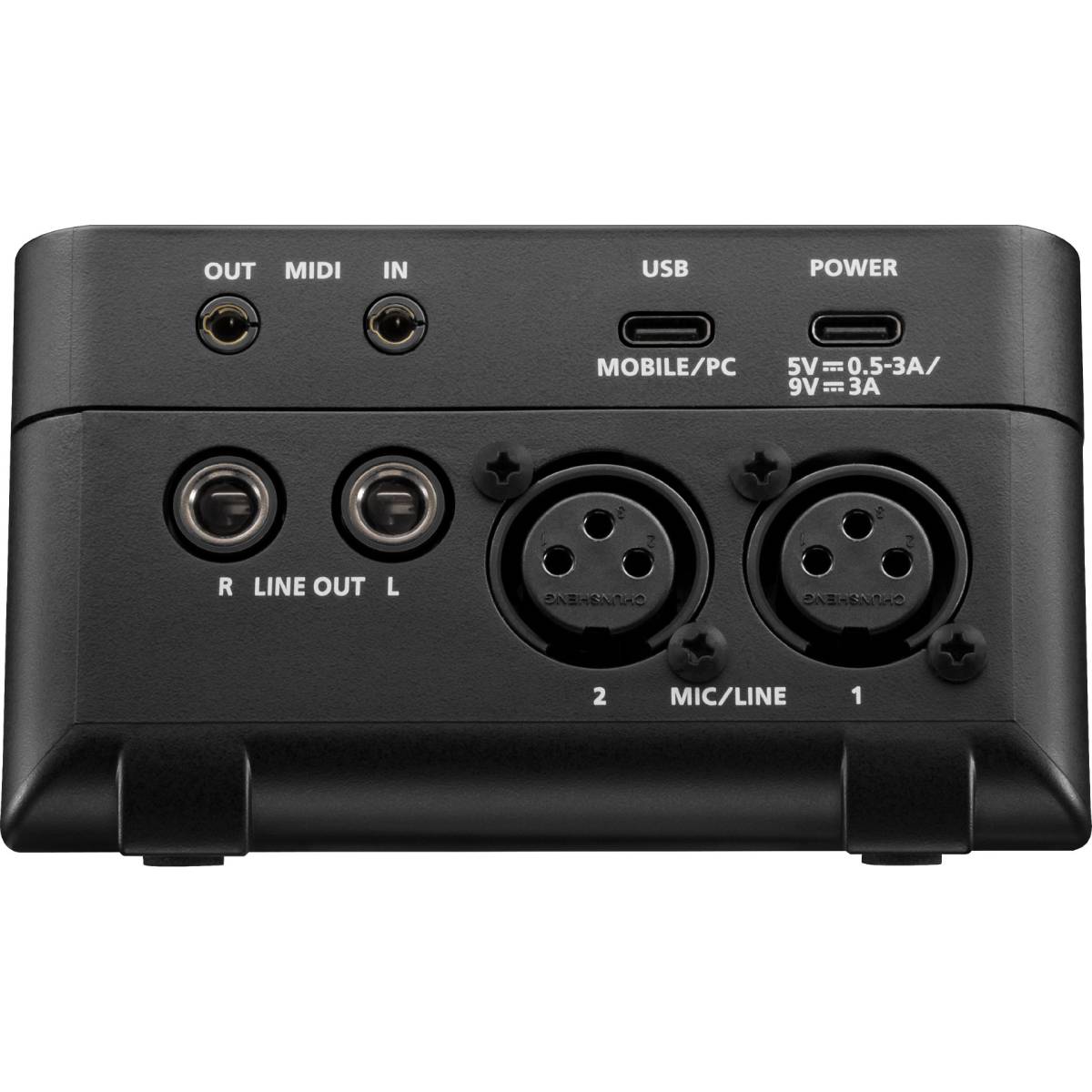

Connections
- Mic/Line 1–2: XLR (48V phantom power, 10 mA max)

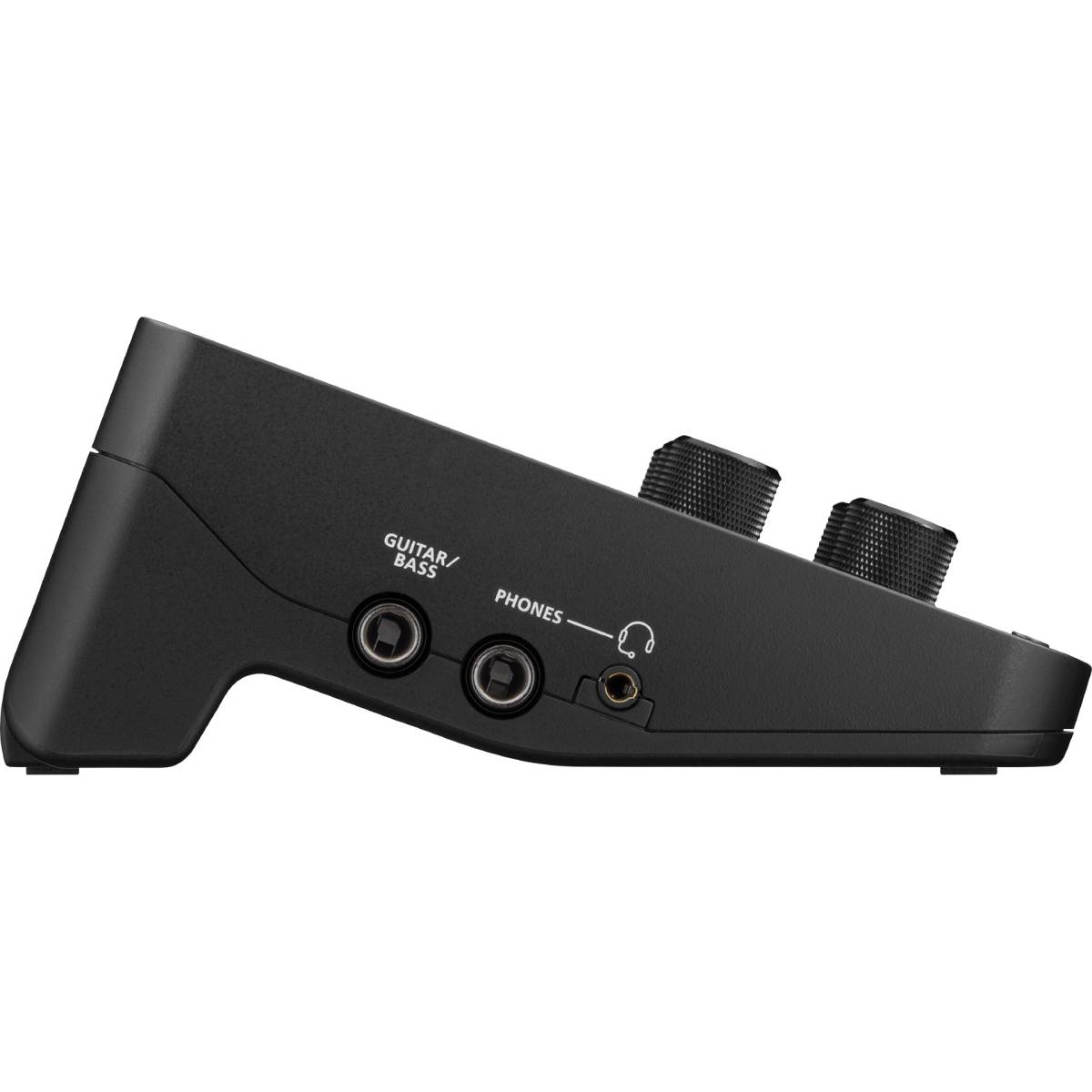

- Guitar/Bass: 1/4" phone (Hi-Z)

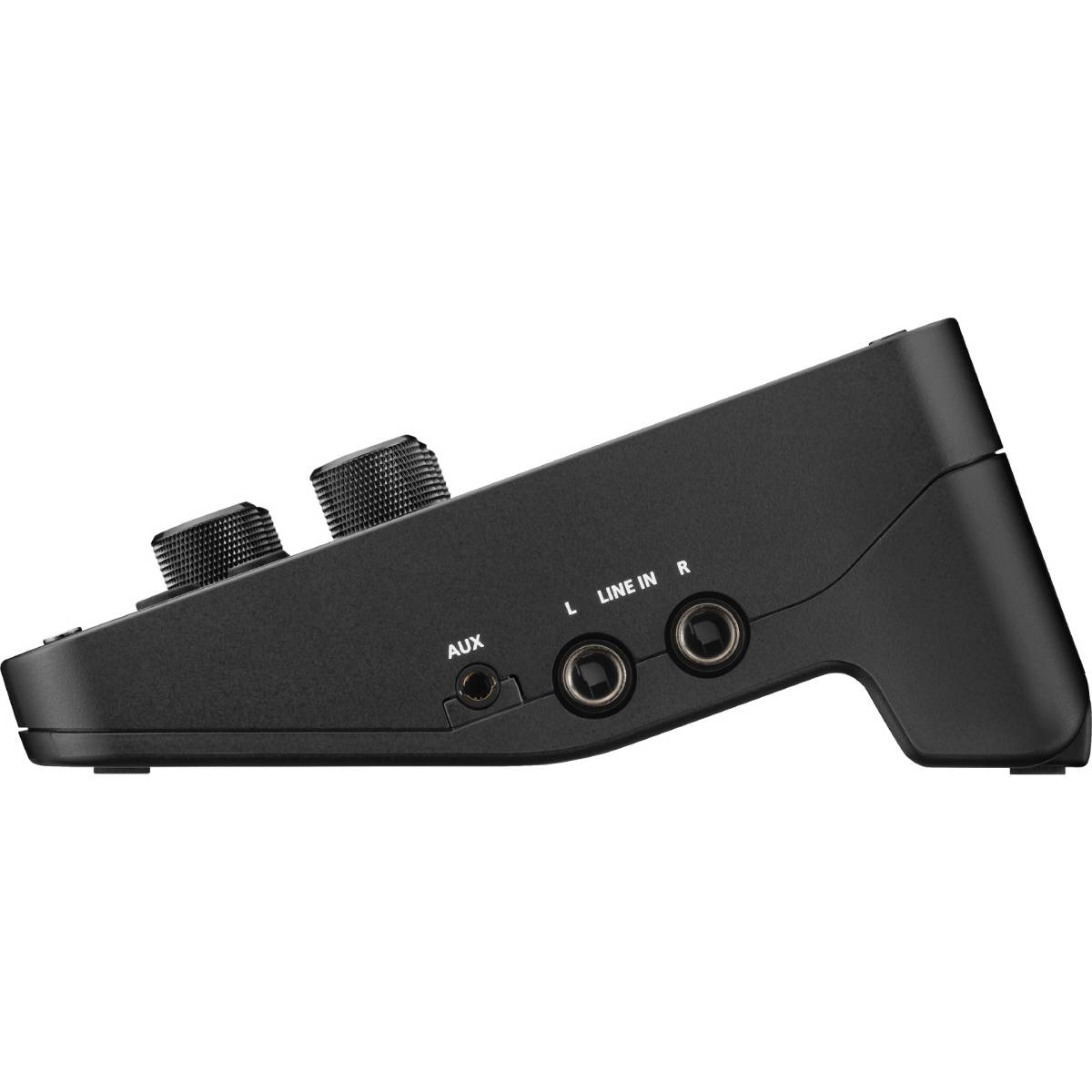

- Line In (L/R): 1/4" phone
- AUX In: Stereo mini (TRRS)
- Headphones: 1/4" stereo phone
- Headphones (Mini): Stereo mini (CTIA, plug-in power)
- Line Out (L/R): 1/4" phone
- MIDI In/Out: Stereo mini phone
- USB: USB-C (USB Audio Class 2.0/1.0, MIDI)
- Power: USB-C
Effects Processing
- Mic/Line: EQ, Compressor, Reverb
- Guitar/Bass: EQ, Compressor, Reverb
- Line In: EQ, Compressor
- AUX: EQ, Compressor
- Headset Mic: EQ, Compressor
- Phones: EQ
- Line Out: EQ
Scene Memory
- Scenes: 16
Input Specs
- Mic/Line Level: -83 to -8 dBu (Max +4 dBu)
- Guitar/Bass Level: -44 to -4 dBu (Max +17 dBu with PAD)
- Line In Level: -4 dBu (Max +8 dBu)
- Headset Mic Level: -22.5 dBu (Max -10.5 dBu)
- AUX Level: -10 dBu (Max +2 dBu)
Input Impedance
- Mic/Line: 5.6 kΩ (balanced)
- Guitar/Bass: 1 MΩ
- Line In: 9.1 kΩ
- Headset Mic: 1.5 kΩ
- AUX: 9.1 kΩ
Output Specs
- Line Out Level: -4 dBu (Max +8 dBu)
- AUX Level: -32 dBu (Max -20 dBu)
- Headphones Level: -4 dBu (Max +8 dBu)
- Headphone Power: 69 mW + 69 mW (32Ω), 18 mW + 18 mW (250Ω)
Output Impedance
- Line Out: 1.8 kΩ
- AUX: 940 Ω
- Headphones: 10 Ω
Display
- Type: Graphic Color LCD
- Resolution: 320 × 240 dots
Power
- Power Source: USB bus power or USB PD AC adapter
- Current Draw: 5V DC 0.5–3A, 9V DC 3A
Compatibility
- Windows: Windows 11
- macOS: macOS 15 or later
- iOS/iPadOS: Version 18 or later (USB-C models)
Included Accessories
- Included: "Read Me First" leaflet, USB-C to USB-C cable (1.5 m)
Dimensions & Weight
- Width: 110 mm (4.3")
- Depth: 156 mm (6.1")
- Height: 65 mm (2.6")
- Weight: 440 g (15.5 oz)
