Product Information
BOSS PX-1 Plugout FX
The PX-1 Plugout FX is an innovative hardware platform that captures the timeless BOSS compact pedal experience in one versatile unit. This convertible stompbox holds multiple authentic effect recreations from the historic BOSS lineup, making it easier than ever to explore their vast and influential world of effects.
Key Features
- Timeless BOSS compact pedals in a modern hardware platform
- Onboard library of up to 16 authentic effect recreations
- Includes 16 classic effects: OD-1, SP-1, PH-1, SG-1, CS-1, TW-1, SD-1, DS-1, CE-2, BF-2, PN-2, OC-2, PS-2, VB-2, DD-2, and DF-2
- Additional effects available with Model Pass purchases via the BOSS Effect Loader app
- Authentic tone and response powered by dedicated DSP
- Stereo input/output with support for external footswitches and expression pedals
- Tap tempo and TRS MIDI input for MIDI clock sync
- Bluetooth® and USB-C® connectivity for model loading and updates
- Powered via included AC adaptor or USB bus power
- Backed by a 5-year BOSS warranty
A Universe of Musical Colors
Since 1977, BOSS has released over 140 unique pedals, with more than 19 million units sold. Many remain in continuous production to this day. The PX-1 brings these legendary tones into one evolving platform, placing the entire BOSS legacy at your command.
Authentic Recreations
Powered by advanced BOSS algorithms, each model faithfully reproduces the sound and response of its original pedal. The powerful DSP engine is dedicated to one effect at a time, ensuring stunning accuracy and performance. Familiar knob layouts make operation intuitive, while an onboard display provides parameter details.
Modern Flexibility
The PX-1 allows external control via footswitches or expression pedals. Use the Swap function to switch between two effects, or assign parameters for expressive real-time control. Stereo I/O supports enhanced operation for stereo-capable effects, while tap tempo and MIDI clock sync integrate seamlessly into live setups.
Core Effects
The PX-1 comes preloaded with eight foundational BOSS effects, including the iconic 1977 originals and classic drives:
- OD-1 Over Drive – Asymmetrical clipping design delivering warm, tube-like overdrive.
- SP-1 Spectrum – Rare single-frequency boost for tone shaping.
- PH-1 Phaser – Smooth phaser with full low-end response.
- SG-1 Slow Gear – Creates violin-like swells with reshaped note attack.
- CS-1 Compression Sustainer – Optical design with unique slow attack character.
- TW-1 T Wah – Dynamic wah effect controlled by input level.
- SD-1 SUPER OverDrive – Classic overdrive with enhanced voicing and tone control.
- DS-1 Distortion – The best-selling BOSS pedal with aggressive, smooth sustain.
Eight Additional Effects
Available after registration and app download:
- CE-2 Chorus – Iconic chorus tones distilled from the CE-1.
- BF-2 Flanger – Warm, versatile analog flanging textures.
- PN-2 Tremolo/Pan – Stereo tremolo and panning with waveform options.
- OC-2 Octave – Legendary analog octave tones with synth-like sub-bass.
- PS-2 Pitch Shifter/Delay – Vintage digital pitch shifting with delay modes.
- VB-2 Vibrato – Cult classic vibrato with expressive Rise Time control.
- DD-2 Digital Delay – The world’s first digital delay pedal, with warm 12-bit tones.
- DF-2 SUPER Feedbacker & Distortion – DS-1 style distortion with harmonic feedback function.
Expanding Universe
More models will be added over time, available via Model Pass through the BOSS Effect Loader app. PX-1 effects are also available in DAW format through Roland Cloud, with six months of Roland Cloud Ultimate included for complete access to the BOSS Effects Pedals library and more.
Specifications
Sampling & Conversion
- Sampling Frequency: 48 kHz
- AD Conversion: 24 bits + AF method (Adaptive Focus method – proprietary Roland & BOSS technology to improve signal-to-noise ratio)
- DA Conversion: 32 bits
Input
- Nominal Input Level: INPUT A (MONO), INPUT B: -20 dBu
- Maximum Input Level: INPUT A (MONO), INPUT B: +7 dBu
- Input Impedance: INPUT A (MONO), INPUT B: 1 MΩ
Output
- Nominal Output Level: OUTPUT A (MONO), OUTPUT B: -20 dBu
- Maximum Output Level: OUTPUT A (MONO), OUTPUT B: +7 dBu
- Output Impedance: OUTPUT A (MONO), OUTPUT B: 1 kΩ
- Recommended Load Impedance: OUTPUT A (MONO), OUTPUT B: 10 kΩ or greater
- Bypass: Buffered bypass
Controls
- LEFT knob
- CENTER knob
- RIGHT knob
- Pedal switch
Indicators & Display
- Indicator: CHECK indicator
- Display: Graphic LCD 128 x 48 dots
Connectors

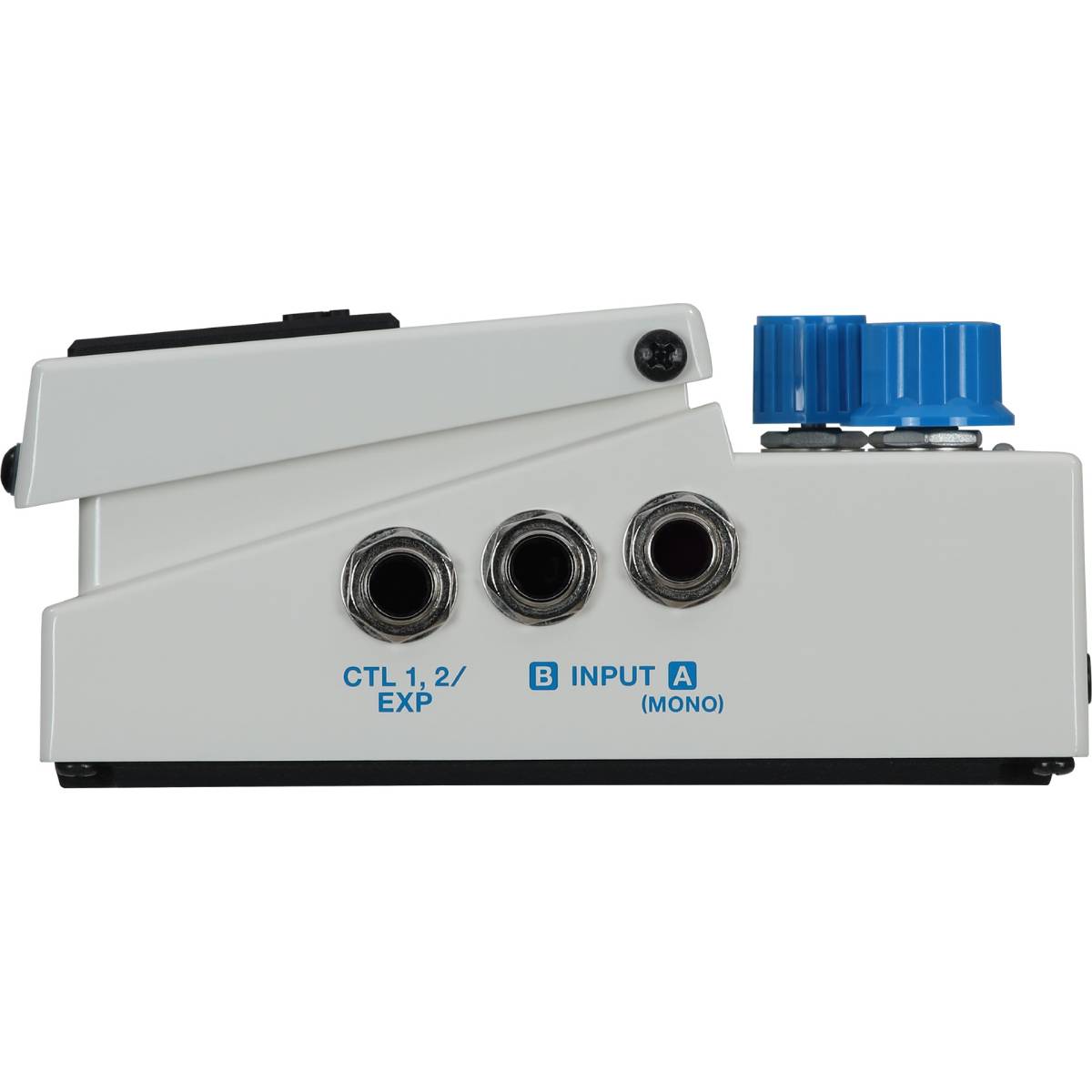

- INPUT A (MONO), INPUT B: 1/4-inch phone type

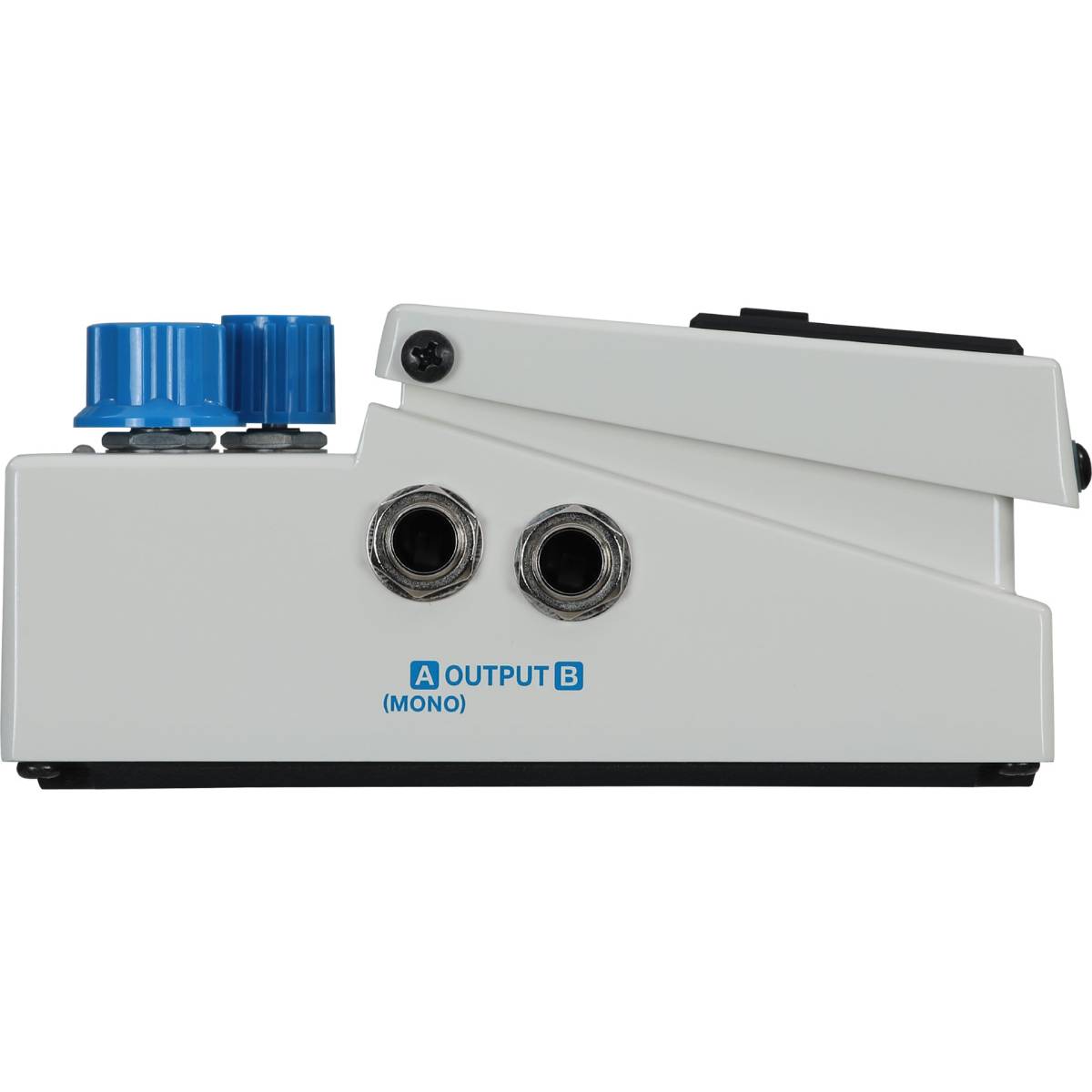

- OUTPUT A (MONO), OUTPUT B: 1/4-inch phone type
- CTL1,2/EXP jack: 1/4-inch TRS phone type

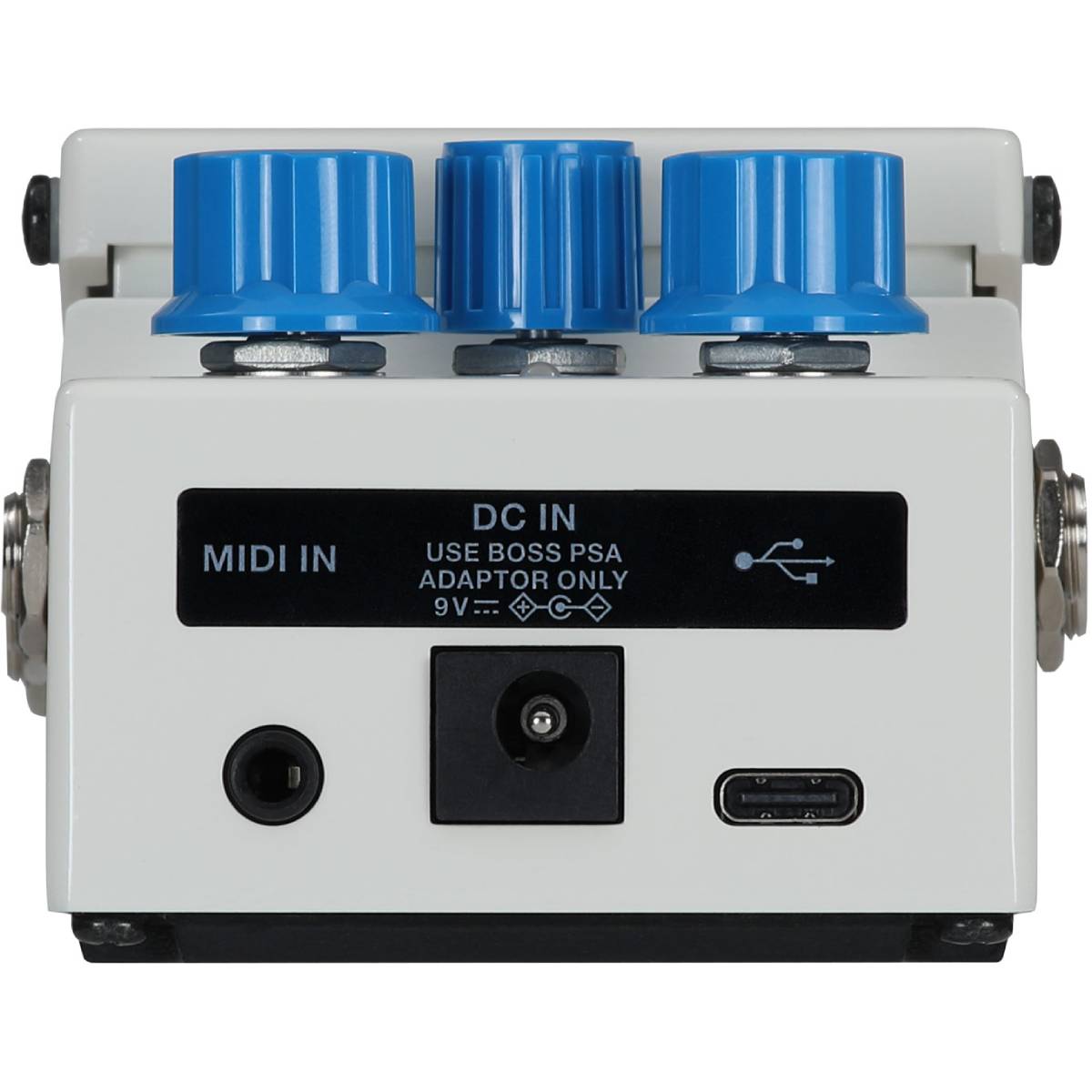

- DC IN jack
- MIDI IN jack: Stereo miniature phone type
- USB COMPUTER port: USB Type-C®
Bluetooth
- Profile Support: GATT (MIDI over Bluetooth Low Energy)
Power Supply
- AC adaptor
- Supplied from the USB port
Current Draw
- 260 mA (AC adaptor)
- 420 mA (USB)
Accessories
- AC adaptor
- Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
- Roland Cloud Activation Card
Options (sold separately)
- Footswitch: FS-5U
- Dual footswitch: FS-6, FS-7
- Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
- TRS/MIDI connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
Size and Weight
- Width: 73 mm / 2-7/8 inches
- Depth: 125 mm / 4-15/16 inches
- Height: 56 mm / 2-1/4 inches
- Weight (excluding AC adaptor): 400 g / 15 oz
Warranty
