Product Information

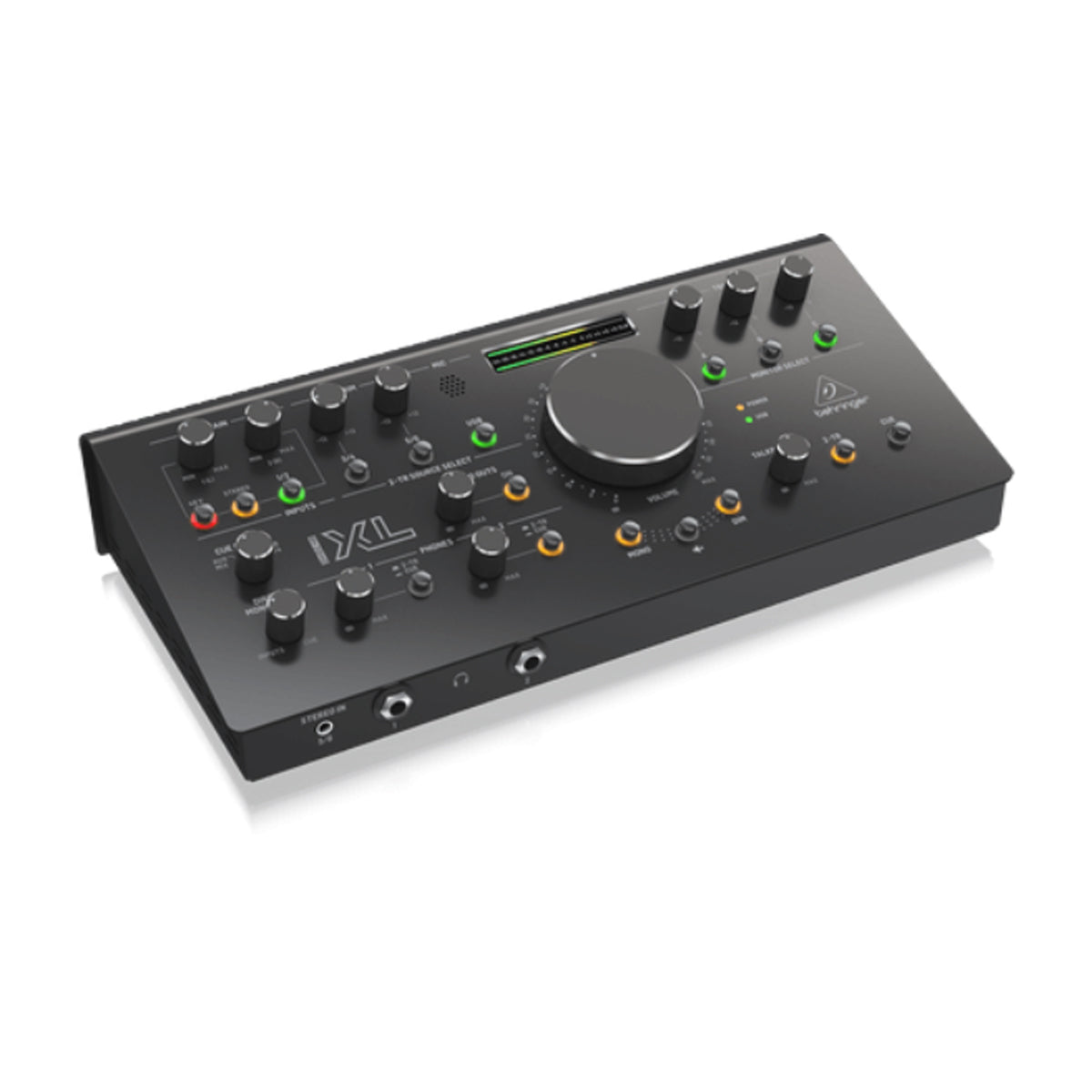

High-End Studio Control and Communication Center with Midas Preamps, 192 kHz 2x4 USB Audio Interface and VCA Stereo Tracking
Midas Mic Preamp – Legend Inside!
Did you know that Midas is one of the most recognized brands used by audio professionals around the world? Now you can get the gear the pros use! The STUDIO XL comes with two state-of-the-art Midas microphone preamplifiers with +48 V phantom power, ultra-low noise, high gain and audiophile quality.
The STUDIO XL is the ideal solution for home or professional studios, or as part of a larger setup. Premium, ultra-low noise components and high headroom lets your music shine at its best – this is especially true for one of the most critical sources: Vocals!
Crystal Clear Signal Path at 192 kHz
The STUDIO XL is more than just a monitor controller – we added one of the best USB audio interfaces with the highest possible resolution and lowest latency. Full 192 kHz sampling rate at a clear 24-bit resolution will make you smile listening to the crisp and astonishing sound you’ll get.
With the STUDIO XL, you won’t have to worry about any USB noise or hum. A super-quiet USB I/O with up to 8 dB less noise than other audio interfaces on the market, while the lower output impedance on the STUDIO XL allows for even higher output volume.
VCA-Control – Not Just a Volume Knob
Unlike the typical and inexpensive potentiometers used by our competitors, the STUDIO XL utilizes high-end Voltage Controlled Amplifier (VCA) technology. While conventional monitor controllers directly pass the signal through the volume potentiometer, the STUDIO XL controls a separate high-precision amplifier circuit that drives the volume change. This gives perfect stereo and phase coherency, precision level adjustment, accurate sound and no quality degradation over time.
Our really big dial allows you to make precise adjustments with ease and set levels fast and accurately – critical to the final sound when it comes to mixing and mastering.
Specifications
Inputs
| Inputs |
6 |
| Preamps |
2 x Midas designed |
| Type |
2 x XLR / TRS combo connector (mic/line) |
| Impedance |
Mic: 3 kΩ / Line: 1 MΩ |
| Line inputs |
4 x 1/4" TRS, balanced or unbalanced, +4/-10 dB (Input 5/6 only) 1 x 1/8" TRS stereo (input 5/6) |
| Maximum input level |
+22 dBu |
| Talback input |
1 x XLR |
| Footswitch |
1 x 1/4" TRS |
Outputs
| Outputs |
5 stereo |
| Line outputs |
10 x 1/4" TRS, balanced or unbalanced |
| Headphone outputs |
2 x 1/4" TRS stereo |
| Maximum output level |
+22 dBu |
USB
| Type |
Class compliant USB 2.0, type B |
| Supported operating systems |
Windows 10/ Mac OS X 10.14 or higher |
| Audio |
2 in / 4 out |
| Converter resolution |
24-bit |
| Supported sample rate |
44.1, 48, 88.2, 96, 192 kHz |
Talkback Section
| Output level |
-∞ to +10 dB |
| Talback level |
-∞ to max |
| Takback destination |
2 track or cue |
| Talkback input |
Internal (mic) or external (XLR) |
| Footswitch |
Activates talkback |
Controls
| Phantom power |
+48 V (inputs 1/2) |
| Volume |
High-precision stereo tracking VCA volume control 0 - 100% |
| Playback controls |
Mono, Mute, Dim |
| Monitor select |
A, B, C |
| Input 1/2 |
48 V on/off, Stereo on/off, 1/2 (channel select) on/off |
| Input 3/4 |
-12 to +12 dB Trim, 3/4 (channel select) on/off |
| Input 5/6 |
-12 to +12 dB Trim, 5/6 (channel select) on/off |
| USB input |
USB (channel select) on/off |
| Muted |
-60 dB |
| Dim |
-20 dB |
| Cue source |
Aux Mix, Source, USB 3/4 |
| Studio outs |
-∞ to max, on/off |
| Direct monitoring |
Inputs to Cue blend |
| Phones 1/2 |
Level control -∞ to max, individual source select |
System
| Frequency response |
20 Hz to 20 kHz (±0.5 dB) |
| Signal-to-noise ratio |
<-90 dBu RMS, un-weighted |
| Distortion (THD+N) |
<0.01% @ 1 kHz, unity gain, 4 dBu input |
| Crosstalk |
<-60dB @ 1 kHz, unity gain, 4 dBu input |
Power Requirements
| Mains voltage |
100-240 V, 50/60 Hz |
| Power supply |
12 V DC 2000 mA |
| Power consumption |
18 W max |
Physical
| Standard operating temperature range |
5° C – 45° C (41° F – 113° F) |
| Dimensions (H x W x D) |
80 x 328 x 163 mm (3.15 x 12.91 x 6.42") |
| Weight |
1.8 kg (3.97 lbs) |
Warranty
