Behringer 1004 Oscillator Module Dual Core VCO

Sold out

450657

Behringer

Behringer 1004 Oscillator Module Dual Core VCO

Name: Behringer 1004 Oscillator Module Dual Core VCO
Brand: Behringer
SKU: 450657
Price: 179.0 AUD
Availability: OutOfStock

$179.00

Pay With

Product Information

Modular Synthesis

The first 2500 series synth modules came out in the '70s and tended to be extremely expensive. They were mainly all discrete transistor designs with some op-amps as at the time op-amps were high cost. The discrete circuitry gave the modules a very distinctive sound and were used by artists like The Who, Jean Michel Jarre, Vangelis, Kraftwerk and so many more, giving us some of the greatest records and film soundtracks we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better.

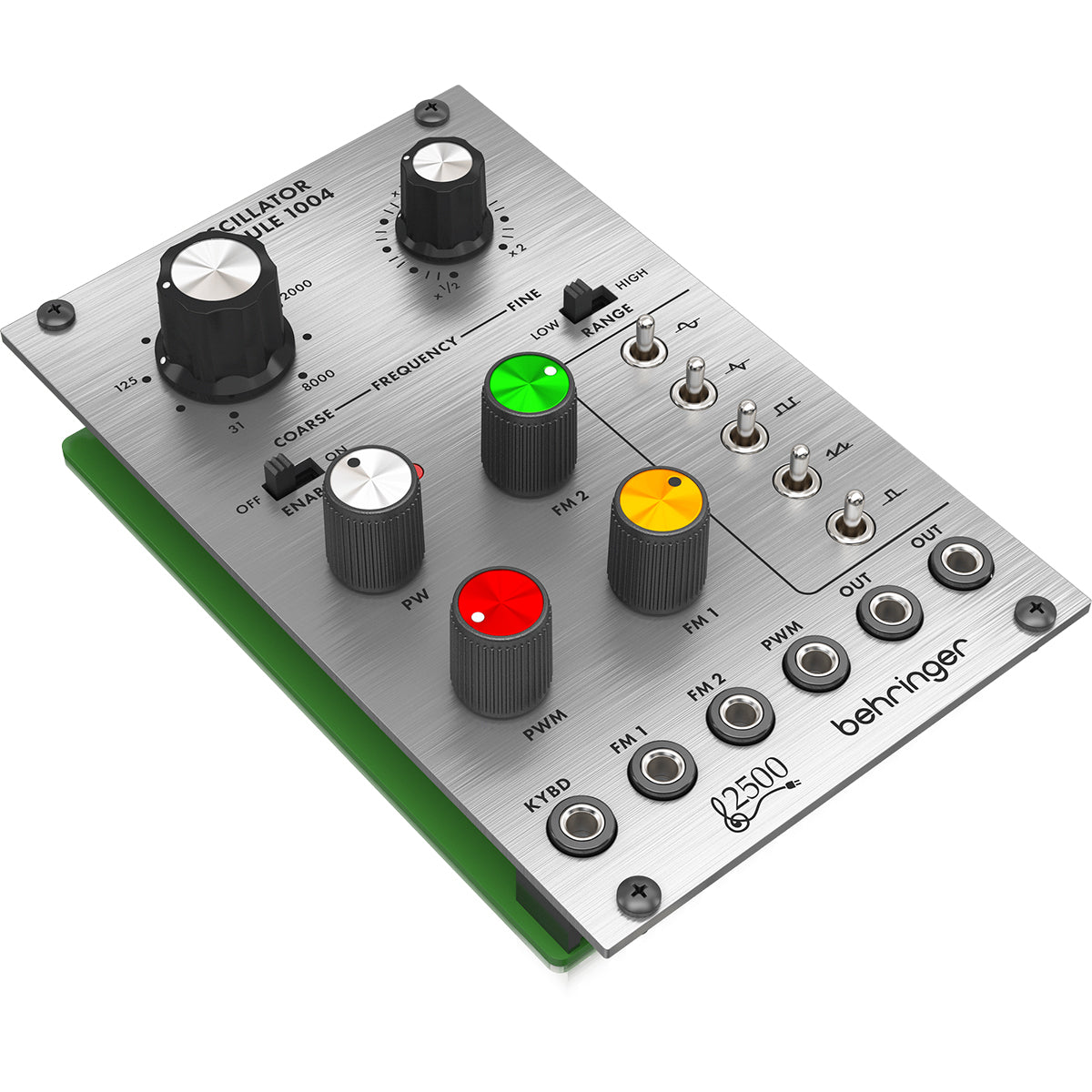

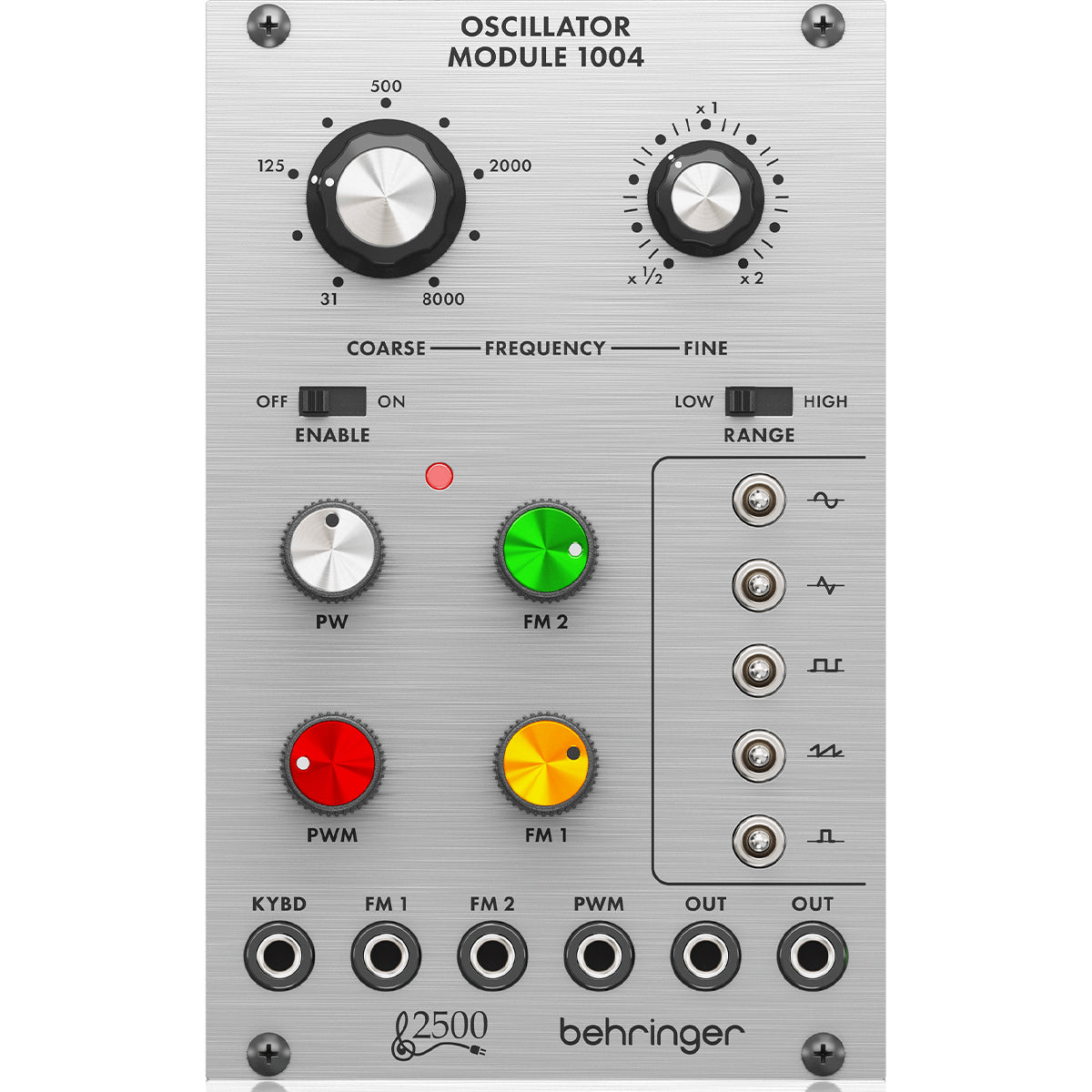

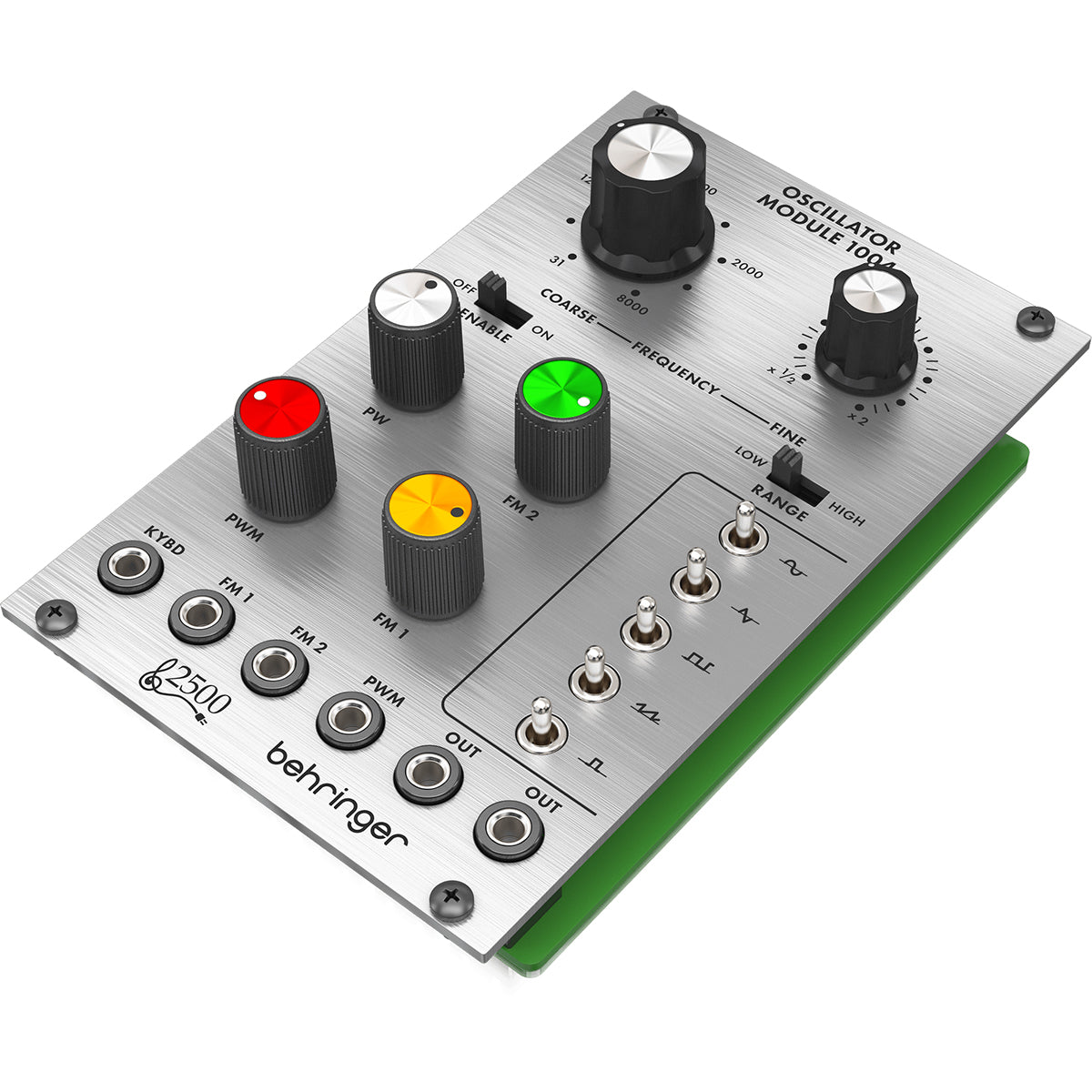

OSCILLATOR MODULE 1004

This is the Behringer 2500 series OSCILLATOR MODULE 1004. An authentic reproduction of the original “System 2500” circuitry from the 70’s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the OSCILLATOR MODULE 1004 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.

Mix & Shape

The OSCILLATOR MODULE 1004 is a classic analog dual core oscillator module. The 1004 features discrete transistor circuitry to add vintage character and is equipped with coarse and fine frequency controls, frequency range switch, on/off switch, pulse width control, 3 modulation attenuators and best of all it features 3-position toggle switches for each waveform which can be set to inverted/off/non-inverted, all the enabled waveforms are mixed together to create complex waveform shapes and amazing sounds.

Ins and Outs

The 1004 gives you comprehensive connectivity, 1V/Octave keyboard input and two VCO modulation inputs, a pulse width modulation input and finally two parallel oscillator outputs to signal send to other modules.

Eurorack Ready

Installing the OSCILLATOR MODULE 1004 is easy as it is designed to fit into a standard Eurorack case. Just connect the power cable to the power supply and screw in the module using the included screws. This allows for the 1004 to be mixed with other synth modules for a truly unique set up.

Complete Your Setup

Whether you’re just getting into modular synths or looking to complete your collection, the OSCILLATOR MODULE 1004 from Behringer is a great tool to have when creating amazing music.

Get the OSCILLATOR MODULE 1004 from your local Behringer dealer today!

Classic 1004 dual analog VCO module from the 70s
Authentic reproduction of the circuitry from the 2500 Series
VCO features 5 waveforms: sine, triangle, square, sawtooth and pulse
Waveforms can be combined and inversed into the audio outputs
Output frequency range from 0.03 Hz to 16 kHz in 2 ranges
VCO range selectable between Low (LFO) or High (Audio)
Coarse frequency control allows adjustment over 10 octaves
Fine frequency control adjusts over +/- 1 octave
Frequency modulation with 2 inputs and controls responding to 1 V/octave
The width of the pulse waveform can be set manually and controlled dynamically
Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V

Specifications

Inputs

FM 1/2
Type	2 x 3.5 mm TS jacks
Impedance	50 kΩ, unbalanced
Max input level	10 V, 1 V/octave
Keyboard
Type	3.5 mm TS jack
Impedance	50 kΩ, unbalanced
Max input level	10 V, 1 V/octave
PWM
Type	3.5 mm TS jack
Impedance	50 kΩ, unbalanced
CV range	±10 V, 10% per volt

Outputs

Out
Type	2 x 3.5 mm TS jacks
Impedance	1 kΩ, unbalanced
Max output level	10 V p-p

Controls

Coarse	Sets oscillator frequency (8 octave range)
Fine	Oscillator fine adjustment (±1 octave)
Range	Select LFO (0.06 Hz - 16 Hz) or audio band (31 Hz - 8 kHz)
Enable	Oscillator on/of
PW	Pulse width adjustment (5% - 95%)
PWM	Modulation depth adjustment (-∞ to unity gain)
FM 1/2	Attenuate FM inputs (-∞ to unity gain)
Waveform switches	Select up to 5 waveforms (sine, tri, square, saw, pulse)

Power

Power supply	Eurorack
Current draw	60 mA (+12 V), 50 mA (-12 V)

Physical

Dimensions	46 x 81 x 129 mm (1.8 x 3.2 x 5.1")
Rack units	16 HP
Weight	0.17 kg (0.37 lbs)

Warranty

3 Years Warranty
