EVL-EKX-12

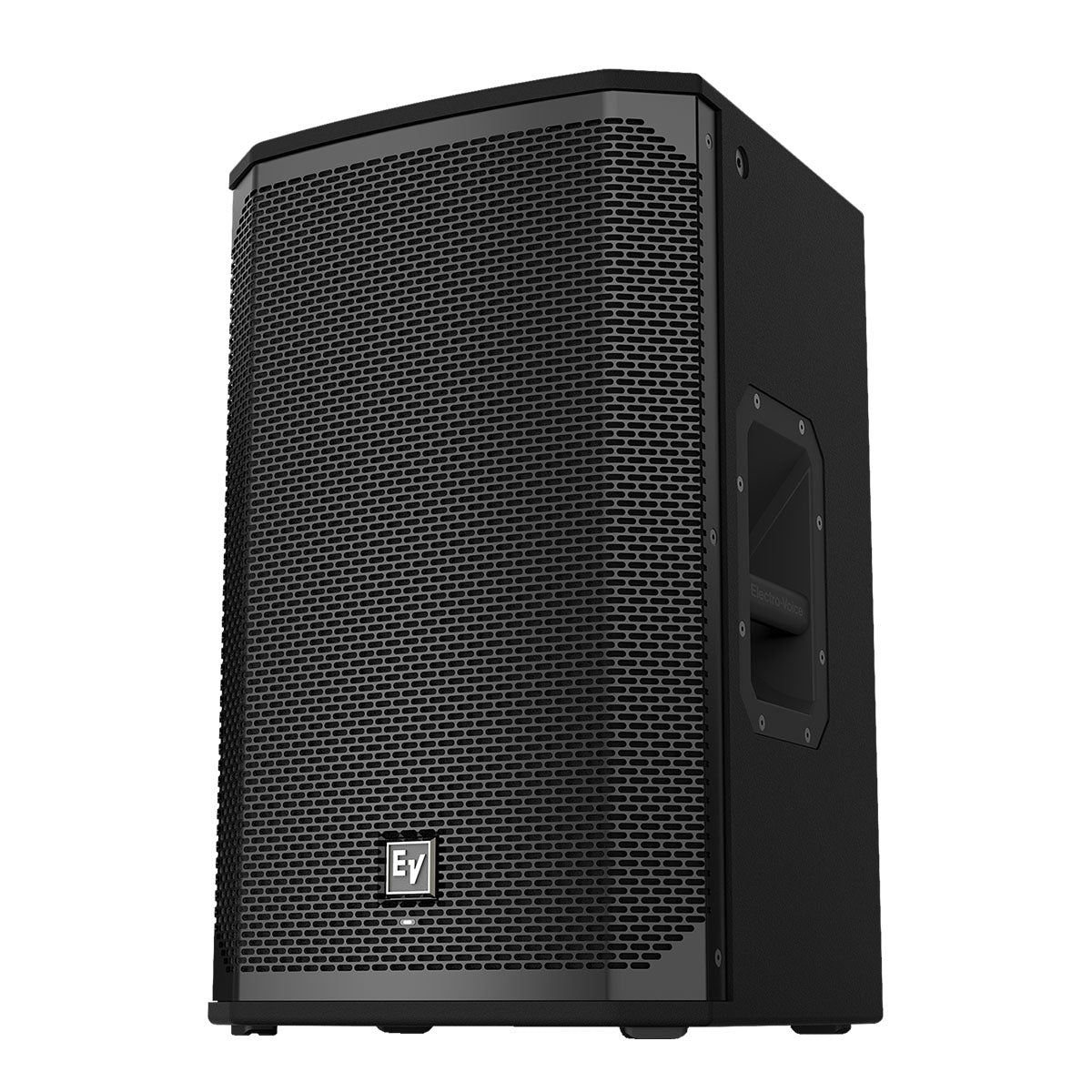

Electro-Voice EV EKX-12 Passive Speaker 12inch 1400W

IN STOCK - Ships today if ordered before 1pm AEST

Pay With AfterPay Zip

Product Information

EKX-12

12" passive loudspeaker

  • EKX-12: 1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
  • EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
  • Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
  • Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.

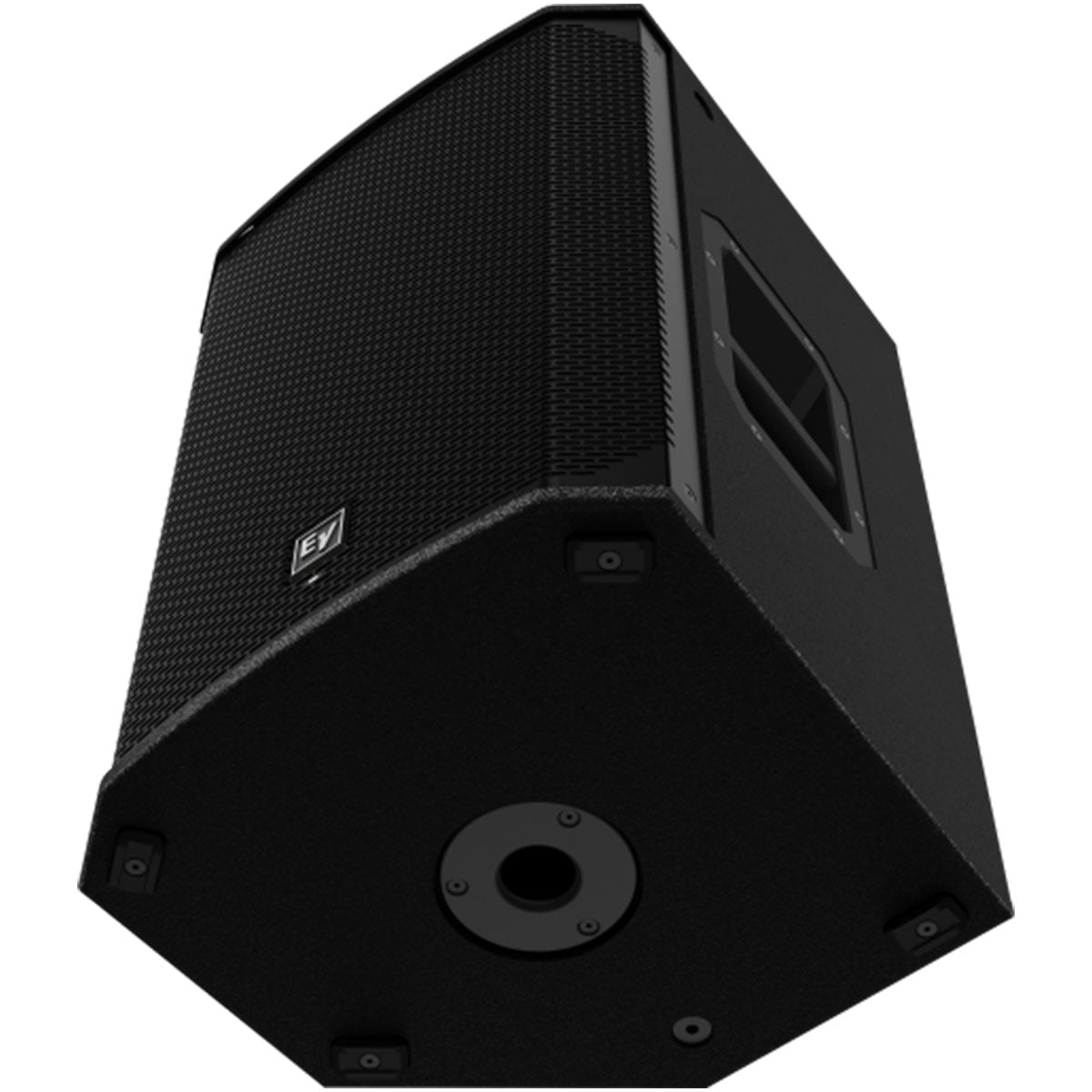

  • 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.

Specifications

Frequency Range (-10 dB) 55 Hz - 20 kkHz (Full Space Measurement)
Suspension (8) M10 threaded mounting points
Minimum Impedance 7.5Ω
HF Transducer DH-1M 1-inch titanium compression driver
Speaker Type Full-Range, two-way
Woofer Size 12inch
Powered or Passive Passive
Frequency Response (-3 dB)¹ 82 Hz - 18 kHz (Full Space Measurement)
Max. SPL/1m (calc)² 131dB
Coverage (Nominal -6 dB) H 90°
LF Transducer EVS-12M 300 mm (12 in)
Power Rating 1400W
Crossover Frequency 1.6 kHz
Connector Type Dual NL4
Enclosure Material 15 mm, plywood with EVCoat
Grille 18 AWG steel with powdercoat
Height 23.9" (607mm)
Width 14.76" (375mm)
Recommended High-Pass Frequency 55Hz
Depth 14.02" (356mm)
Weight Net 38.36lbs (17.4kg)
Shipping Weight 47.18lbs (21.4kg)
Family EKX
Nominal Impedance
Axial Sensitivity (SPL, 1 W @ 1 m) 95dB
Power Handling (Continuous / Peak) 350 W/1400W
Maximum SPL 131dB (Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating)
Passive Power Handling 1400W peak



Warranty

5 Years Warranty
