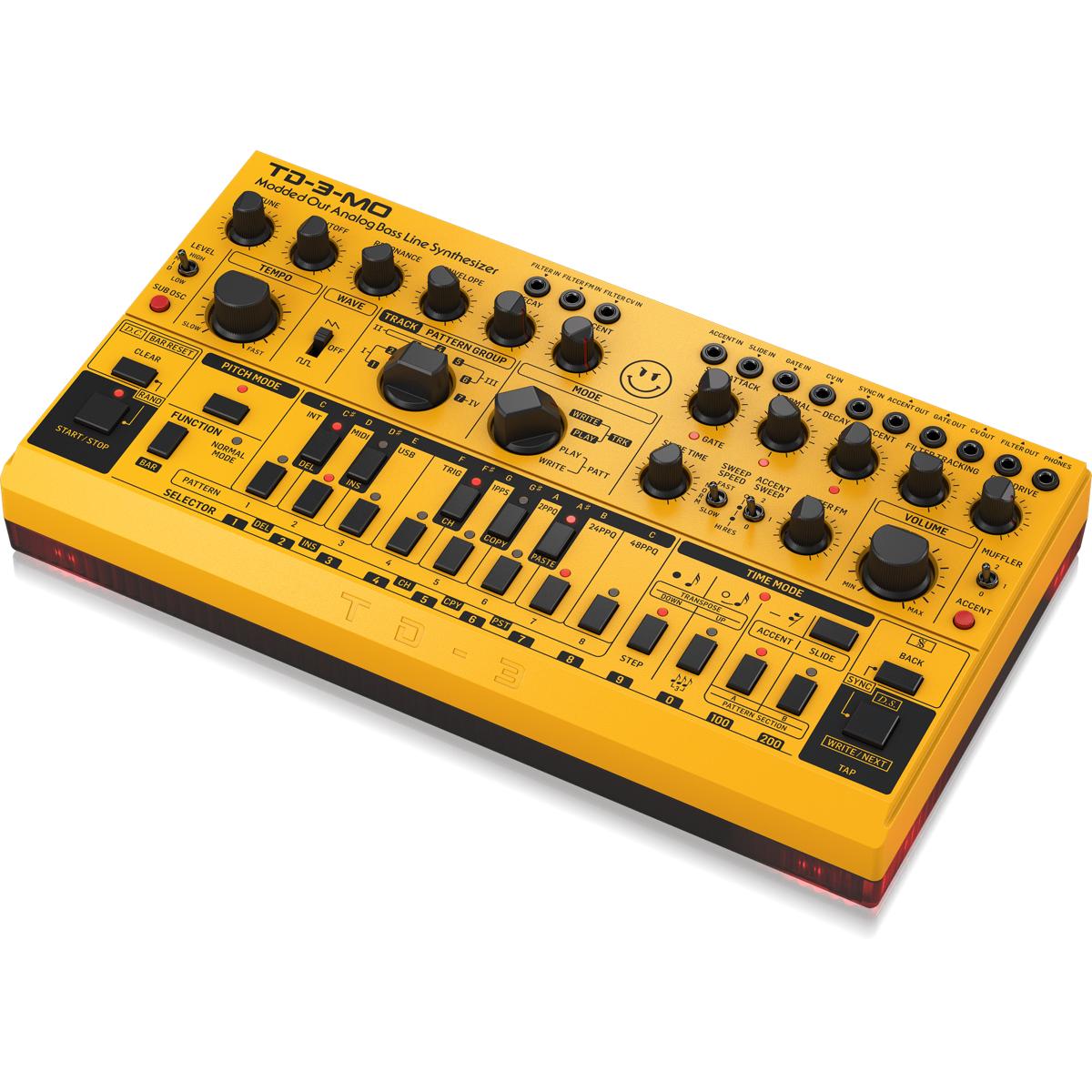

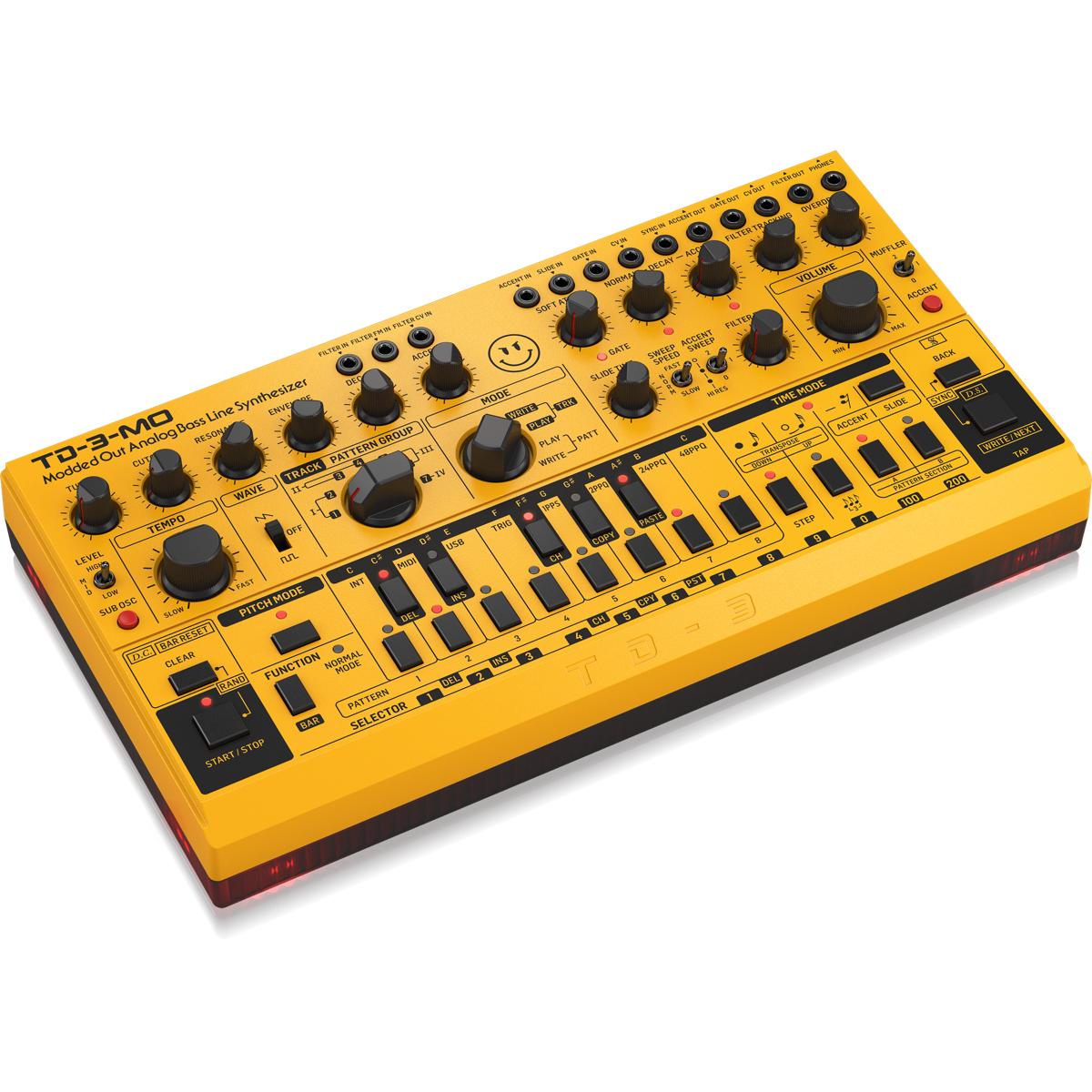

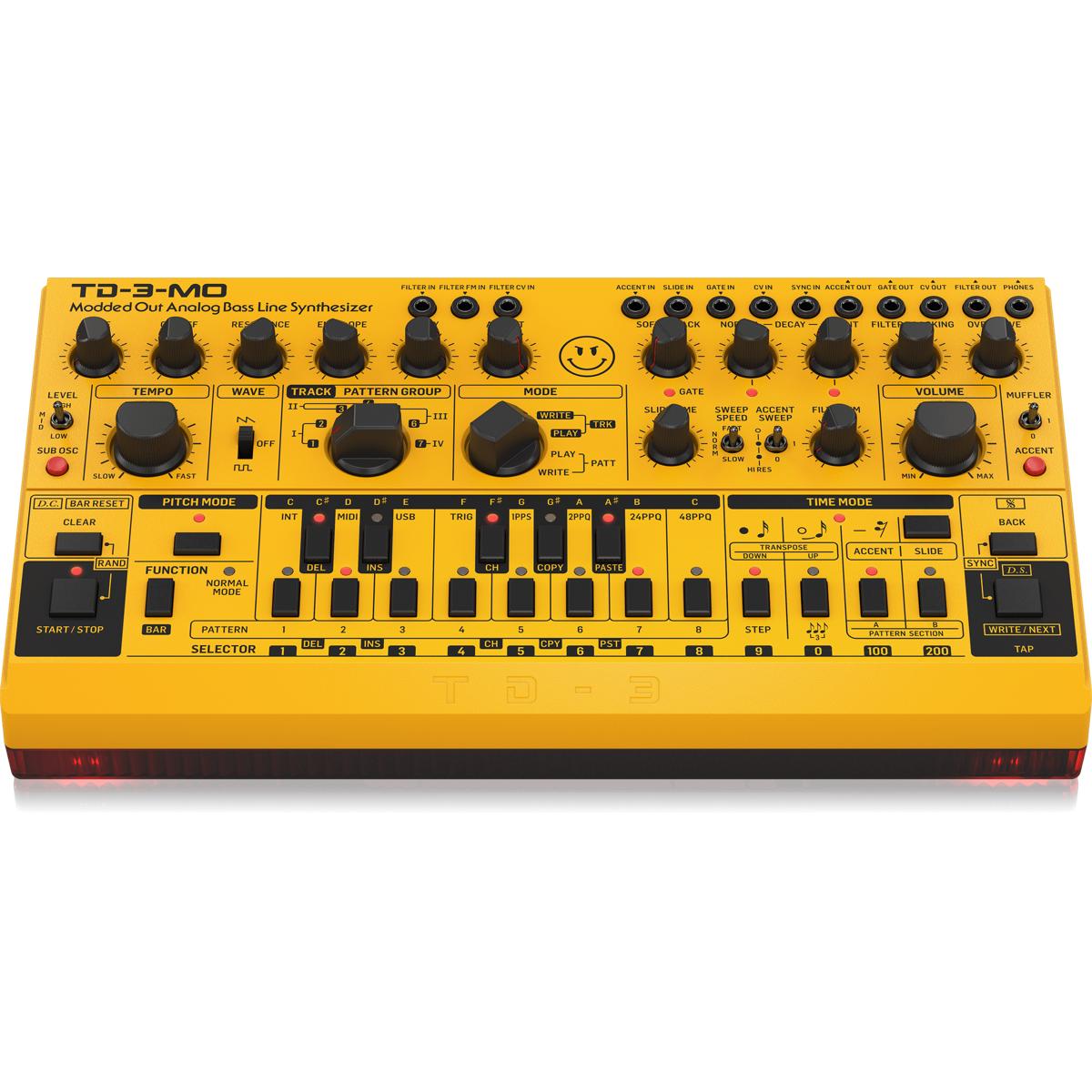

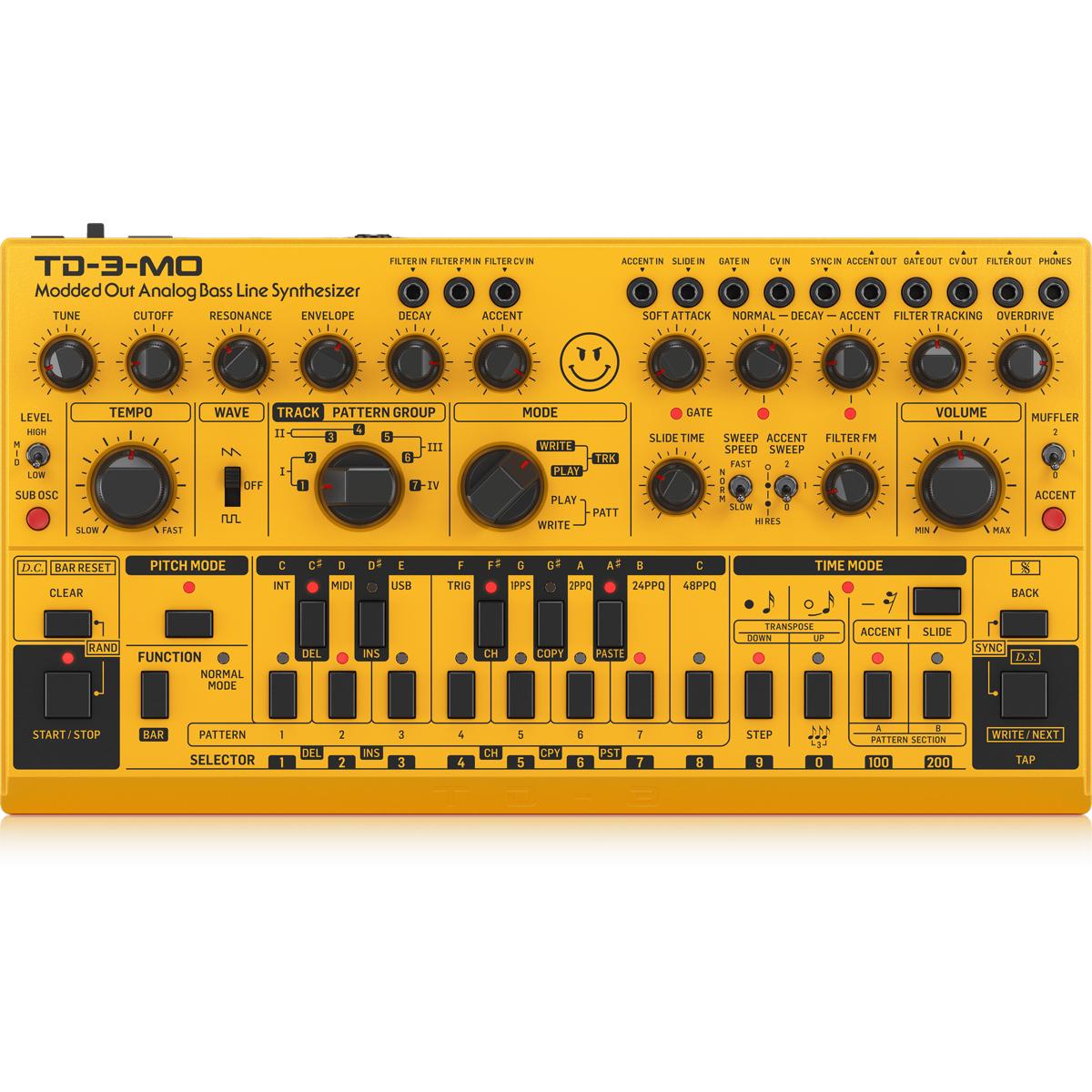

Behringer TD-3-AM Modded Out Analog Bass Synth Amber

Specifications

Synthesizer Architecture

• Number of voices: Monophonic
• Type: Analog
• Oscillators: 1
• VCF: 1 low pass
• Envelopes: 1

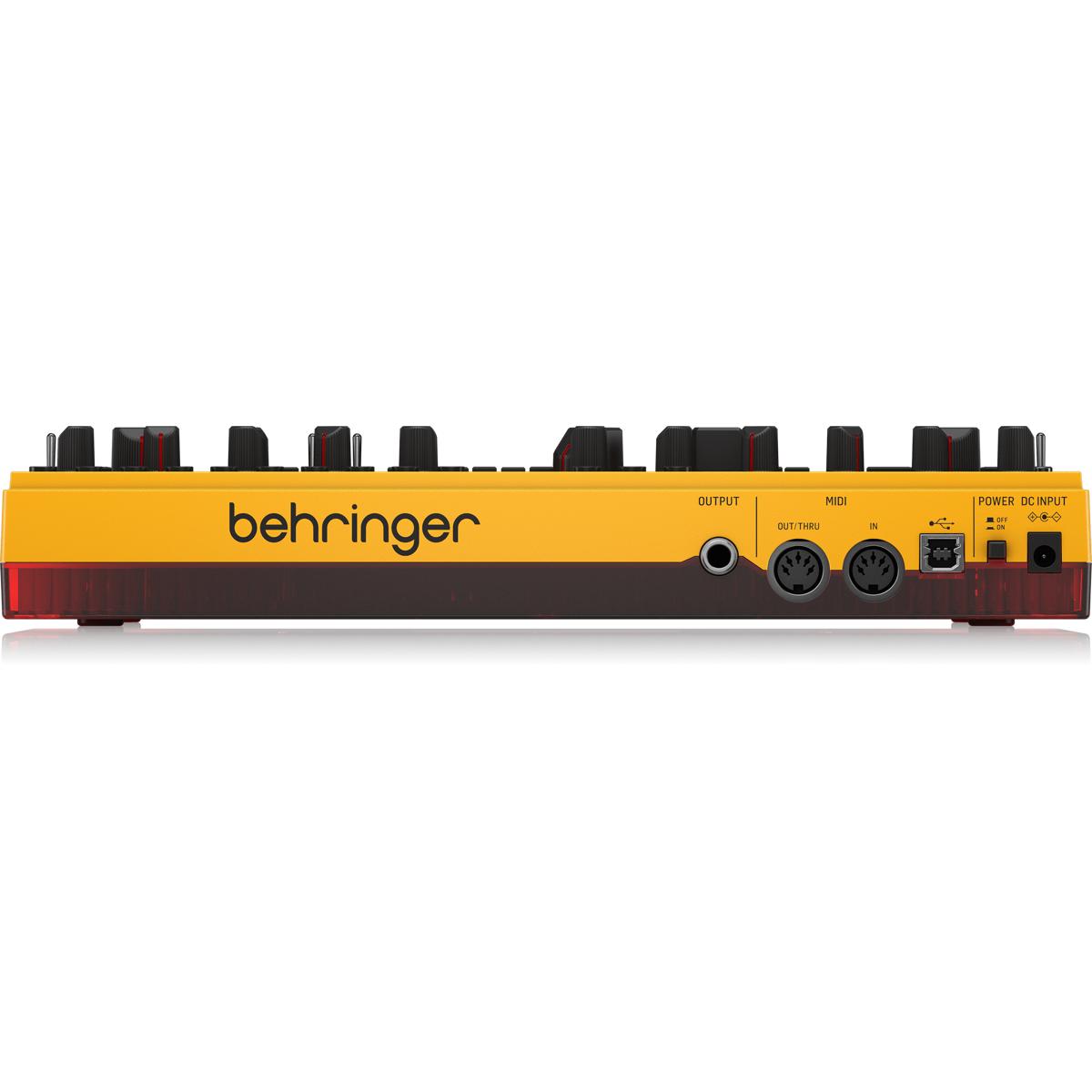

Connectivity

• Power input: DC input connector
• Power switch: Push button on/off
• MIDI In/Thru: MIDI In and MIDI Thru, 5-pin DIN
• USB (MIDI): USB 2.0, type B
• Outputs: Line output: 1/4" TRS, unbalanced, max. +8 dBu
• Output impedance: 1.5 k Ω
• Headphones: 3.5 mm TRS, max. 50 mW/32 Ω (1 KHz, 1% THD)
• Headphones output impedance: 15 Ω

USB

• Type: Class compliant USB 2.0, type B
• Supported Operating Systems: Windows 7 or higher, Mac OS X 10.6.8 or higher

Inputs and Outputs (TS 3.5 mm)

• Inputs: Filter in: -6 V to +6 V, Filter FM in: 0 V to +12 V, Filter CV in: 0 V to +12 V, Accent in: off: 0 V, on: +12 V, Slide in: off: 0 V, on: +3.3 V, Gate in: off: 0 V, on: +3.3 V, CV in: +1 V to +5 V, Sync in: more than 2.5 V
• Outputs: Accent out: off: 0 V, on: +6 V, Gate out: off: 0 V, on: +12 V, CV out: +1 V to +5 V (1 volt/oct), Filter out: -400 mV to +400 mV

Power Requirements

• External power adapter (use only the supplied adapter): 9 VDC 670 mA
• Power consumption: 4 W max.

Environmental

• Operating temperature range: 5°C – 40°C (41°F – 104°F)

Physical

• Dimensions (H x W x D): 56 x 305 x 165 mm (2.2 x 12x 6.5")
• Weight: 0.9 kg (2.0 lbs)
• Shipping weight: 1.4 kg (3.1 lbs)
