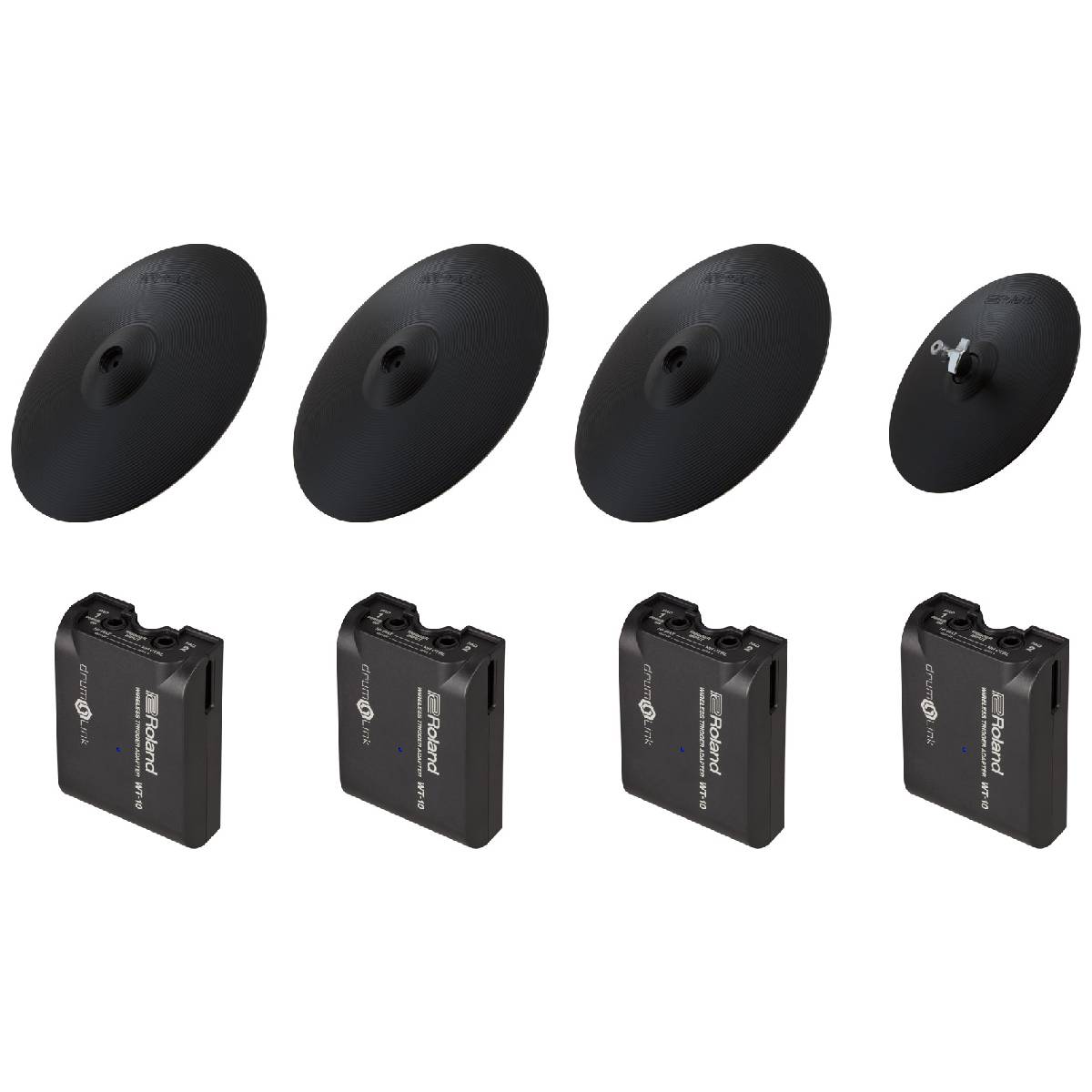

Roland 4CY-4WT-01 Cymbal Pack w/ WT-10

Specifications

VH-10: Hi-Hat

• Size: 12 inches
• Trigger: 2 (Bow, Edge)
• Connectors:
  • TRIGGER OUTPUT jack
  • CONTROL OUTPUT jack
• Accessories:
  • Owner’s Manual
  • Leaflet "USING THE UNIT SAFELY"
  • Motion sensor unit
  • Insulating plate
  • Cable tie

Size and Weight — VH-10: Hi-Hat

• Width: 314 mm / 12-3/8 inches
• Depth: 314 mm / 12-3/8 inches
• Height: 103 mm / 4-1/16 inches
• Weight: 1.2 kg / 2 lbs 11 oz (Excluding motion sensor unit)

CY-16R-T: Cymbal

• Size: 16 inches
• Trigger: 3 (Bow, Bell, Edge)
• Connectors:
  • BELL OUTPUT jack
  • BOW/EDGE OUTPUT jack
• Accessories:
  • Owner’s manual
  • Leaflet "USING THE UNIT SAFELY"
  • Cymbal nut
  • Felt washer
  • Stopper
  • Cable tie

Size and Weight — CY-16R-T: Cymbal

• Width: 407 mm / 16-1/16 inches
• Depth: 407 mm / 16-1/16 inches
• Height: 56 mm / 2-1/4 inches
• Weight: 1.3 kg / 2 lbs 14 oz

WT-10: Wireless Trigger Adapter

• Wireless Format: Proprietary Protocol
• Wireless Carrier Frequency: 2.4-2.485 GHz ISM Band
• Transmission Range:
  • 10 m (32 feet) line-of-sight
  • * May vary due to local conditions
• Connectors:
  • Trigger input jacks (PAD1, PAD2)
• Power Supply: Alkaline battery (AA, LR6) x 2
• Battery Life: Approx. 6 months
  • * This can vary depending on the conditions of use.
• Accessories:
  • Clamp
  • Connection cables (0.4 m / 15 inches) x 2
  • Owner's Manual
  • Leaflet "USING THE UNIT SAFELY"

Size and Weight — WT-10 (Body)

• Width: 70 mm / 2-13/16 inches
• Depth: 31 mm / 1-1/4 inches
• Height: 98 mm / 3-7/8 inches
• Weight: 170 g / 6 oz (including batteries)

Size and Weight — WT-10 (Includes horizontal clamp)

• Width: 84 mm / 3-5/16 inches
• Depth: 73 mm / 2-7/8 inches
• Height: 98 mm / 3-7/8 inches
• Weight: 225 g / 8 oz (including batteries and clamp)

Clamp Mountable Diameter Size

• Clamp Mountable Diameter Size: Φ4.5–32 mm / Φ3/16–1-5/16 inches
