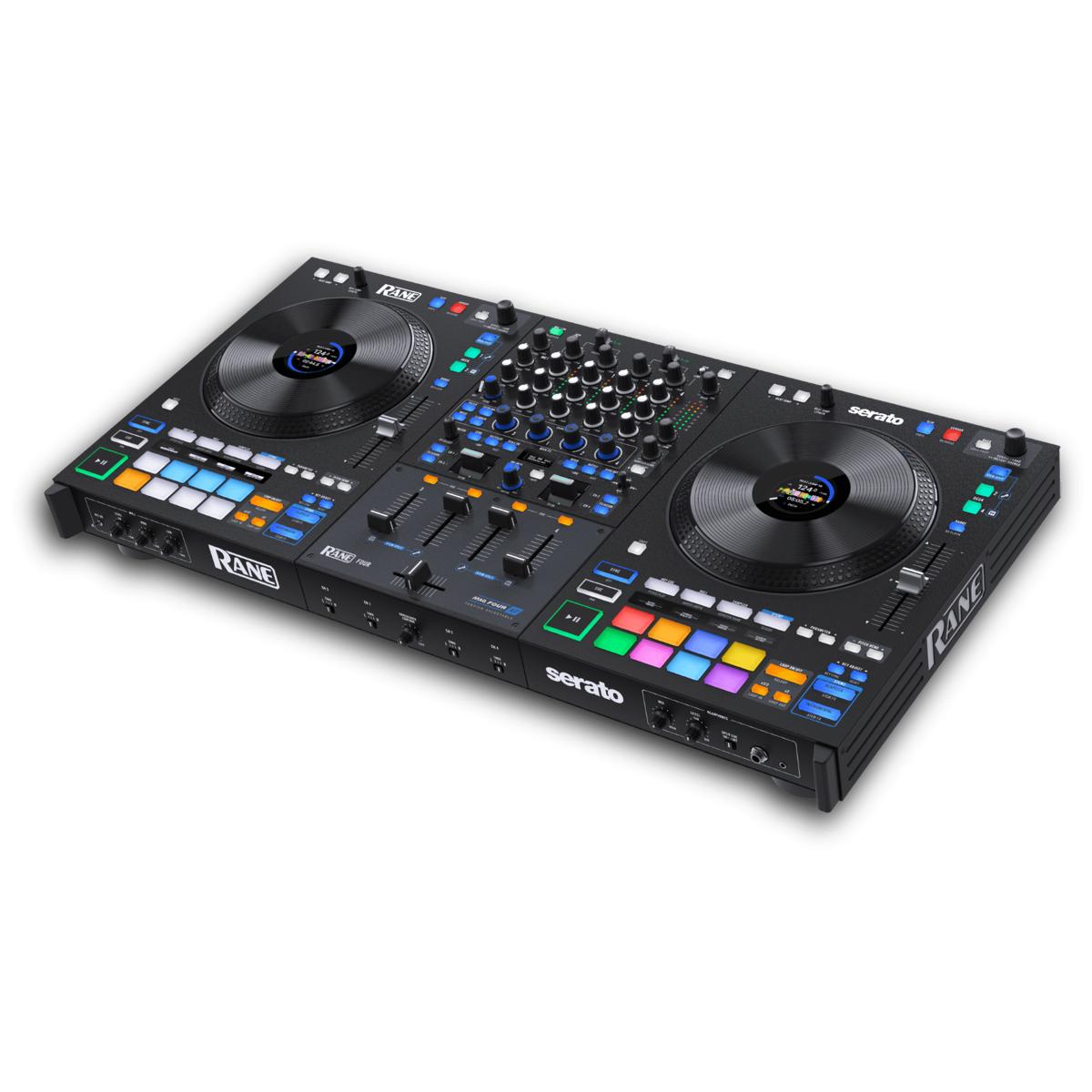

Rane FOUR Advanced 4-Channel Stems DJ Controller

Specifications

Digital Audio

• Converters: Cirrus Logic, 24-bit PCM, 48 kHz
• Digital Signal Processing: 32-bit, Floating Point, Double precision
• Dynamic Range (A-weighted, unity gain):
  • ADC: 113 dB
  • DAC: 113 dB
  • CD Input to Analog Output: 110 dB
  • CD Input to USB Output: 113 dB
  • USB Input to Analog Output: 113 dB

Inputs

• Microphone 1/2 (Combo XLR/1/4" [6.35 mm] TRS):
  • Analog Gain: 25 dB
  • Maximum Input: 110 mV
  • Gain Trim: Off to +26 dB (unity at center)
  • Tone Control: 2-band
• Line/Phono Inputs 3/4 (RCA stereo pairs, switchable):
  • Line: Line
  • Maximum Input: 4 Vrms
  • Gain Trim: Off to +12 dB
  • Tone Control: 3-band, full-cut to +10 dB
• Phono: RIAA
  • RIAA Curve: +/-0.25 dB
  • Gain (@ 1 kHz): 31.5 dB
  • Maximum Input (@ 1 kHz): 106 mV
  • Dynamic Range (A-weighted): 102 dB

Outputs

• Main Outputs (XLR):
  • Gain Trim: Off to 0 dB
  • Maximum Output: 8 Vrms
  • THD+N (20 kHz BW @ 1 kHz): 0.004%
  • Frequency Response: Flat - 20-20kHz
• Main Outputs (RCA stereo pair):
  • Maximum Output: 4 Vrms
  • THD+N (20 kHz BW @ 1 kHz): 0.004%
  • Frequency Response: Flat - 20-20kHz
• Booth Outputs (1/4”):
  • Gain Trim: Off to 0 dB
  • Maximum Output: 8 Vrms
  • THD+N (20 kHz BW @ 1 kHz): 0.004%
  • Frequency Response: Flat - 20-20kHz
• Headphone Outputs (1/4"/6.35 mm and 1/8"/3.5 mm TRS):
  • Maximum Output: 4 Vrms Voltage: (no load)
  • Output Power: 50 mW (50 ohms)
  • Dynamic Range (A-weighted): 108 dB

Pads

(16) on/off multi-color back-lit pads (8 per deck, 9 modes each)

Displays

• Wheel Displays: (2) 320 x 240 Color LCD’s
• Pad & FX Displays: (9) 128 x 32 Monochrome OLED’s

Faders

• (1) MAG FOUR tension-adjustable crossfader with contour
• (4) Standard channel faders

Connections

• (2) XLR outputs (Main)
• (2) 1/4” outputs (Booth)
• (1) RCA stereo output pair (Main)
• (2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2)
• (2) RCA stereo input pairs (Deck 3-4)
• (1) 1/4” (6.35 mm) TRS output (Headphones)
• (1) 1/8” (3.5 mm) TRS output (Headphones)
• (2) USB Type-B ports
• (1) IEC power cable input

Power

• Connection: IEC
• Voltage: 100–240 V, 50/60 Hz
• Consumption: 20 W
