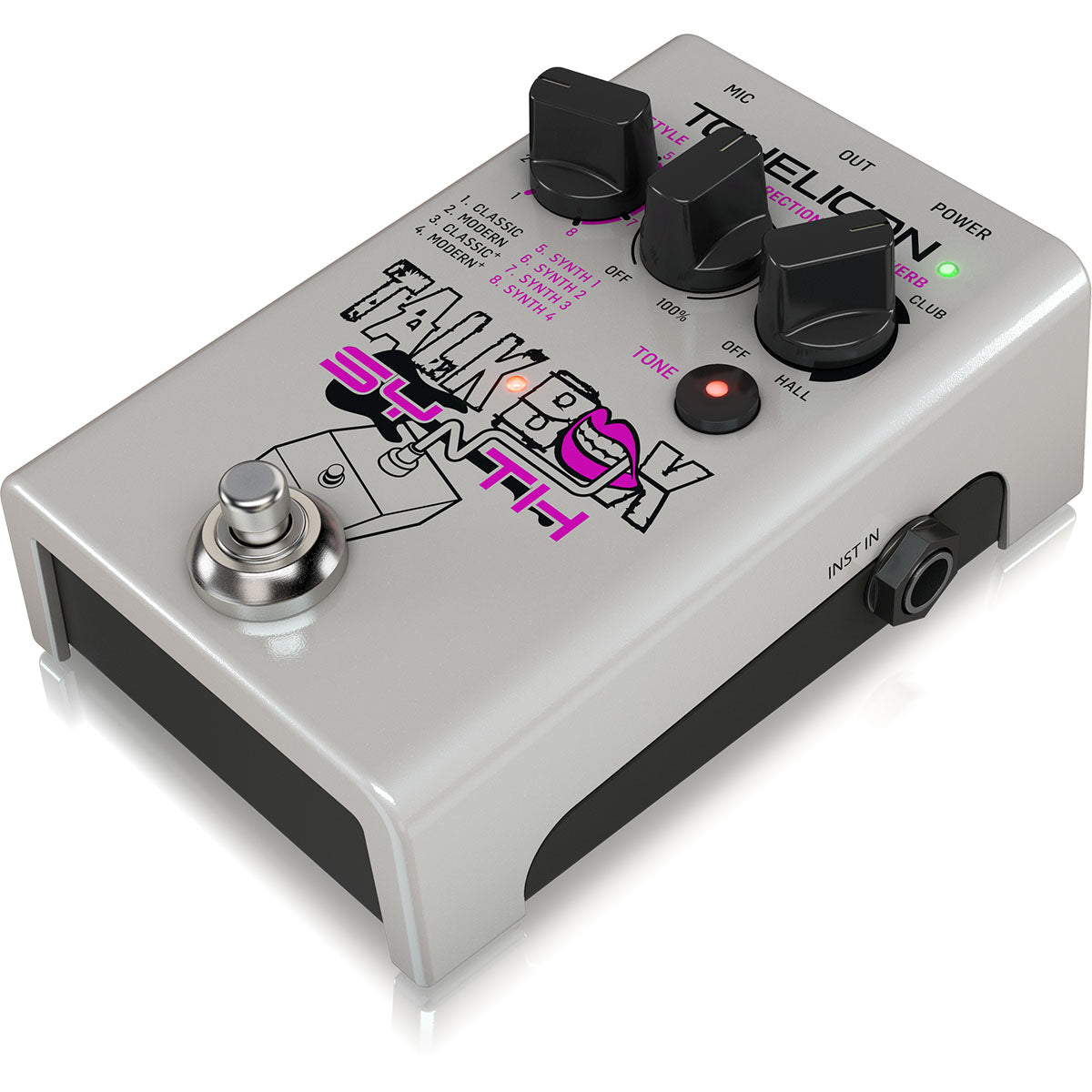

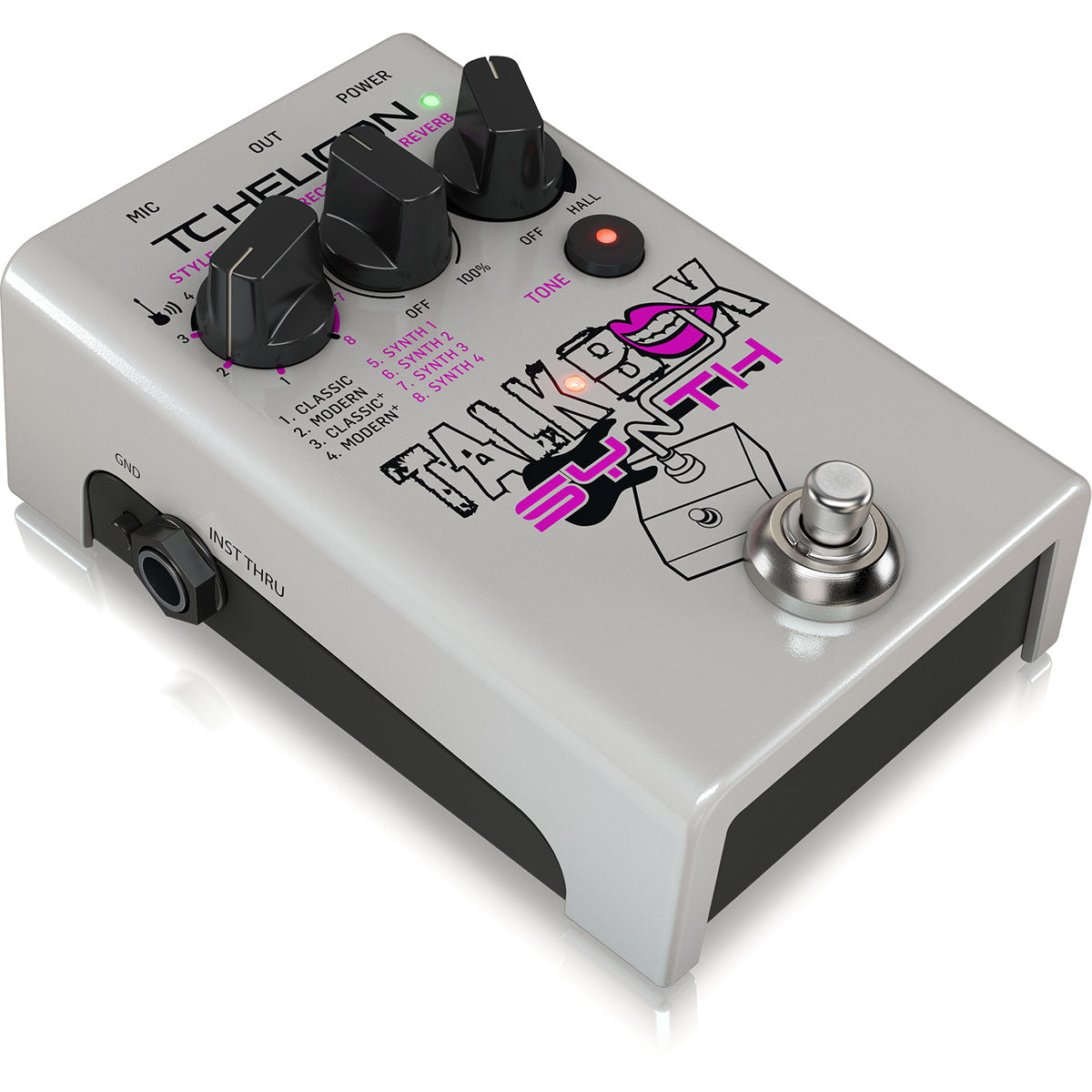

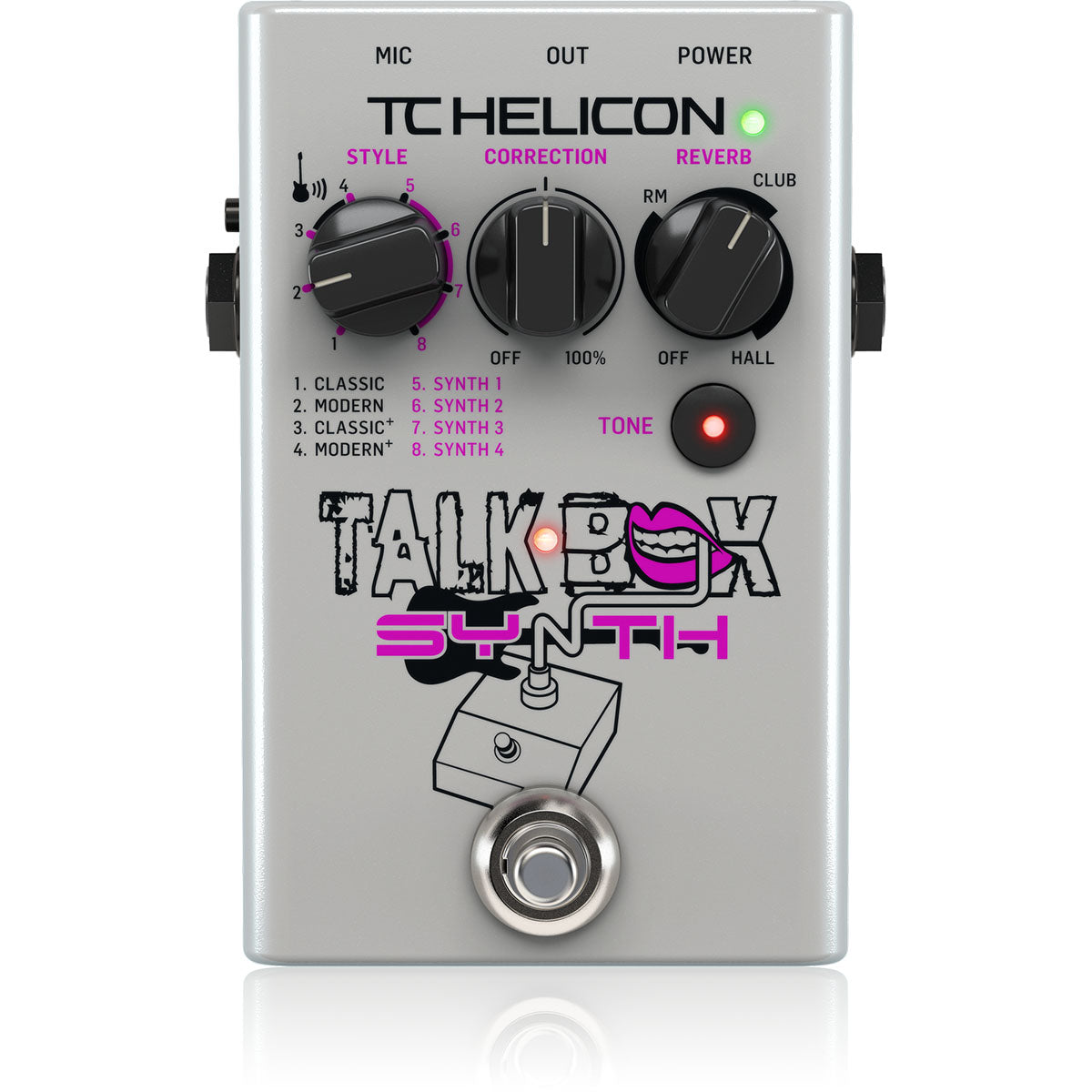

TC Helicon Talkbox Synth Guitar Talkbox Effects Pedal

Specifications

• Studio-quality guitar talkbox and synth pedal with vocal tone polishing

• Authentic vintage guitar-vocal effect emulates classic talkbox tones

• Exciting onboard synth sounds and vocoder triggered by single note guitar runs

• Vocally tuned reverb places your voice in the perfect musical space

• Effortless auto-chromatic pitch correction helps you sing in tune

• Adaptive Tone for perfect EQ, compression, de-essing and gating

• High-quality, low-noise mic preamp for pristine vocals

• Simple 3-knob control gets you up and running in seconds

• On/off foot switch for quick performance control

• Rugged, road-worthy construction for years of dependable use

• Design

  Size	Height: 5.4 inches (140 mm) Width: 3.5 inches (90 mm)
  Weight	Weight: 0.92 lb. (0.42 kg)
  Construction	Two-part die cast metal Rubber adhesive feet Input Impedance: 3k1 Ohm Input Clip Sensitivity:  -1 dBu SNR A-Weighted:  >114 dB Phantom Power: 24V (always on) Output Connector:  XLR male, impedance balanced, pin 2 hot Output impedance: 200 Ohm Input Impedance:  1 MOhm Guitar Input Level @ 0 dBFS: -7 dBU to 17 dBu Dynamic Range: >117 dB, 20 Hz to 20 kHz

  Safety And Regulations

  Power	Power Supply (Not Included): 9V 670mA Power Consumption: 6W Safety – certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA
  Safety	EMC – Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B Safety – certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA Storage Temperature: -22°F to 167°F (-30°C to 70°C) Humidity: Max. 90 % non-condensing
  Environment	Operating Temperature: 32°F to 122°F (0°C to 50°C) Storage Temperature: -22°F to 167°F (-30°C to 70°C)

  Design

  Size	Height: 5.4 inches (140 mm) Width: 3.5 inches (90 mm) Depth: 2.3 inches (60 mm)
  Weight	Weight: 0.92 lb. (0.42 kg)
  Construction	Two-part die cast metal Rubber adhesive feet Input Connector:  XLR female, balanced Input Impedance: 3k1 Ohm Input Clip Sensitivity:  -1 dBu SNR A-Weighted:  >114 dB Phantom Power: 24V (always on) Output Connector:  XLR male, impedance balanced, pin 2 hot Input to Output Frequency Response:  +0/-0.3 dB, 20 Hz to 20 kHz Input Impedance:  1 MOhm Guitar Input Level @ 0 dBFS: -7 dBU to 17 dBu

  Safety And Regulations

  Power	Power Supply (Not Included): 9V 670mA Power Consumption: 6W
  Safety	EMC – Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B Safety – certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA
  Environment	Operating Temperature: 32°F to 122°F (0°C to 50°C) Storage Temperature: -22°F to 167°F (-30°C to 70°C) Humidity: Max. 90 % non-condensing

  Design

  Size	Height: 5.4 inches (140 mm) Width: 3.5 inches (90 mm) Depth: 2.3 inches (60 mm)
  Weight	Weight: 0.92 lb. (0.42 kg)
  Construction	Two-part die cast metal Rubber adhesive feet

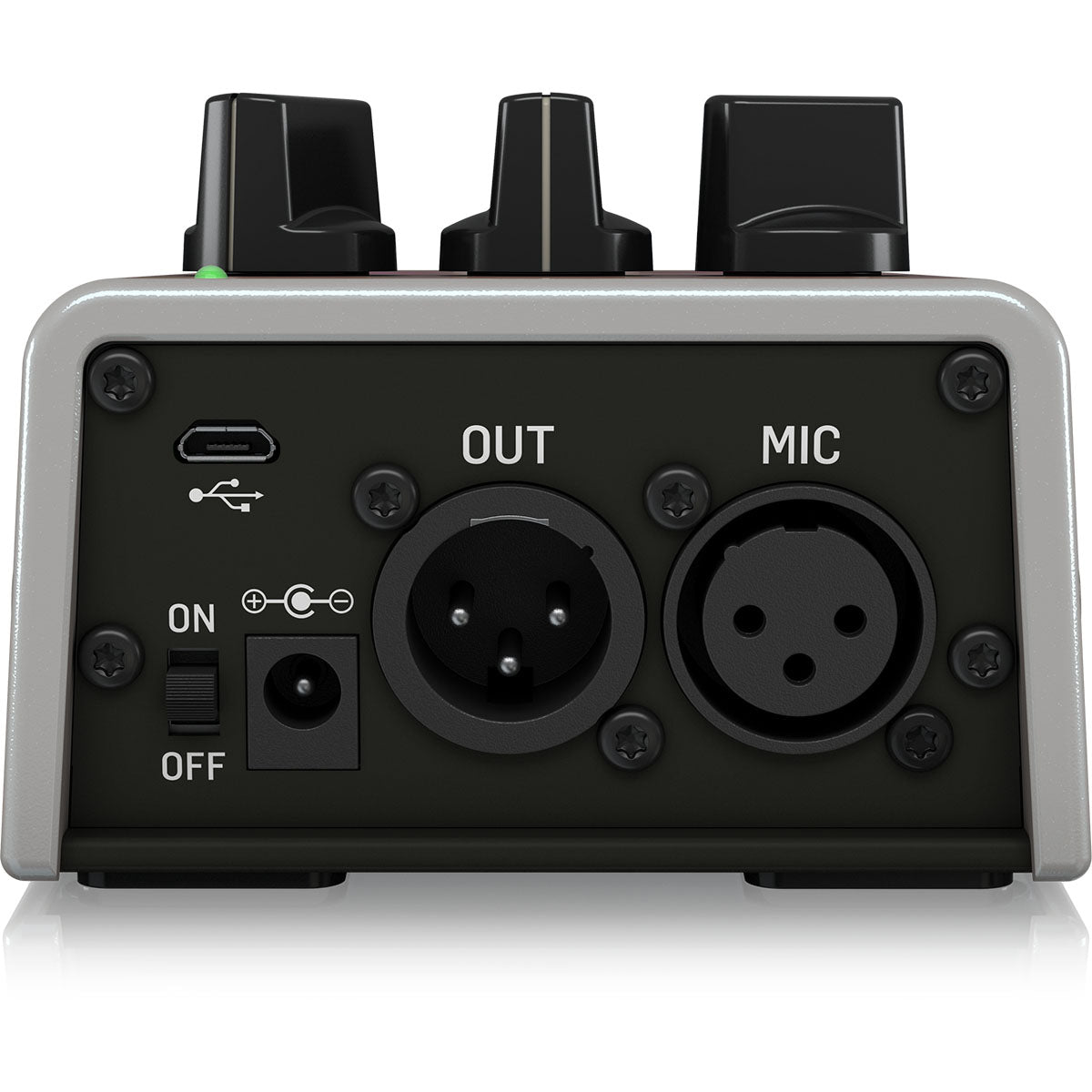

  Connections	Input Connector:  XLR female, balanced Input Impedance: 3k1 Ohm Input Clip Sensitivity:  -1 dBu SNR A-Weighted:  >114 dB Phantom Power: 24V (always on) Output Connector:  XLR male, impedance balanced, pin 2 hot Output impedance: 200 Ohm Output Full Scale Level:  +7.5 dBu

  Safety And Regulations

  Power	Power Supply (Not Included): 9V 670mA Power Consumption: 6W
  Safety	EMC – Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B Safety – certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA
  Environment	Operating Temperature: 32°F to 122°F (0°C to 50°C) Storage Temperature: -22°F to 167°F (-30°C to 70°C) Humidity: Max. 90 % non-condensing

  Design

  Size	Height: 5.4 inches (140 mm) Width: 3.5 inches (90 mm) Depth: 2.3 inches (60 mm)
  Weight	Weight: 0.92 lb. (0.42 kg)
  Construction	Two-part die cast metal Rubber adhesive feet Input Connector:  XLR female, balanced Input Impedance: 3k1 Ohm Input Clip Sensitivity:  -1 dBu SNR A-Weighted:  >114 dB Phantom Power: 24V (always on) Output Connector:  XLR male, impedance balanced, pin 2 hot Input to Output Frequency Response:  +0/-0.3 dB, 20 Hz to 20 kHz Input Impedance:  1 MOhm Guitar Input Level @ 0 dBFS: -7 dBU to 17 dBu

  Safety And Regulations

  Power	Power Supply (Not Included): 9V 670mA Power Consumption: 6W
  Safety	EMC – Complies with EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B Safety – certified to IEC 65, EN 60065, UL6500 and CSA IEC 65, EN 60065, UL6500 and CSA
  Environment	Operating Temperature: 32°F to 122°F (0°C to 50°C) Storage Temperature: -22°F to 167°F (-30°C to 70°C) Humidity: Max. 90 % non-condensing
