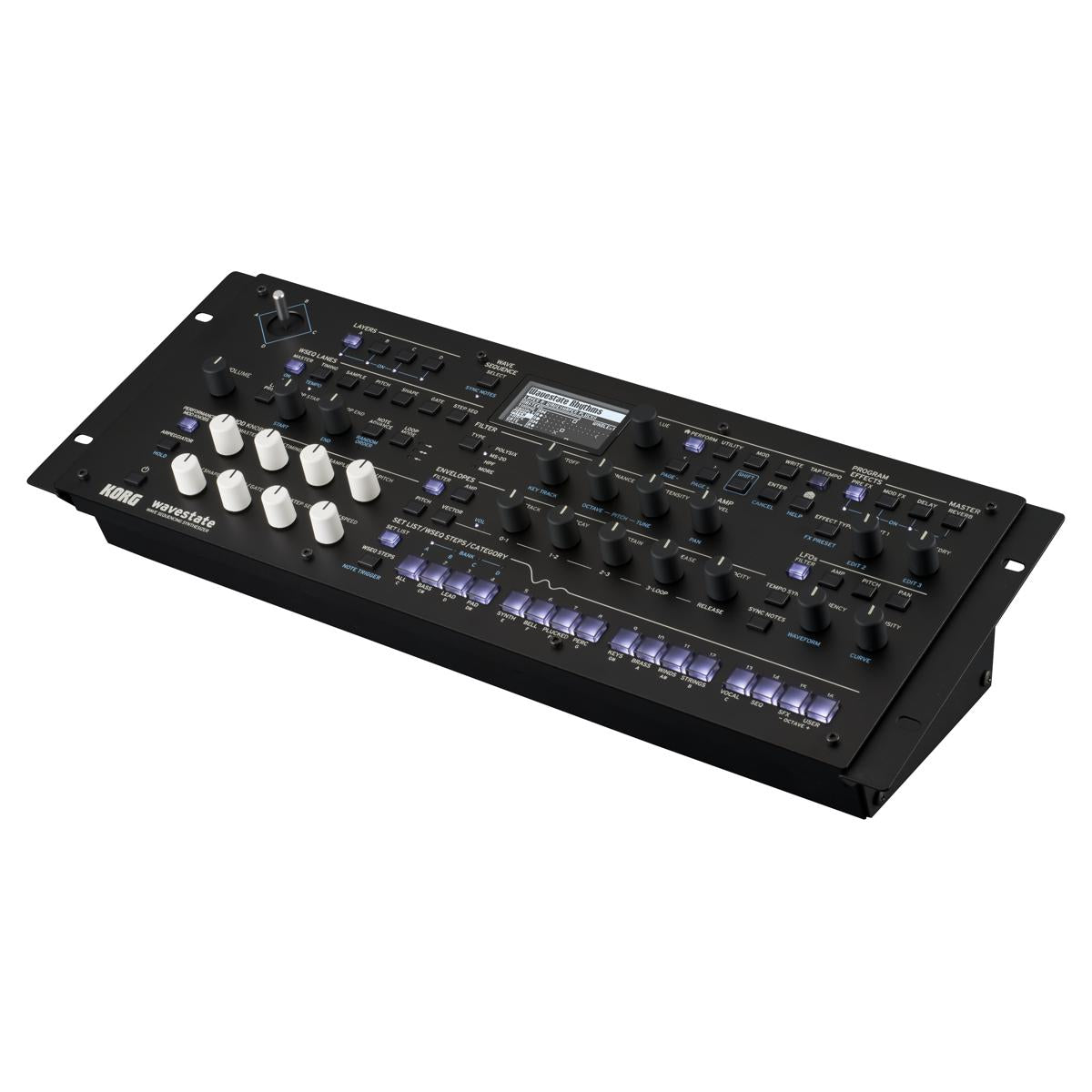

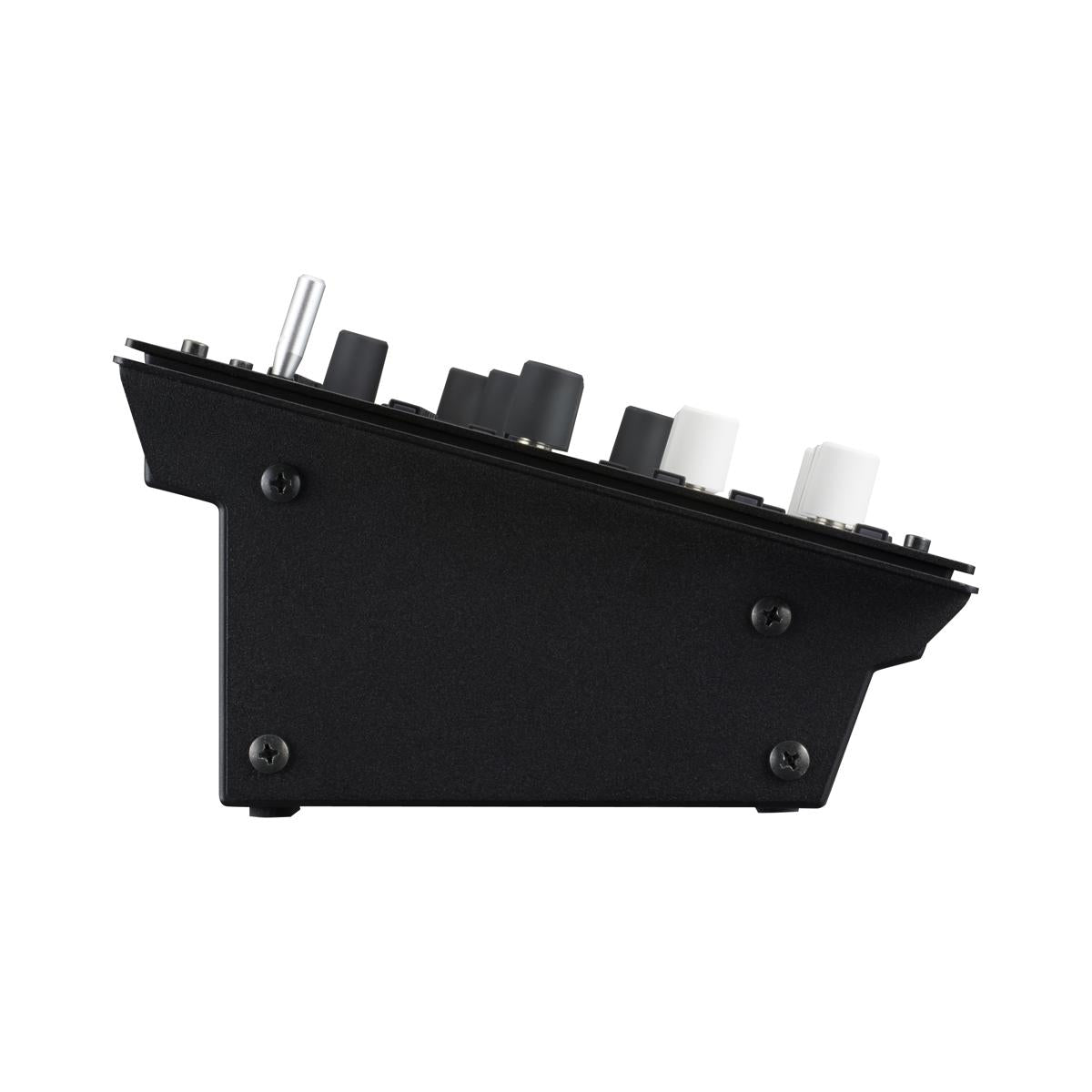

Korg Wavestate Synthesiser Wave Sequencing Synth Module

Specifications

Keyboard

• 37 keys (velocity and release-velocity sensitive)

Sound Generating System

• Wave Sequencing 2.0

Maximum Polyphony

• 120 stereo voices

Sounds

• Ships with 261 Performances, 799 Programs, and 1,042 Wave Sequences
• Storage for tens of thousands of user Performances

Structure

• Performance: 4 Layers, Reverb, EQ; all edits are stored in the Performance, DAW-style (saving as separate Programs, Wave Sequences etc. is supported but not required)
• Layer: Program, Arpeggiator, Key and Velocity Zones
• Program: Wave Sequence, Filter, Amp, Pre FX, Mod FX, Delay

Filters

• 2-pole LPF, 2-pole HPF, 2-pole BPF, 2-pole Band Reject, 4-pole LPF, 4-pole HPF, 4-pole BPF, 4-pole Band Reject, Multi Filter, MS-20 LPF, MS-20 HPF, Polysix

Modulation

• Controllers: Mod Wheel, Pitch Wheel, Vector Joystick X/Y, 8x Program/Performance Mod Knobs
• Other Sources: 3x Envelopes, Vector Envelope, 3x LFOs, 2x Mod Processors, 2x Key Track, Step Sequencer Lane, Step Pulse, Tempo, Program/Performance Note Count, Program/Performance Voice Count, Poly Legato, Velocity, Exponential Velocity, Release Velocity, Gate/Gate+Damper, Note-On Trigger/Note-On Trigger+Damper, Note Number, Aftertouch/Poly Aftertouch (external MIDI only), MIDI CCs +/-, MIDI CCs +
• Destinations: Most parameters can be modulated, including parameters of individual Wave Sequence Steps. Depending on Wave Sequence length, there can be more than 1,000 potential modulation targets per Program.

Effects

• Pre FX: Decimator, Graphic EQ, Guitar Amp, Modern Compressor, Parametric EQ, Red Compressor, Ring Modulator, Tremolo, Wave Shaper
• Mod FX: Black Chorus/Flanger, Black Phase, CX-3 Vibrato Chorus, EP Chorus, Harmonic Chorus, Modern Chorus, Modern Phaser, Orange Phase, Polysix Ensemble, Small Phase, Talking Modulator, Vintage Chorus, Vintage Flanger, Vintage/Custom Wah, Vox Wah
• Delay: L/C/R Delay, Multiband Mod Delay, Reverse Delay, Stereo/Cross Delay, Tape Echo
• Reverb: Early Reflections, OverbPerfoemance EQ

Inputs/Outputs

• Headphone (6.3 mm stereo phone jack)
• OUTPUT L/MONO and R (impedance-balanced 6.3 mm TRS phone jacks)
• DAMPER (6.3 mm phone jack)
• MIDI IN and OUT connectors
• USB B port

Power Supply

• AC adapter (DC12V, 2500mA)

Power Consumption

• 5 W

Dimensions (W x D x H)

483 x 172 x 113 mm / 19.02 x 6.77 x 4.45 inch

Weight

• 1.7 kg / 3.75 lbs.


Included Items

• AC adapter

Warranty

1 Year (Extended to 3 Years via Registration) Warranty
