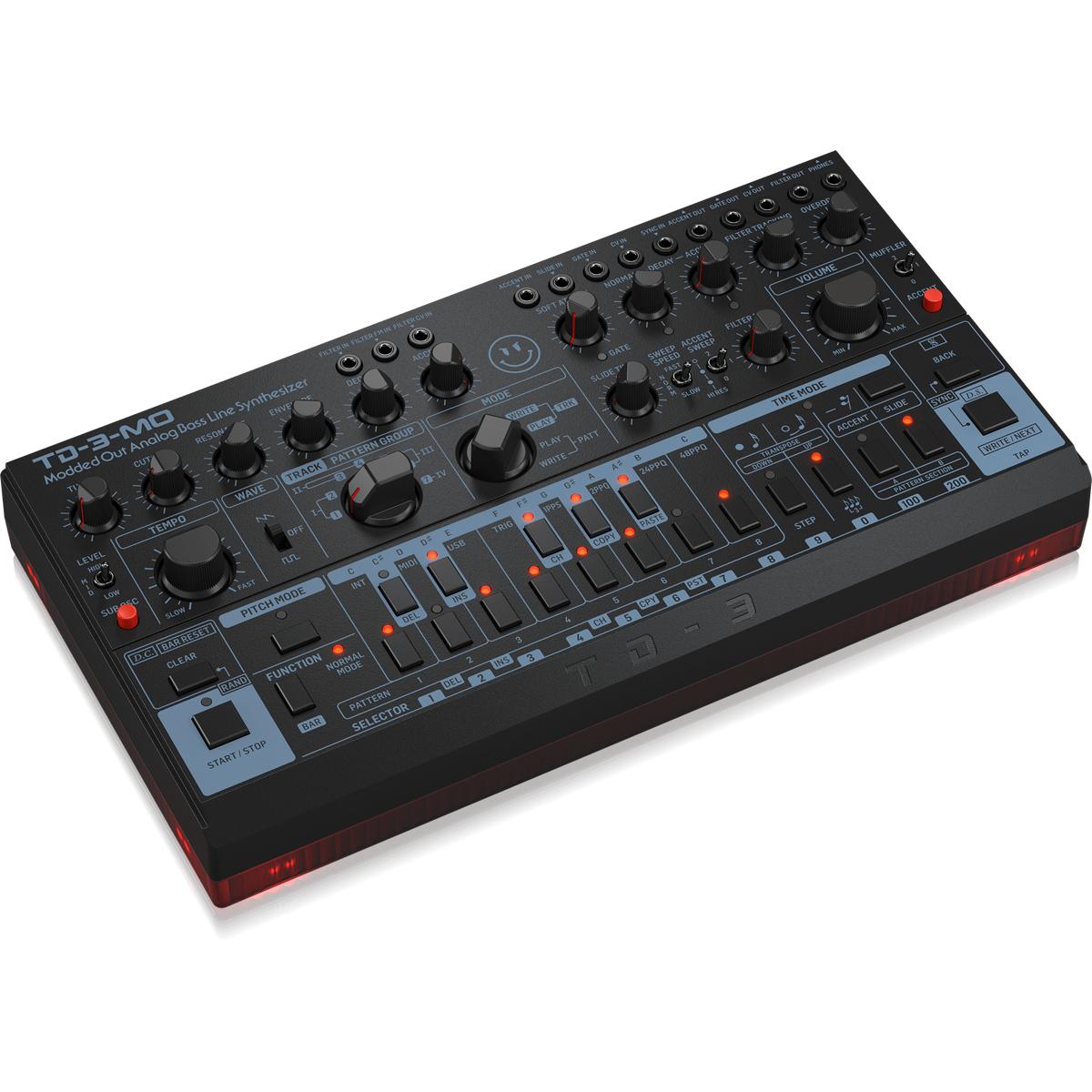

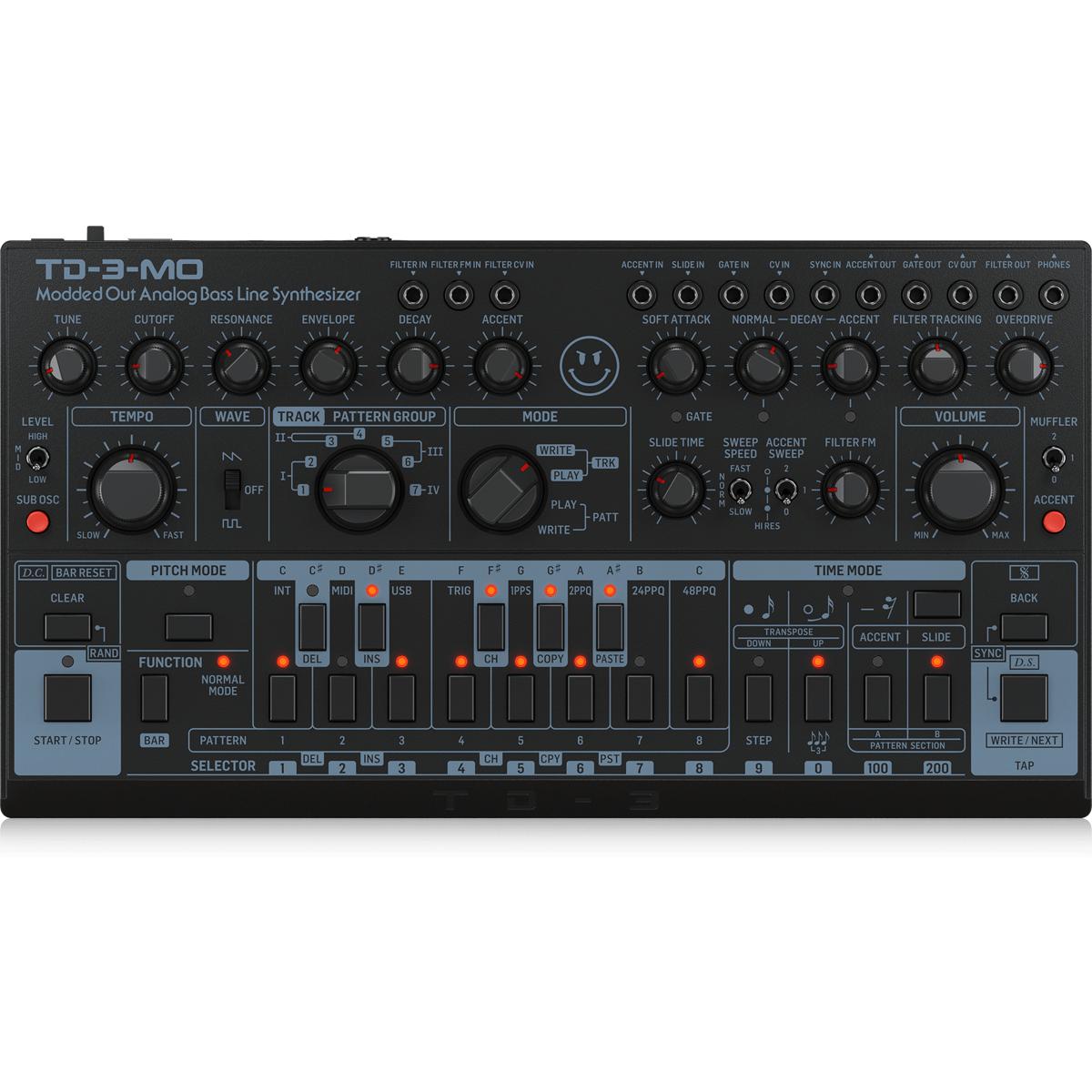

Sometime after the release of the original TB-303, creative users realized that there was more to squeeze out of an already amazing bass machine, to produce sounds that were unique to themselves. As word started spreading about third-party mods adding more functions and many more ways to shape sounds, synth-heads around the world wanted to get their hands on a modded TB-303. Now it’s a lot easier to get that awesome “modded-out” sound with the Behringer TD-3-MO-BK, an ultra-affordable and faithful homage to the iconic synthesizer that’s capable of creating some fiery basslines and much more now in a sleek black enclosure.
With its pure analog signal path, 16-step sequencer and authentic VCO, VCF and VCA filters, the TD-3-MO-BK is sure to become one of your favorite synthesizers.
Features
Pure Analog Signal Path
Great care has been taken in engineering the TD-3-MO-BK, including the true to the original VCO, VCF and VCA designs and pure analog circuitry with matched transistors. This highly-focused attention to detail is what gives TD-3-MO-BK its ultra-flexible sound shaping capability, which covers a wide spectrum for you to create some super-funky bass lines and pounding rhythms that can keep you, and the crowd, grooving all night long.
Rock Right Out of the Box!
Your TD-3-MO-BK comes ready to rock, thanks to its default signal routing that doesn’t require lifting a single patch cable to instantly create amazing sounds. The highly-intuitive layout lets you easily tap into the inspired sounds of 1980s and ’90s wave, EDM and synth-pop music tracks that made history – or to design incredibly fat and original sounds that will make you a legend in your own right!
Specifications
Synthesizer ArchitectureSynthesizer Architecture
- Number of voices: Monophonic
- Type: Analog
- Oscillators: 1

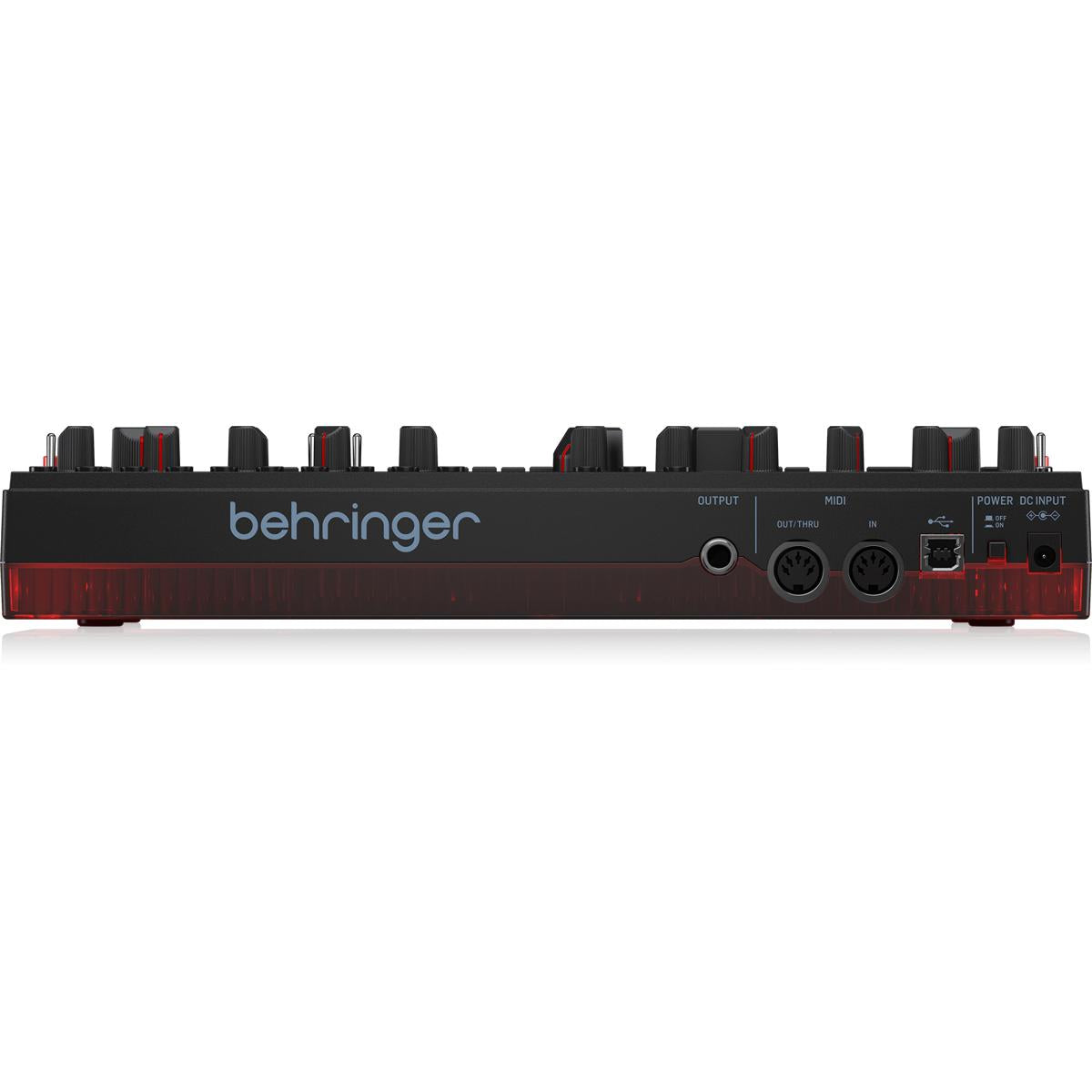

Connectivity
- Power input: DC input connector
- Power switch: Push button on/off
- MIDI In/Thru: MIDI In and MIDI Thru, 5-pin DIN
- USB (MIDI): USB 2.0, type B
- Outputs:
- Line output: 1/4" TRS, unbalanced, max. +8 dBu
- Output impedance: 1.5 kΩ
- Headphones: 3.5 mm TRS, max. 50 mW/32 Ω (1 KHz, 1% THD)
- Headphones output impedance: 15 Ω
- USB Type: Class compliant USB 2.0, type B
- Supported Operating Systems:
- Windows 7 or higher
- Mac OS X 10.6.8 or higher
Inputs and Outputs (TS 3.5 mm)
Inputs
- Filter in: -6 V to +6 V
- Filter FM in: 0 V to +12 V
- Filter CV in: 0 V to +12 V
- Accent in: off: 0 V, on: +12 V
- Slide in: off: 0 V, on: +3.3 V
- Gate in: off: 0 V, on: +3.3 V
- CV in: +1 V to +5 V
- Sync in: more than 2.5 V
Outputs
- Accent out: off: 0 V, on: +6 V
- Gate out: off: 0 V, on: +12 V
- CV out: +1 V to +5 V (1 volt/oct)
- Filter out: -400 mV to +400 mV
