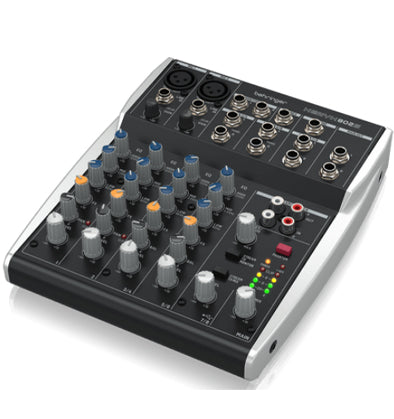

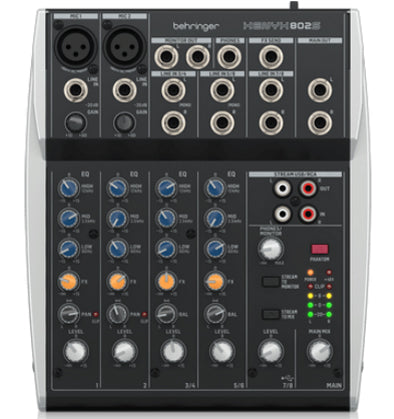

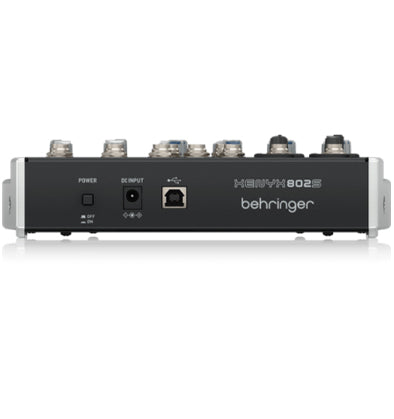

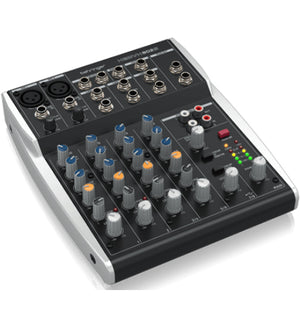

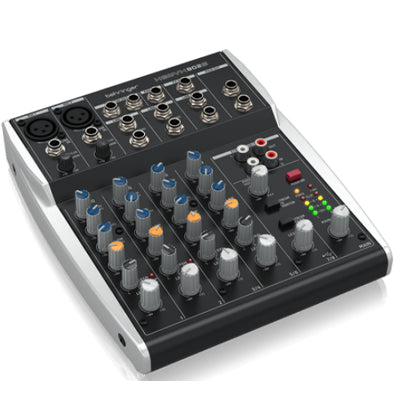

Behringer Xenyx 802S 8-Channel Mixer w/ USB

IN STOCK - Ships today if ordered before 1pm AEST

Pay With AfterPay Zip

Product Information

XENYX 802S

The compact XENYX 802S mixer’s 8 inputs allow you to effortlessly achieve premium-quality sound that’s perfect for streaming, podcasting and recording. It provides a warm and ultra-musical sound thanks to its award-winning XENYX microphone preamps featuring 48V Phantom Power for hi-end studio microphones.

Great for Any Setup

The new XENYX “S” series can be connected to computers or mobile devices via USB making it super easy to integrate digital sources with analog equipment. Two mono and 2 stereo channels with EQ, plus another stereo channel, a stereo RCA streaming input and stereo USB input allow you to blend a total of 12 crystal-clear audio signals for monitoring via headphones or on high-quality TRS outputs. Hence, the 802S can also be used as a versatile sub mixer for combining network enabled audio devices with several other audio signals.

Control Made Easy

The 802S features a 3-band EQ on Mono and Stereo inputs and allows for precise sound shaping for any input source. An integrated FX send control per channel lets you plug in any external FX processor of your choice, such as the Behringer FX2000, for amazing audio effects flexibility. When nothing is plugged into the stereo line inputs 7/8, then the Level 7/8 control can be used to adjust the USB input level conveniently.

Amazing Gear at an Affordable Price

The XENYX 802S is a great partner for any professional microphone, upgrading your streaming, podcasting or recording setup with a decent microphone input, while simultaneously providing simple, super-convenient control at your fingertips.

Get the XENYX 802S from your local Behringer dealer today!

  • Ultra-low noise analog mixer for streaming, podcasting and recording

  • 2 Award winning XENYX microphone preamps for warm and musical sound

  • Stereo USB audio interface to connect your computer or mobile device

  • Direct mixing of PC/gaming sounds into the streaming output

  • Analog mixing and equalization for pure sound

  • Versatile sub mixer for network enabled audio devices

  • Stereo channel 7/8 automatically switches between TRS input and USB playback

  • 3-band EQs for warm and musical sound

  • FX send control per channel for external FX processor or monitoring mix

  • High-quality main, monitor, phones and streaming outputs

  • Stereo RCA inputs assignable to main mix or monitor/phones outputs

Specifications

Mono Inputs
Microphone Input

Balanced XLR, discrete input circuit

Mic EIN (22 Hz-22 kHz) @ 50 Ω: 132 dB, A-weighted

Frequency response Gain +10 dB: 10 Hz to 150 kHz

Frequency response Gain +60 dB: 20 Hz to 70 kHz

Gain range: +10 dB to +60 dB

Max input level @ +10 dB Gain: +12 dBu

Input Impedance: 2 kΩ balanced

Distortion (THD + N) 1 kHz @ +10 dB Gain: 0.005%

Mono Line Inputs

1/4" TRS connector balanced

Impedance: 22 kΩ balanced, 10 kΩ unbalanced

Gain range: -10 dB to +40 dB

Max input level @ 0 dB Gain: +21 dBu

Stereo Inputs
Stereo Line

1/4" TRS connector balanced

Frequency response: 20 Hz to 200 kHz

Impedance: 22 kΩ balanced, 10 kΩ unbalanced

Max input level @ 0 dB Gain: +21 dBu

STREAM Inputs (Analog)

RCA connector unbalanced

Impedance: 10 kΩ unbalanced

Max input level: 10 dBu

EQUALIZER
Low

80 Hz/±15 dB

Mid

2.5 kHz/±15 dB

High

12 kHz/±15 dB

Main, Monitor & FX Send Outputs
Type

1/4" TRS connector impedance-balanced

Impedance

120 Ω

Max output leve

21 dBu

Phones Out
Type

1/4" TRS connector unbalanced

Impedance

23 Ω

Max output level

19 dBu/150 Ω

STREAM out (Analog)
Type

RCA connector unbalanced

Impedance

1 kΩ unbalanced

Max output level

10 dBu

Main Mix noise
Main Mix @ -∞

-109 dBu A-weighted

Channel @ -∞

-109 dBu A-weighted

USB
Type

Type-B connector

USB Audio Data

48 kHz 16 bit

UAC2 Class Compliant

stereo in/out

Power Supply
Power Consumption

12 W

Adaptor input

100 - 240 V~, 50/60 Hz, 0.5 A

Adaptor output

18 V DC 1.0 A

Warranty

3 Years Warranty
